Tripp Lite by Eaton UPS SmartPro 208 & 120V 5kVA 3.75kW Line-Interactive Sine Wave UPS 3U Extended Run Network Card Options USB DB9

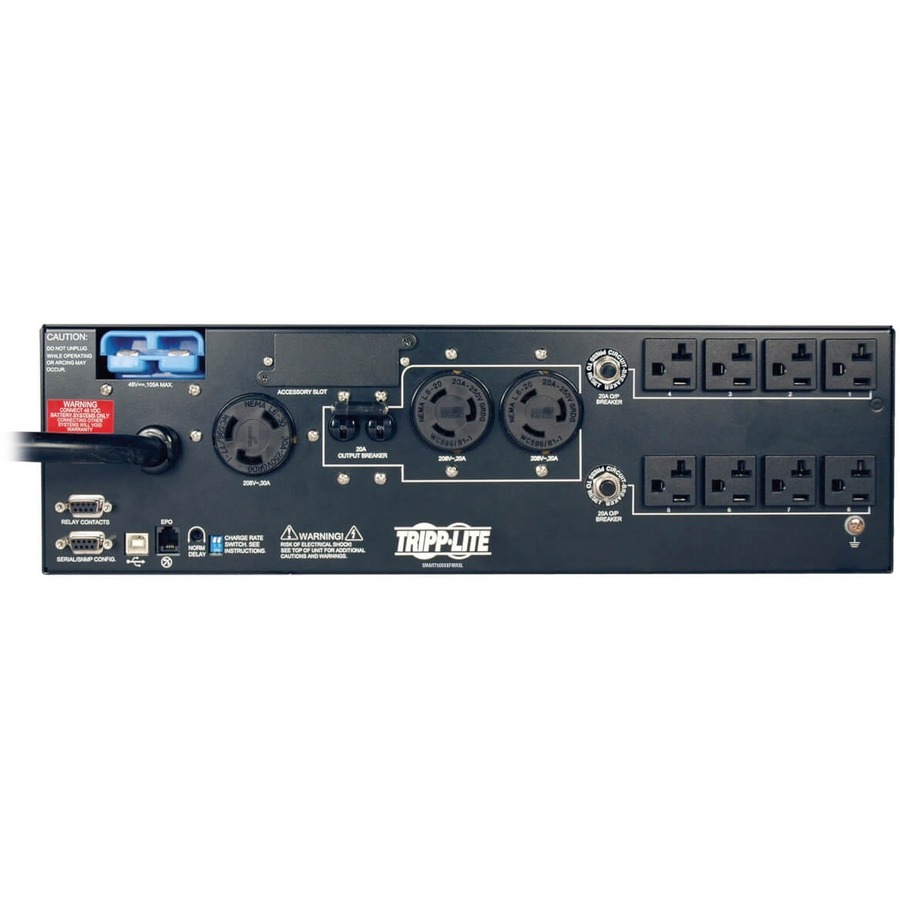

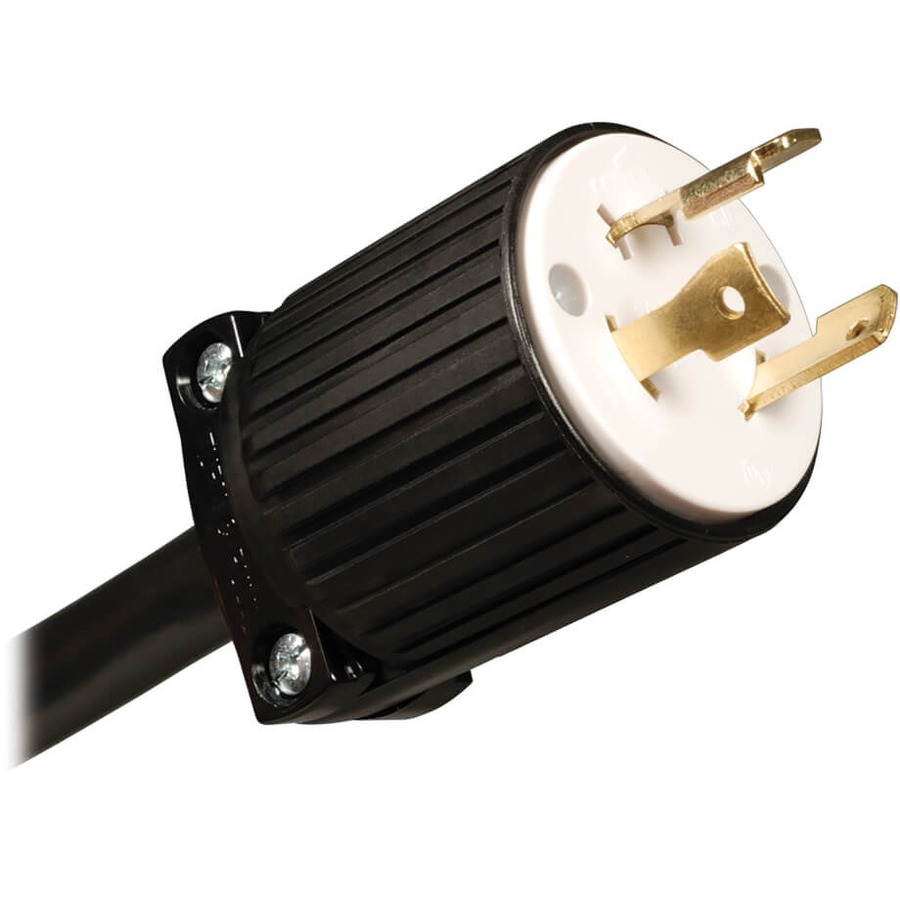

Tripp Lite 5kVA Smart RM UPS. 5000VA line-interactive UPS for server, network and telecommunications equipment. UPS with internal batteries requires 3 rack spaces installed. Accepts 208V nominal input voltage. Simultaneous 208 & 120V output. Corrects brownouts and overvoltages from 167V to 260V. Sine wave output. Maintains battery-derived AC output during blackouts and severe voltage fluctuations. Expandable runtime with optional external battery packs. 11 output receptacles. NEMA L6-30P input connection with support for user-supplied 50A or hardwire input. Network-grade AC surge and noise suppression. Network management interfaces include USB, DB9 serial and SNMPWEBCARD slot. Supports simultaneous detailed monitoring of equipment load levels, self-test data and utility power conditions via all network interfaces simultaneously. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface. Integrated 8-bank switched PDU. 3-stage metered current monitoring and battery charge LEDs. Utility power and voltage regulation LEDs. Audible alarm. Self-test. 4-post rack mounting accessories included; 2-9USTAND and 2POSTRMKITWM accessories available. Field-replaceable, hot-swappable internal batteries and battery packs.

• NEMA L6-30R
• NEMA L6-20R
• NEMA 5-15/20R

• 1 x NEMA L6-30R
• 2 x NEMA L6-20R
• 8 x NEMA 5-15/20R

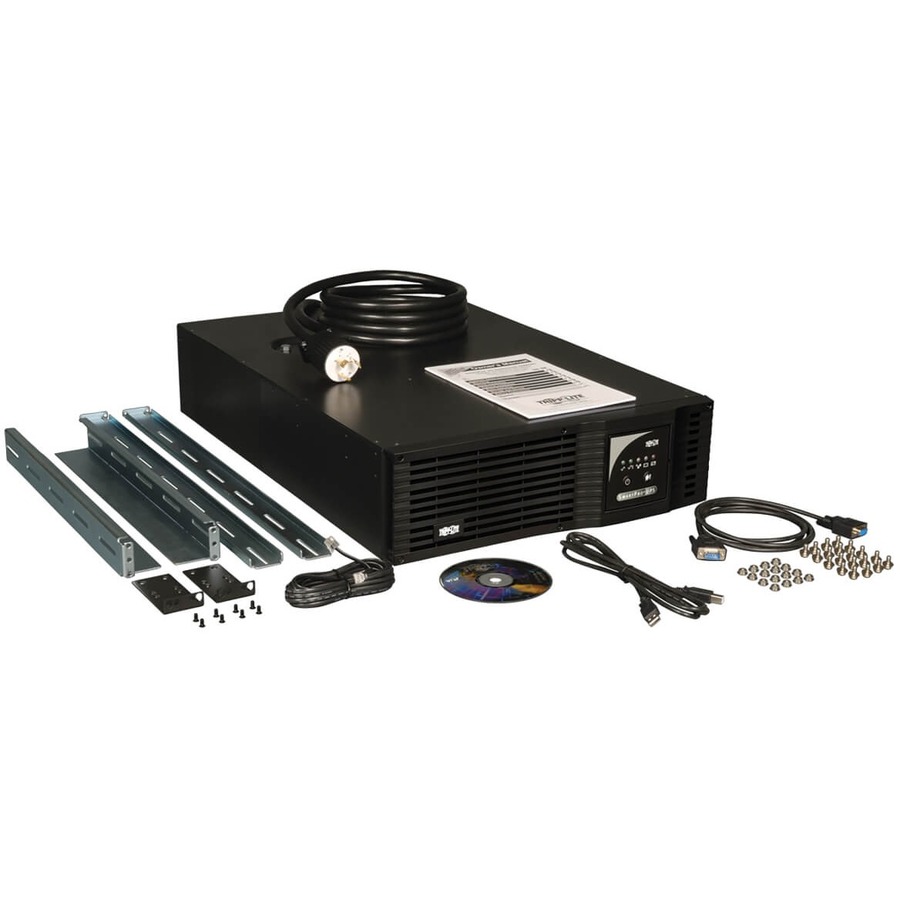

• SmartPro Series SMART5000XFMRXL 5000VA Tower/Rack Mountable UPS
• SMART 5000XFMRXL UPS System
• PowerAlert Software and Cabling
• Mounting hardware for 4-post rackmount installation
• Warranty information
• Instruction manual

• Line Mode: Sine wave line voltage 208V & 120V (+/-10%)
• Battery Mode: 208V & 120V (+/-5%)

• Tested to UL1778 (USA)
• CSA C22.2 No. 107.3 (Canada)
• NOM (Mexico)
• Class A (emissions)
