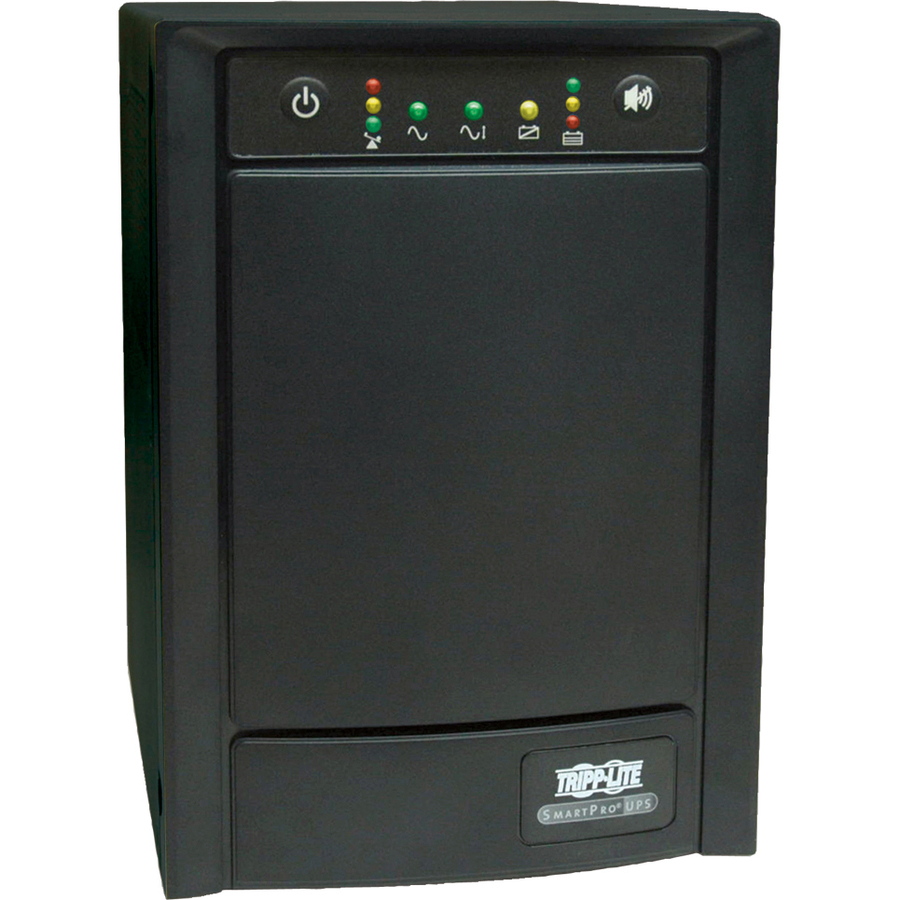

Tripp Lite by Eaton UPS SmartPro 120V 1.05kVA 650W Line-Interactive Sine Wave UPS Tower Network Card Options USB DB9 8 Outlets

Protects Mission-Critical Equipment

• Provides fully regulated sine wave AC output for point-of-sale applications, VoIP systems and small business networks
• Audible alarm signals loss of utility power, low battery or overload
• 8 NEMA 5-15R outlets
• 6 ft. power cord with 120V NEMA 5-15P input
• 690-joule surge suppression rating

Reliable Battery Backup

• Supports half load up to 19 min. and full load up to 7 min.
• Internal batteries designed for hot-swap field replacement
• 95% line-power efficiency rating saves money in energy costs
• Cold-start capability enables turn-on in battery mode during blackouts

Automatic Voltage Regulation (AVR)

• Maintains selectable 100V, 110V or 120V nominal output over input range of 83V-145V without using battery power

EMI/RFI Line Noise Filtering

• Removes electromagnetic and radio frequency interference that can disrupt or damage equipment's performance

LED Indicators

• Front-panel LEDs signal indicate line power, battery power, overload, voltage regulation and battery status

Network Management Cards

• Compatible with Tripp Lite UPS management card options WEBCARDLX, SNMPWEBCARD and RELAYIOCARD

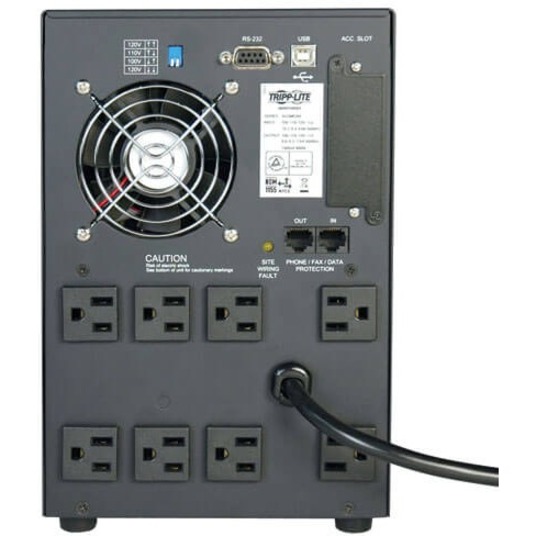

Communication Ports

• USB & Serial ports enable data-saving unattended shutdown when used with Tripp Lite's PowerAlert software, available via FREE download from www.tripplite.com/poweralert

Telephone/Network Jacks

• Protect against power surges over telephone/DSL or network Ethernet lines

• 100 V AC
• 110 V AC
• 120 V AC

• 100 V AC
• 110 V AC
• 120 V AC

• On Battery
• Overload

• SMART1050SLT SmartPro 120V 1.05kVA 650W Line-Interactive Sine Wave UPS
• USB cable
• DB9 cable
• PowerAlert software
• Owner's manual

• SMART1050SLT line-interactive UPS offers battery derived sine wave AC output during power outages, voltage regulation during brownouts and overvoltages, plus network-grade AC surge suppression
• 1050VA / 650 watt power handling capability with full-time sine wave output offers guaranteed compatibility with networking, telecom and other sensitive electronic devices
• Large internal batteries offer runtimes of 19 minutes at half load (525VA / 325 watts) and 7 minutes at full load (1050VA / 650 watts)
• Automatic Voltage Regulation (AVR) circuits maintain user-selectable 100, 110, 120 or 127V nominal output over an input voltage range of 91-145V
• Includes 8 fully-protected NEMA 5-15R output receptacles arranged in a single load bank that can be powered off and back on again via software interface
• PowerAlert UPS monitoring and unattended shutdown software enables configurable network broadcast messaging, pager & email notification, event logging and running user-defined script commands
• Offers simultaneous monitoring of up to 3 directly-connected devices through included USB, DB9 and SNMP* interfaces (*requires optional SNMPWEBCARD), or the monitoring of any number of additional UPS systems over IP with included PowerAlert monitoring software. Free PowerAlert enterprise managment software is also available for select opportunities
• Communications ports support messaging of UPS and line power status, including on-battery, low-battery, power restored, AC line voltage, DC battery voltage and remaining battery capacity
• Supports timed inverter shutoff after unattended shutdown, activate self-test and UPS output power control for scheduled or immediate reboot of connected equipment
• Supports Tripp Lite's WatchDog software application to restore unresponsive programs by systematically restarting applications, operating systems and ultimately rebooting completely locked computers by momentarily switching UPS power off and back on again (requires optional WATCHDOGSW)
• 15 LEDs offer continuous detailed status information of UPS operating parameters and site power quality
• Hot-swappable batteries allow on-site battery replacement without powering off connected equipment
• UL (USA), cUL (Canada), NOM (Mexico), FCC Class B (Emissions) Listed
• 2 year warranty with up to
• 250,000 connected equipment insurance
