Tripp Lite by Eaton UPS TAA SmartPro 120V 2.2kVA 1.92kW Line-Interactive Sine Wave UPS 3U 120/230V input Network Card Options USB DB9

Name: Tripp Lite by Eaton UPS TAA SmartPro 120V 2.2kVA 1.92kW Line-Interactive Sine Wave UPS 3U 120/230V input Network Card Options USB DB9
Brand: TRIPP LITE
SKU: DP7933
Price: 1535.97 USD
Availability: InStock

TRIPP LITE

PCN#

DP7933

MFG#

SM2200RMDVTAA

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$1,535.97

Extended & Accidental Damage Protection Plans Available Details

2-Year $145.99

3-Year $194.99

Estimated Shipment:

Product Highlights:

3U Rack/Tower
4.50 Hour Recharge
12 Minute Stand
by
110 V AC, 220 V AC Input
120 V AC Output
Serial Port
USB
4 x NEMA 5
15/20R, 4 x NEMA 5
15R
TAA Compliant

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 175 lbs.

Tripp Lite by Eaton TAA SmartPro 120V 2.2kVA 1.92kW Line-Interactive Sine Wave UPS, 3U, 120/230V input, Network Card Options, USB, DB9 Battery Backup

Overview

Tech Specs

Specifications

Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	SM2200RMDVTAA
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Line	SmartPro
Product Model	SM2200RMDVTAA

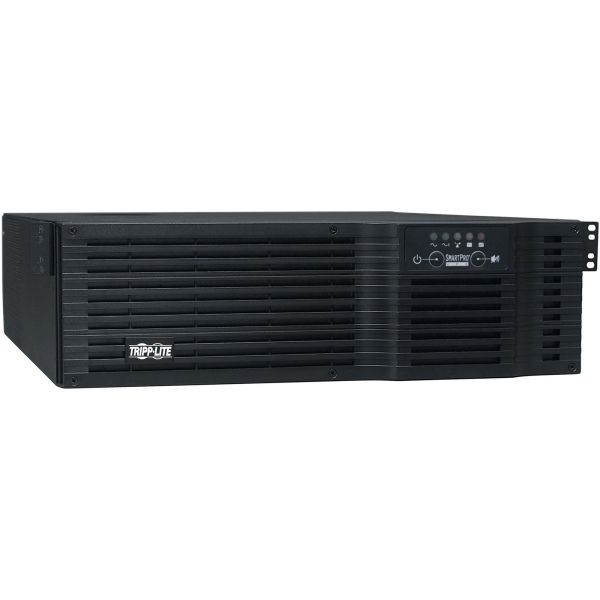

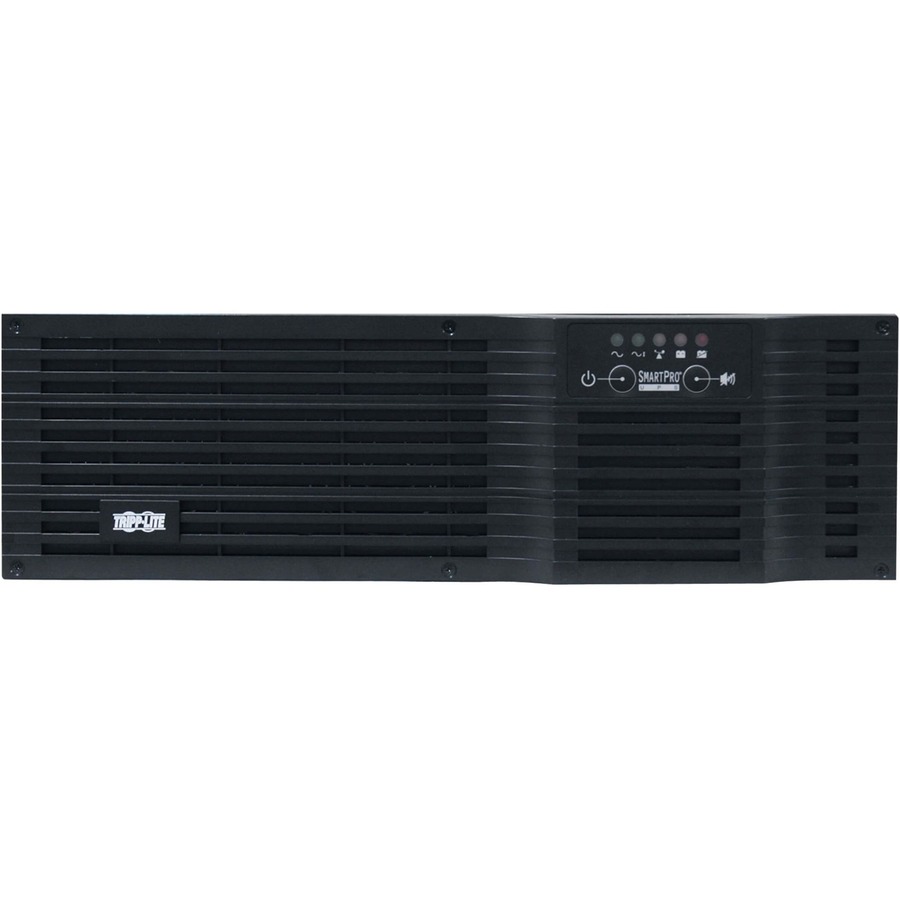

Product Name	SmartPro SM2200RMDVTAA 2200 VA Tower/Rack Mountable UPS
Marketing Information	Tripp Lite's dual input voltage SM2200RMDVTAA line interactive UPS system maintains 120V nominal output when powered by North American 120V or International 230V input. 3U rack / tower form factor with an installed depth of only 22.5 inches. Expandable battery runtime with optional BP48V24-2U and BP48V60RT3U external battery packs. Includes C20 power inlet with set of 4 international cordsets and both NEMA 5-15R and 5-15/20R output receptacles. Network-grade AC surge and noise suppression. Network management interfaces support simultaneous communications via USB port, DB9 serial port and SNMPWEBCARD slot. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Integrated 2-bank programmable PDU switching supports load shedding and remote-reboot of up to 2 individual connected devices. 3-stage metered current monitoring and battery charge status LEDs. 95% efficiency in line power mode.
Product Type	Line-interactive UPS

Technical Information

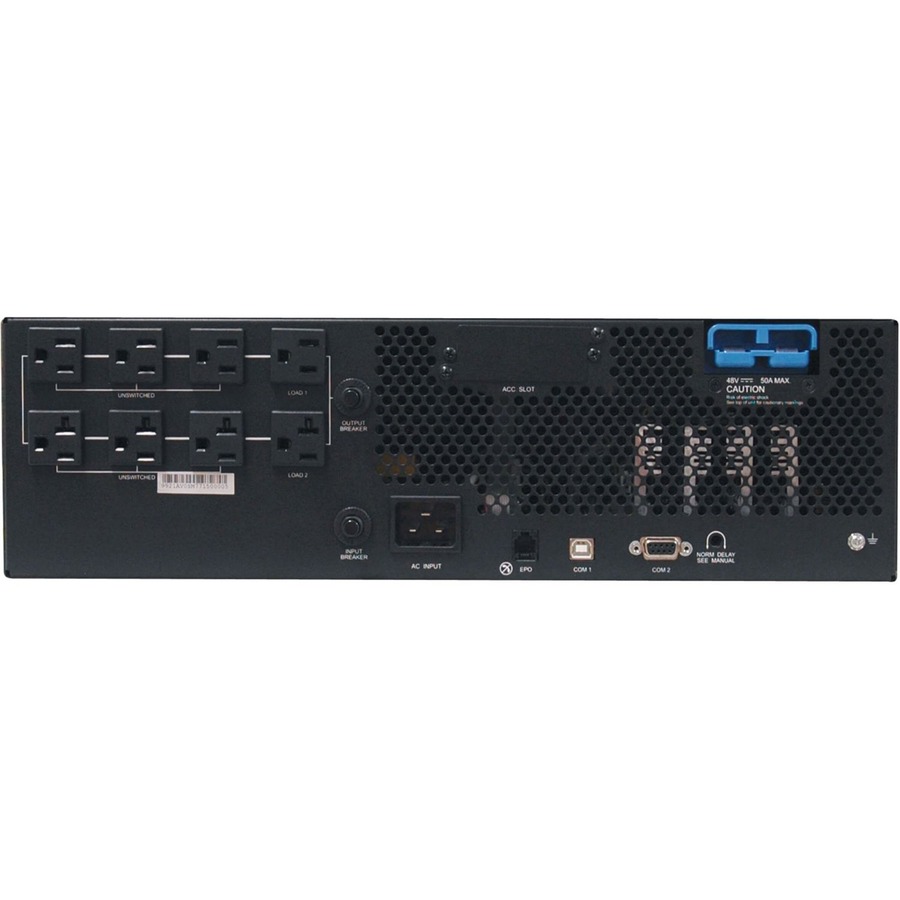

Receptacle Type	NEMA 5-15/20R NEMA 5-15R
Receptacle Detail	4 x NEMA 5-15/20R 4 x NEMA 5-15R
Emergency Power OFF	Yes
Transfer Time	4 ms

Power Description

Load Capacity (VA)	2200 VA
Load Capacity (Watt)	1920 W
Input Voltage	110 V AC 220 V AC
Input Current	16 A
Output Voltage	120 V AC

Management

Network Management

SNMP Manageable

Interfaces/Ports

Serial Port	Yes
USB	Yes

Battery Information

Backup/Run Time (Full Load)	12 Minute
Backup/Run Time (Half Load)	30 Minute
Typical Battery Recharge Time	4.50 Hour
Hot Swappable	Yes

Physical Characteristics

Height	5.3"
Width	17.5"
Depth	25.3"
Rack Height	3U
Form Factor	Rack/Tower
Weight (Approximate)	104.25 lb

Miscellaneous

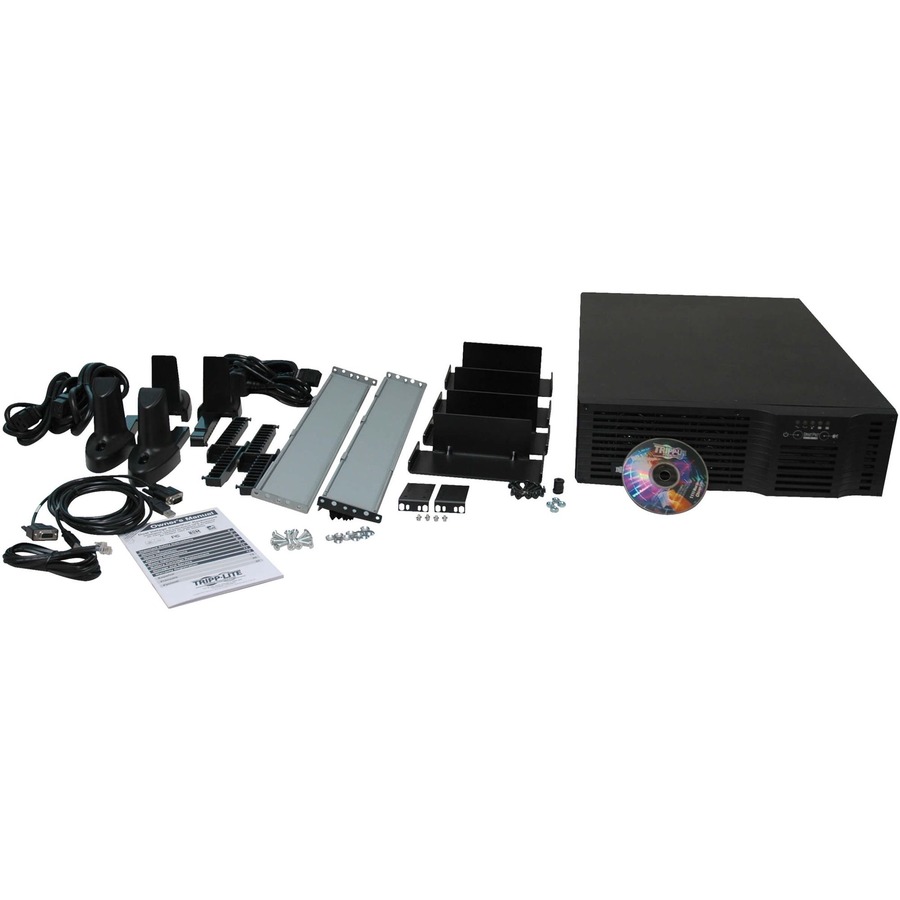

Package Contents	SmartPro SM2200RMDVTAA 2200 VA Tower/Rack Mountable UPS 5 x International Input Power Cables USB Cable Serial Cable EPO Cable PowerAlert Software CD Tower Stand Kit 4 Post 19 inch Rackmount Mounting Kit 2 Post 19 inch Rackmount Mounting Kit User Manual
Additional Information	Input Receptacle: C20
Certifications & Standards	UL1778 FCC Part 15 Category A TAA Compliant
Software Included	PowerAlert Software
Environmentally Friendly	Yes
Country of Origin	Taiwan
TAA Compliant	Yes

Warranty

Limited Warranty

2 Year
