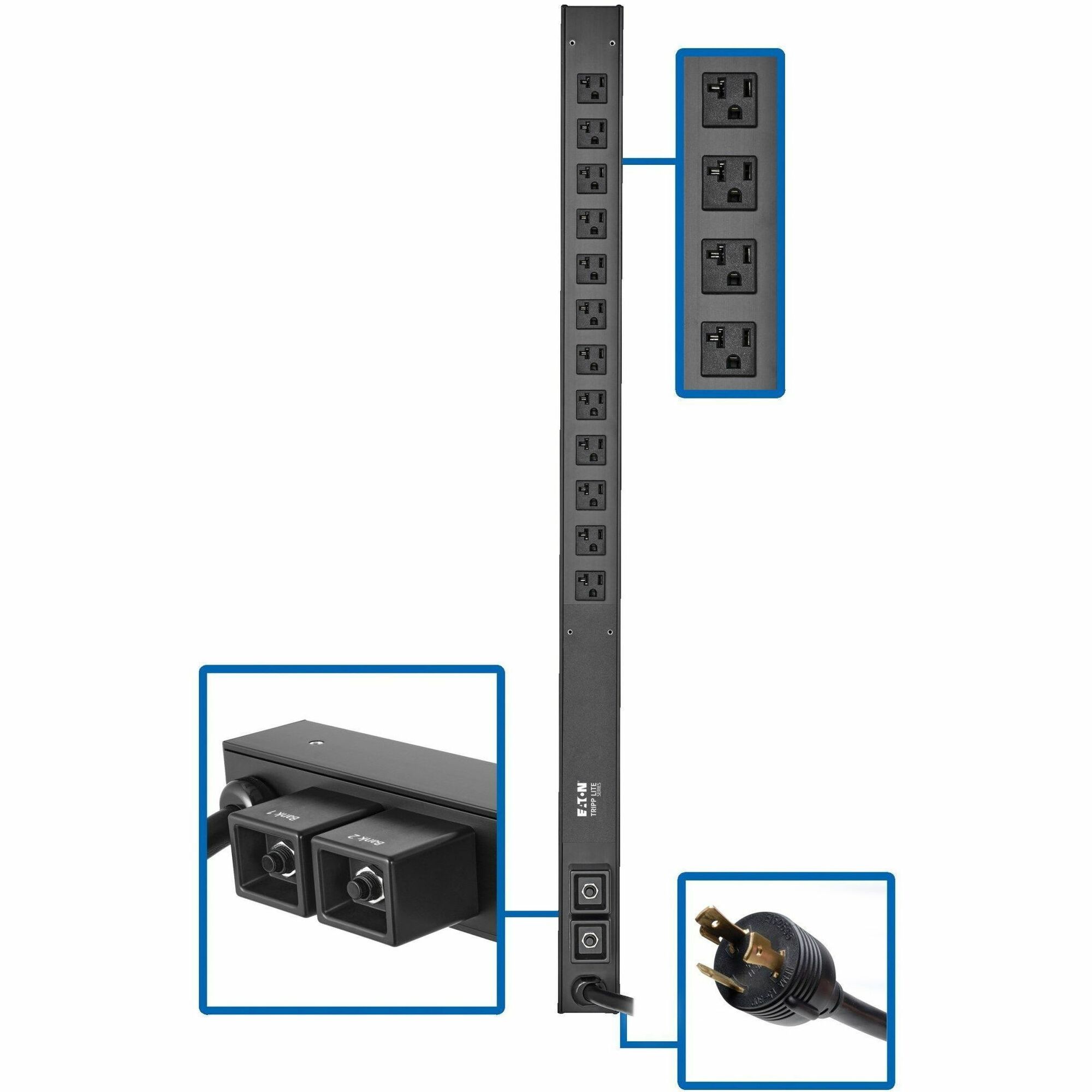

Tripp Lite by Eaton PDU 2.9kW 120V Single-Phase Basic PDU - 12 NEMA 5-15/20R Outlets L5-30P Input 10 ft. Cord 36 in. 0U Rack-Mount

Name: Tripp Lite by Eaton PDU 2.9kW 120V Single-Phase Basic PDU - 12 NEMA 5-15/20R Outlets L5-30P Input 10 ft. Cord 36 in. 0U Rack-Mount
Brand: EATON
SKU: 8JT040
Price: 321.04 USD
Availability: InStock

EATON

PCN#

8JT040

MFG#

PDUV30-36

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$321.04

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

Basic
NEMA L5
30P
12 x NEMA 5
15/20R
120 V AC
0U
Vertical
Rack
mountable

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 11 lbs.

Eaton Tripp Lite Series 2.9kW 120V Single-Phase Basic PDU - 12 NEMA 5-15/20R Outlets, L5-30P Input, 10 ft. Cord, 36 in. 0U Rack-Mount

Overview

Tech Specs

Specifications

Manufacturer	Eaton Corporation
Manufacturer Part Number	PDUV3036
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite by Eaton
Product Model	PDUV30-36
Product Name	PDUV30-36 12-Outlet PDU
Marketing Information	Single-Phase 120V PDU Distributes Network-Grade Power to Multiple Loads This basic rack PDU (rPDU) is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for data centers, computer rooms and network closets, the PDUV30-36 features two breakered load banks, each with six 5-15/20R outlets for connecting equipment. A 10-foot cord with NEMA L5-30P input plug connects to your facility's AC power source, generator or protected UPS system to distribute power to connected loads. Up-to-Date Safety Features Protect Your Vital Equipment The switchless design helps prevent an accidental shutdown, which could lead to costly downtime. Dual 20A circuit breakers protect connected components from dangerous overloads. Versatile Installation Options Give You Plenty of Choices The 36-inch 0U PDU mounts vertically in an EIA-standard 19-inch rack using the included toolless mounting buttons or the included mounting brackets with user-supplied hardware. You may also use the brackets to secure the PDU to the underside of a counter with the addition of two user-supplied screws. Bolt-down retention brackets keep power cords organized and your rack free of clutter.
Product Type	PDU

Technical Information

PDU Type	Basic
Phase	Single Phase
Plug/Connector Type	NEMA L5-30P
Receptacle Type	NEMA 5-15/20R
Receptacle Detail	12 x NEMA 5-15/20R
Protection Type	Overload Protection
Load Capacity (Watt)	2900 W

Power Description

Input Voltage	120 V AC
Output Voltage	120 V AC
Input Current	24 A
Circuit Breaker	Yes

Physical Characteristics

Mounting Orientation	Vertical
Mount Type	Rack-mountable Wall-mountable
Placement	Under-counter
Rack Height	0U
Height	36"
Width	2.2"
Depth	3.8"
Weight (Approximate)	8 lb

Environmental Conditions

Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	104°F (40°C)
Minimum Storage Temperature	-22°F (-30°C)
Maximum Storage Temperature	122°F (50°C)

Miscellaneous

Package Contents	PDUV30-36 12-Outlet PDU 2 x Plug Retention Brackets with Installation Hardware Rack-mounting Hardware Owner's Manual
Certifications & Standards	CAN/CSA-C22.2 No. 62368-1 (Canada) NOM (Mexico) UL 62368-1
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

2 Year
