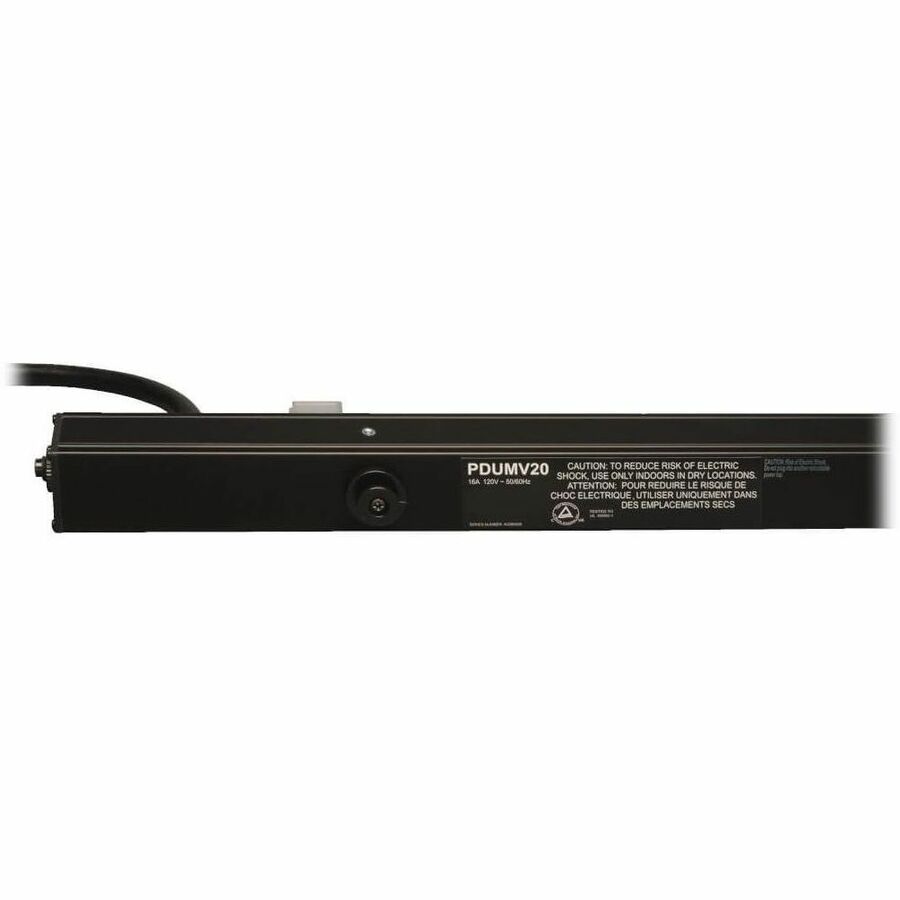

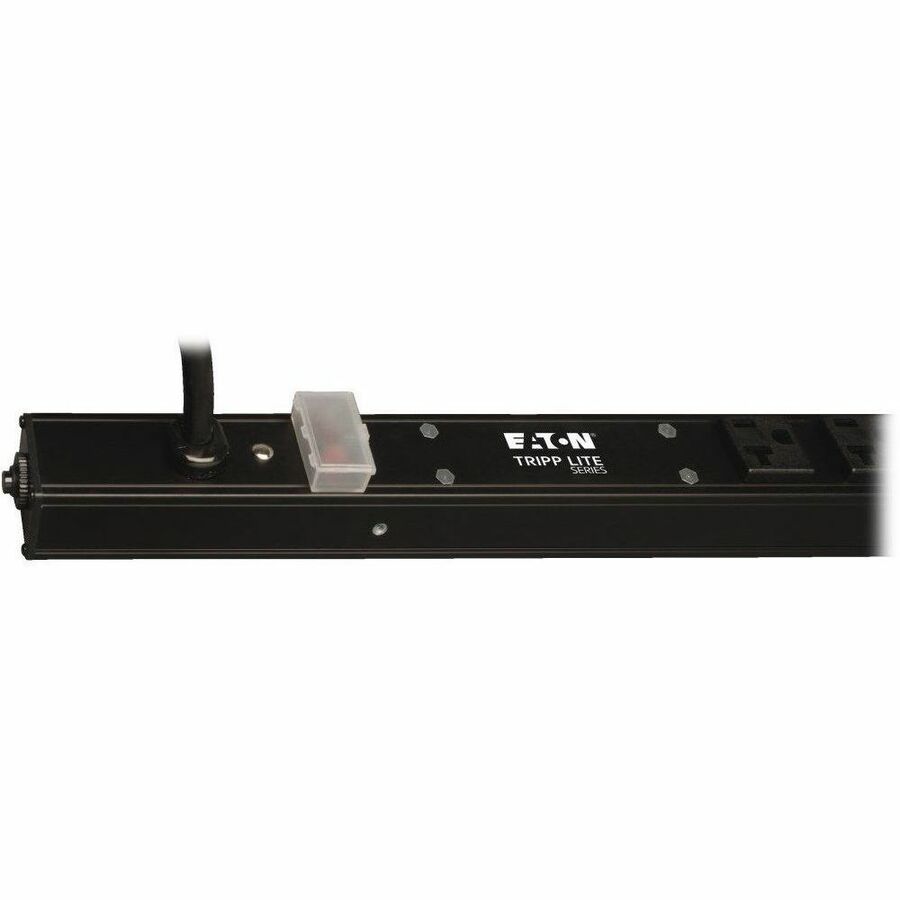

Tripp Lite by Eaton PDU 1.9kW Single-Phase Local Metered PDU 120V Outlets (28 5-15/20R) L5-20P/5-20P Adapter 15 ft. (4.57 m) Cord 0U Vertical

by
TRIPP LITE
PCN#
L81875
MFG#
PDUMV20
$180.50
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 28 x NEMA 5
  • 15/20R
  • 2.4kW

Show more

Product Condition: New and Factory Fresh
Limited Warranty2 Year
Shipping Weight: 7 lbs.
Eaton Tripp Lite Series 1.9kW Single-Phase Local Metered PDU, 120V Outlets (28 5-15/20R), L5-20P/5-20P Adapter, 15 ft. (4.57 m) Cord, 0U Vertical
Tech Specs
Specifications

Manufacturer

Tripp Lite by Eaton

Manufacturer Part Number

PDUMV20

Manufacturer Website Address

https://tripplite.eaton.com/

Brand Name

Tripp Lite by Eaton

Product Model

PDUMV20

Product Name

PDUMV20 PDU Metered 120V 20A 28 Outlet

Marketing Information

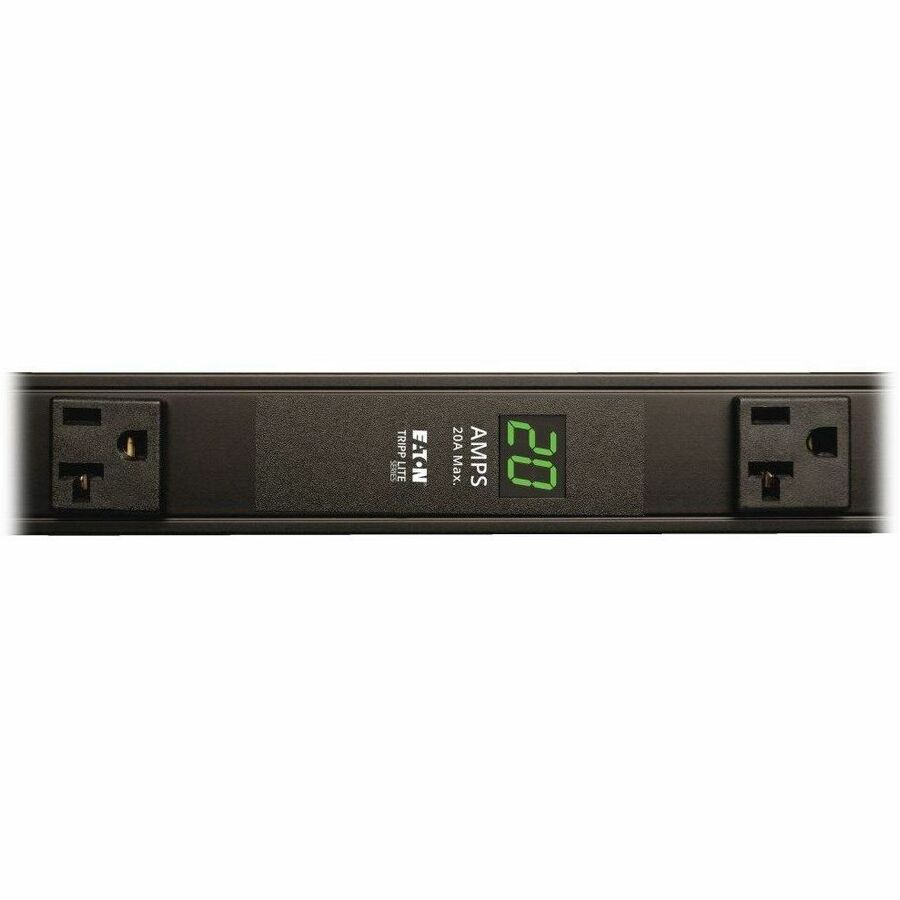

Tripp Lite single phase Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital display. Enables visual monitoring of PDU load levels to prevent overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.

Product Type

PDU
Technical Information

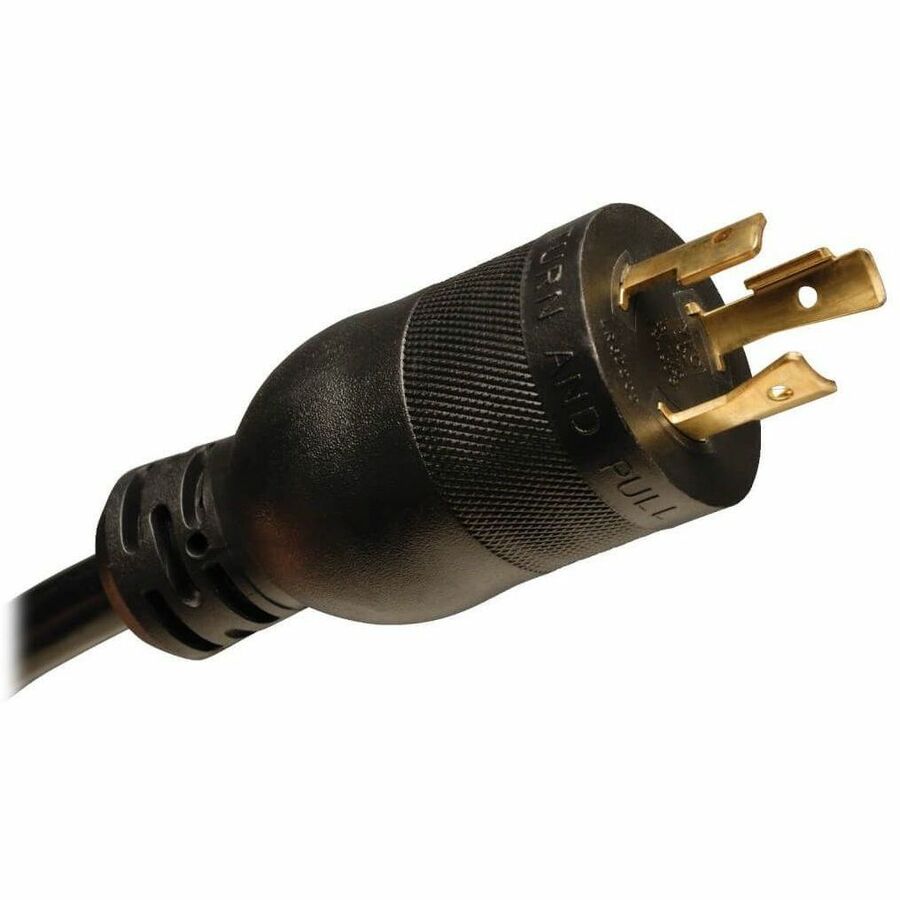

Plug/Connector Type

NEMA L5-20P

Receptacle Type

NEMA 5-15/20R

Receptacle Detail

28 x NEMA 5-15/20R

Protection Type

Overload Protection
Power Description

Input Voltage

120 V AC

Output Voltage

120 V AC

Power Rating (Watt)

2400 W

Circuit Breaker

Yes
Physical Characteristics

Mounting Orientation

Vertical

Mount Type

Rack-mountable

Height

3"

Width

60"

Depth

1.5"

Weight (Approximate)

5.20 lb
Miscellaneous

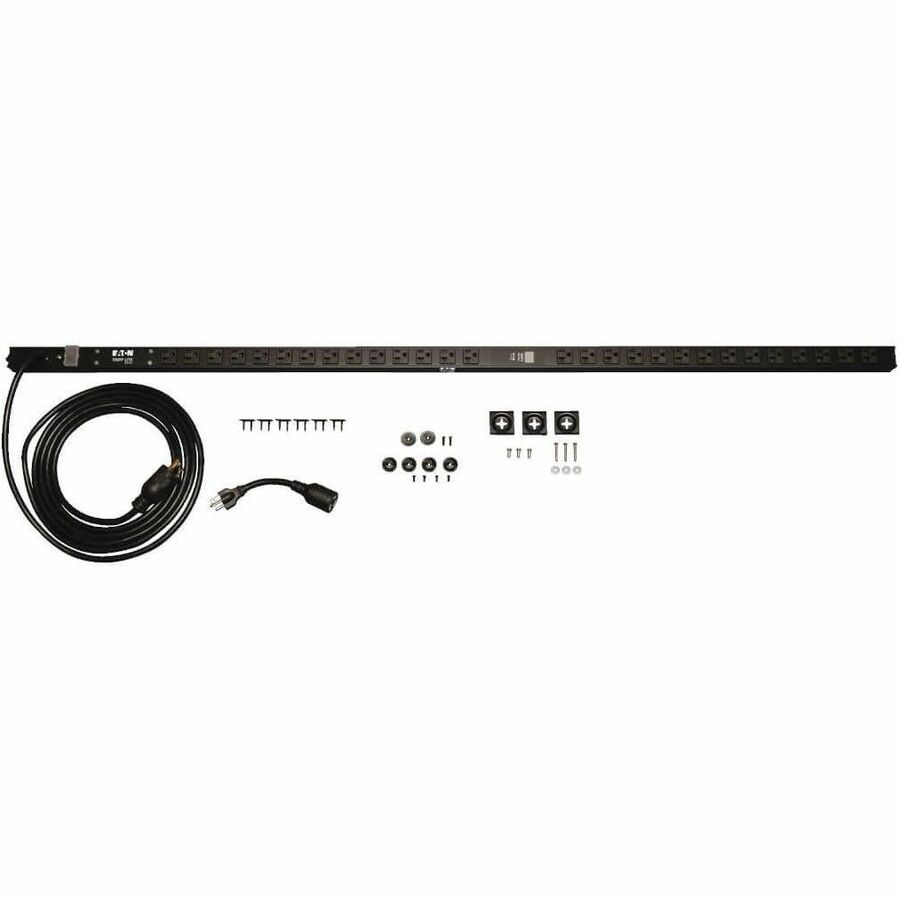

Package Contents

  • PDUMV20 PDU Metered 120V 20A 28 Outlet
  • (1) L5-20P to 5-20P plug adapter
  • Mounting hardware
  • Six protective outlet covers
  • Instruction manual with warranty information

Certifications & Standards

  • UL60950-1
  • CAN/CSA C22.2 No. 60950-1-03
  • RoHS Compliant

Country of Origin

China

Environmentally Friendly

Yes

Environmental Compliance

Restriction of Hazardous Substances (RoHS)
Warranty

Limited Warranty

2 Year
