Tripp Lite by Eaton PDU 2.9kW Single-Phase Monitored PDU - 120V Outlets (16 5-15/20R) L5-30P 10 ft. (3.05 m) Cord 2U Rack-Mount TAA

Name: Tripp Lite by Eaton PDU 2.9kW Single-Phase Monitored PDU - 120V Outlets (16 5-15/20R) L5-30P 10 ft. (3.05 m) Cord 2U Rack-Mount TAA
Brand: TRIPP LITE
SKU: GT0816
Price: 593.32 USD
Availability: InStock

TRIPP LITE

PCN#

GT0816

MFG#

PDUMNH30

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$593.32

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Free Shipping

Estimated Shipment:

Product Highlights:

16 x NEMA 5
15/20R
2U
Rack
mountable

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 16 lbs.

Eaton 2.9kW Single-Phase Monitored PDU - 120V Outlets (16 5-15/20R), L5-30P, 10 ft. (3.05 m) Cord, 2U Rack-Mount, TAA

Overview

Tech Specs

Specifications

Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	PDUMNH30
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Series	Monitored
Product Model	PDUMNH30
Product Name	Monitored PDUMNH30 16-Outlets PDU
Marketing Information	2.9kW Single-Phase Monitored PDU with LX Platform Interface Tripp Lite's PDUMNH30 distributes and monitors single-phase 120V power to connected rack equipment in data centers, network closets, server rooms, computer rooms and other applications requiring network-grade power. Its built-in network interface allows real-time remote monitoring of voltage, frequency and load levels to prevent overloads that cause expensive downtime. It features 16 NEMA 5-15/20R outlets and a 10-foot (3-meter) power cord with NEMA L5-30P plug, which connects the PDU to a compatible AC power source, generator or protected UPS system. Built-In LX Platform Network Management Interface Card The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities, including temperature and humidity conditions. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. DHCP/Manual configuration lets you assign network settings to the card automatically, reducing the need for manual configuration. Automated alerts help prevent accidental overloads, power loss and downtime. Digital Load Meter The easy-to-read two-character digital LED meter displays output load levels in three segments: breakered bank 1, breakered bank 2 and total PDU output. Monitoring the individual breakered load banks helps ensure proper balance across the two output load banks. Monitoring total PDU output helps prevent PDU and supply circuit overloads that cause downtime. Optimized for Demanding Applications The all-metal housing is designed to endure in busy, demanding IT and industrial environments. The included cord retention brackets for the outlets help prevent connected equipment from becoming accidentally disconnected. Real-time clock backup maintains the time of day and date, even if the PDU is shut down and unpowered. Versatile Installation Options This server rack PDU features a 2U horizontal rack-mount form factor. Mounting flanges support installation in 2- and 4-post racks, with additional support for wall-mount and under-counter installation. Mounting ears are reversible for front- or rear-facing rack-mount installation. TAA-Compliant for GSA Schedule Purchases The PDUMNH30 monitored power distribution unit is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. 2-Year Warranty and Environmentally Responsible Design This monitored PDU comes with a 2-year limited warranty. It's manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite's commitment to environmental responsibility.
Product Type	PDU

Technical Information

PDU Type	Monitored
Plug/Connector Type	NEMA L5-30P
Receptacle Type	NEMA 5-15/20R
Receptacle Detail	16 x NEMA 5-15/20R
Protection Type	Overload Protection

Power Description

Input Voltage	120 V AC
Output Voltage	120 V AC

Management

Protocols:

HTTP
HTTPS
SMTP
SNMPv1
SNMPv2
Telnet
FTP
DHCP
BOOTP
NTP

Physical Characteristics

Mount Type	Rack-mountable
Rack Height	2U
Height	3.5"
Width	17.5"
Depth	12.5"
Weight (Approximate)	13.80 lb

Miscellaneous

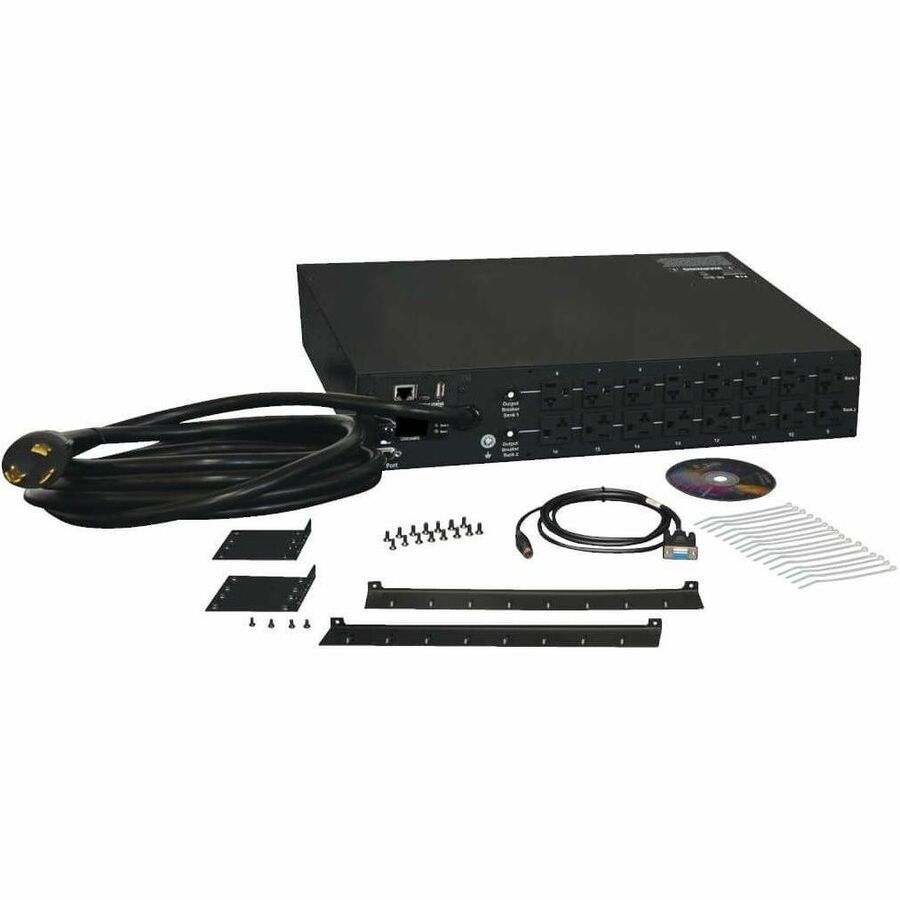

Package Contents	Monitored PDUMNH30 16-Outlets PDU Plug Retention Plates Rack Mounting Brackets Owner's Manual
Country of Origin	Taiwan
TAA Compliant	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

2 Year
