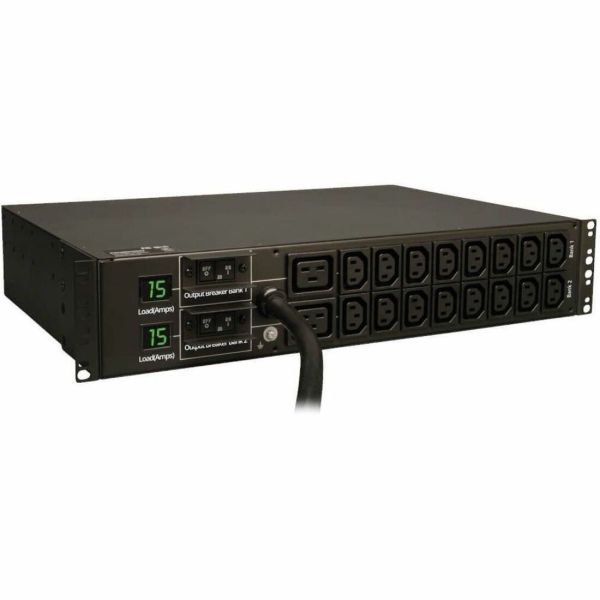

Tripp Lite by Eaton PDU 5.5kW Single-Phase Local Metered PDU 208/230V Outlets (16 C13 & 2 C19) L6-30P 12 ft. (3.66 m) Cord 2U Rack-Mount TAA

Name: Tripp Lite by Eaton PDU 5.5kW Single-Phase Local Metered PDU 208/230V Outlets (16 C13 & 2 C19) L6-30P 12 ft. (3.66 m) Cord 2U Rack-Mount TAA
Brand: TRIPP LITE
SKU: KD6784
Price: 357.52 USD
Availability: InStock

TRIPP LITE

PCN#

KD6784

MFG#

PDUMH30HV

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$357.52

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

2 x IEC 60320 C19, 16 x IEC 60320 C13
2UHorizontal Rackmount?

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 16 lbs.

Eaton Tripp Lite Series 5.5kW Single-Phase Local Metered PDU, 208/230V Outlets (16 C13 & 2 C19), L6-30P, 12 ft. (3.66 m) Cord, 2U Rack-Mount, TAA

Overview

Tech Specs

Specifications

Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	PDUMH30HV
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Series	Metered
Product Model	PDUMH30HV
Product Name	Metered PDUMH30HV 18-Outlets PDU

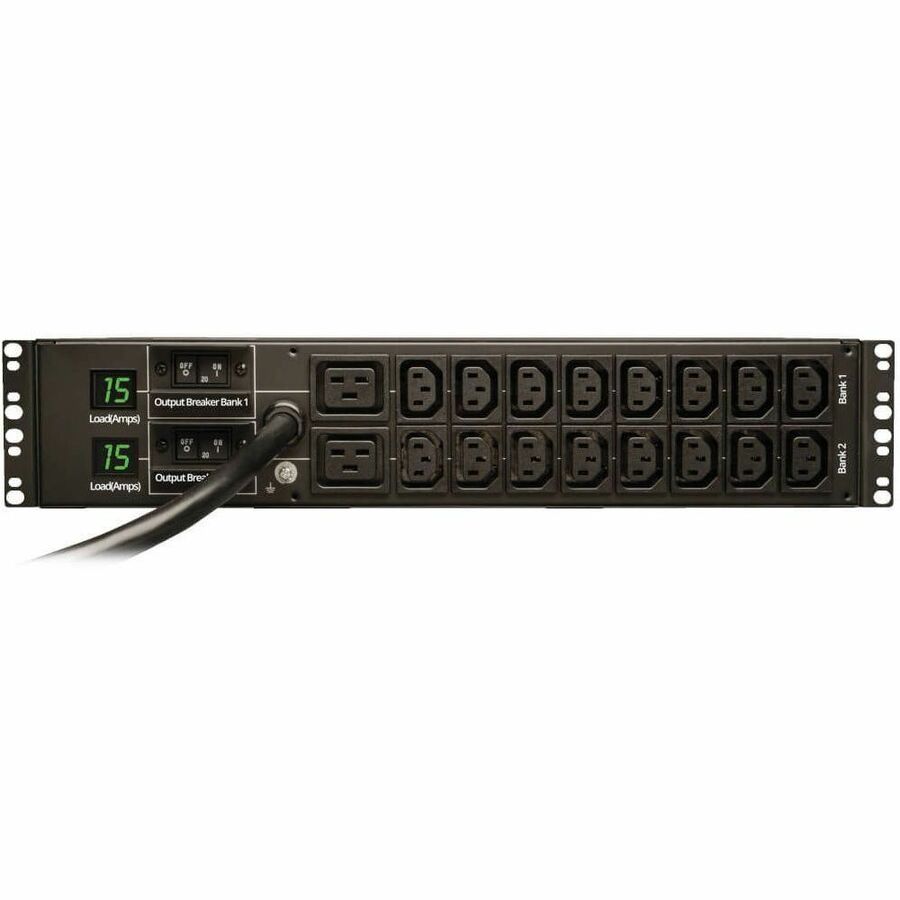

Marketing Information	PDUMH30HV horizontal 2U metered rack PDU supports 30A maximum capacity at 208/240V (agency derated to 24A continuous). Includes 12 ft / 3.6m attached line cord with L6-30P input plug and 18 output receptacles (16 C13, 2 C19). Outlets are arranged in two separately breakered 9 outlet load banks. Set of two visual current meters tracks the output current of each load bank separately. Supports 2U rackmount installation in 19 inch racks. Included cord retention brackets keeps vital network equipment plugged in and continuously powered.
Product Type	PDU

Technical Information

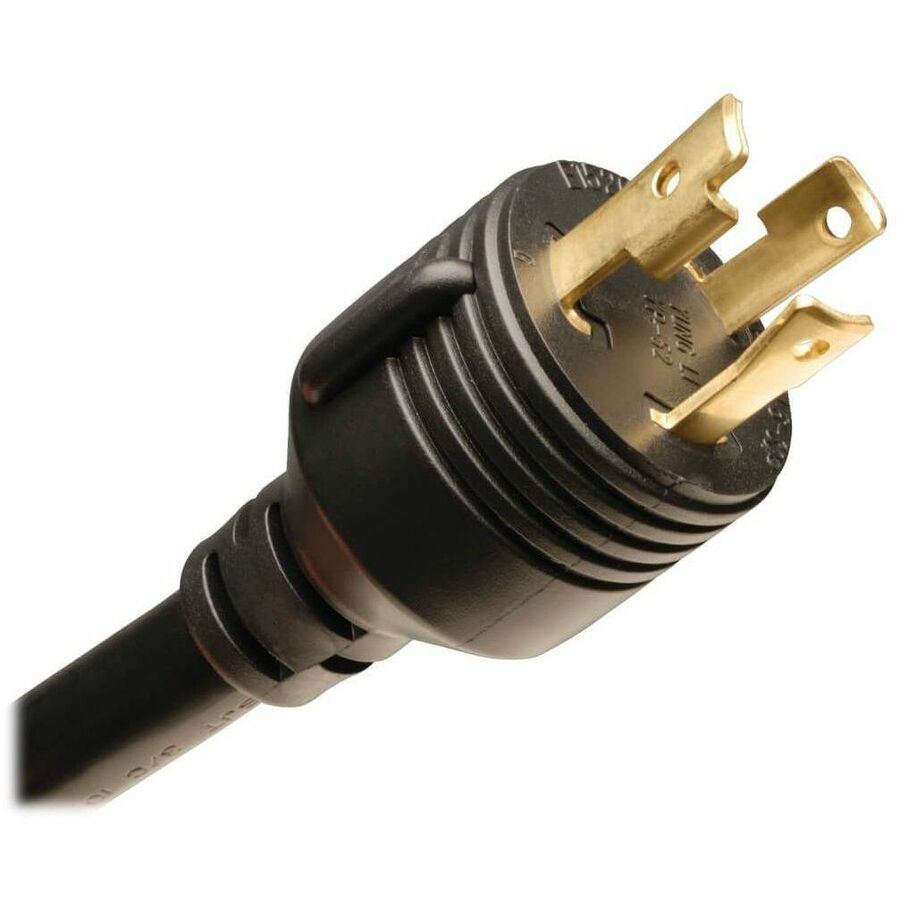

Plug/Connector Type	NEMA L6-30P
Receptacle Type	IEC 60320 C19 IEC 60320 C13
Receptacle Detail	2 x IEC 60320 C19 16 x IEC 60320 C13
Protection Type	Overload Protection

Power Description

Input Voltage	230 V AC
Input Voltage Range	208 V AC - 240 V AC
Output Voltage	208 V AC 240 V AC

Physical Characteristics

Mounting Orientation	Horizontal
Mount Type	Rack-mountable
Rack Height	2U
Height	3.5"
Width	17.5"
Depth	12.5"
Weight (Approximate)	13.70 lb

Miscellaneous

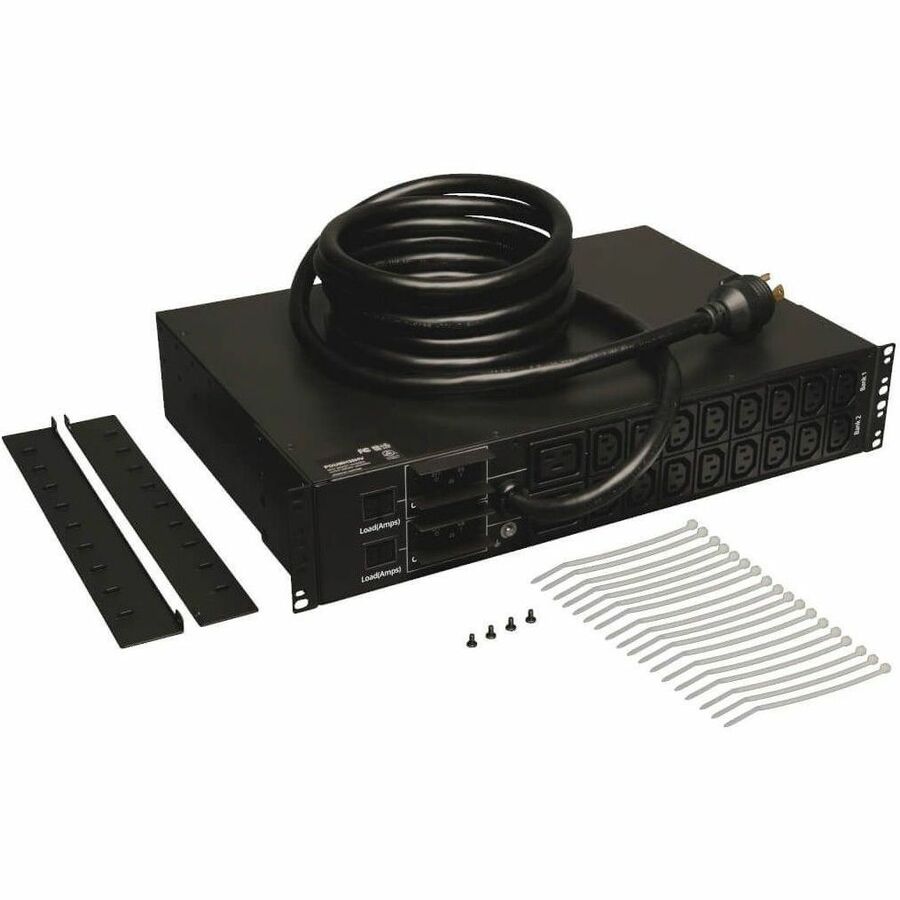

Package Contents	Metered PDUMH30HV 18-Outlets PDU Mounting Brackets Plug Retention Plates User Manual
Additional Information	TAA Compliant
Country of Origin	Taiwan
TAA Compliant	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

2 Year
