Tripp Lite by Eaton PDU 2.9kW Single-Phase Local Metered Automatic Transfer Switch PDU 2 120V L5-30P Inputs 24 5-15/20R & 1 L5-30R Outputs 2U TAA

Name: Tripp Lite by Eaton PDU 2.9kW Single-Phase Local Metered Automatic Transfer Switch PDU 2 120V L5-30P Inputs 24 5-15/20R & 1 L5-30R Outputs 2U TAA
Brand: TRIPP LITE
SKU: KU6721
Price: 638.07 USD
Availability: InStock

TRIPP LITE

PCN#

KU6721

MFG#

PDUMH30AT

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$638.07

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Free Shipping

Estimated Shipment:

Product Highlights:

24 x NEMA 5
15/20R, 1 x NEMA L5
30R
2UHorizontal Rackmount, Wall Mountable

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 18 lbs.

Eaton Tripp Lite Series 2.9kW Single-Phase Local Metered Automatic Transfer Switch PDU, 2 120V L5-30P Inputs, 24 5-15/20R & 1 L5-30R Outputs, 2U, TAA

Overview

Tech Specs

Specifications

Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	PDUMH30AT
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Series	Metered
Product Model	PDUMH30AT
Product Name	Metered PDUMH30AT 25-Outlets PDU

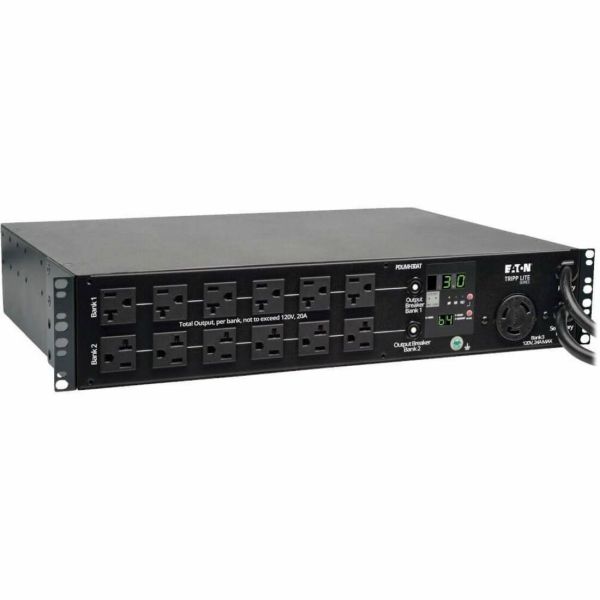

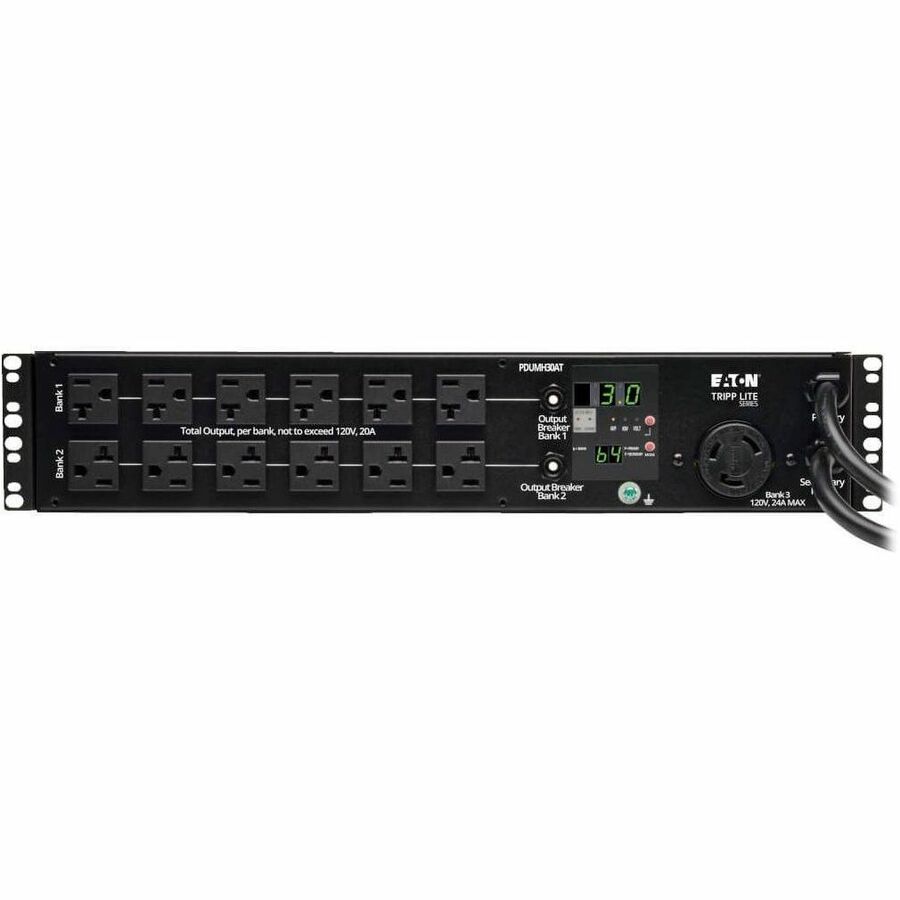

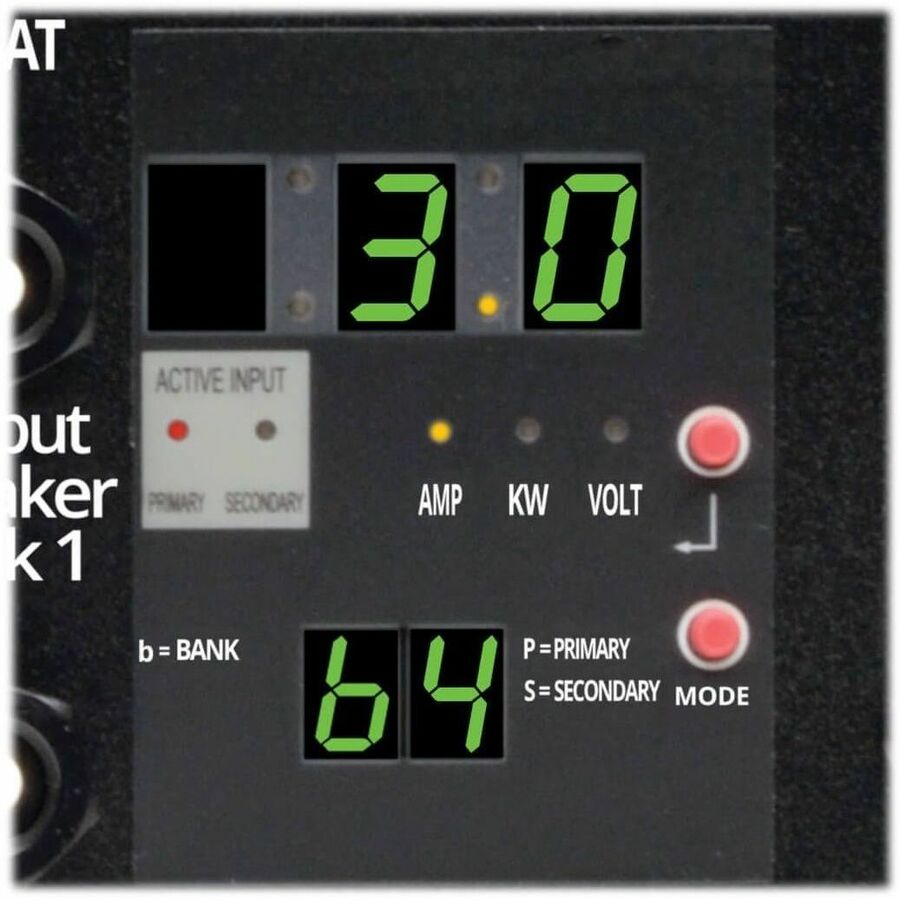

Marketing Information	PDUMH30AT Metered ATS / Auto-Transfer Switch offers 120V 30A dual-input power distribution and visual current metering in a 2U horizontal rackmount installation format. Set of two NEMA L5-30P line cords enable separate primary and secondary input connections. Includes 25 built-in outputs (24 NEMA 5-15/20R and 1 L5-30R). Digital current metering with push-button display control tracks output power consumption in 4 segments: Bank 1 (12 upper 5-15/20R outlets), Bank 2 (12 lower 5-15/20R outlets), L5-30R (single outlet) and total PDU output. Supports 2U installation in 2 or 4 post racks, with additional support for wall-mount and under-counter placement.
Product Type	PDU

Technical Information

Plug/Connector Type	NEMA L5-30P

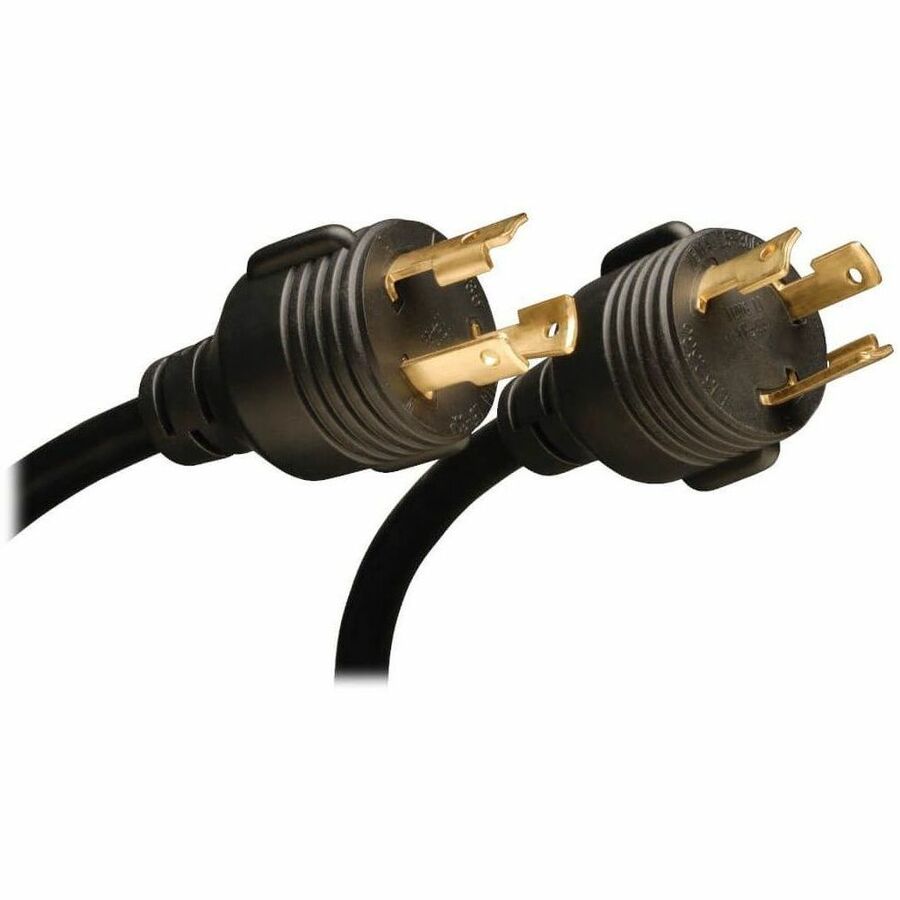

Plug/Connector Detail	2 x NEMA L5-30P
Receptacle Type	NEMA 5-15/20R NEMA L5-30R
Receptacle Detail	24 x NEMA 5-15/20R 1 x NEMA L5-30R

Power Description

Input Voltage	120 V AC
Input Voltage Range	100 V AC - 127 V AC
Output Voltage	100 V AC 120 V AC 127 V AC

Physical Characteristics

Mounting Orientation	Horizontal
Mount Type	Wall-mountable Rack-mountable
Rack Height	2U
Height	3.5"
Width	17.5"
Depth	12.5"
Weight (Approximate)	13.80 lb

Miscellaneous

Package Contents	Metered PDUMH30AT 25-Outlets PDU Installable Plug-retention Shelves Rackmount Installation Brackets Cable Ties
Additional Information	TAA Compliant
Country of Origin	Taiwan
TAA Compliant	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

2 Year
