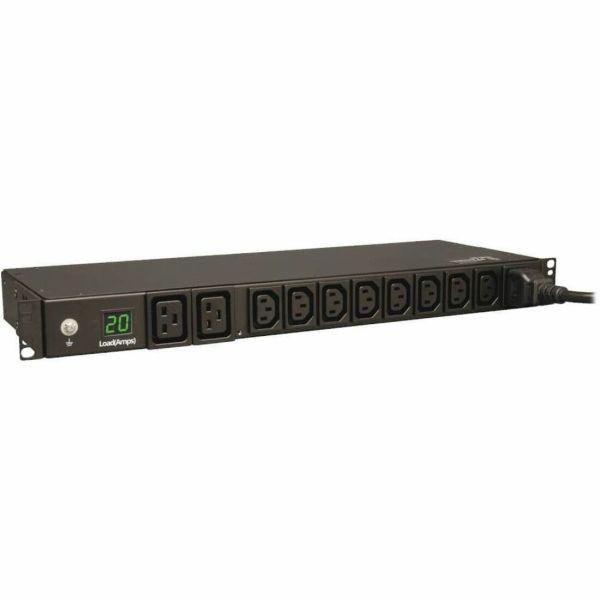

Tripp Lite by Eaton PDU 3.7kW Single-Phase Local Metered PDU 208/230V (8 C13 & 2 C19) C20 / L6-20P Adapter 12 ft. (3.66 m) Cord 1U Rack-Mount TAA

Name: Tripp Lite by Eaton PDU 3.7kW Single-Phase Local Metered PDU 208/230V (8 C13 & 2 C19) C20 / L6-20P Adapter 12 ft. (3.66 m) Cord 1U Rack-Mount TAA
Brand: TRIPP LITE
SKU: KD6717
Price: 188.61 USD
Availability: InStock

TRIPP LITE

PCN#

KD6717

MFG#

PDUMH20HV

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$188.61

Extended & Accidental Damage Protection Plans Available Details

2-Year $25.99

3-Year $36.99

Free Shipping

Estimated Shipment:

Product Highlights:

1UHorizontal Rackmount

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 8 lbs.

Tripp Lite by Eaton PDU 3.7kW Single-Phase Local Metered PDU 208/230V (8 C13 & 2 C19) C20 / L6-20P Adapter 12 ft. (3.66 m) Cord 1U Rack-Mount TAA

Overview

Tech Specs

Specifications

Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	PDUMH20HV
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Series	Metered
Product Model	PDUMH20HV
Product Name	Metered PDUMH20HV 10-Outlets PDU
Marketing Information	PDUMH20HV Metered, 1U rack PDU supports 20A maximum capacity at 208/240 & 230V (agency de-rated to 16 amps). Includes C20 inlet and detachable input cable with both C20 and L6-20P input plug options. 10 total output receptacles (8 C13 and 2 C19). Visual current meter tracks the output current of all outlets combined. Supports 1U rackmount installation in 19 inch 2 or 4 post racks. Included cord retention bracket keeps vital network equipment plugged in and continuously powered.
Product Type	PDU

Technical Information

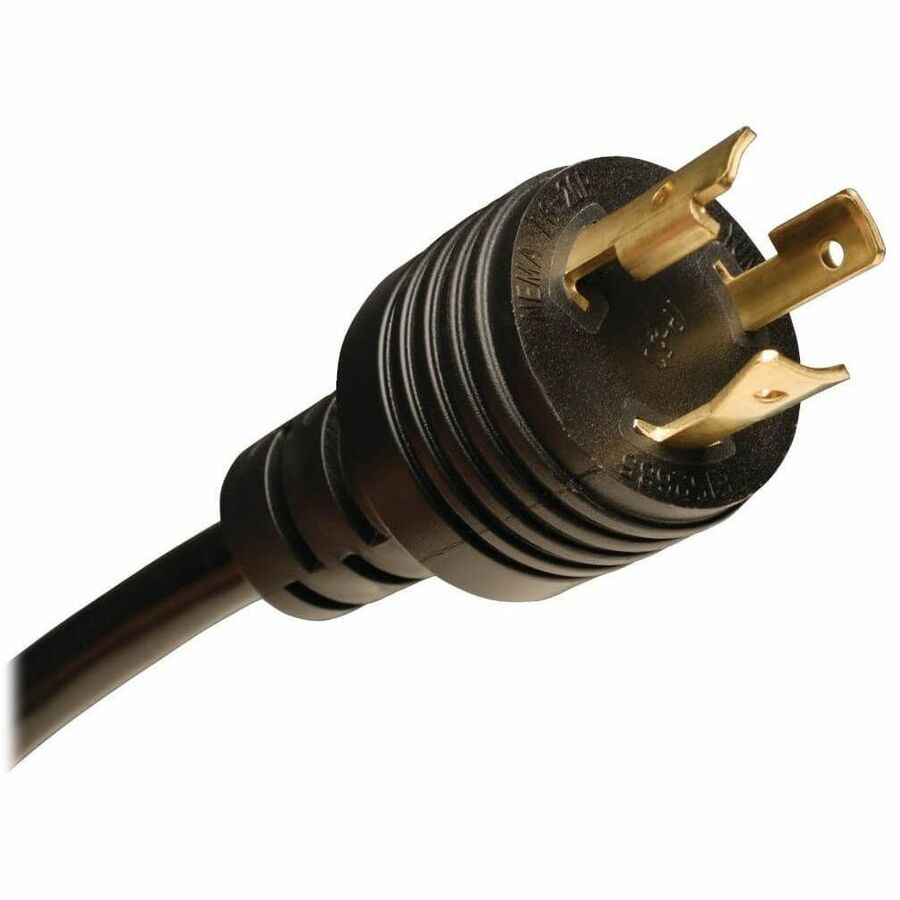

Plug/Connector Type	IEC 60320 C20 NEMA L6-20P
Receptacle Type	IEC 60320 C19 IEC 60320 C13
Receptacle Detail	2 x IEC 60320 C19 8 x IEC 60320 C13
Protection Type	Overload Protection

Power Description

Input Voltage	230 V AC
Input Voltage Range	200 V AC - 240 V AC
Output Voltage	208 V AC 230 V AC 240 V AC

Physical Characteristics

Mounting Orientation	Horizontal
Mount Type	Rack-mountable
Rack Height	1U
Height	1.8"
Width	17.5"
Depth	6.5"
Weight (Approximate)	6.80 lb

Miscellaneous

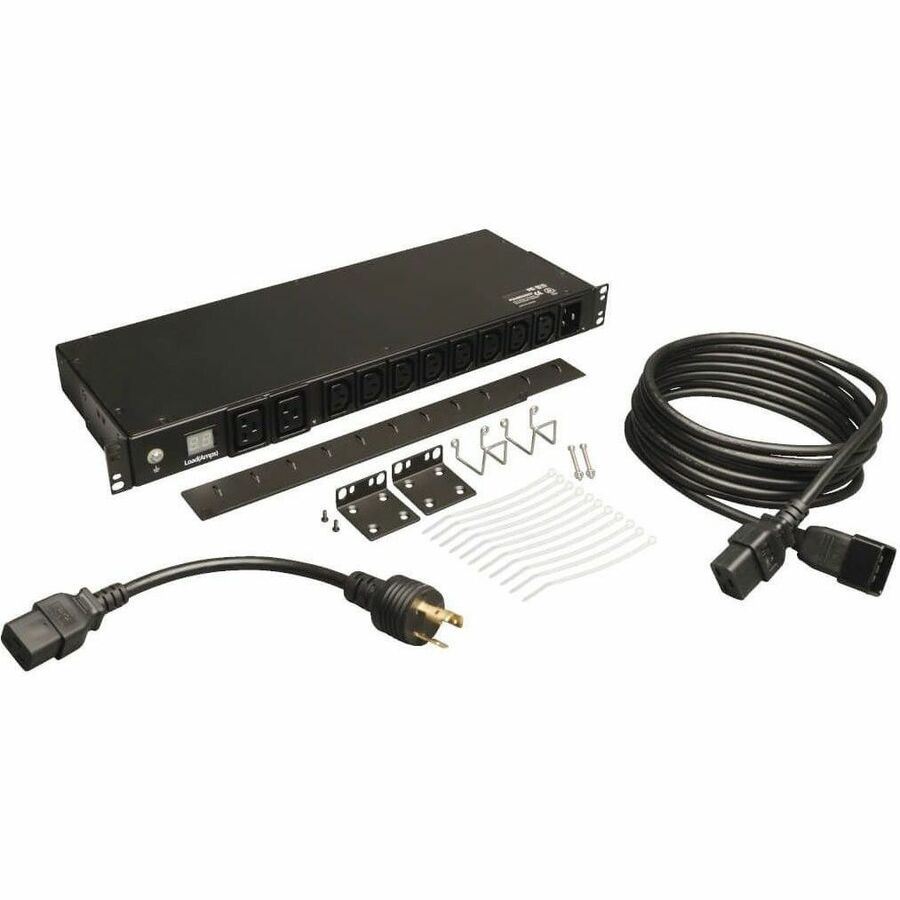

Package Contents	Metered PDUMH20HV 10-Outlets PDU Rackmount Brackets Cord Retention Brackets
Country of Origin	Taiwan
TAA Compliant	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

2 Year
