Tripp Lite by Eaton PDU 2.4kW Single-Phase Local Metered Automatic Transfer Switch PDU Two 200-240V C14 Inlets 10 C13 Outputs 1U TAA

Name: Tripp Lite by Eaton PDU 2.4kW Single-Phase Local Metered Automatic Transfer Switch PDU Two 200-240V C14 Inlets 10 C13 Outputs 1U TAA
Brand: TRIPP LITE
SKU: 7U0434
Price: 396.64 USD
Availability: InStock

TRIPP LITE

PCN#

7U0434

MFG#

PDUMH15HVAT

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$396.64

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

IEC 60320 C14
10 x IEC 60320 C13
200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC
2.40 kVA
1U/2U
Horizontal Rackmount

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 17 lbs.

Eaton Tripp Lite Series 2.4kW Single-Phase Local Metered Automatic Transfer Switch PDU, Two 200-240V C14 Inlets, 10 C13 Outputs, 1U, TAA

Overview

Tech Specs

Specifications

Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	PDUMH15HVAT
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Model	PDUMH15HVAT
Product Name	PDUMH15HVAT 10-Outlet PDU

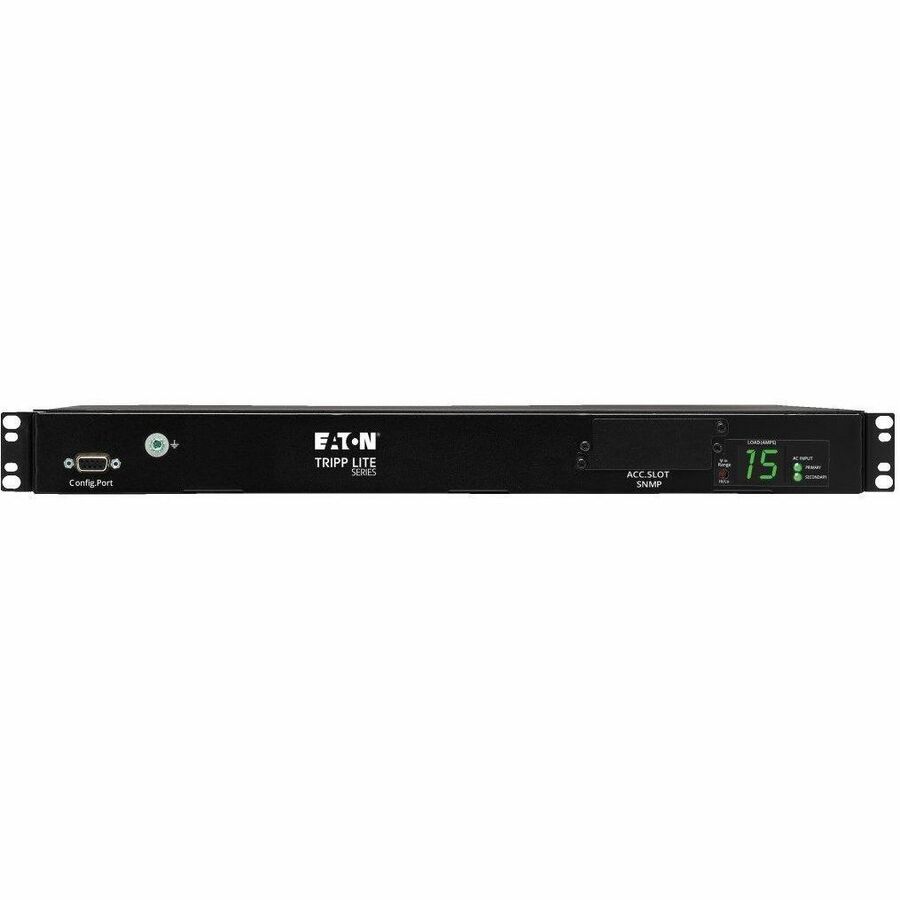

Marketing Information	The PDUMH15HVAT 2-2.4kW Single-Phase 200-240V ATS/Metered PDU enables redundant power for network devices with non-redundant power supply configurations. Ideal for data centers and server rooms, it mounts in 1U of space in EIA-standard 19-inch racks and features 10 C13 outlets. Dual 3.6-meter input cords with IEC-320 C14 plugs connect to separate primary and secondary single-phase power sources in a nominal voltage range from 200-240V. Plug lock inserts prevent cords from accidental disconnection. The PDUMH15HVAT constantly evaluates the power quality of both input sources. Dynamic solid-state (TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 2-5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption. Built-in slot supports the optional SNMPWEBCARD and WEBCARDLX (sold separately), which turn the PDUMH15HVAT into a switched PDU by allowing remote access to the PDU for power monitoring, configuration, outlet control and notifications via web browser, SSH, telnet or SNMP. Digital ammeter monitors total output current. LEDs display outlet on/off status and input power status on primary and secondary inputs.
Packaged Quantity	1
Product Type	PDU

Technical Information

Plug/Connector Type	IEC 60320 C14
Plug/Connector Detail	2 x IEC 60320 C14
Receptacle Type	IEC 60320 C13
Receptacle Detail	10 x IEC 60320 C13
Protection Type	Overload Protection

Power Description

Input Voltage	230 V AC
Input Voltage Range	200 V AC - 240 V AC
Output Voltage	200 V AC 208 V AC 220 V AC 230 V AC 240 V AC
Power Rating (Watt)	2400 W
Input Current	10 A

Physical Characteristics

Mounting Orientation	Horizontal
Mount Type	Rack-mountable
Rack Height	1U/2U
Height	1.7"
Width	17.3"
Depth	14.4"
Weight (Approximate)	10.32 lb

Miscellaneous

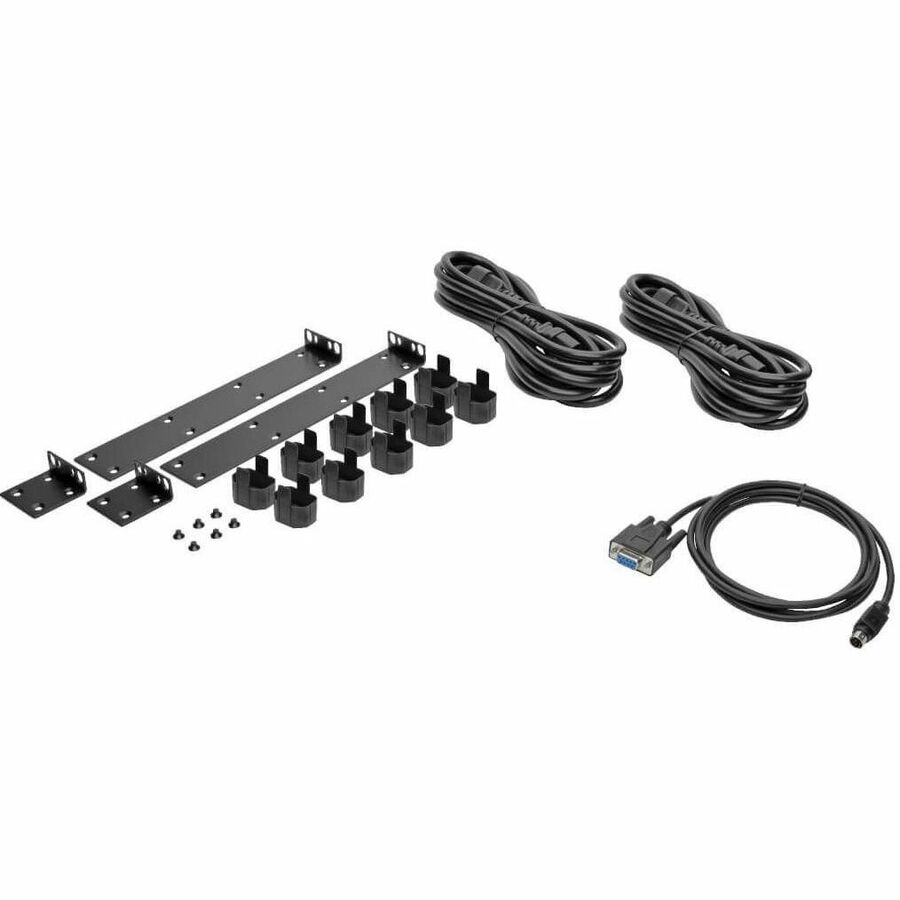

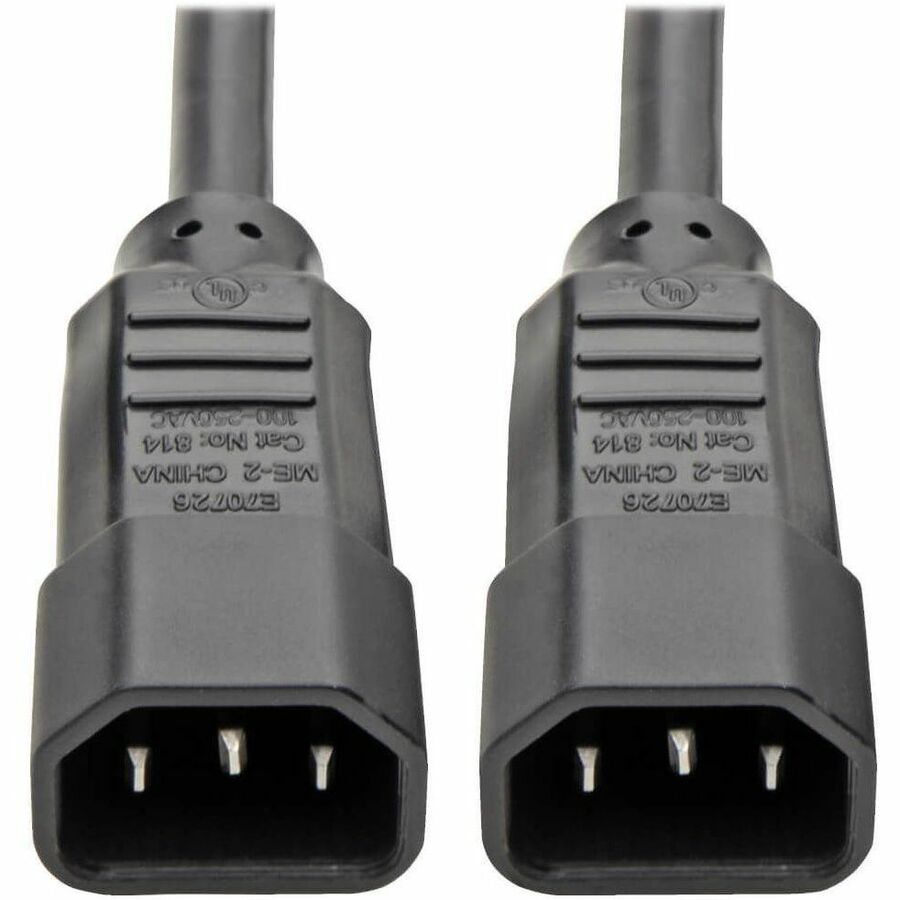

Package Contents	PDUMH15HVAT 10-Outlet PDU 10 x C14 plug lock inserts 2 x C13 to C14 power cords, 3.6 m (11.8 ft.) 2 x Mounting brackets, horizontal 2 x Mounting brackets, vertical 6 x Screws Owner's manual
Country of Origin	Taiwan
TAA Compliant	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

2 Year
