Tripp Lite by Eaton PDU 3.8kW Single-Phase Dual-Circuit 120V Basic PDU 40 NEMA 5-15/20R Outlets NEMA L5-20P/5-20P Inputs 10 ft. (3.05 m) Cords 0U

Name: Tripp Lite by Eaton PDU 3.8kW Single-Phase Dual-Circuit 120V Basic PDU 40 NEMA 5-15/20R Outlets NEMA L5-20P/5-20P Inputs 10 ft. (3.05 m) Cords 0U
Brand: TRIPP LITE
SKU: K64975
Price: 267.48 USD
Availability: InStock

TRIPP LITE

PCN#

K64975

MFG#

PDU40TDUAL

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$267.48

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

40 x NEMA 5
15/20R
4.8kW
Zero U Vertical Rackmount

Product Condition: New and Factory Fresh

Limited Warranty2 Year Lifetime

Shipping Weight: 10 lbs.

Eaton Tripp Lite Series 3.8kW Single-Phase Dual-Circuit 120V Basic PDU, 40 NEMA 5-15/20R Outlets, NEMA L5-20P/5-20P Inputs, 10 ft. (3.05 m) Cords, 0U

Overview

Tech Specs

Specifications

Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	PDU40TDUAL
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Model	PDU40TDUAL
Product Name	PDU40TDUAL PDU Basic DUAL 20A 40 Outlet

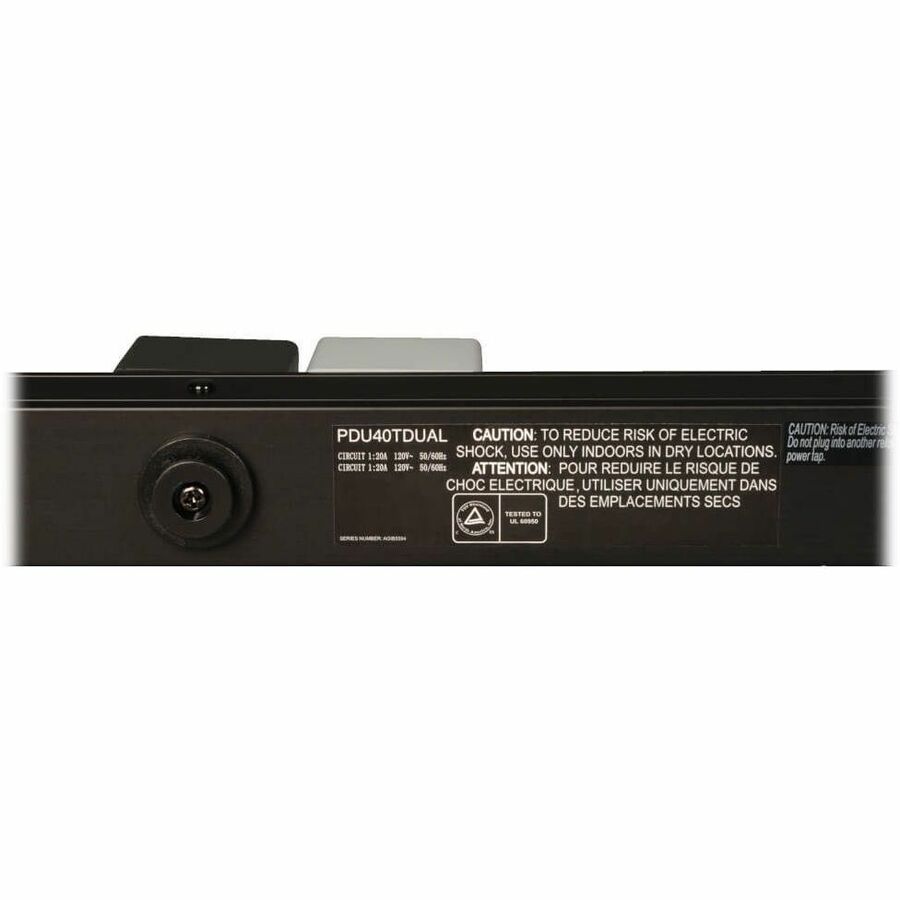

Marketing Information	The PDU40TDUAL 3.8kW Single-Phase Dual-Circuit 120V Basic PDU works as two independent PDUs in a single housing, perfect for networking, telecom, security, audio/video and sound reinforcement applications. Ideal for high-density network equipment with dual redundant input cables, it features 40 NEMA 5-15/20R outlets split evenly into two separate power circuits. Each power circuit, including its input plug, power cord, breaker and outlets, is color-coded black or gray for easy identification. Both 10-foot power cords feature NEMA L5-20P input plugs and come with optional adapters to convert them to NEMA 5-20P plugs, which are not color-coded. Connect the plugs to separate mains input power sources, generators or protected UPS systems to distribute AC power to connected equipment.The switchless design prevents an accidental shutdown, which could lead to costly downtime. Dual 20A circuit breakers protect connected equipment from dangerous overloads. The 70-inch all-metal housing supports toolless 0U vertical mounting in EIA-standard 19-inch racks, as well as on a wall or workbench or under a counter with user-supplied hardware.
Product Type	PDU

Technical Information

PDU Type	Basic
Plug/Connector Type	NEMA L5-20P
Plug/Connector Detail	2 x NEMA L5-20P
Receptacle Type	NEMA 5-15/20R
Receptacle Detail	40 x NEMA 5-15/20R
Protection Type	Overload Protection

Power Description

Input Voltage	120 V AC
Output Voltage	120 V AC
Power Rating (Watt)	3800 W

Physical Characteristics

Mounting Orientation	Vertical
Mount Type	Rack-mountable
Height	3"
Width	65"
Depth	1.5"
Weight (Approximate)	8 lb

Miscellaneous

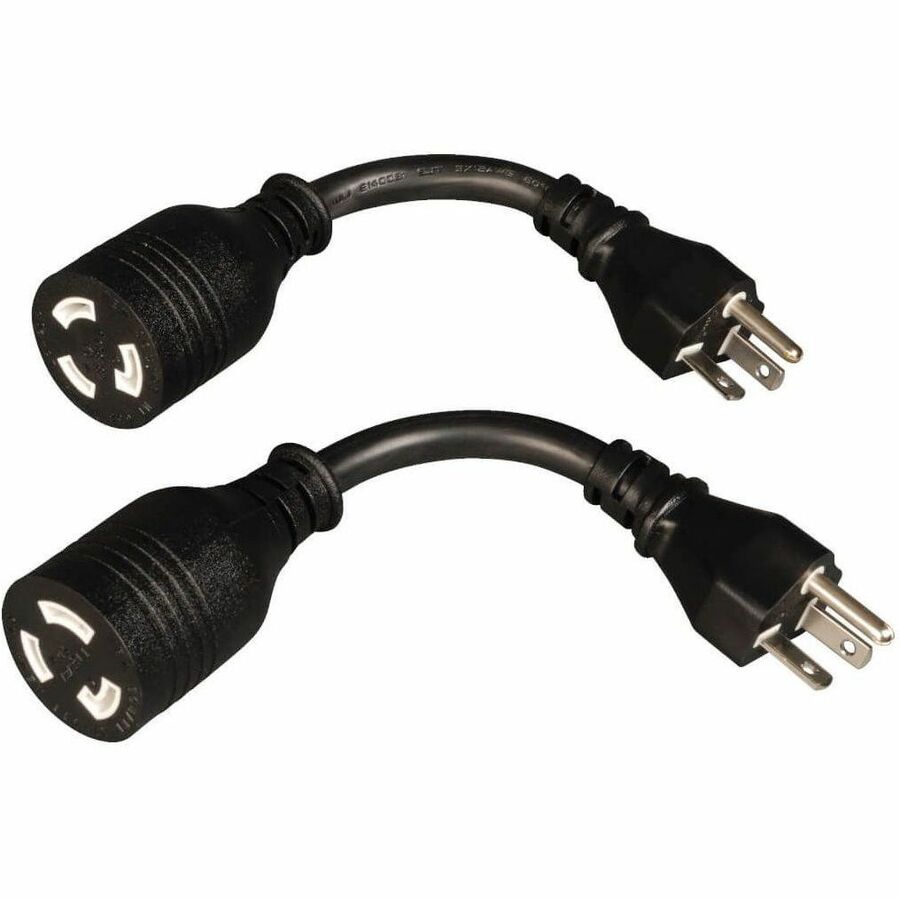

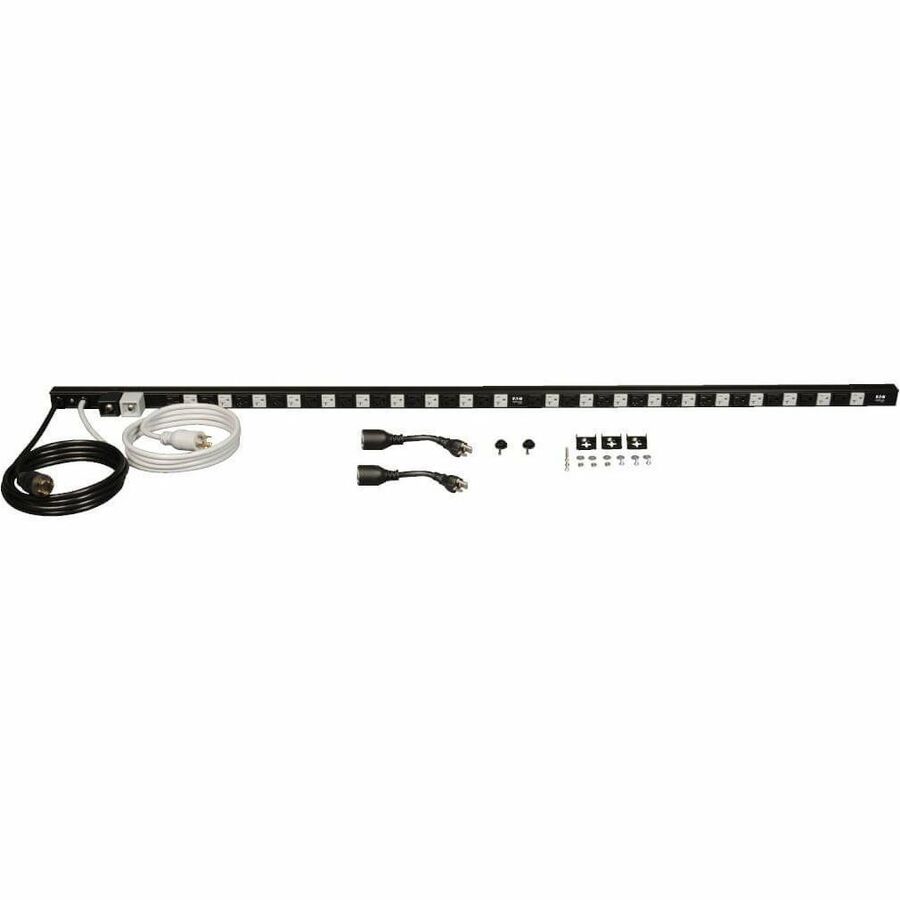

Package Contents	PDU40TDUAL PDU Basic DUAL 20A 40 Outlet Mounting Hardware 2 x NEMA L5-20R to NEMA 5-20P Plug Set Adapters Manual with Warranty Information
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

2 Year Lifetime
