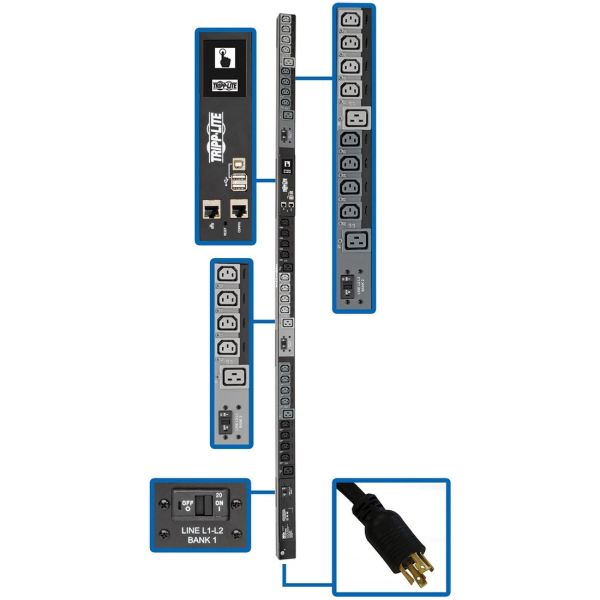

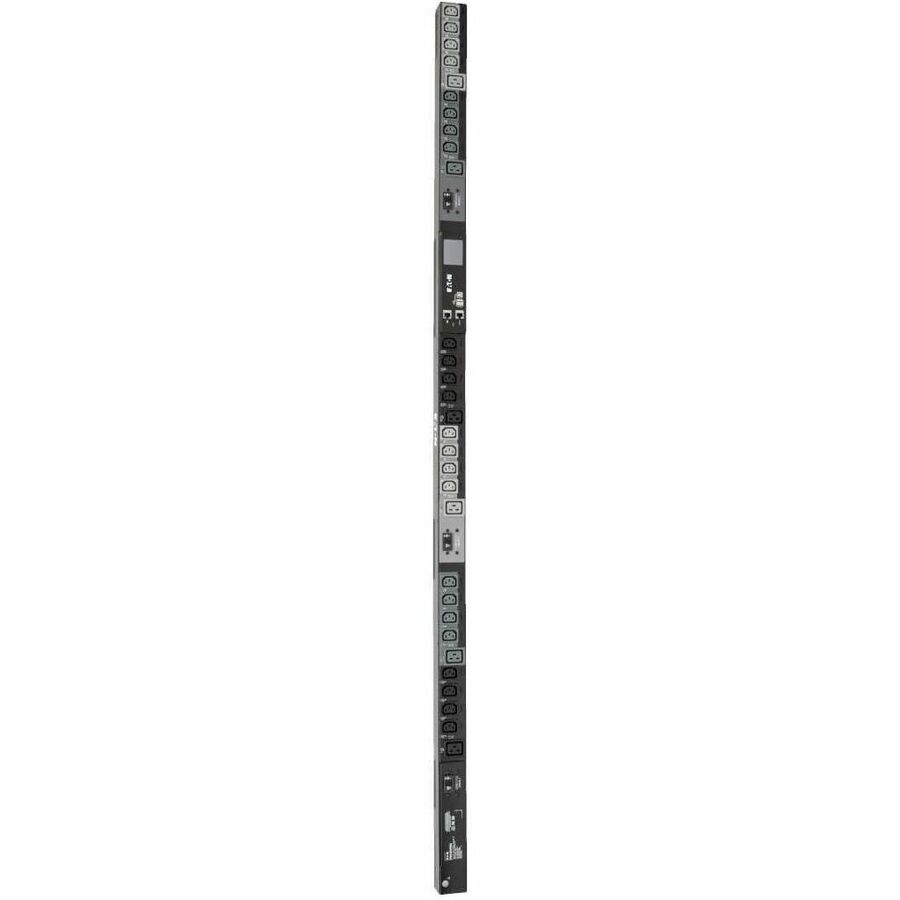

Tripp Lite by Eaton PDU 10kW 200-240V 3PH Switched PDU - LX Interface Gigabit 30 Outlets L21-30P Input LCD 3 m Cord 0U 1.8 m Height TAA

Name: Tripp Lite by Eaton PDU 10kW 200-240V 3PH Switched PDU - LX Interface Gigabit 30 Outlets L21-30P Input LCD 3 m Cord 0U 1.8 m Height TAA
Brand: TRIPP LITE
SKU: 2KM422
Price: 1503.01 USD
Availability: InStock

TRIPP LITE

PCN#

2KM422

MFG#

PDU3EVSR10L2130

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$1,503.01

Extended & Accidental Damage Protection Plans Available Details

2-Year $145.99

3-Year $194.99

Free Shipping

Estimated Shipment:

Product Highlights:

Switched
NEMA L21
30P
24 x IEC 60320 C13, 6 x IEC 60320 C19
230 V AC
Network (RJ
45)
0U
Vertical
Rack Mount
Rack
mountable
TAA Compliant

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 28 lbs.

Eaton 10kW 200-240V 3PH Switched PDU - LX Interface, Gigabit, 30 Outlets, L21-30P Input, LCD, 3 m Cord, 0U 1.8 m Height, TAA

Overview

Tech Specs

Specifications

Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	PDU3EVSR10L2130
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Model	PDU3EVSR10L2130
Product Name	PDU3EVSR10L2130 10kW 3-Phase Switched PDU

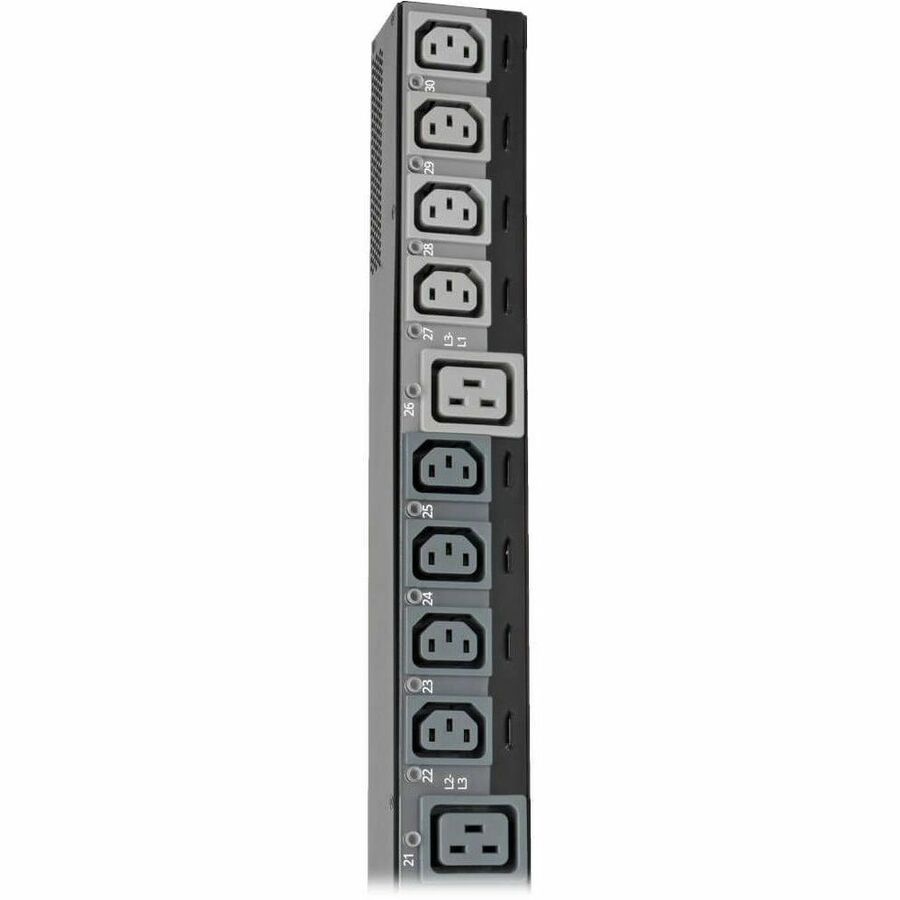

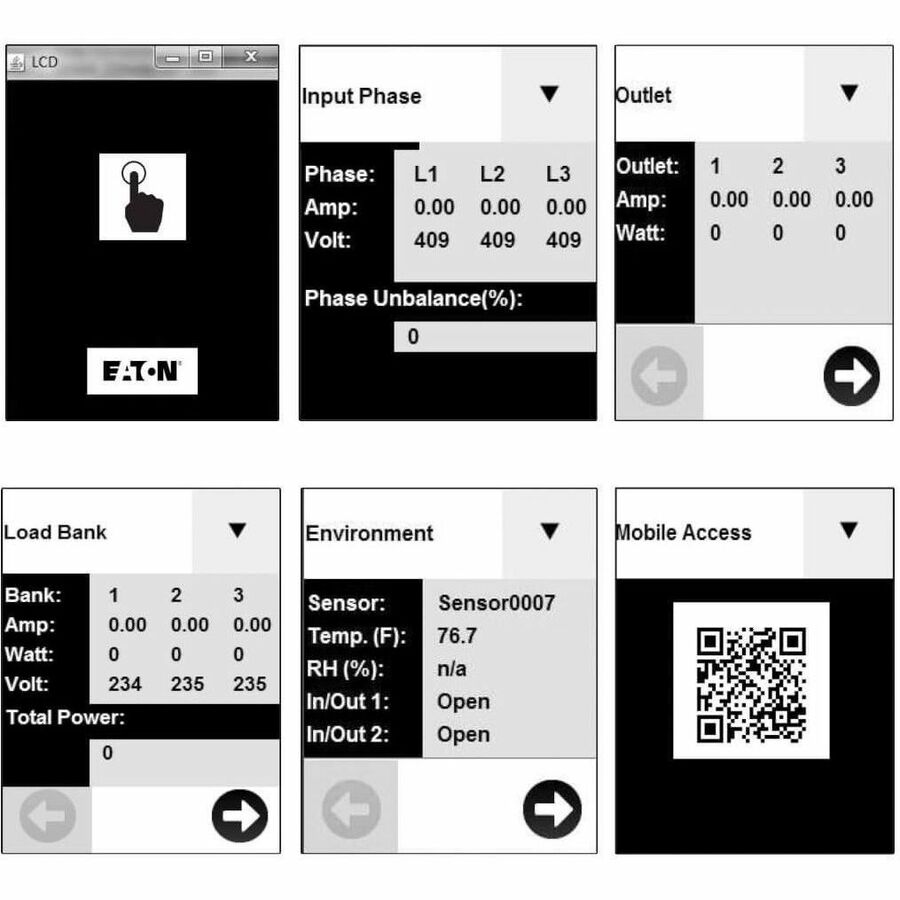

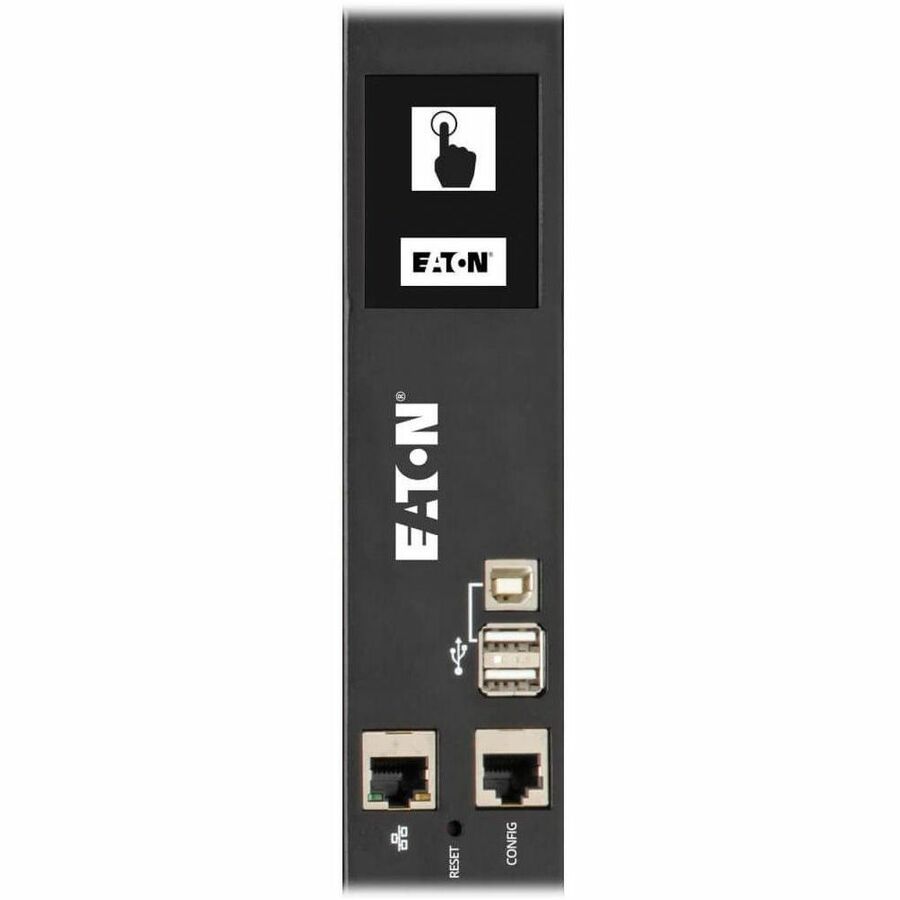

Marketing Information	The PDU3EVSR10L2130 10kW 3-Phase Switched Power Distribution Unit provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. By reducing the frequency of on-site visits, these advanced remote capabilities can save you money and reduce downtime. The 0U PDU features 30 switched outlets (24 C13 and 6 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A 10-foot cord with NEMA L21-30P plug connects the PDU to a compatible AC power source, generator or protected UPS. The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. A color touchscreen LCD lets you toggle between menus to monitor input current level per phase, output current per load bank and per outlet with ±1% billing-grade accuracy, environmental sensor data and network information. It also generates a unique QR code to allow access to the switchable PDU through a mobile device. Features Distributes, Monitors and Manages Network-Grade AC Power 10kW 200/208/240V switched PDU with 3-phase input Recommended for network applications requiring individual outlet control, load shedding and remote monitoring of critical network components NEMA L21-30P plug with 10 ft. cord connects to compatible AC power source Firmware upgrades support future product enhancements 30 Switched Outlets Distribute AC Power 24 C13 and 6 C19 outlets split into 3 separately breakered load banks Individual outlets can be remotely controlled to power up, power down, reboot or lock out devices Plug-lock insert sleeves prevent cables from becoming accidentally disconnected Color Touchscreen LCD Reports network data, including IP address, input current level per phase, and output current per load bank and per outlet with ±1% billing-grade accuracy Generates unique QR code for read-only access to PowerAlert® Device Manager via mobile device Full access available by logging into PowerAlert Device Manager via browser as user with read/write credentials Built-In LX Platform Interface Allows full remote access for power monitoring with email notifications via secure web browser, SNMP, telnet or SSH Supports 10/100 Mbps auto-sensing for communication with an Ethernet network Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities No Java required Broad Communications Compatibility Supports IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP Supports automatic and manual assignment of IP address Easy 0U Installation in EIA-Standard 19 in. Racks Mounts vertically using included toolless buttons or rack-mounting brackets Included PDUMVROTATEBRKT allows mounting with rear-facing outlets
Product Type	PDU

Technical Information

PDU Type	Switched
Design	Modular
Phase	Three Phase
Plug/Connector Type	NEMA L21-30P
Receptacle Type	IEC 60320 C13 IEC 60320 C19
Receptacle Detail	24 x IEC 60320 C13 6 x IEC 60320 C19
Protection Type	Overload Protection

Power Description

Input Voltage	230 V AC
Output Voltage	230 V AC
Power Rating (Watt)	10 kW
Input Current	24 A

Management

IPv4
IPv6
HTTP
HTTPS
SMTP
SNMPv1
SNMPv2
SNMPv3
telnet
SSH
FTP
DHCP
NTP

Interfaces/Ports

Network (RJ-45)

Yes

Physical Characteristics

Mounting Orientation	Vertical
Mount Type	Rack-mountable
Rack Height	0U
Height	70"
Width	2.2"
Depth	2.9"
Weight (Approximate)	20.01 lb

Miscellaneous

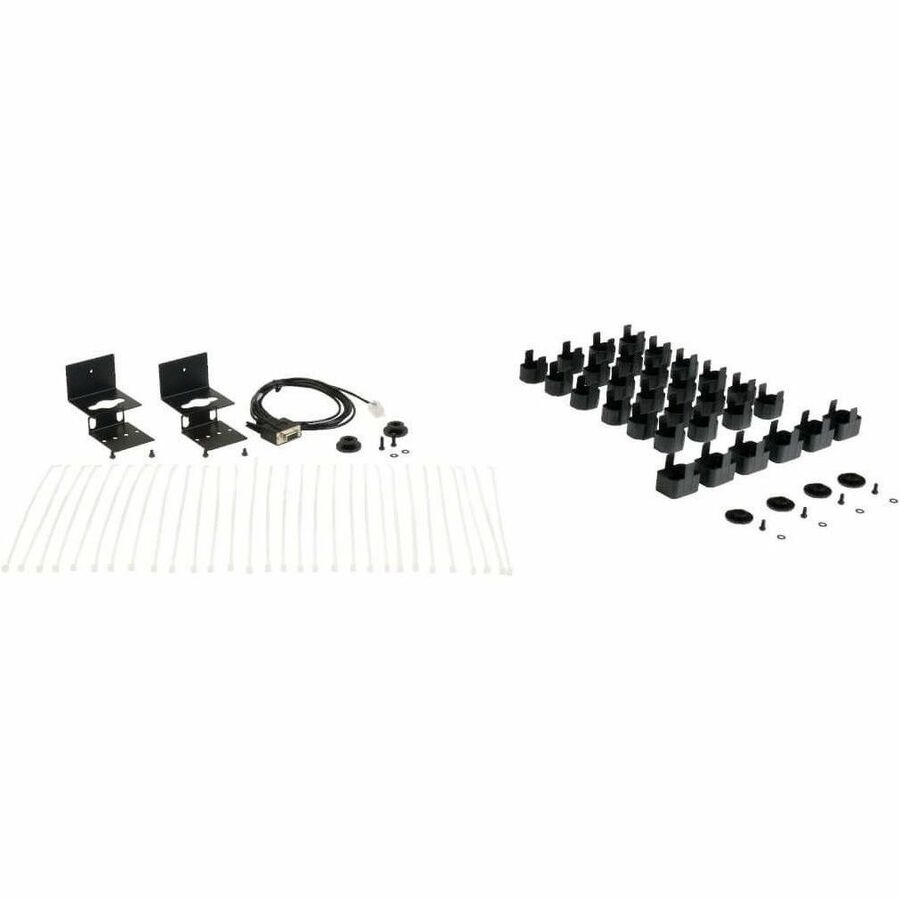

Package Contents	PDU3EVSR10L2130 10kW 3-Phase Switched PDU Built-in LX Platform Interface Configuration Cable 30 x Plug-lock Insert Sleeves Rack-mounting Hardware PDUMVROTATEBRKT Mounting Bracket Accessory Owner's Manual
Country of Origin	Taiwan
TAA Compliant	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

2 Year
