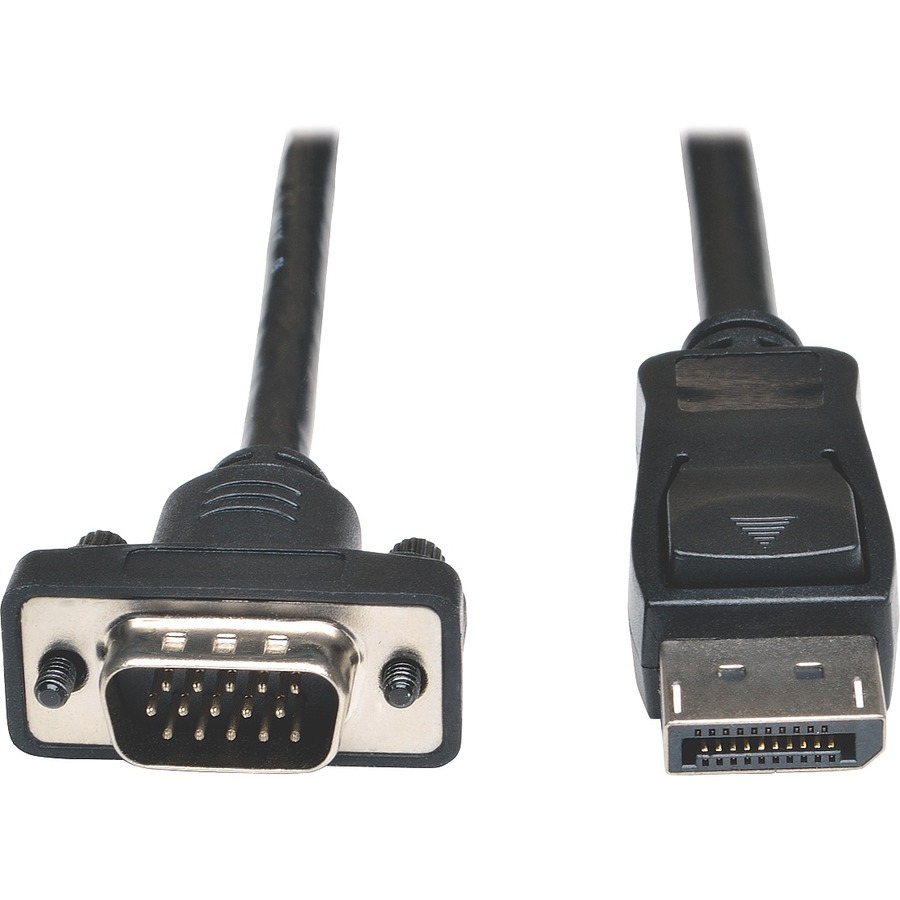

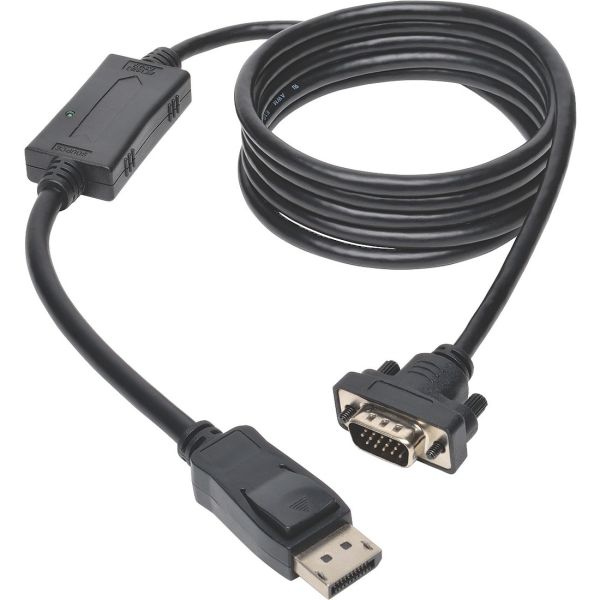

Eaton Tripp Lite Series DisplayPort 1.2 to VGA Active Adapter Cable (DP with Latches to HD15 M/M), 6 ft. (1.8 m)

Name: Eaton Tripp Lite Series DisplayPort 1.2 to VGA Active Adapter Cable (DP with Latches to HD15 M/M), 6 ft. (1.8 m)
Brand: EATON
SKU: 1V4227
Price: 34.91 USD
Availability: InStock

EATON

PCN#

1V4227

MFG#

P581-006-VGA-V2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$34.91

Extended & Accidental Damage Product Replacement Plan Available Details

2-Year $11.99

1-Year $8.99

Estimated Shipment:

Product Highlights:

DisplayPort/VGA for Video Device, Monitor, Projector, TV, Graphics Card
6 ft
1 x DisplayPort Male Digital Video
1 x HD
15 Male VGA
Gold
plated Contacts, Nickel Plated
Shielding
Black"

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 1 lbs.

Eaton Tripp Lite Series DisplayPort 1.2 to VGA Active Adapter Cable (DP with Latches to HD15 M/M), 6 ft. (1.8 m), TAA

Overview

Tech Specs

Specifications

Manufacturer	Eaton Corporation
Manufacturer Part Number	P581-006-VGA-V2
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Model	P581-006-VGA-V2
Product Name	P581-006-VGA-V2 DisplayPort 1.2 to VGA Active Adapter Cable, 6 ft.
Marketing Information	The P581-006-VGA-V2 DisplayPort 1.2 to VGA Active Adapter Cable connects a DisplayPort computer to the VGA port on a monitor, projector or television. With a latching DisplayPort male connector on one end and an HD15 male connector on the other, this cable requires no separate adapter. It lets you use your existing VGA display instead of buying a new DisplayPort monitor. Ideal for displaying video on a large monitor or digital sign, this cable supports computer video resolutions up to 1920 x 1200 and high-definition video resolutions up to 1920 x 1080 (1080p). It converts both Single-Mode and Dual-Mode (DP++) DisplayPort output, and is perfect for use with graphics cards, such as AMD Eyefinity, that do not output DP++ signals. First-class foil and braid shielding delivers reliable, error-free signal quality and protection from EMI/RFI interference. Nickel-plated connectors with gold-plated contacts ensure excellent conductivity. The DisplayPort plug latches to the port to provide a secure connection. Integral strain relief ensures the cable and molded connectors last a long time.
Product Type	Video Cable

Technical Information

Cable Type	DisplayPort/VGA
Cable Length	6 ft
Connector Type on First End	DisplayPort 1.2 Digital Audio/Video - Male
Connector on First End Details	1 x DisplayPort 1.2 Digital Audio/Video - Male
Connector Type on Second End	HD-15 - Male
Connector on Second End Details	1 x 15-pin HD-15 - Male
Connector Plating	Nickel
Contact Plating	Gold
Shielding	Yes
Device Supported	Video Device Monitor Projector TV Graphics Card
Supported Resolution	1920 x 1200
Features	Active Eyefinity Technology EMI/RF Protection Strain Relief Molded

Physical Characteristics

Color Family	Black
Product Color	Black
Shipping Height	7"
Shipping Width	9"
Shipping Weight (Approximate)	3.84 oz

Miscellaneous

Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Country of Origin	Taiwan
TAA Compliant	Yes

Warranty

Limited Warranty

3 Year
