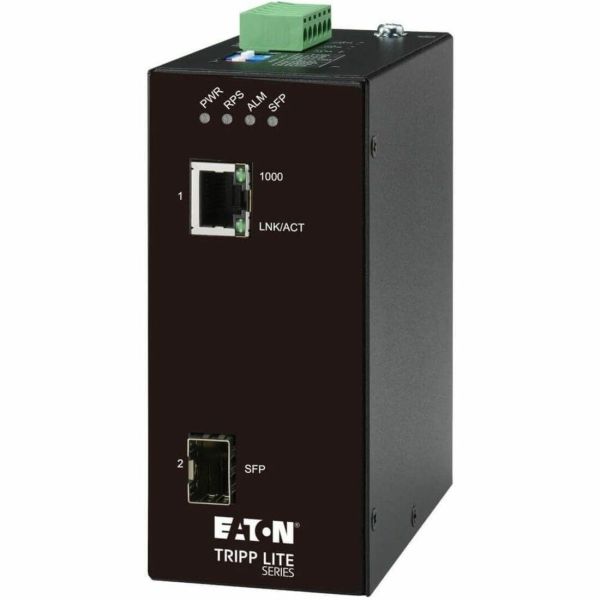

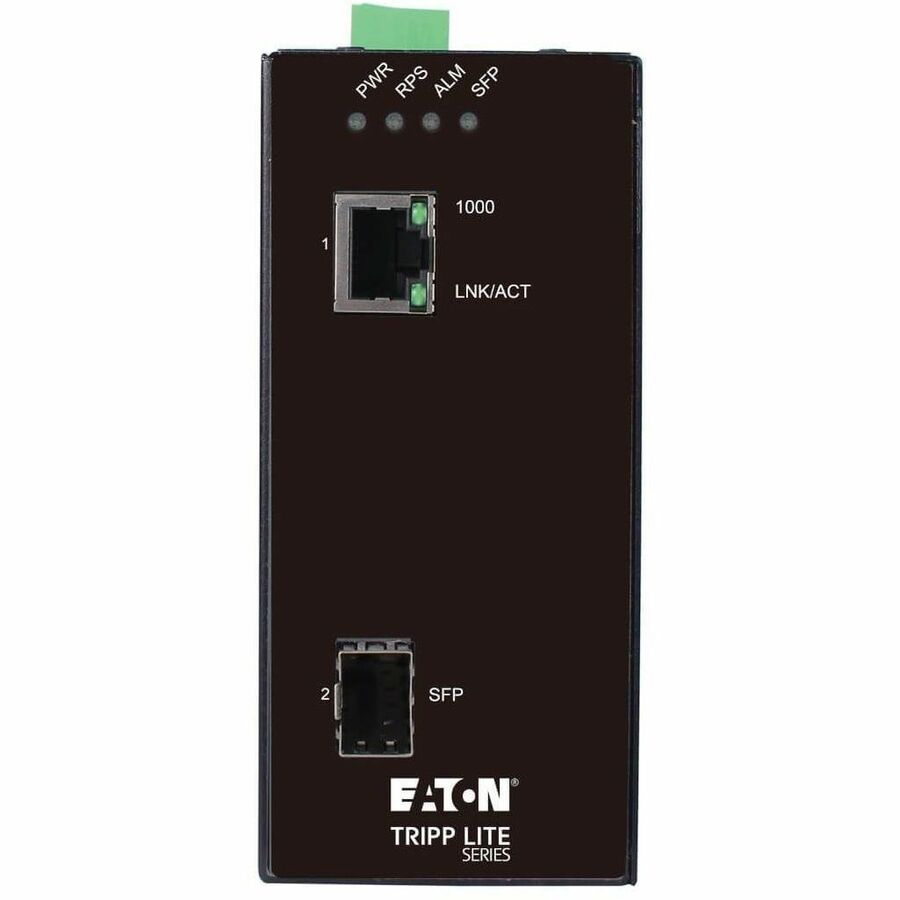

Tripp Lite by Eaton Hardened Gigabit Fiber to Ethernet Media Converter 10/100/1000 Mbps RJ45/SFP -10 to 60C DC Power

Name: Tripp Lite by Eaton Hardened Gigabit Fiber to Ethernet Media Converter 10/100/1000 Mbps RJ45/SFP -10 to 60C DC Power
Brand: TRIPP LITE
SKU: 9VB873
Price: 127.93 USD
Availability: InStock

TRIPP LITE

PCN#

9VB873

MFG#

N785-H01-SFP-D

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$127.93

Extended & Accidental Damage Product Replacement Plan Available Details

2-Year $32.99

1-Year $24.99

Free Shipping

Estimated Shipment:

Product Highlights:

1 x Network (RJ
45)
Multi
mode, Single
mode
Gigabit Ethernet
10/100/1000Base
T, 100/1000Base
X
1 x Expansion Slots
SFP (mini
GBIC)
1 x SFP Slots
DIN Rail Mountable
TAA Compliant

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 2 lbs.

Tripp Lite by Eaton Hardened Gigabit Fiber to Ethernet Media Converter, 10/100/1000 Mbps, RJ45/SFP, -10° to 60°C, DC Power, TAA

Overview

Tech Specs

Specifications

Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	N785-H01-SFP-D
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Model	N785-H01-SFP-D
Product Name	N785-H01-SFP-D Transceiver/Media Converter

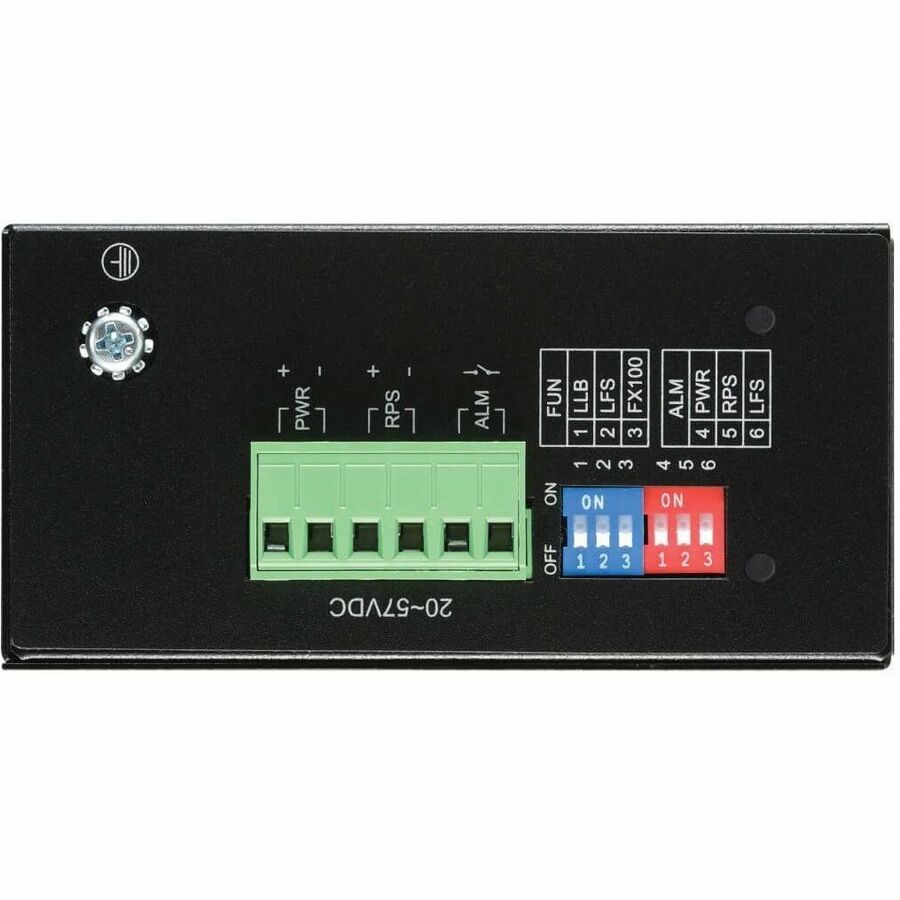

Marketing Information	Features \| Customize a Network Connection Extension over Fiber Optic Cable This network media converter works with a variety of SFP transceivers to convert a copper Gigabit Ethernet signal to fiber optic and extend it to a second network device. The customizable SFP port supports both singlemode and multimode transceivers, allowing your network connection to reach hubs, switches and other devices located farther away than copper cabling's 100-meter limit. Auto-negotiation and automatic MDI/MDI-X configuration seamlessly connect devices without crossover cabling. Monitor Your Installation with Line Loop Back Determine the health of your network connection via the Line Loop Back (LLB) function, which ensures copper and fiber cables have been correctly installed. Use the DIP switches to control each function or turn them on or off. LEDs Indicate Installation Performance and Diagnostic Functions Easy-to-read LEDs on the side of the unit indicate essential status information, including network speed and connection, LFS diagnostics and unit power. The included 20-57VDC terminal block provides primary and secondary power inputs. Protective Metal Housing Built to Withstand a Variety of Hazards The hardened aluminum case is designed to operate in extreme temperatures ranging from -10 to 60 degrees Celsius (14 to 140 degrees Fahrenheit). It is protected from electrostatic discharge (ESD), radio frequency interference (RFI) and power surges. Hardware is included for DIN mounting. TAA-Compliant for GSA Schedule Purchases The N785-H01-SFP-D is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	1
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	1

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Fiber Mode Supported	Multi-mode Single-mode

I/O Expansions

Total Number of Expansion Slots	1.0
Expansion Slot Type	SFP (mini-GBIC)
Number of SFP Slots	1

Network & Communication

Ethernet Technology	Gigabit Ethernet
Network Technology	10/100/1000Base-T 100/1000Base-X

Power Description

Power Source	DC
Power Consumption	5.50 W
Plug/Connector Type	Terminal Block

Physical Characteristics

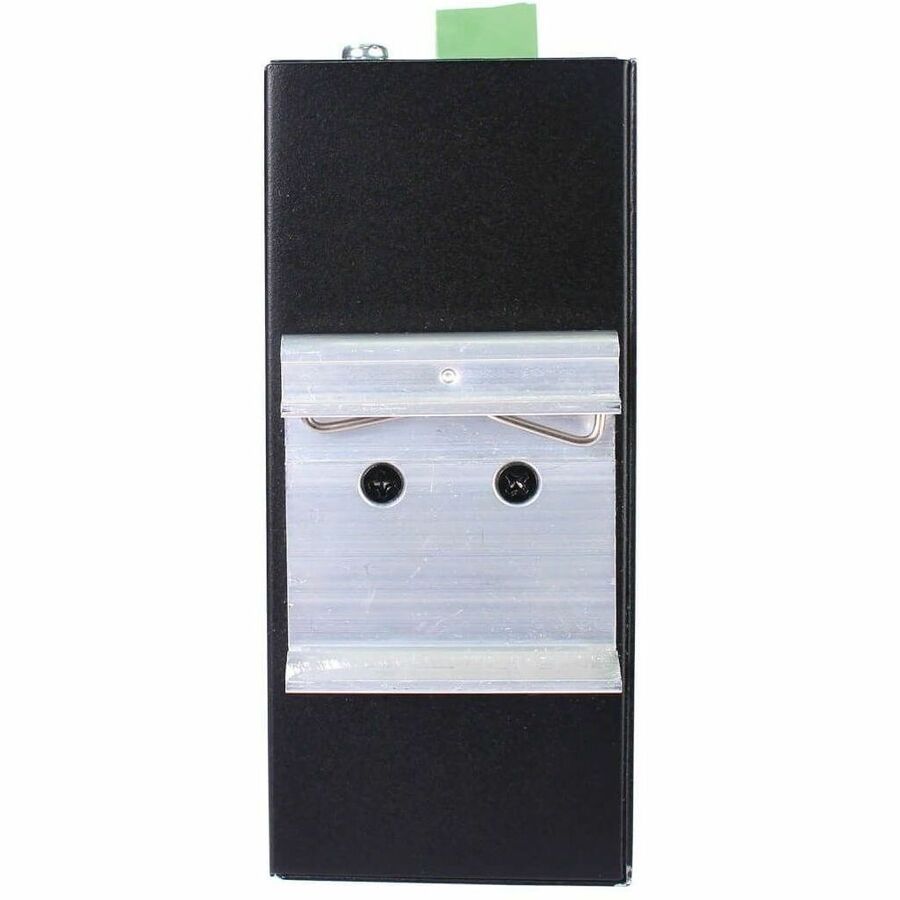

Form Factor	DIN Rail Mountable
Height	2"
Width	4.6"
Depth	3.9"
Weight (Approximate)	14.88 oz

Miscellaneous

Package Contents	N785-H01-SFP-D Transceiver/Media Converter SFP Connector Cap RJ45 Connector Cap Terminal Block (20-57VDC) DIN Rail Kit Quick Start Guide
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Country of Origin	Taiwan
TAA Compliant	Yes

Warranty

Limited Warranty

2 Year
