Tripp Lite by Eaton Spine-Leaf MPO Panel with Key-Up to Key-Up MTP/MPO Adapter - 12F MTP/MPO-PC M/M 8F OM4 Multimode 16 x 16 Ports 1U

1U network panel replaces a standard MTP/MPO-to-LC cross-connect with MTP/MPO Elite ports to eliminate rack clutter.

1U Spine-Leaf Panel Simplifies Your Rack Connections and Helps You Keep Costs Down
This network patch panel is designed for spine-and-leaf architecture, which replaces a standard MTP/MPO-to-LC cross-connect with MTP/MPO ports and helps eliminate significant rack clutter. This data center network technology provides high-bandwidth, low-latency, non-blocking server-to-server connectivity, which saves you money, simplifies your rack cabling and improves network performance.

All-in-One Solution Consists of 2 Switch Layers: Spine and Leaf
The groundbreaking N48LSM-16X16 contains a complete spine-and-leaf mesh topology, resulting in less labor, less troubleshooting and fewer errors. It features spine ports in the front that mate with a spine switch, as well as leaf ports in the rear that mate with a leaf switch. No LC-to-LC patching, double cassette or user cable shuffling is required with spine-and-leaf architecture, which improves link performance.

Easy to Mount in Just 1U of Rack Space

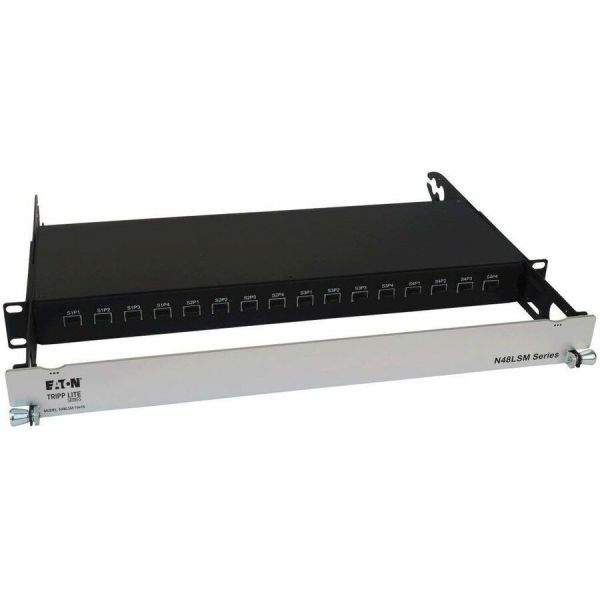

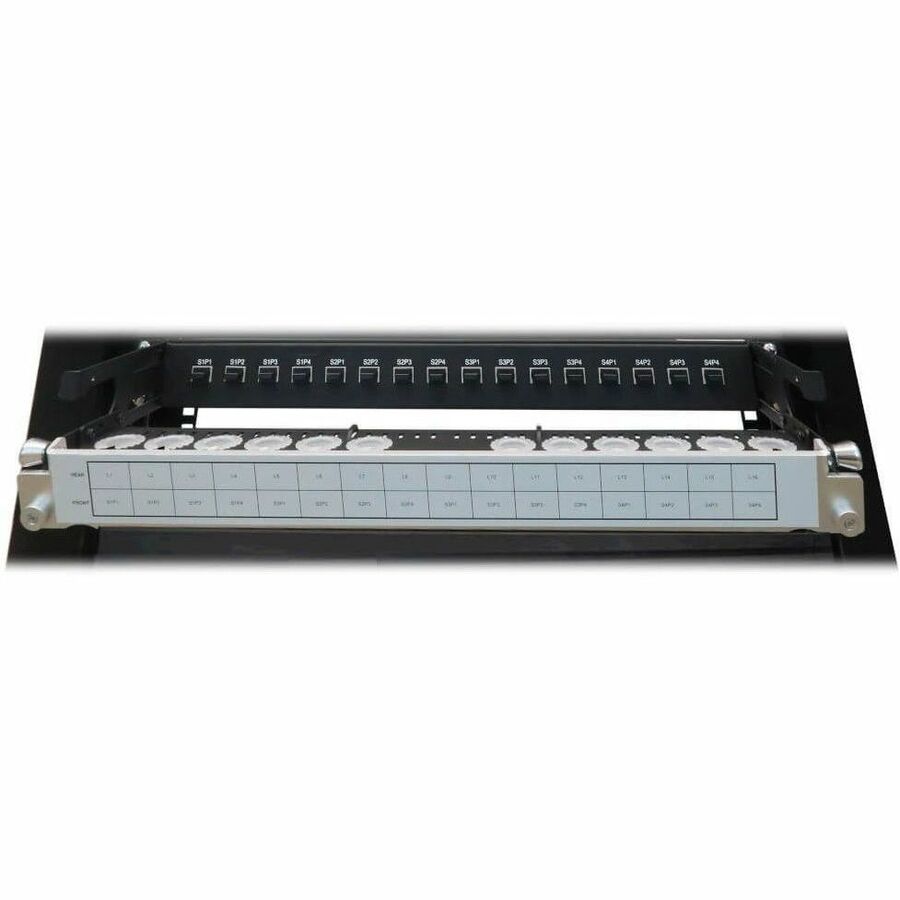

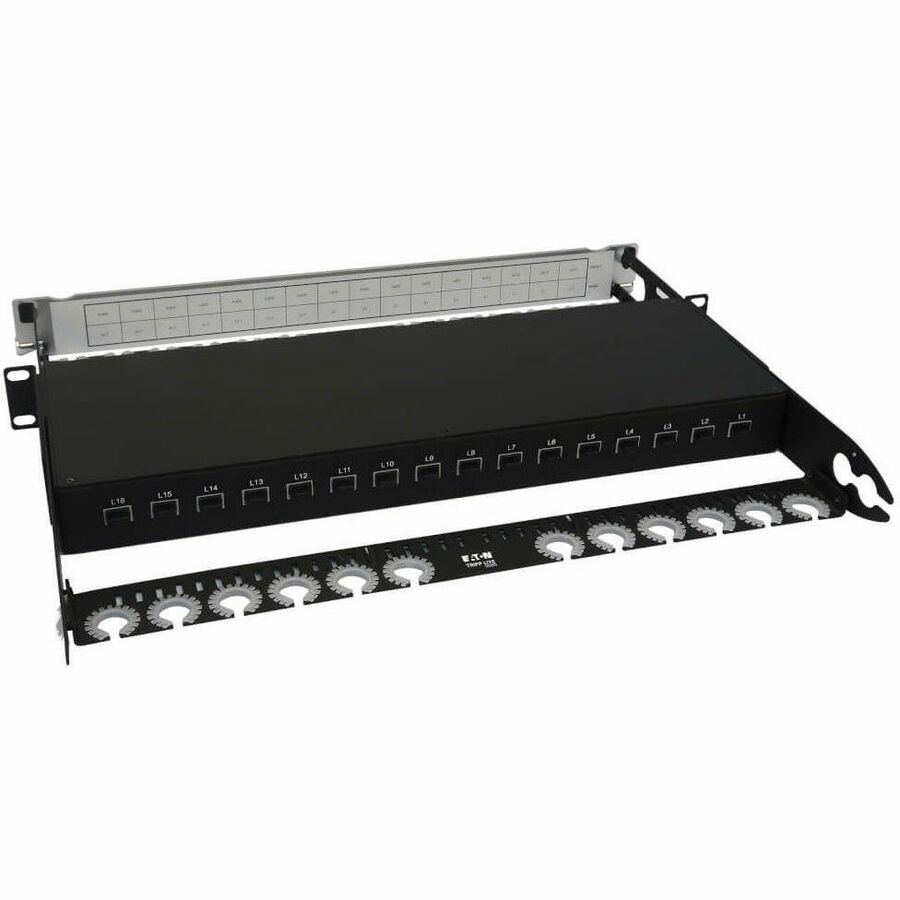

This aluminum panel with key-up to key-up MTP/MPO adapter features 32 12-fiber Elite MTP/MPO-PC male ports: 16 front spine ports and 16 rear leaf ports. The N48LSM-16X16 mounts into 1U of space in an EIA-standard 19-inch rack. Cable managers in both front and rear help organize cabling and eliminate unsightly clutter.

• N48LSM-16X16 Spine-Leaf MPO Panel, 16 x 16 Ports, 1U
• Owner's Manual

OVERVIEW

• Technology Fiber
• Optical Mode OM4
• Fiber Panel Ports (32) MTP/MPO
• Mode Type Multimode

Firmware / Software Docs

• Offset Ports No

PHYSICAL

• Clad Diameter (microns) 125
• Core Diameter (microns) 50
• Number of Fibers 8

COMMUNICATIONS

• Network Compatibility 100 Gbps; 40 Gbps; 400 Gbps
• Wavelength 1300nm; 850nm
• Attenuation @ 850NM 3.0dB/KM
• Attenuation @ 1300NM 1.0dB/KM
• Insertion Loss ≤0.35dB

CONNECTIONS

• Side A - Connector 1 (16) 12-STRAND MTP/MPO (MALE)
• Side B - Connector 1 (16) 12-STRAND MTP/MPO (MALE)
• Endface Polish PC
• Connector Color Gray

FEATURES & SPECIFICATIONS

• Keystone Jacks No
• All-in-One Kit Yes
• Down-Angled Ports No
• Built-in Cables Yes
• Color-Coded Connections No
• Numbered Ports Yes
• EIA/TIA 2/32 Spacing No
• Labeled Ports Yes
• Network Speed Support 100 Gbps; 40 Gbps; 400 Gbps
• Optical Port MPO/MTP
• Breakout No
• Trunk No
