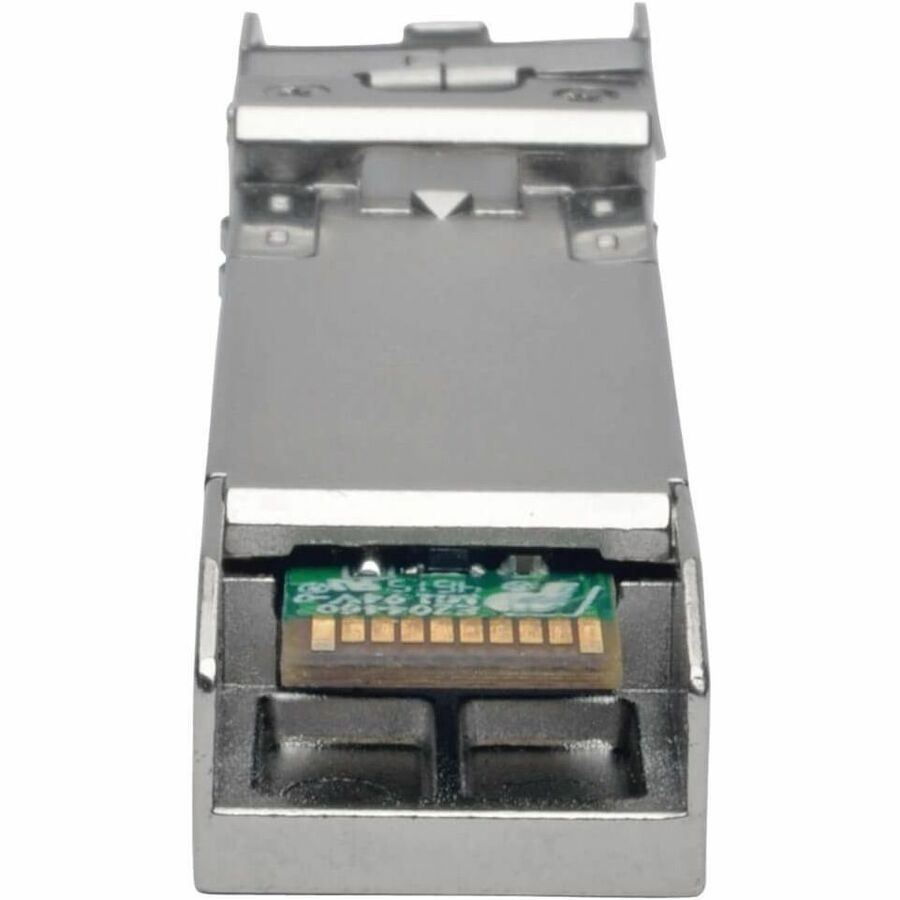

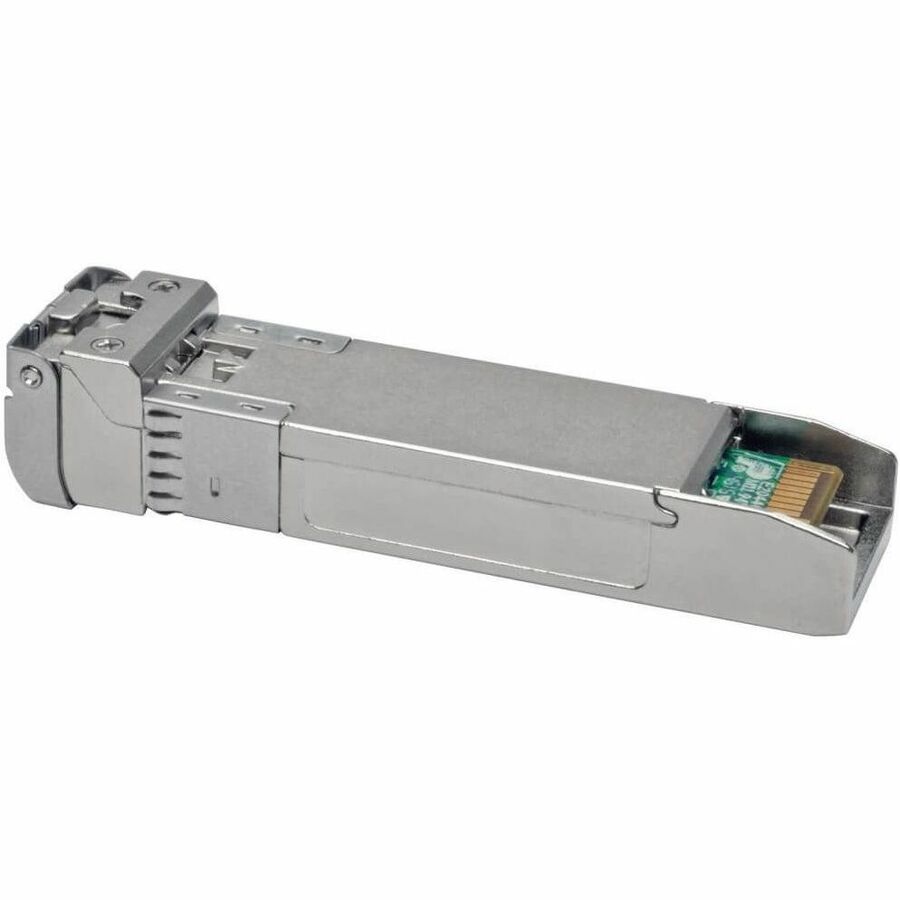

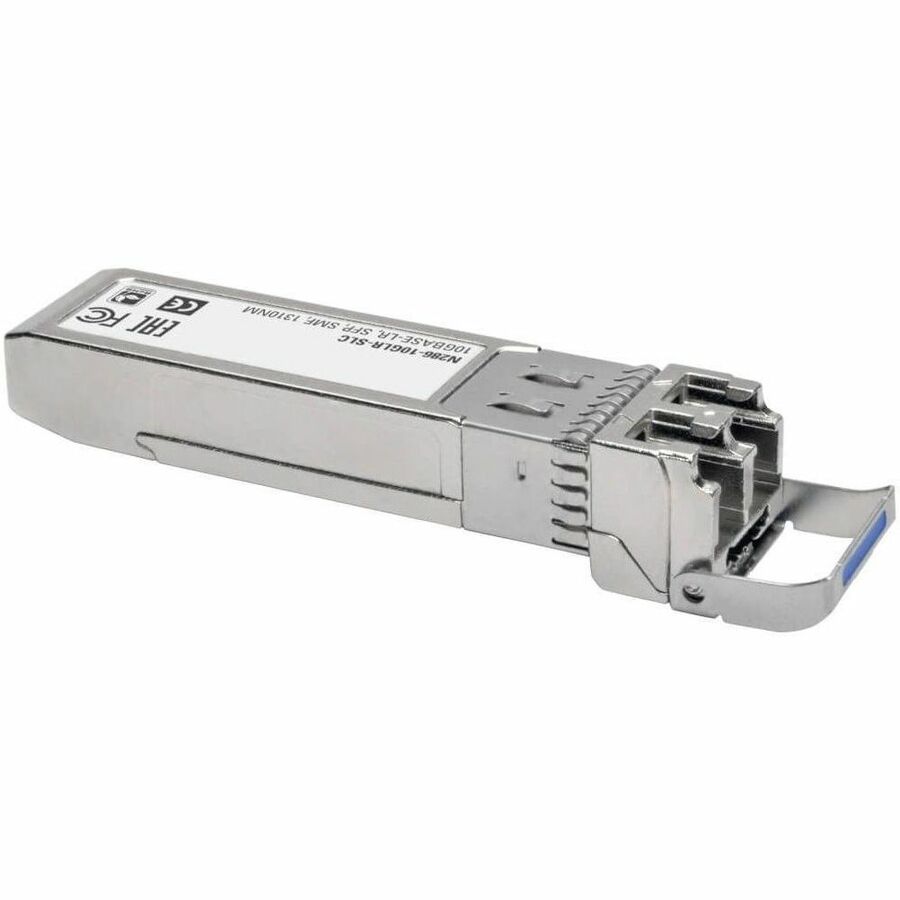

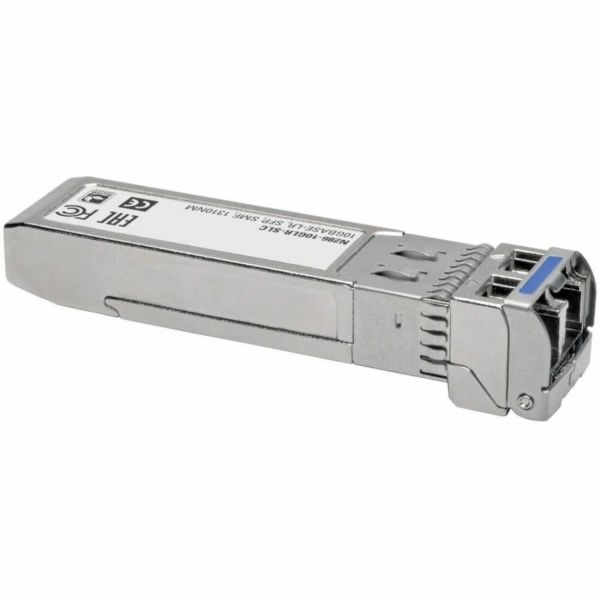

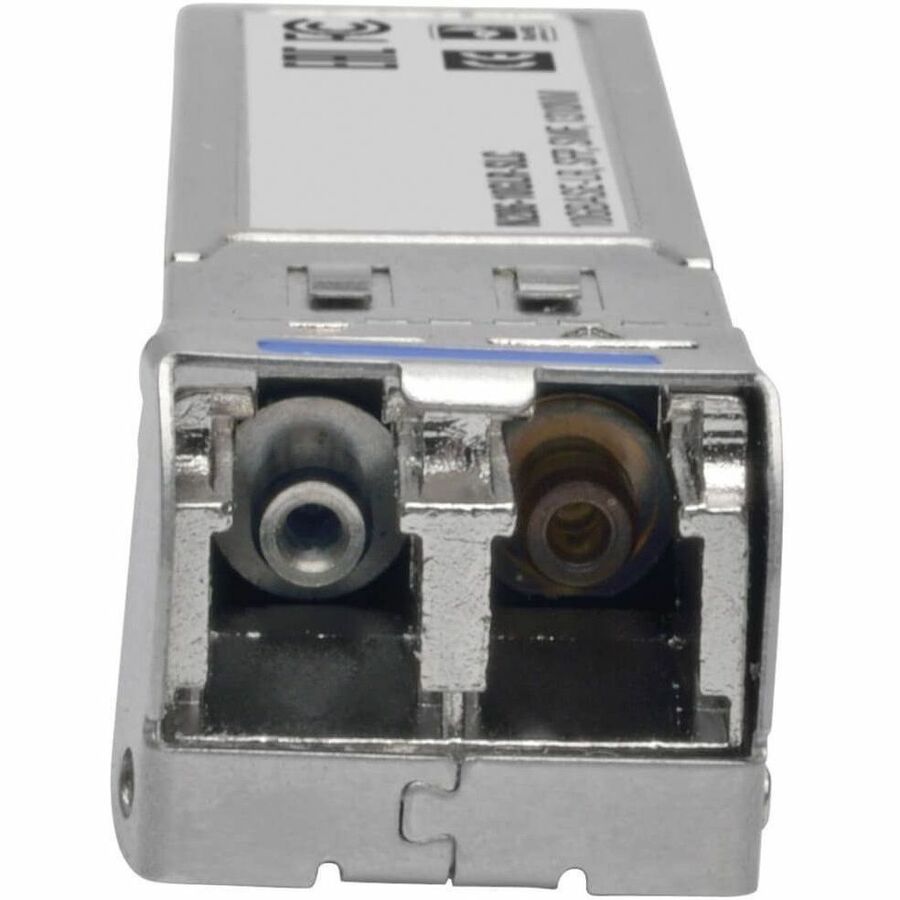

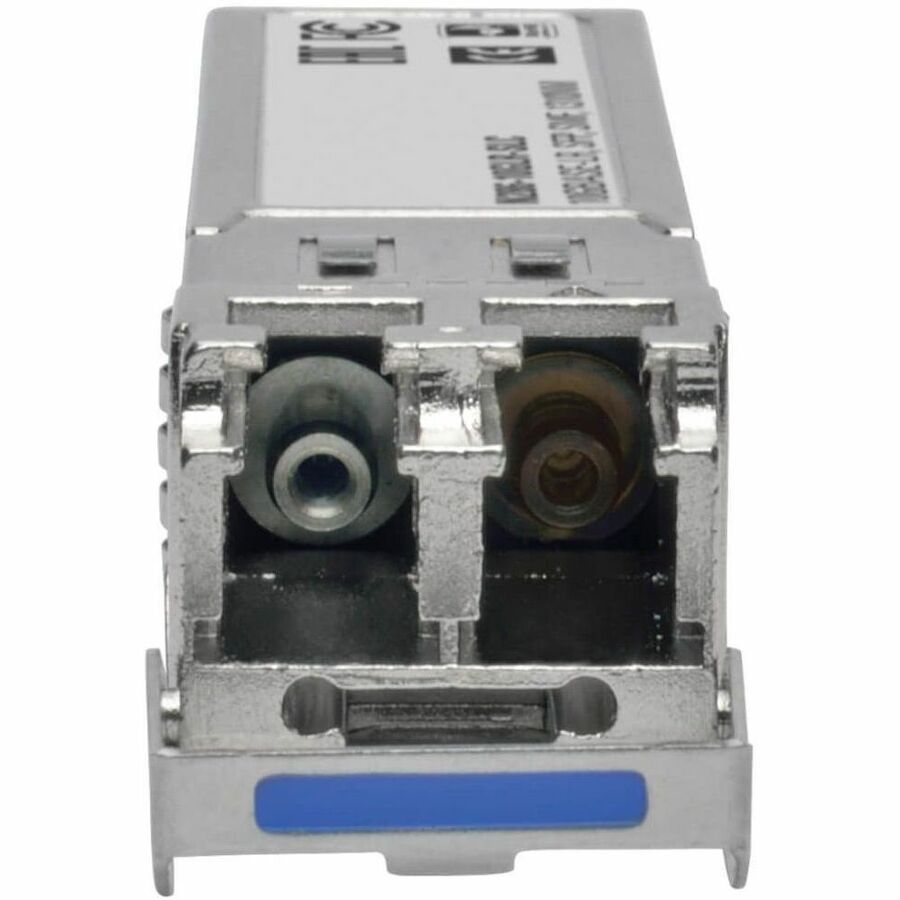

Tripp Lite by Eaton Cisco-Compatible SFP-10G-LR SFP+ Transceiver 10GBase-LR DDM Singlemode LC 1310 nm 10 km

Name: Tripp Lite by Eaton Cisco-Compatible SFP-10G-LR SFP+ Transceiver 10GBase-LR DDM Singlemode LC 1310 nm 10 km
Brand: TRIPP LITE
SKU: 8E2636
Price: 266.21 USD
Availability: InStock

TRIPP LITE

PCN#

8E2636

MFG#

N286-10GLR-SLC

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$266.21

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

For Optical Network 1 LC Female Duplex 10GBase
LR Network
Optical Fiber9/125 µm
Single
mode
10 Gigabit Ethernet
10GBase
LR
Hot
pluggable

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 1 lbs.

Tripp Lite by Eaton Cisco-Compatible SFP-10G-LR SFP+ Transceiver, 10GBase-LR, DDM, Singlemode LC , 1310 nm, 10 km

Overview

Tech Specs

Specifications

Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	N286-10GLR-SLC
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Model	N286-10GLR-SLC
Product Name	Cisco N286-10GLR-SLC SFP+ Module
Marketing Information	The N286-10GLR-SLC Cisco SFP-10G-LR Compatible 10GBase-LR LC SFP Transceiver with a duplex LC female connector functions just like the Cisco® SFP-10G-LR transceiver module and is designed to operate with Cisco networking equipment. It also meets or exceeds the SFP-10G-LR's original specifications and complies with MSA standards. This 10GBase-LR transceiver is fully hot-pluggable, so you can install it without shutting down the network or rebooting your device. It supports data transfer rates up to 10 Gbps with 1310 nm wavelength signaling. It transmits across six miles (10 kilometers) of 9/125 SMF cabling. Its metallic housing allows low EMI. The N286-10GLR-SLC also supports DDM, so you can monitor optical output power, optical input power, temperature, laser bias current and transceiver supply voltage. It is electrical interface-compliant with SFF-8431 specification, and supports up to 11.1 Gbps bi-directional communication.
Product Type	SFP+

Technical Information

Application/Usage

Optical Network

Interfaces/Ports

Total Number of Ports	1
Connector Type	LC
Interfaces/Ports Details	1 x LC Duplex 10GBase-LR Network

Media & Performance

Media Type Supported	Optical Fiber
Fiber Optic Cable Standard	9/125 µm
Fiber Mode Supported	Single-mode
Ethernet Technology	10 Gigabit Ethernet
Network Technology	10GBase-LR

Physical Characteristics

Form Factor	Hot-pluggable
Height	0.3"
Width	0.5"
Depth	2.2"
Weight (Approximate)	0.05 lb

Miscellaneous

Package Contents	Cisco N286-10GLR-SLC SFP+ Module Owner's manual
Compatibility	MSA Compliant Cisco Systems: Cisco 1921 Series Router Cisco1941 Series Router Cisco 2600 Series Router Cisco 2800 Series Router Cisco 2900 Series Router Cisco 3700 Series Router Cisco 3800 Series Router Cisco 3900 Series Router Cisco 7200 Series Router Cisco uBR7200 Series Router Cisco 7300 Series Router Cisco 7600 Series Router Cisco uBR10000 Series Router Shared Port Adapter Cisco MWR 2941 Mobile Wireless Routers Cisco 892F Series Cisco Catalyst Express 500 Catalyst Express 520 Cisco ME 3400 Cisco ME 3600X Cisco ME 3800X Cisco ME 4900 Series Cisco ME 6500 Series Catalyst 2940 Series Catalyst 2960 series Catalyst 2960-S Series Catalyst 2960-C Series Catalyst 2970 series Catalyst 2975 Series Catalyst 3560 Series Catalyst 3560-E Series Catalyst 3560-X Series Catalyst 3560-C Series Catalyst 3750 series Catalyst 3750 E-series Catalyst 3750-X series Cisco IE3010 series Catalyst 4500 series Catalyst 4900 series Catalyst 6500 series Cisco Catalyst 2350 Series Cisco Catalyst 2360 Series Cisco Catalyst 3000 and 3100 Blade Switches Cisco Nexus 7000 Series
Environmentally Friendly	Yes
Country of Origin	China

Warranty

Limited Warranty

3 Year
