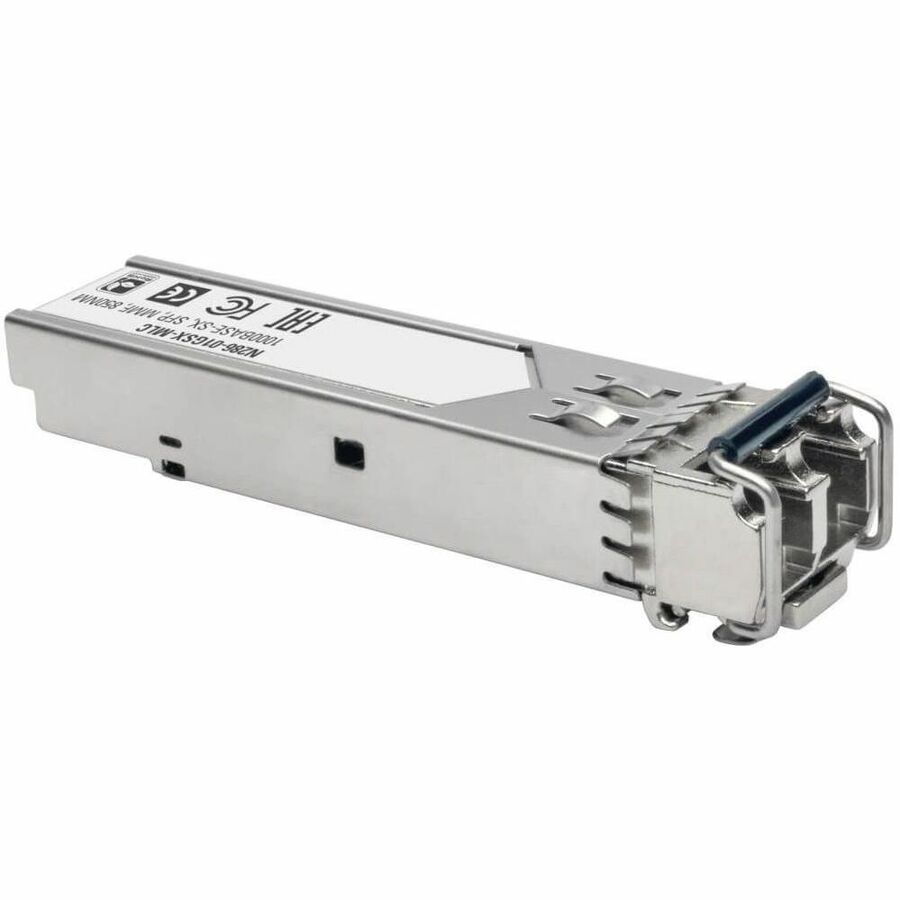

Tripp Lite by Eaton HP J4858C Compatible SFP Transceiver 1000Base-SX DDM Multimode LC 850 nm 550 m

The N286-01GSX-MLC HP J4858C Compatible 1000Base-SX LC SFP Transceiver with an LC female connector functions just like the HP J4858C transceiver module and is designed to operate with HP networking equipment. It also meets or exceeds the J4858C's original specifications and complies with MSA (Multi-Source Agreement) standards.

This 1000Base-SX transceiver is fully hot-pluggable, so you can install it without shutting down the network or rebooting your device. It supports data transfer rates up to 1 Gbps with 850 nm wavelength signaling. It transmits across 1,804 feet (550 meters) of 50/125 MMF cabling or 722 feet (220 meters) of 62.5/125 MMF cabling.

The N286-01GSX-MLC also supports digital diagnostics monitoring (DDM), so you can monitor optical output power, optical input power, temperature, laser bias current and transceiver supply voltage.

• Optical Network
• Data Networking

• 50/125 µm
• 62.5/125 µm

• HP N286-01GSX-MLC SFP (mini-GBIC) Module
• Owner's manual

• MSA Compliant

• 2920 Switch Series - 2920-24G (J9726A#ABA)
• 2920 Switch Series - 2920-24G-PoE+ (J9727A#ABA)
• 2920 Switch Series - 2920-48G (J9728A#ABA)
• 2920 Switch Series - 2920-48G-PoE+ (J9729A#ABA)
• 5820-14XG-SFP+ 2-slot Switch (JC106A)
• 5820-24XG-SFP+ Switch (JC102A)
• 5820AF-24XG Switch (JG219A)
• HP 1810-8G v2 Smart Desktop Switch - J9802A#ABA
• HP 1910 Series Switch - 1910-24G-PoE (365w) - (JE007AS#ABA)
• HP 1910-24G-PoE (170W) Switch - JE008AS#ABA
• HP 2530-24 Switch - J9782A#ABA
• HP 2530-24G Switch 2530 Series - J9776A#ABA
• HP 2530-24-PoE+ Ethernet Switch - J9779A#ABA
• HP 2530-48G Switch - J9775A#ABA
• HP 2530-48G-PoE+ Switch - J9772A#ABA
• HP 2920-48G-POE+ Switch - J9836A#ABA
• HP E5406-44G-PoE+/2XG-SFP+ v2 zl Switch Chassis - J9533A#ABA
• HP E5406-44G-PoE+/4G-SFP Switch Chassis - J9539A#ABA
• HP Switch 2530 Series - 2530-24G (J9773A#ABA)
• NC373F PCI Express Multifunction Gigabit server adapter - 394793-B21
• ProCurve 1400 Series Switch - 1400-24G (J9078A)
• ProCurve 1400 Series Switch - 1400-8G (J9077A)
• Procurve 1410/E1410 Series Switch - 1410-16G (J9060A)
• Procurve 1410/E1410 Series Switch - 1410-24G (J9561A)
• Procurve 1410/E1410 Series Switch - 1410-8G (J9559A#ABA)
• ProCurve 1700 Series Switch - 1700-24 (J9080A)
• ProCurve 1800 Series Switch - 1800-24G (J9028A/B)
• ProCurve 1810G Series Switch - 1810G-24 (J9450A)
• Procurve 1810G Series Switch - 1810G-8 (J9449A)
• ProCurve 1810G Series Switch - V1810-48G (J9660A)
• ProCurve 2510/E2510 Series Switch - 2510-24 (J9019A/B)
• ProCurve 2510/E2510 Series Switch - 2510-48 (J9020A)
• ProCurve 2510/E2510 Series Switch - 2510G-24 (J9279A)
• ProCurve 2510/E2510 Series Switch - 2510G-48 (J9280A)
• ProCurve 2520/E2520 Series Switch - 2520-24-PoE (J9138A)
• ProCurve 2520/E2520 Series Switch - 2520-8-PoE (J9137A)
• ProCurve 2520/E2520 Series Switch - 2520G-24-PoE (J9299A)
• ProCurve 2520/E2520 Series Switch - 2520G-8-PoE (J9298A)
• ProCurve 2530-8 Switch (J9783A)
• ProCurve 2600/E2600 Series Switch - 2600-8-PWR (J8762A)
• ProCurve 2600/E2600 Series Switch - 2626 (J4899A/B/C)
• ProCurve 2600/E2600 Series Switch - 2626-PWR (J8164A)
• ProCurve 2600/E2600 Series Switch - 2650 (J4900A/B/C)
• ProCurve 2600/E2600 Series Switch - 2650-PWR (J8165A)
• ProCurve 2610/E2610 Series Switch - 2610-24 (J9085A)
• ProCurve 2610/E2610 Series Switch - 2610-24/12PWR (J9086A)
• ProCurve 2610/E2610 Series Switch - 2610-24-PWR (J9087A)
• ProCurve 2610/E2610 Series Switch - 2610-48 (J9088A)
• ProCurve 2610/E2610 Series Switch - 2610-48-PWR (J9089A)
• Procurve 2615/E2615 Series Switch - 2615-8-PoE (J9565A)
• ProCurve 2620/E2620 Series Switch - 2620-24 (J9623A)
• ProCurve 2620/E2620 Series Switch - 2620-24-PoE+ (J9625A#ABA)
• ProCurve 2620/E2620 Series Switch - 2620-24-PPoE+ (J9624A#ABA)
• ProCurve 2620/E2620 Series Switch - 2620-48 (J9626A)
• ProCurve 2620/E2620 Series Switch - 2620-48-PoE+ (J9627A#ABA)
• ProCurve 2800/E2800 Series Switch - 2824 (J4903A)
• ProCurve 2800/E2800 Series Switch - 2848 (J4904A)
