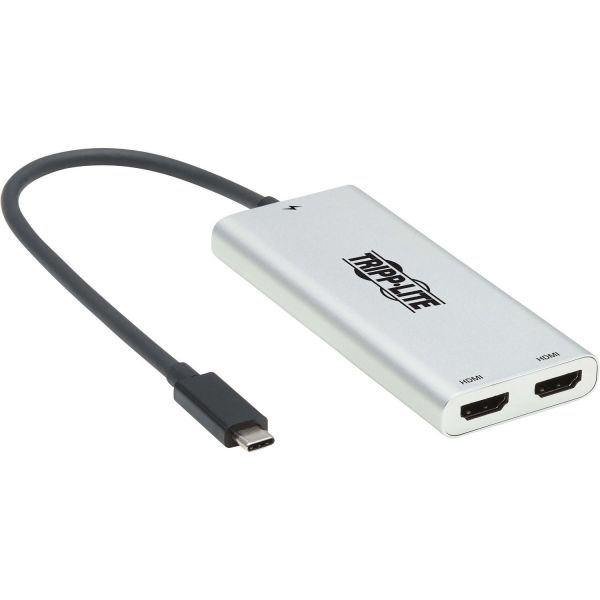

Tripp Lite by Eaton Dual-Monitor Thunderbolt 3 to HDMI Adapter (M/2xF) - 4K 60 Hz, 4:4:4, Silver

by
TRIPP LITE
PCN#
9HD005
MFG#
MTB3-002-HD
$70.04
cps

Extended & Accidental Damage Product Replacement Plan Available Details

Estimated Shipment:

Calculating Shipping

Product Highlights:

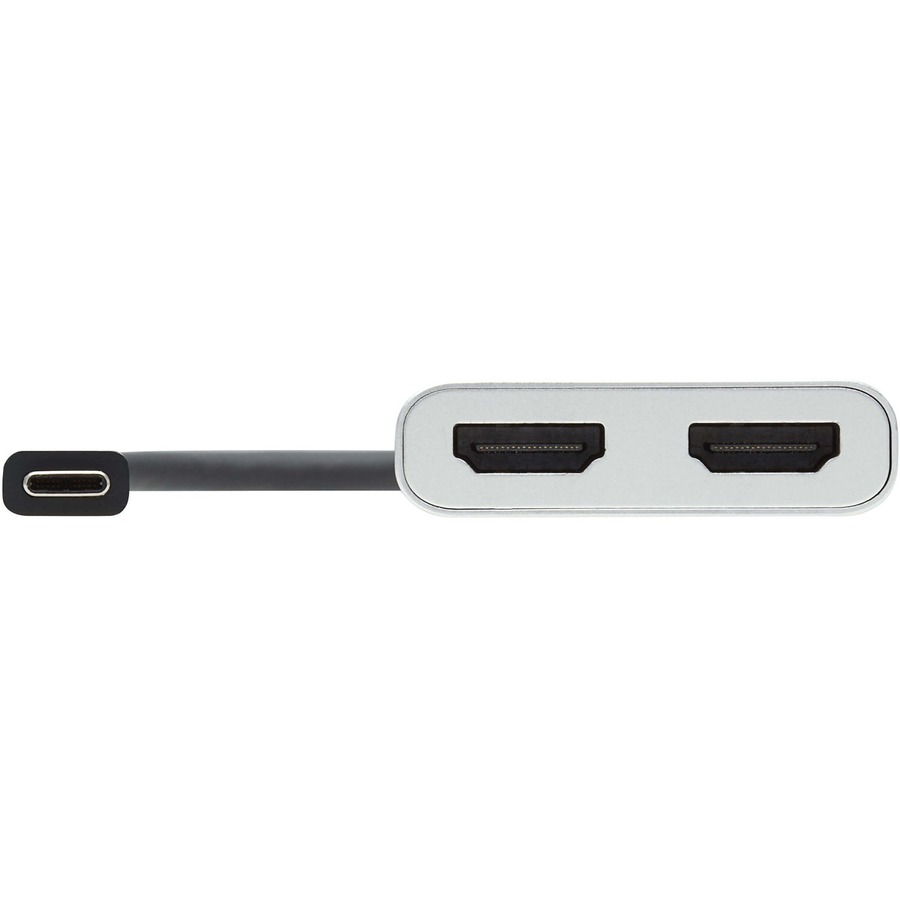

  • 1 x Type C USB 3.1 Thunderbolt 3 Male
  • 2 x HDMI HDMI 2.0 Digital Audio/Video Female
  • 3840 x 2160 Supported

Show more

Product Condition: New and Factory Fresh
Limited Warranty3 Year
Shipping Weight: 1 lbs.
Tripp Lite by Eaton Dual-Monitor Thunderbolt 3 to HDMI Adapter (M/2xF) - 4K 60 Hz, 4:4:4, Silver
Tech Specs
Specifications

Manufacturer

Tripp Lite by Eaton

Manufacturer Part Number

MTB3-002-HD

Manufacturer Website Address

https://tripplite.eaton.com/

Brand Name

Tripp Lite by Eaton

Product Model

MTB3-002-HD

Product Name

Dual-Monitor Thunderbolt 3 to HDMI Adapter (M/2xF) - 4K 60 Hz, 4:4:4, Silver

Marketing Information

Thunderbolt Adapter Transmits Ultra HD 4K Video to 2 HDMI Monitors at the Same Time

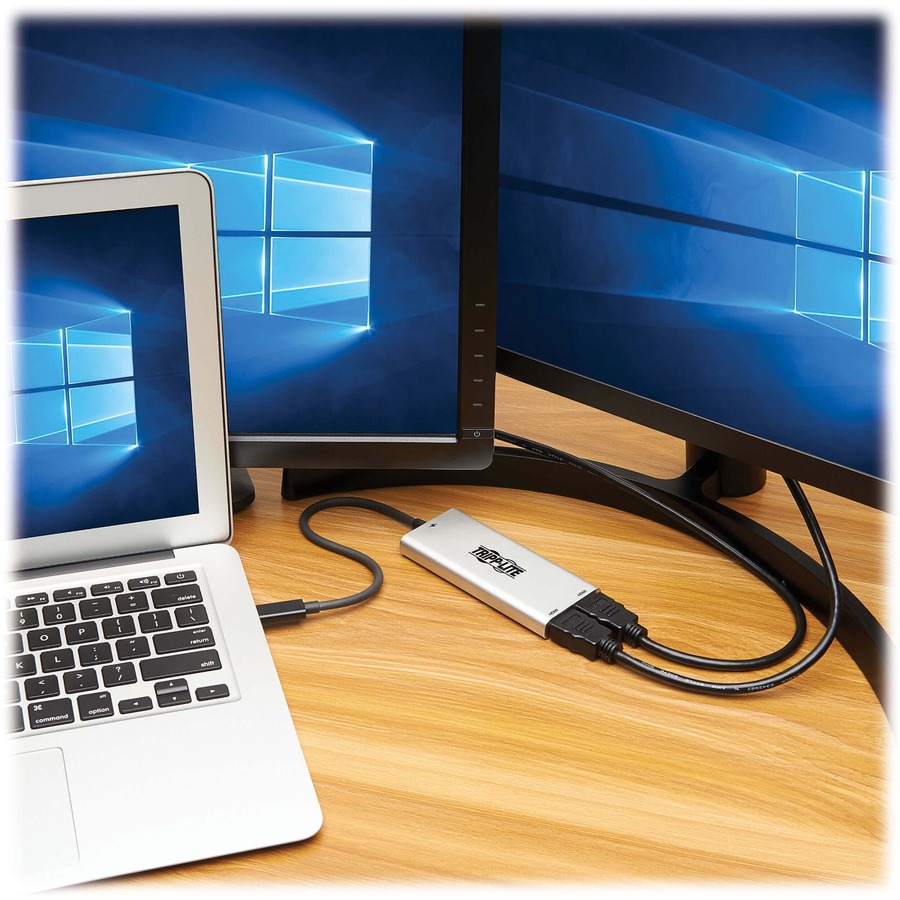

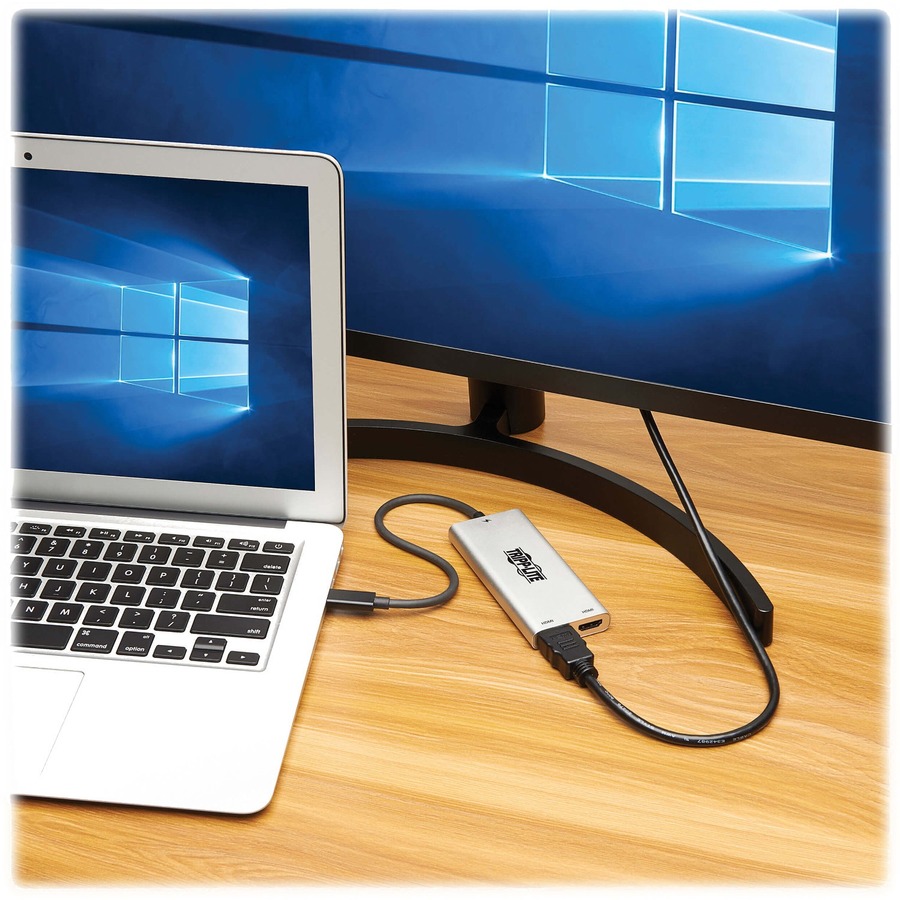

This dual-monitor video adapter (M/2xF) connects the Thunderbolt 3 port on your computer, tablet, laptop, notebook or MacBook to two HDMI monitors simultaneously and delivers 4K video to both.

An Ideal Tool for Video Editing or Multitasking at Home or the Office
With this Thunderbolt 3 adapter's high bandwidth of 40 Gbps, you can more efficiently run applications that demand heavy resources. For instance, editing 4K video is easier with one monitor used for raw video playback and the other displaying your fresh cut. Home/office multitasking is more efficient with two monitors placed side by side on your workstation. And your video presentation or digital signage looks vivid and enticing in stunning 4K.

Enjoy the Clarity of 4K Video with Audio and 4:4:4 Color
This 4K HDMI adapter supports Ultra HD 4K video resolutions up to 3840 x 2160 at 60 Hz for crystal-clear picture and sound on two monitors simultaneously. The MTB3-002-HD is compatible with HDCP 2.2 content protection, 3D video and EDID. It also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor, as well as 36-bit Deep Color (12 bits per channel).

Built-In Thunderbolt 3 Connector Attaches in Either Direction
Unlike traditional USB cables that connect in only one direction, the reversible male connector plugs into a Thunderbolt 3 port in either direction for a fumble-free connection every time. Thunderbolt 3 is eight times faster than USB 3.0 with four times the video bandwidth of HDMI. Note: This adapter only provides audio/video output when connected to a Thunderbolt 3 port. It will not function if connected to a USB-C port.

Ready to Use Right from the Package, So You Can Plug and Play Immediately
The plug-and-play adapter requires no software or external power. Just connect the built-in cable to the Thunderbolt 3 port on your source device, and use HDMI cables (sold separately) to connect the adapter to your display(s). Because the adapter is backward compatible with non-4K displays, you can use it with 1080p monitors or other available displays. Multi-resolution support ensures both connected displays will work at their highest resolution.

Product Type

A/V Adapter
Technical Information

Adapter Type

HDMI/Thunderbolt 3

Connector Type on First End

USB 3.1 Type C - Male

Connector on First End Details

1 x Type C USB 3.1 Thunderbolt 3 Male

Connector Type on Second End

HDMI 2.0 Digital Audio/Video - Female

Connector on Second End Details

2 x HDMI HDMI 2.0 Digital Audio/Video Female

Connector Plating

Nickel

Maximum Resolution Supported

3840 x 2160

Features

  • Extended Display Identification Data (EDID)
  • HDCP 2.2
  • Plug and Play
  • Reversible
  • HDCP
  • HDCP 1.4
Physical Characteristics

Color Family

Multicolor

Product Color

  • Silver
  • Gray

Jacket Material

Polyvinyl Chloride (PVC)
Miscellaneous

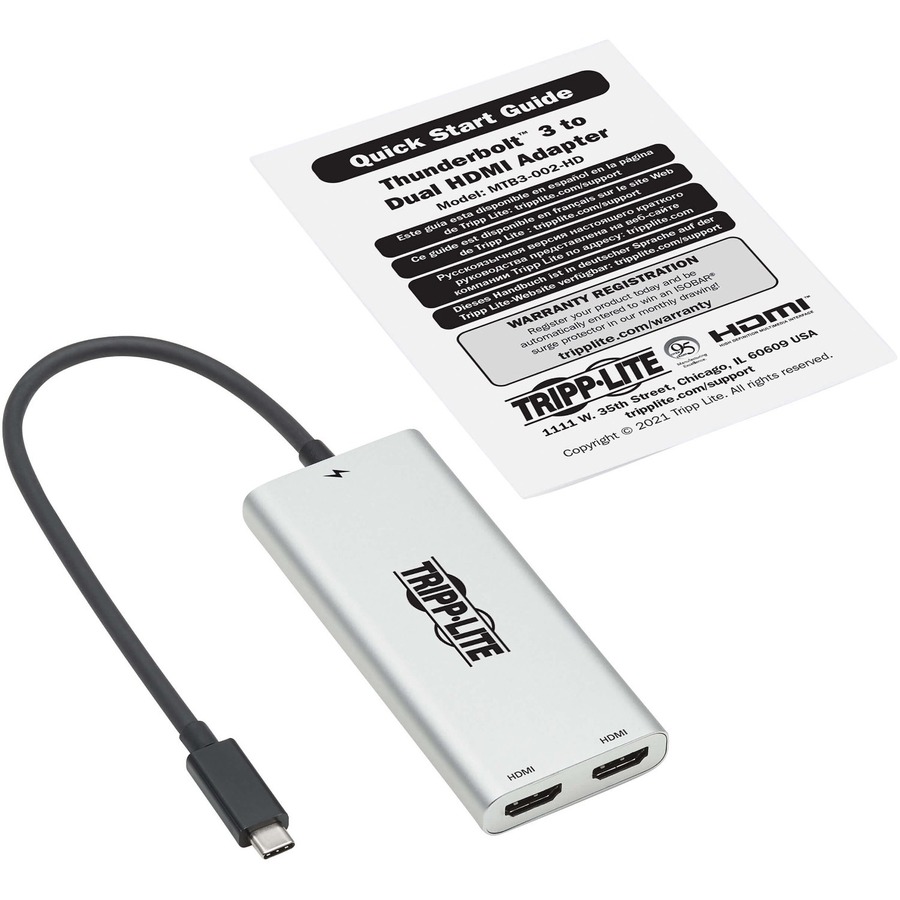

Package Contents

  • Dual-Monitor Thunderbolt 3 to HDMI Adapter (M/2xF) - 4K 60 Hz, 4:4:4, Silver
  • Quick Start Guide

Country of Origin

Vietnam

Environmentally Friendly

Yes

Environmental Compliance

Restriction of Hazardous Substances (RoHS)
Warranty

Limited Warranty

3 Year
