Tripp Lite by Eaton Isobar 2-Outlet Surge Protector 6 ft. Cord with Right-Angle Plug 1410 Joules Metal Housing

by
EATON
PCN#
375508
MFG#
ISOBAR 2-6
$58.97
cps

Extended & Accidental Damage Product Replacement Plan Available Details

Estimated Shipment:

Calculating Shipping

Product Highlights:
  • Receptacles: 2 x NEMA 5
  • 15R
  • 1410J
Product Condition: New and Factory Fresh
Limited WarrantyLifetime
Shipping Weight: 2 lbs.
Eaton Tripp Lite Series Isobar 2-Outlet Surge Protector, 6 ft. Cord with Right-Angle Plug, 1410 Joules, Metal Housing
Tech Specs
Specifications

Manufacturer

Eaton Corporation

Manufacturer Part Number

ISOBAR2-6

Manufacturer Website Address

http://www.eaton.com

Brand Name

Tripp Lite series

Product Name

Isobar 2 Outlets Surge Suppressor

Marketing Information

Premium protection for home, corporate, retail, telecom and industrial applications, the ISOBAR2-6 Isobar® 2-Outlet Surge Protector features a surge protection rating of 1410 joules to defend your sensitive electronics against surges and spikes.

The ISOBAR2-6 features two widely spaced NEMA 5-15R outlets, which are arranged in an exclusive isolated filter bank. This internal barrier prevents disruptive line noise from causing A/V distortion, computer lock-ups, data errors and similar problems. Large toroidal chokes, ferrite rod-core inductors, HF/VHF capacitors and multiple layers of metal oxide varistors remove EMI/RFI interference and prevent system crashes, reboots and performance problems.

Because residential power outlets have three wires-hot line (H), neutral (N) and ground (G)-the ISOBAR2-6 protects all three, covering two protection modes: full normal mode (H-N) and common mode (N-G/H-G).

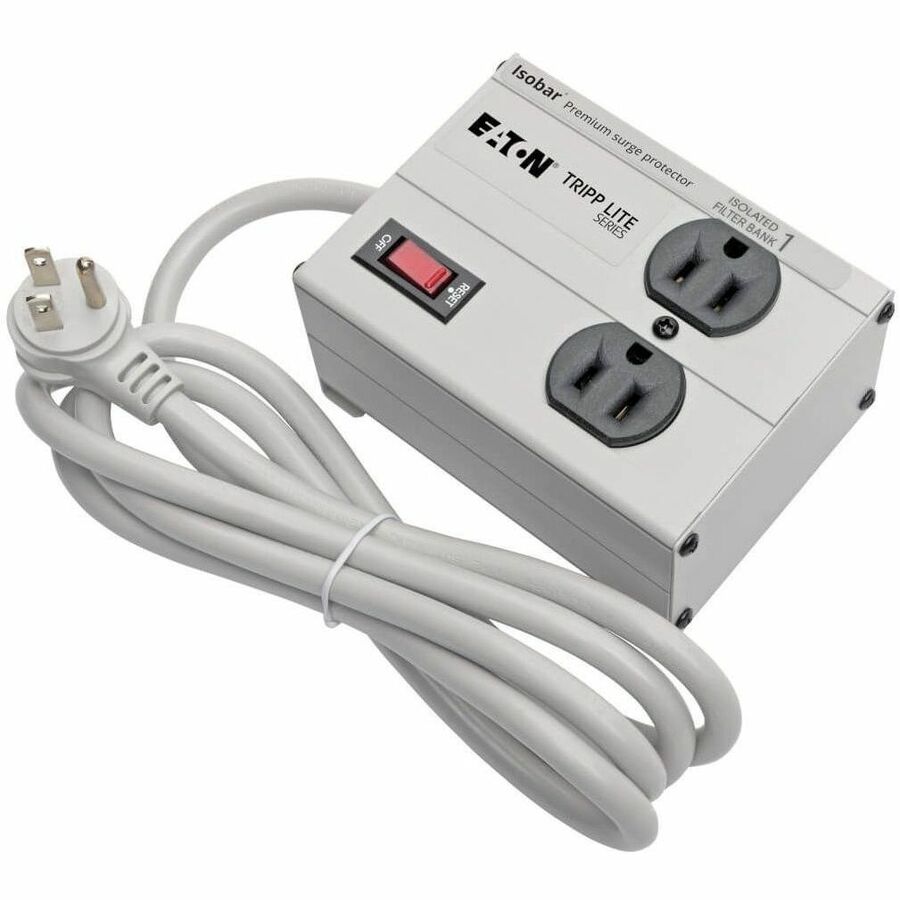

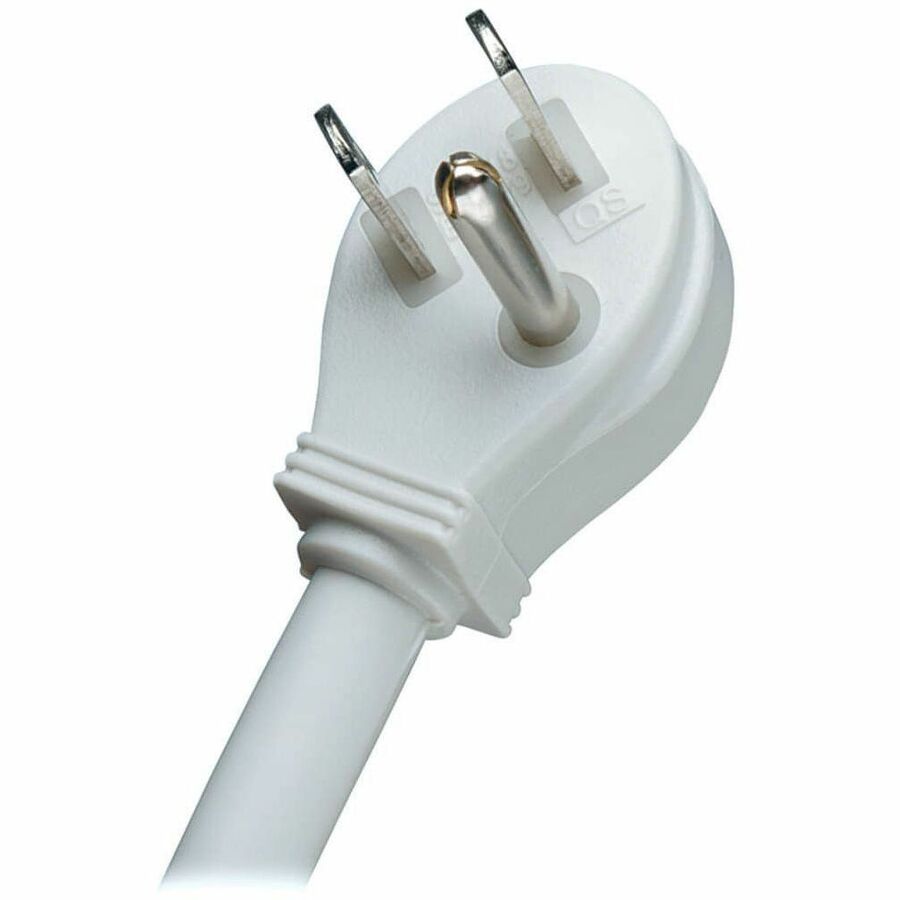

Included safety covers protect against dust while blocking accidental contact with unused outlets. An integrated 12A circuit breaker protects all outlets and shuts down connected equipment in the event of an overload. A lighted on/off switch provides one-touch control over connected components. A six-foot (1.8-meter) power cord with right-angle 5-15P plug reaches nearby outlets and allows furniture to be placed flush against the wall. An all-metal housing stands up to rugged environments.

Product Type

Surge Suppressor/Protector
Technical Information

Plug/Connector Type

NEMA 5-15P

Receptacles

2 x NEMA 5-15R

Protection Type

Surge
Power Description

Input Voltage

120 V AC

Output Voltage

120 V AC

Maximum Line Current

15 A

Maximum Surge Current

24 kA

Power Handling

1440 VA

Surge Energy Rating

1410 J
Physical Characteristics

Color Family

Black

Product Color

Black

Power Cord/Cable Length

6 ft

Height

2.5"

Width

5"

Depth

3.5"
Miscellaneous

Package Contents

  • Isobar 2 Outlets Surge Suppressor
  • Set of 4 outlet safety covers
  • Instruction manual with warranty information

Additional Information

  • Clamping voltage (RMS): 140 V
  • Supports up to 2 large transformer plug accessories without covering remaining outlets
  • Safe thermal fusing: Prevents unsafe conditions during extreme extended overvoltages and catastrophic occurences

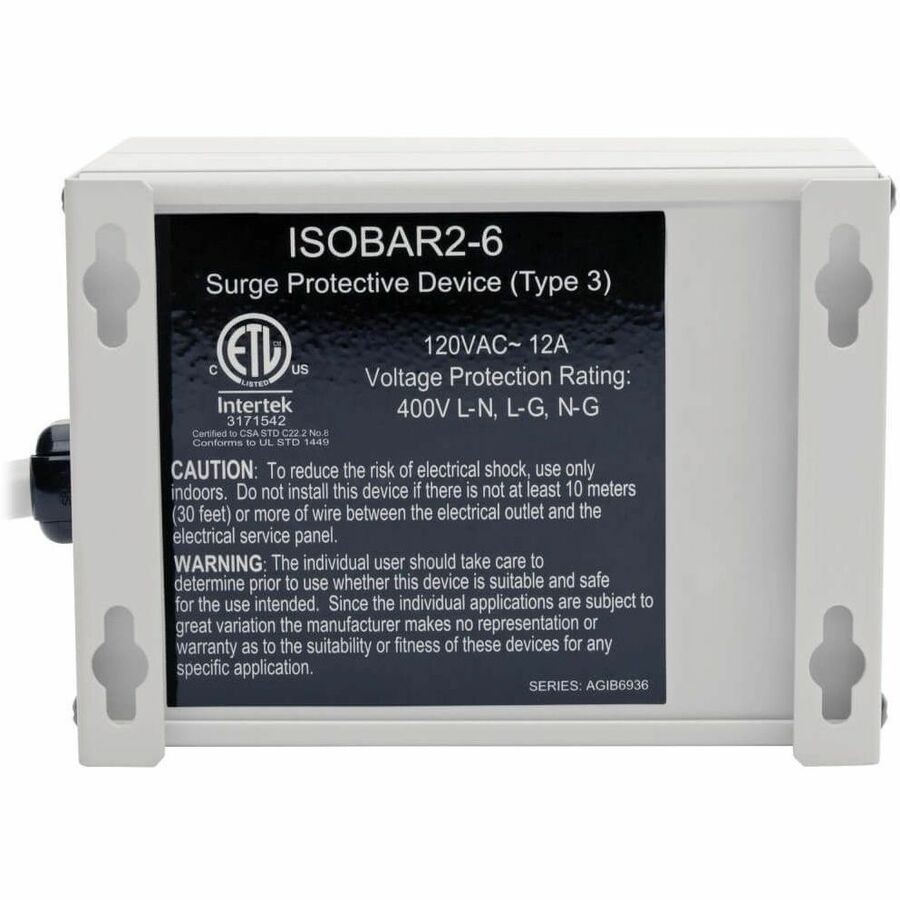

  • Metal end caps are fitted with keyhole mounting tabs for wallmount installation

Compatibility

Ideal for premium protection of personal computers with peripherals, network and CAD / CAM / CAE workstations, internetworking accessories, telecommunications systems, point of sale equipment, audio / video and home theater systems in any home, office or industrial application.

Certifications & Standards

  • UL1499 (let through rating 330V)
  • Exceeds IEEE 587 category A&B specifications
  • EMI Filter: UL1283
  • Power Tap: UL1363
  • cUL

Country of Origin

Philippines
Warranty

Limited Warranty

Lifetime
