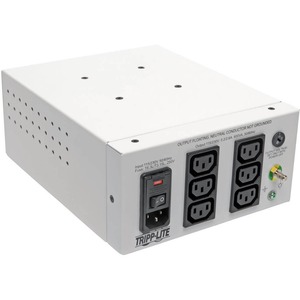

Tripp Lite by Eaton Isolator Series Dual-Voltage 115/230V 600W 60601-1 Medical-Grade Isolation Transformer C14 Inlet 6 C13 Outlets

Name: Tripp Lite by Eaton Isolator Series Dual-Voltage 115/230V 600W 60601-1 Medical-Grade Isolation Transformer C14 Inlet 6 C13 Outlets
Brand: TRIPP LITE
SKU: 3BU439
Price: 712.71 USD
Availability: InStock

TRIPP LITE

PCN#

3BU439

MFG#

IS600HGDV

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$712.71

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Free Shipping

Estimated Shipment:

Product Highlights:

600 VA
120 V AC, 230 V AC Input
115 V AC, 230 V AC Output

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 23 lbs.

Tripp Lite by Eaton Isolator Series Dual-Voltage 115/230V 600W 60601-1 Medical-Grade Isolation Transformer, C14 Inlet, 6 C13 Outlets

Overview

Tech Specs

Specifications

Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	IS600HGDV
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Line	Isolator
Product Model	IS600HGDV
Product Name	Isolator IS600HGDV Isolation Transformer
Marketing Information	The IS600HGDV Isolator® Series Dual-Voltage 115/230V 600W 50/60Hz Medical-Grade™ Transformer with full CAN/ES/IEC/EN 60601-1 listing is ideal for protecting sensitive electronic equipment in patient-care vicinities. It can be configured for either step-up voltage, step-down voltage or pass-through voltage operation. Along with line isolation and continuous EMI/RFI line noise filtering, its surge protection rating of 240 joules suppresses excess voltage to prevent it from damaging connected equipment. An internal low-impedance isolation transformer component offers 100% isolation from the input mains AC line. Faraday shield reduces the cumulative leakage current of the IS600HGDV and connected equipment to levels less than 50 microamps, while removing utility switching transients and harmonics generated by other on-site loads and reducing the impact of utility or lightning related surge conditions. Transformer filtering provides continuous common-mode noise rejection with no wearable parts. The IS600HGDV reduces 6000V IEEE 587 Category A and B ring wave and combination wave test surges to only 0.5V common mode. Components connect to six C13 outlets with fuse overload protection and a lighted on/off switch. The rugged all-metal unit housing ships ready for placement in any industrial, medical, office, network or audio/video environment. Requires a C14-to-C13 AC input cord (sold separately).
Product Type	Isolation Transformer

Technical Information

Power Rating	600 VA
Input Receptacle Type	IEC 60320 C14
Output Receptacle Type	IEC 60320 C13
Output Receptacle Detail	6 x IEC 60320 C13

Power Description

Input Voltage	120 V AC 230 V AC
Output Voltage	115 V AC 230 V AC
Maximum Line Current	6 A

Physical Characteristics

Color Family	White
Product Color	White
Form Factor	Cabinet
Height	4.3"
Width	7.9"
Depth	9.8"
Weight (Approximate)	20.38 lb

Miscellaneous

Package Contents	Isolator IS600HGDV Isolation Transformer 2 x Fuse Sets (115V and 230V Operation) Input/Output Cable Selector Data Sheet Owner's Manual
Certifications & Standards	ANSI/AAMI ES60601-1:2005+A2+A1 IEC60601-1 3RD EDITION +A1 cAN/CSA-C22.2 NO. 60601-1:14 CE NOM
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

2 Year
