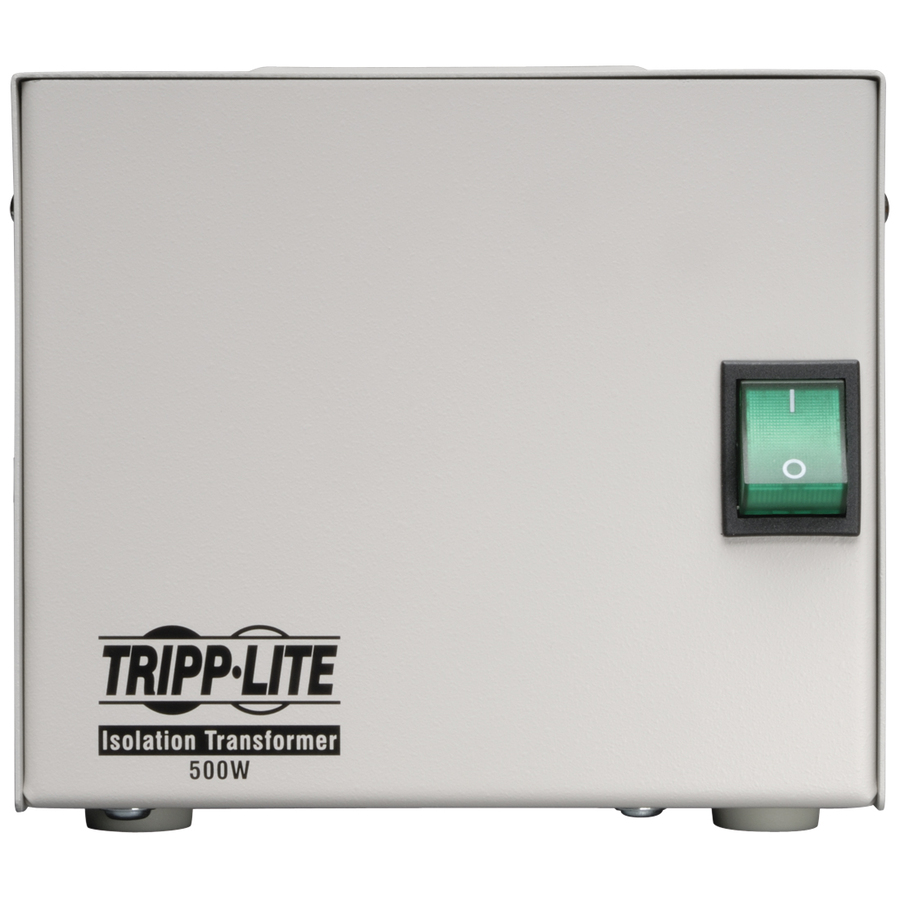

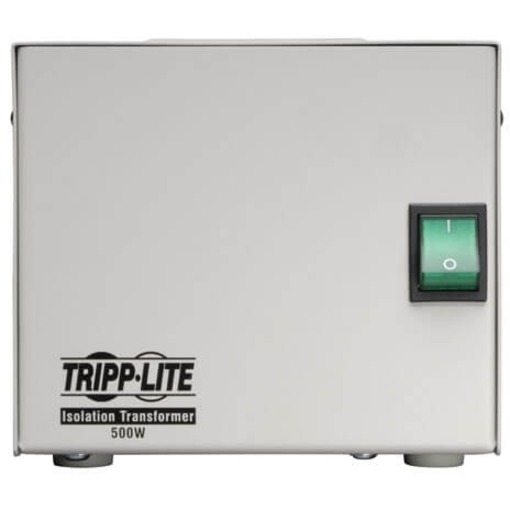

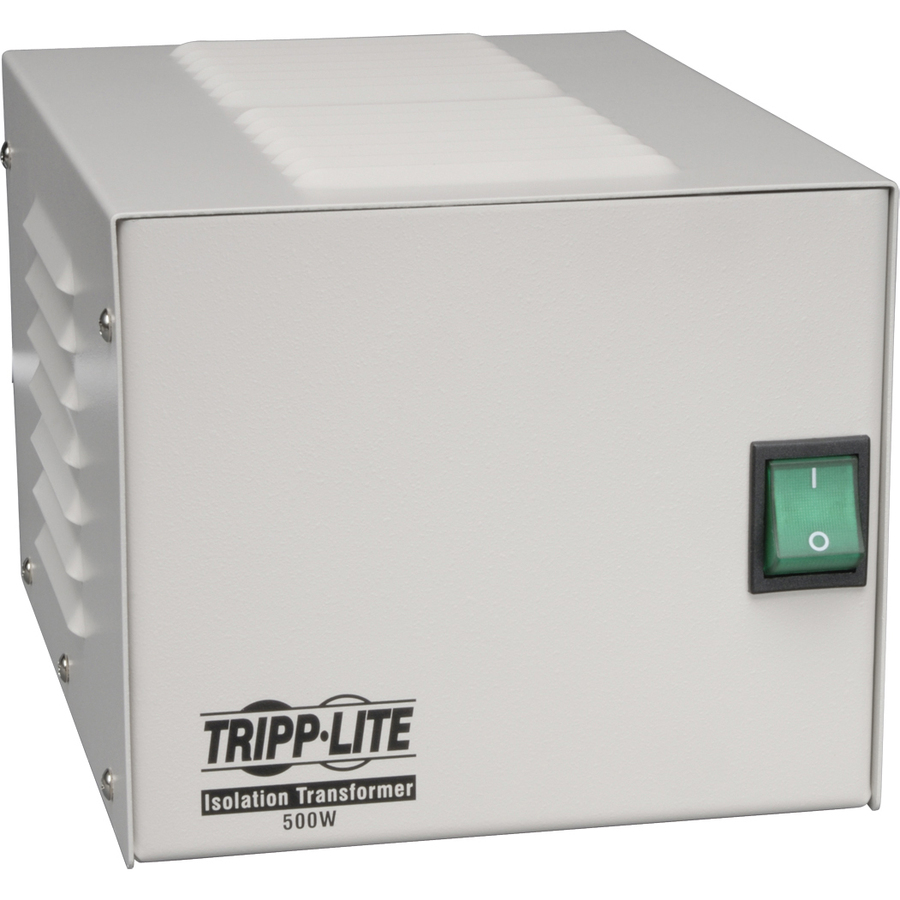

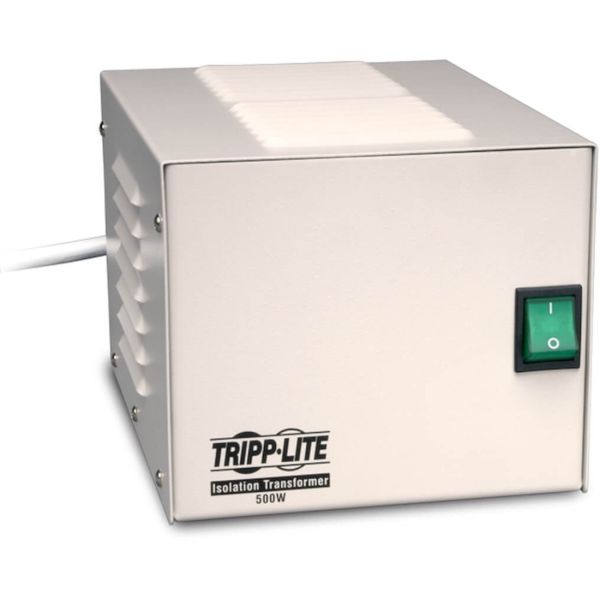

Tripp Lite by Eaton Isolator Series 120V 500W UL 60601-1 Medical-Grade Isolation Transformer with 4 Hospital-Grade Outlets

Name: Tripp Lite by Eaton Isolator Series 120V 500W UL 60601-1 Medical-Grade Isolation Transformer with 4 Hospital-Grade Outlets
Brand: TRIPP LITE
SKU: C77200
Price: 303.78 USD
Availability: InStock

TRIPP LITE

PCN#

C77200

MFG#

IS500HG

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$303.78

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

Receptacles: 4 x NEMA 5
15R
680J

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 24 lbs.

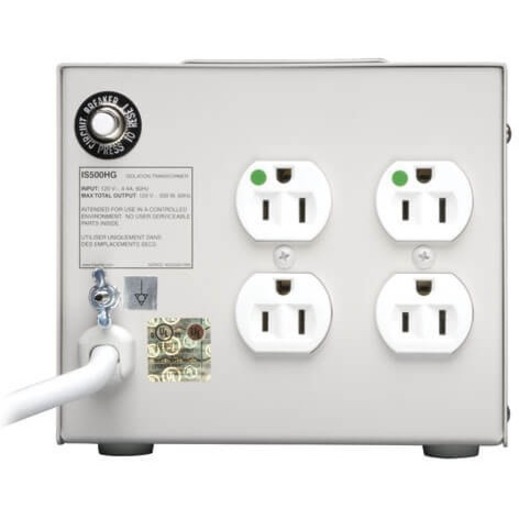

Tripp Lite by Eaton Isolator Series 120V 500W UL 60601-1 Medical-Grade Isolation Transformer with 4 Hospital-Grade Outlets

Overview

Tech Specs

Specifications

Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	IS500HG
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Line	Yes
Product Name	IS500HG
Marketing Information	Isolator Series UL60601-1 Listed Medical Grade Isolation Transformers offer line isolation, continuous noise filtering and enhanced common mode surge suppression. An internal low-impedance isolation transformer component offers 100% isolation from the input AC line. Full UL60601-1 medical-grade listing with hospital-grade plug and outlet receptacles makes Isolator medical-grade transformers ideal for protection of sensitive electronic equipment in patient-care areas. Faraday shield reduces the cumulative leakage current of the Isolator and connected equipment to levels less than 100 microamps. Secondary neutral-to-ground bonding virtually eliminates common mode noise, providing an isolated neutral-ground reference for sensitive equipment, and an inexpensive alternative to dedicated circuits and site electrical upgrades. Removes EMI/RFI noise, utility switching transients and harmonics generated by other on-site loads and utility or lightning related surge conditions. Active transformer filtering provides continuous common-mode noise rejection with no wearable parts. Unique ability to reduce surges in the worst of power environments to harmless levels. Reduces 6000V IEEE587 Cat A&B ring wave and combination wave test surges to only 0.5V common mode. Model IS500HG includes 4 widely spaced NEMA 5-15R hospital-grade output receptacles, a 10-ft. power cord, hospital-grade input plug, circuit breaker overload protection, and lighted power switch. Rugged all-metal unit ships ready for placement in any industrial, medical, office or network environment.
Product Type	Surge Suppressor/Protector

Technical Information

Plug/Connector Type	NEMA 5-15P

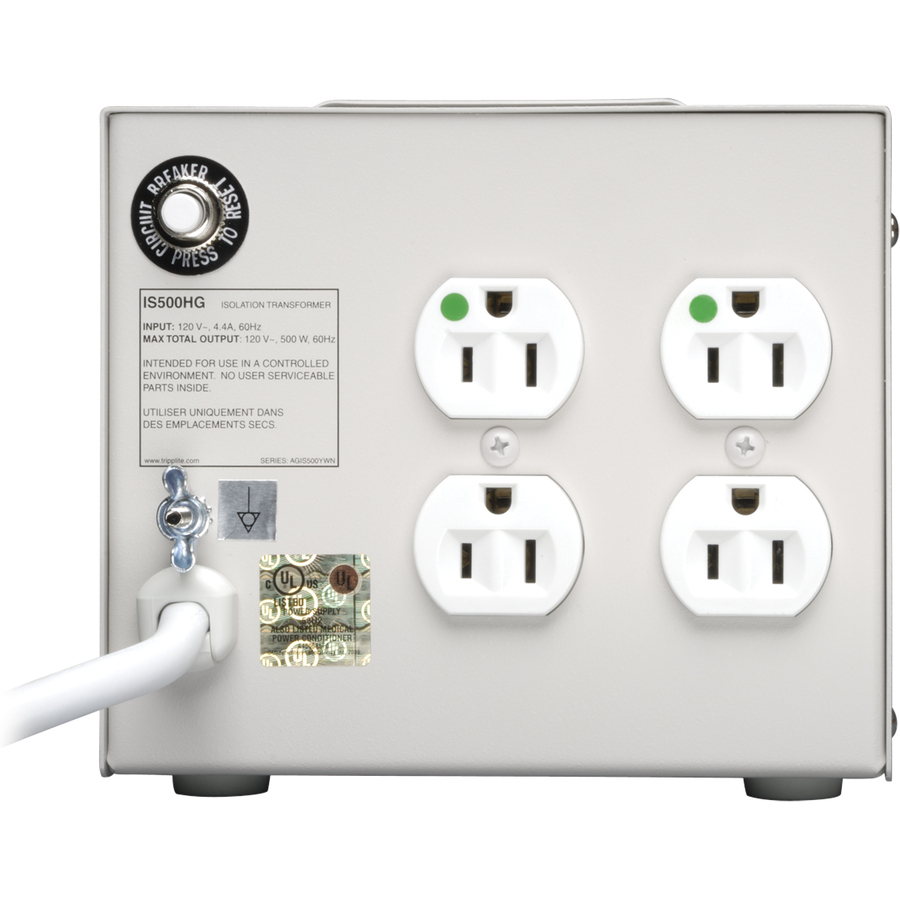

Receptacles	4 x NEMA 5-15R

Power Description

Input Voltage	120 V AC
Output Voltage	120 V AC
Maximum Line Current	4.20 A
Surge Energy Rating	680 J

Physical Characteristics

Power Cord/Cable Length	10 ft
Weight (Approximate)	22.20 lb

Miscellaneous

Package Contents	IS500HG Isolation Transformer Instruction manual with warranty information
Additional Information	Tripp Lite's IS500HG Hospital Grade isolation transformer offers line isolation, continuous noise filtering and enhanced common mode surge suppression. Internal low-impedence isolation transformer with Faraday shield offers 100% isolation from the input AC line Full UL2601-1 medical grade listing with hospital-grade plug and outlet receptacles makes Isolator Hospital Grade transformers ideal for the protection of sensitive electronic equipment in patient-care areas. Reduces the cumulative leakage current of the Isolator and connected equipment to levels below 300 microamps. Secondary neutral to ground bonding eliminates common mode noise, providing an isolated ground reference for sensitive equipment Serves as an inexpensive alternative to the installation of dedicated circuits and site electrical upgrades Removes EMI/RFI noise, utility switching transients, load generated harmonics and ground loops Additional surge suppression components placed at the line input and output combined with full line isolation offers continuous filtering of a full range of power line noise in all modes Active transformer filtering offers continuous common-mode noise rejection with no wearable parts, uniquely able to reduce surges in the worst of power environments to harmless levels Reduces 6000V IEEE587 Cat A&B ring wave and combination wave test surges to only 0.5V common mode Includes 4 widely spaced NEMA5-15R hospital grade output receptacles, a 10-ft power cord, hospital grade input plug, circuit breaker overload protection and lighted power switch. Rugged all-metal unit housing ships ready for upright tower placement in any industrial, medical, office or network environment 2-year limited product warranty
Certifications & Standards	UL (UL Series AGIS500YWN) , cUL
Country of Origin	Taiwan
TAA Compliant	Yes

Warranty

Limited Warranty

2 Year
