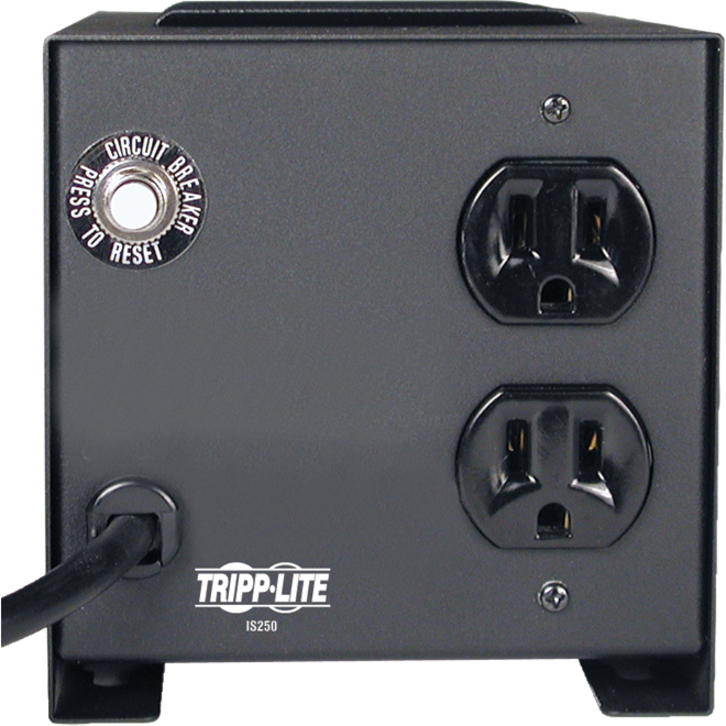

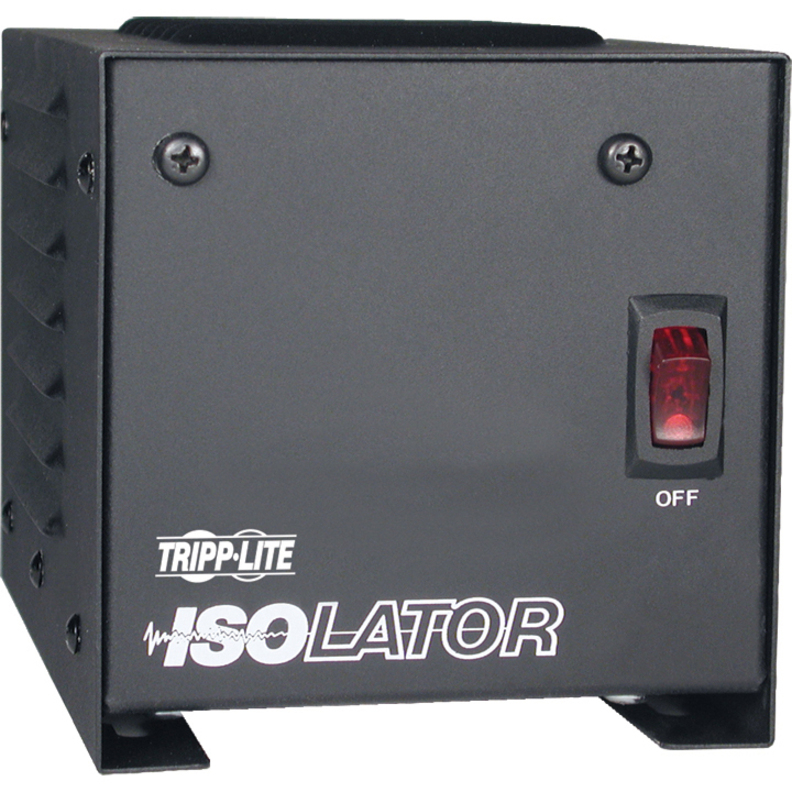

Tripp Lite by Eaton Isolation Transformer 250W Surge 120V 2 Outlet 6' Cord TAA GSA

Name: Tripp Lite by Eaton Isolation Transformer 250W Surge 120V 2 Outlet 6' Cord TAA GSA
Brand: TRIPP LITE
SKU: 114936
Price: 159.99 USD
Availability: InStock

TRIPP LITE

PCN#

114936

MFG#

IS250

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$159.99

Extended & Accidental Damage Protection Plans Available Details

2-Year $25.99

3-Year $36.99

Free Shipping

Estimated Shipment:

Product Highlights:

Receptacles: 2 x NEMA 5
15R
680J

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 14 lbs.

Tripp Lite by Eaton Isolator Series 120V 250W Isolation Transformer-Based Power Conditioner, 2 Outlets

Overview

Tech Specs

Specifications

Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	IS250
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Model	IS250
Product Name	IS250 Isolation Transformer System
Marketing Information	Tripp Lite Isolator series isolation transformer-based power conditioners offer complete line isolation, continuous noise filtering and enhanced normal and common mode surge suppression. Internal low-impedance isolation transformer component with Faraday Shield offers 100% isolation from the input AC line. Secondary neutral to ground bonding eliminates common mode noise, providing an isolated ground reference for sensitive equipment and an inexpensive alternative to the installation of dedicated circuits and site electrical upgrades. Removes EMI/RFI noise, utility switching transients, background spikes generated by other on-site loads and utility or lightning related surge conditions. Additional surge suppression components placed at both the line input and transformer output combined with full line isolation offers continuous line filtering of a full range of power line noise in all modes. Continuous transformer filtering with no wearable parts uniquely reduces surges in the worst of power environments to harmless levels. Reduces 6000V IEEE C62.41 Cat A&B ring wave and combination wave test surges to only 0.5V common mode. Model IS250 offers 250 watts capacity with 2 widely spaced output receptacles, a 6-ft power cord, circuit breaker overload protection and lighted power switch. Rugged all-metal unit housing ships ready for upright tower or wallmount placement in industrial, medical, office or network environment.
Product Type	Surge Suppressor/Protector

Technical Information

Plug/Connector Type	NEMA 5-15P
Receptacles	2 x NEMA 5-15R
Protection Type	Surge

Power Description

Input Voltage	120 V AC
Output Voltage	120 V AC
Maximum Line Current	2.10 A
Power Handling	250 VA
Surge Energy Rating	680 J
Circuit Breaker	Yes

Physical Characteristics

Color Family	Black
Product Color	Black
Power Cord/Cable Length	6 ft
Form Factor	External
Height	4.8"
Width	4.8"
Depth	7.5"
Weight (Approximate)	12.80 lb

Miscellaneous

Package Contents	IS250 Isolation Transformer System Instruction Manual with Warranty Information
Additional Information	Let-through Voltage (Combination Wave): L-N: <130V L-G: <10V N-G: <0.5V IEEE C62.41 Cat. B Let-through Voltage (Ring Wave): L-N: <10V L-G: <10V N-G: <0.5V IEEE C62.41 Cat. A Noise Suppression Rating: 33-65dB normal mode; >80dB common mode Surge Test Conditions: Per ANSI/IEEE C62.41 - (IEEE587) Cat. A & B test waveforms Total Harmonic Distortion: less than 1% Transformer Type: Low impedence isolation transformer
Compatibility	Point of Sale (POS) Equipment Telecommunications Systems Diagnostic Testing and Precise Measurement Devices Sophisticated CAD/CAM Workstations Computer Networking Equipment
Certifications & Standards	UL, cUL
Country of Origin	Taiwan
TAA Compliant	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

2 Year
