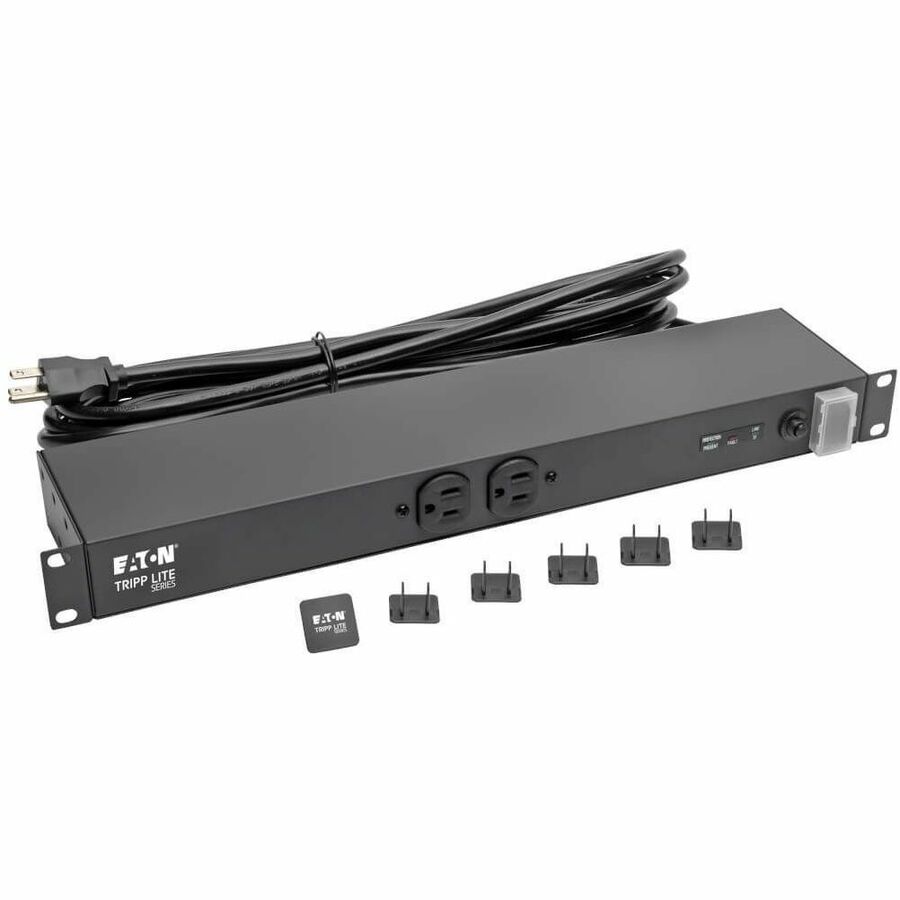

Tripp Lite by Eaton Isobar Surge Protector Rackmount 12 Outlet 15' Cord Metal 1URM

Name: Tripp Lite by Eaton Isobar Surge Protector Rackmount 12 Outlet 15' Cord Metal 1URM
Brand: TRIPP LITE
SKU: 483528
Price: 149.2 USD
Availability: InStock

TRIPP LITE

PCN#

483528

MFG#

IBAR12

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$149.20

Extended & Accidental Damage Product Replacement Plan Available Details

2-Year $32.99

1-Year $24.99

Free Shipping

Estimated Shipment:

Product Highlights:

Receptacles: 12 x NEMA 5
15R
3840J

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 6 lbs.

Tripp Lite by Eaton Isobar Surge Protector Rackmount 12 Outlet 15' Cord Metal 1URM

Overview

Tech Specs

Specifications

Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	IBAR12
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Name	Isobar 12 Outlets 120V Surge Suppressor
Marketing Information	Tripp Lite's IBAR12 offers network-grade surge and noise suppression in a versatile all-metal multi-mount cabinet. Detachable mounting flanges are configurable for rackmount, wallmount and under-counter installation. Uses only 1 rack space (1U) when installed in any 19 inch EIA standard rack. Features network grade AC surge suppression with EMI/RFI noise filtering. Outlets are arranged in exclusive isolated filter banks to limit noise interaction among connected items. Includes 12 outlets (2 front/10 rear), 15 ft AC power cord and guarded power switch to reduce the risk of accidental shutoff. Lifetime warranty with 25,000 Ultimate Lifetime Insurance (USA & Canada Only) coverage.PLUG/OUTLETS: Input: NEMA 5-15P/Output: 12 NEMA5-15R (2 front & 10 rear)ELECTRICAL: 120V AC, 50/60Hz, 15A (Requires standard NEMA 5-15R wall receptacle)SUPPRESSION: AC: 140V RMS Clamping/3840 joules/60,000 ampsFORMAT: Supports 19 in. rackmount (uses 1 rack space/1U), wallmount, under-counter and more
Product Type	Surge Suppressor/Protector

Technical Information

Plug/Connector Type	NEMA 5-15P
Receptacles	12 x NEMA 5-15R
Protection Type	Surge

Power Description

Input Voltage	120 V AC
Output Voltage	120 V AC
Maximum Line Current	15 A
Maximum Surge Current	60 kA
Power Handling	1800 VA
Surge Energy Rating	3840 J
Circuit Breaker	Yes

Physical Characteristics

Color Family	Black
Product Color	Black
Power Cord/Cable Length	15 ft
Height	1.8"
Width	17.5"
Depth	4"
Weight (Approximate)	4.60 lb

Miscellaneous

Package Contents	Isobar 12 Outlets 120V Surge Suppressor IBAR12 Surge Suppressor Warranty information Instruction manual
Additional Information	Transparent locking switch cover prevents accidental shutoff Snap-in switch guard reduces risk of accidental shutoff 2 front and 10 rear receptacles
Compatibility	Ideal for the protection of sensitive electronic equipment such as internetworking equipment, PC systems, telecommunications, audio/video, security and sound reinforcement
Certifications & Standards	UL1449 (let through rating 330V) UL1283 cUL IEEE 587 category A and B
Country of Origin	China

Warranty

Limited Warranty

Lifetime
