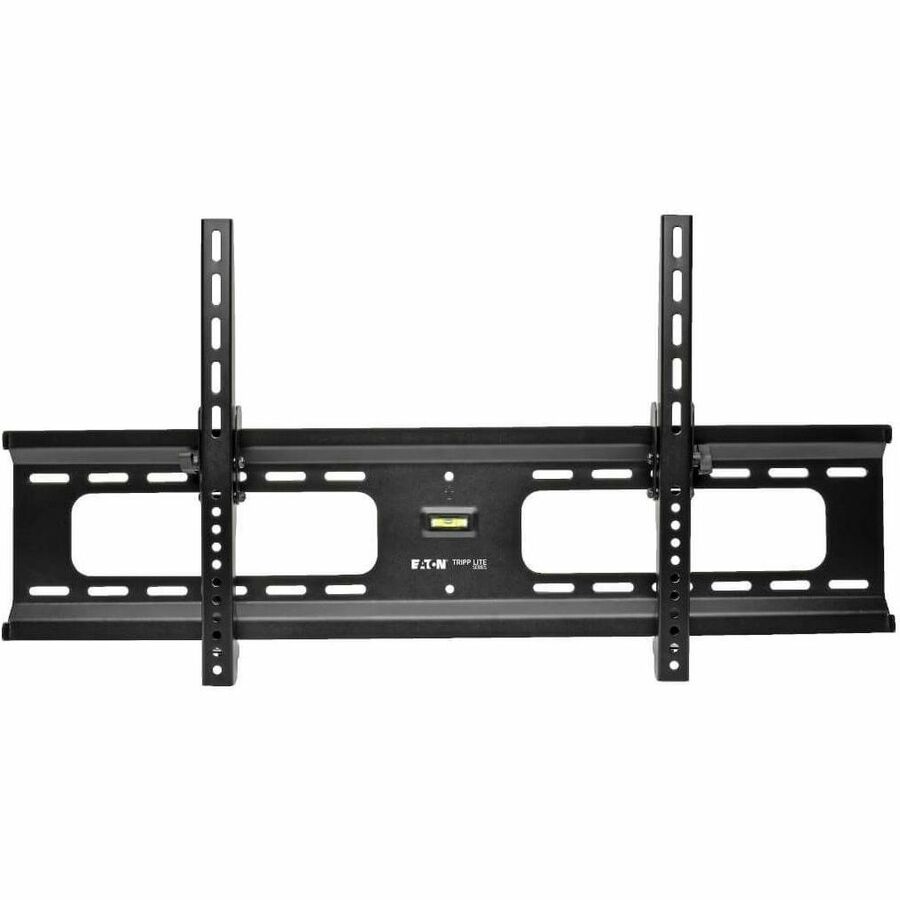

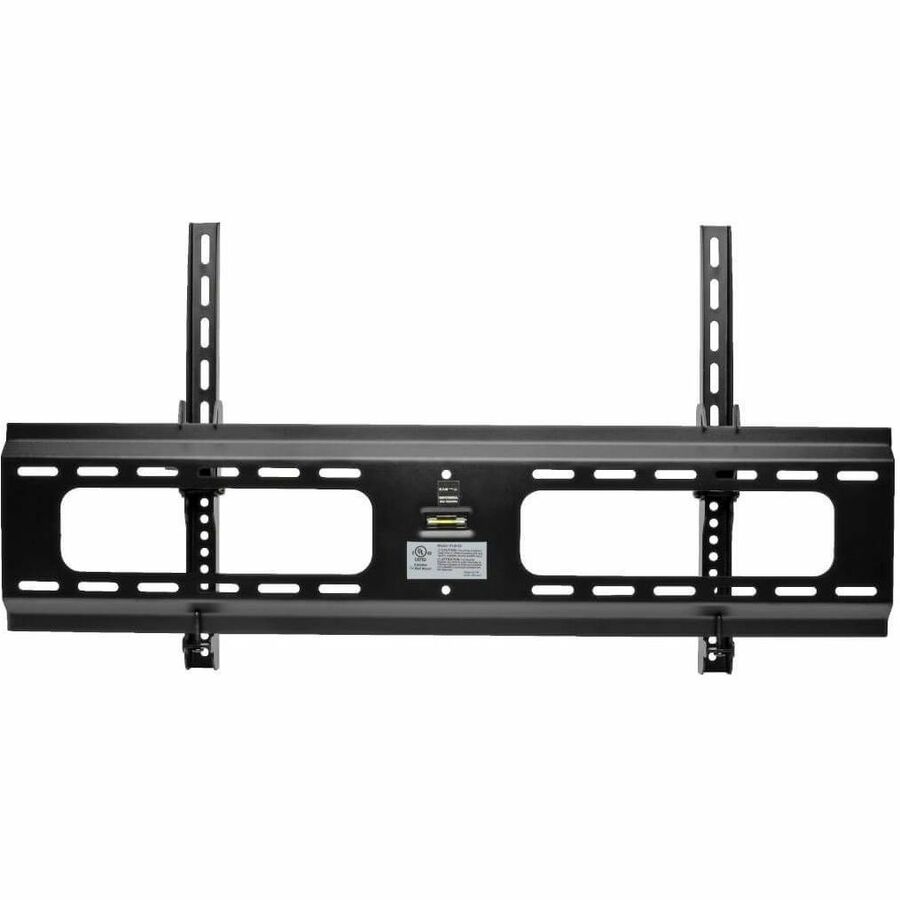

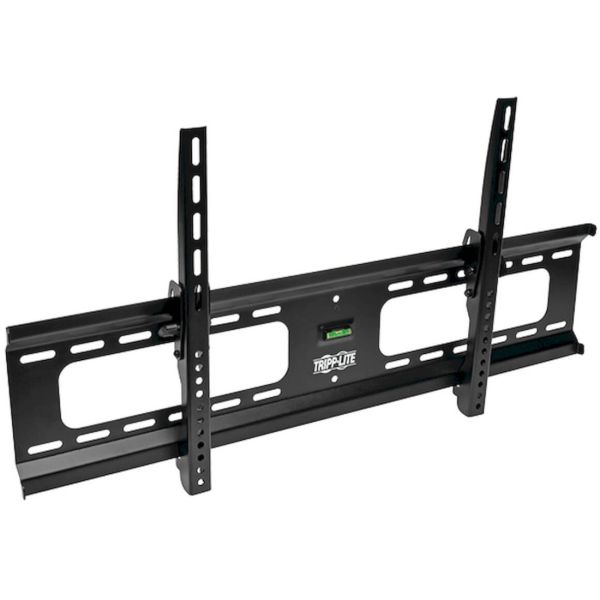

Tripp Lite by Eaton Heavy-Duty Tilt Wall Mount for 37" to 80" TVs and Monitors Flat or Curved Screens UL Certified

Overview

The VESA-compliant DWT3780XUL Heavy-Duty Tilt Wall Mount allows you to mount your flat-panel or curved-screen television, monitor or other display on the wall. Recommended for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most displays from 37 to 80 inches.

A -10° to 0° tilt capability minimizes glare and provides comfortable viewing from multiple angles. Adjusting the tilt angle is simple using the easy-grip twin knobs located on the wall plate.

The mount is concealed behind the display to give a sleek, professional appearance. An open back enables easy access to cabling. Built-in bubble level allows accurate wall plate leveling. Durable all-metal frame with scratch-resistant powder-coated finish supports up to 165 pounds. Mounting hardware included.

Conforms to VESA-compliant displays with any of the following mounting hole patterns: 200 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 400 mm, 600 x 400 mm and 800 x 400 mm.

This mount has been tested in accordance with UL Standard 2442.

Features

Mounts Your TV or Monitor to the Wall

• Fits most flat-panel or curved-screen televisions, monitors and other displays from 37 to 80 in.
• Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants
• Mounts out of sight behind display for sleek, professional appearance
• Mounting hardware included

Convenient Angle Adjustment

• -10° to 0° tilt capability provides comfortable viewing from multiple angles
• Improves viewing angles in applications where audience is below the display
• Easy-grip knobs allow simple adjustment of tilt angle

Durable Metal Construction

• Supports up to 165 lb.
• Open architecture enables easy access to cabling
• Built-in bubble level for accurate display leveling
• Scratch-resistant powder-coated finish
• Tested in accordance with UL Standard 2442

• 400 x 400
• 600 x 400
• 400 x 200
• 300 x 300
• 200 x 200
• 800 x 400

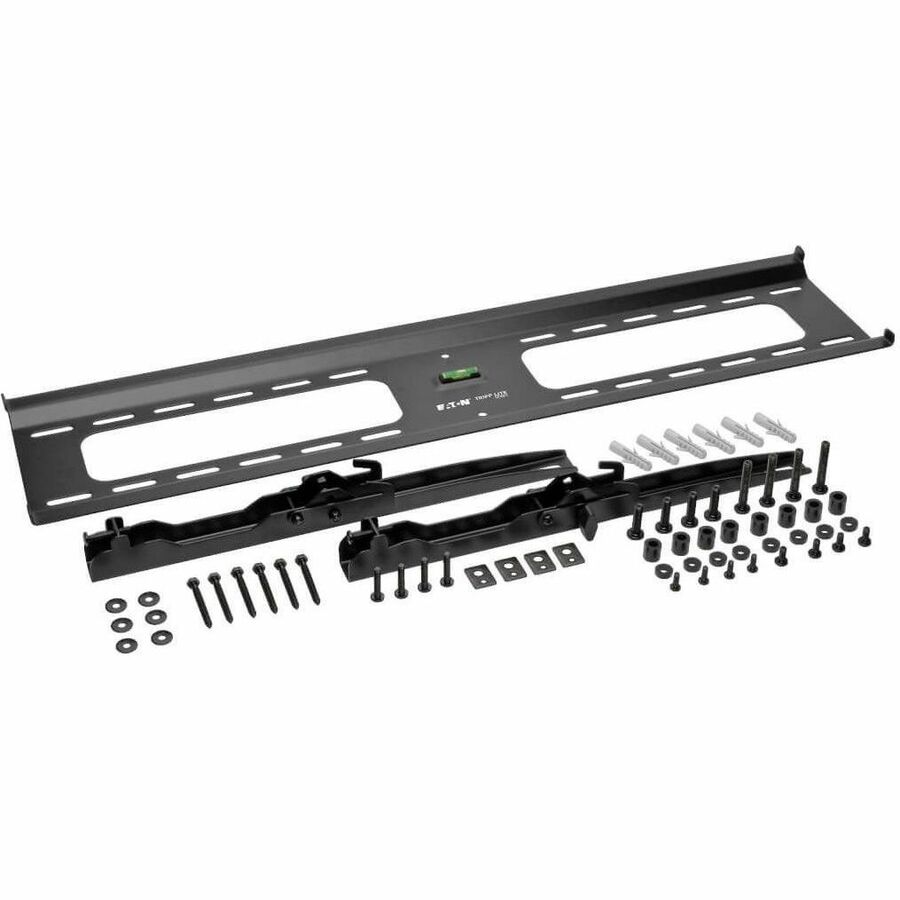

• Wall Plate
• 2 x Adapter Brackets
• 4 x M5 x 14 Screws
• 4 x M6 x 14 Screws
• 4 x M6 x 30 Screws
• 4 x M8 x 30 Screws
• 4 x M8 x 50 Screws
• 4 x Washers
• 8 x Small Spacers
• 8 x Big Spacers
• 6 x Anchor Bolts
• 6 x Concrete Anchors
• 6 x D6 Washers
• Owner's Manual
