Tripp Lite External UPS Battery Pack, 40 40Ah, No Batteries Included - Compatible S3MX-Series 3-Phase UPS System

+/-240VDC Backup Battery Pack - You Provide the Batteries

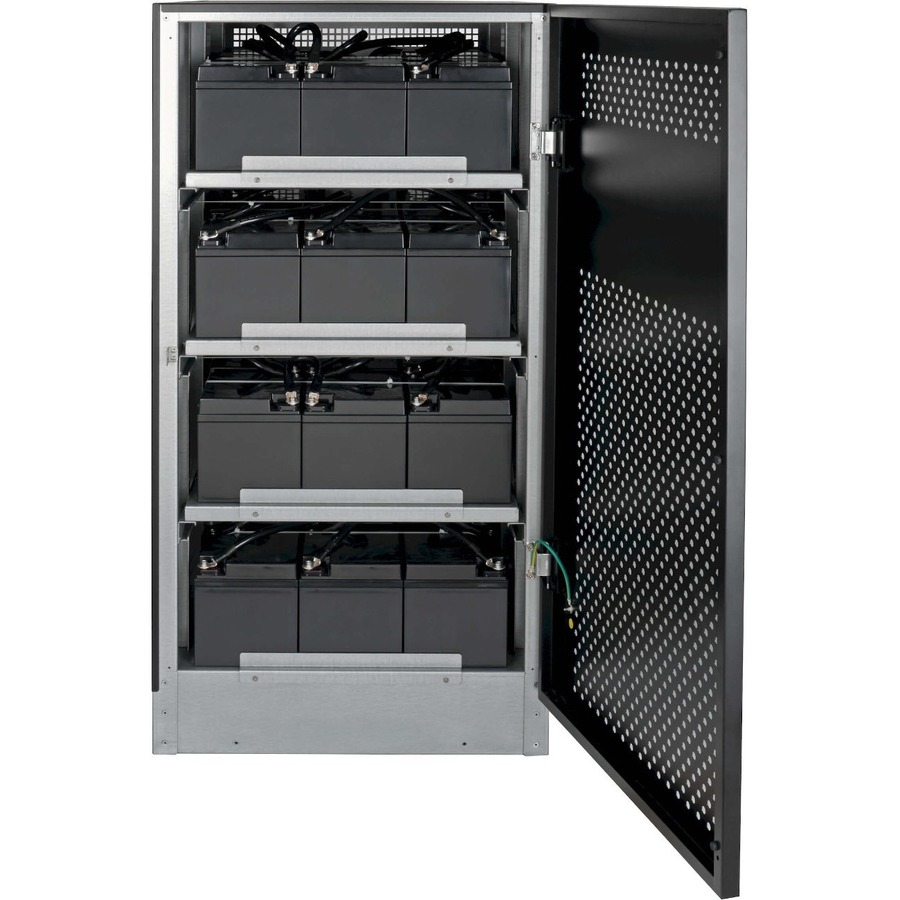

The BP480V40-NIB is compatible only with Tripp Lite's 3-phase S3M30KX-NIB, S3M40KX-NIB, S3M60KX, S3M80KX, S3M100KX, S3M120KX, S3M160KX, S3M200KX and other UPS systems that specify the use of this battery pack. The UPS battery pack includes the steel enclosure and all required internal wiring and accessories for a quantity of 40 user-supplied 40Ah internal batteries (batteries not included). For the same battery pack with internal batteries included, see Tripp Lite's BP480V40.

Daisy-Chain Multiple Cabinets for Even Longer Extended-Run Operation

Multiple battery pack cabinets may be connected in parallel to provide the 3-phase UPS system with more runtime. Up to three external battery packs may be connected to the S3M30KX-NIB, S3M40KX-NIB, S3M60KX and S3M80KX. The S3M100KX, S3M120KX, S3M160KX and S3M200KX units can handle as many as seven BP480V40-NIBs connected in parallel. Hardwire installation is safe and simple. Circuit breakers provide overcurrent protection. Internal disconnect for battery isolation is included.

One-Year Warranty

The BP480V40-NIB is backed by a one-year warranty, ensuring reliability and performance.

• Expandable Battery Runtime: Multiple battery packs can be daisy-chained to the UPS for extended runtime
• Expandable Runtime: Yes
• DC System Voltage (VDC): +/- 240VDC
• UPS Connection: Hardwire (contractor supplies wiring - see Owner's Manual for gauge recommendations)
• Typical Battery Lifespan: 10 year design lifespan

Tripp Lite S3MX-Series 3-Phase UPS Systems:

• S3M30KX-NIB
• S3M40KX-NIB
• S3M60KX
• S3M80KX
• S3M100KX
• S3M120KX
• S3M160KX
• S3M200KX
