Tripp Lite by Eaton DVI over Cat5/6 Active Extender Kit Box-Style Transmitter/Receiver for Video Up to 200 ft. (60 m) TAA

Name: Tripp Lite by Eaton DVI over Cat5/6 Active Extender Kit Box-Style Transmitter/Receiver for Video Up to 200 ft. (60 m) TAA
Brand: TRIPP LITE
SKU: CR3377
Price: 200.35 USD
Availability: InStock

TRIPP LITE

PCN#

CR3377

MFG#

B140-101X

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$200.35

Extended & Accidental Damage Protection Plans Available Details

2-Year $25.99

3-Year $36.99

Free Shipping

Estimated Shipment:

Product Highlights:

1 Input Device
1 Output Device
200 ft Range
2 x Network (RJ
45)
1 x DVI In
1 x DVI Out
Full HD
1920 x 1080
Twisted Pair
Category 6
Wall Mountable
TAA Compliant

Product Condition: New and Factory Fresh

Limited Warranty1 Year

Shipping Weight: 2 lbs.

Tripp Lite by Eaton DVI over Cat5/6 Active Extender Kit, Box-Style Transmitter/Receiver for Video, Up to 200 ft. (60 m), TAA

Overview

Tech Specs

Specifications

Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	B140-101X
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Model	B140-101X
Product Name	DVI over Cat5 Active Extender Kit
Marketing Information	The B140-101X is a DVI Over Cat5 Active Extender Kit that comes with both transmitter and receiver units. It transmits a DVI-D Single-Link signal up to 200 ft. away using a single Cat5e/6 patch cable. To achieve maximum distance and resolution, use 24AWG Solid Wire Cat5e/6 cable (Tripp Lite's N202-Series). The B140-101X is compatible with all operating systems, and is plug and play, with no software or drivers required. It features a built-in Equalization control for adjustment of the video image. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. Installation is simple. Connect a the built-in DVI connector on the transmitter unit to a DVI source. Connect the receiver unit to a display using a Tripp Lite P561-Series DVI cable (not included). Finally, the RJ45 ports on the transmitter and receiver units are connected using a single Cat5e/6 cable. A 1920 x 1080 @ 60Hz signal can be extended up to 150 ft. from the source,, or a 1024 x 768 @ 60Hz signal up to 200 ft.. Further expand the range and number of monitors by using a B140-110 repeater unit. Add up to four remote units (three repeaters and one active receiver) in a single chain, for a total of 4 displays. (An active receiver should be the last unit in a chain) A 1920 x 1080 @ 60Hz signal can be extended up to 125 ft. from each repeater to the next unit in the chain, or a 1024 x 768 @ 60Hz signal can be extended up to 175 ft..
Product Type	Video Extender Transmitter/Receiver

Technical Information

Connectivity Technology	Wired
Number of Input Devices Supported	1
Number of Output Devices Supported	1
Maximum Operating Distance	200 ft

Video

Graphics Modes	Full HD
Maximum Video Resolution	1920 x 1080

Interfaces/Ports

Network (RJ-45)	Yes
DVI In	Yes
DVI Out	Yes
Number of Network (RJ-45) Ports	2
Number of DVI Inputs	1
Number of DVI Outputs	1

Media & Performance

Media Type Supported	Twisted Pair
Twisted Pair Cable Standard	Category 6

Physical Characteristics

Color Family	Multicolor
Product Color	Black
Form Factor	Wall Mountable

Miscellaneous

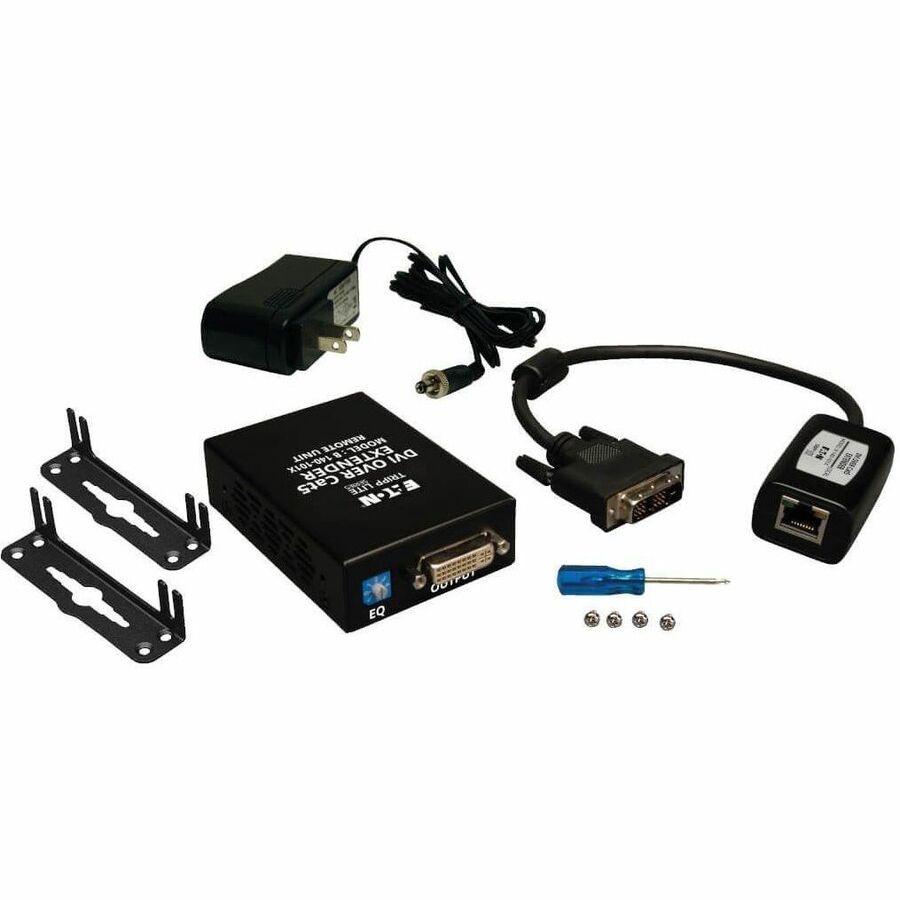

Package Contents	B140-101X Local Transmitter Unit B140-101X Remote Receiver Unit Screwdriver (used for Equalization control) Mounting Hardware for Receiver Unit External Power Supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A) Owner's Manual
Certifications & Standards	TAA
Country of Origin	Taiwan
TAA Compliant	Yes
Environmentally Friendly	Yes

Warranty

Limited Warranty

1 Year
