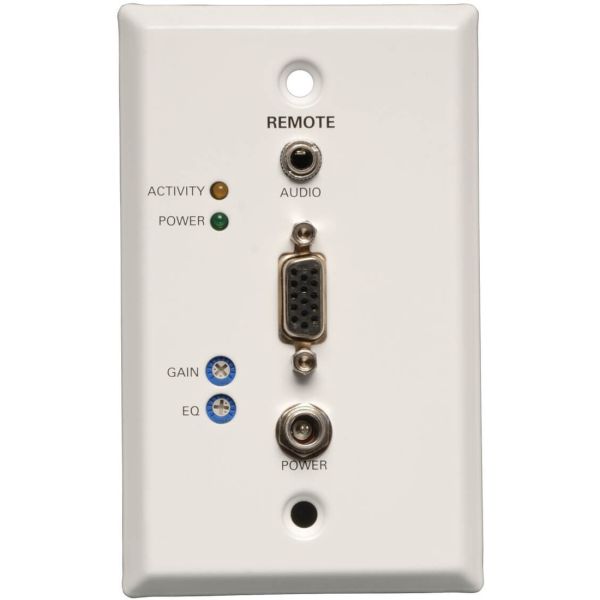

Tripp Lite by Eaton VGA over Cat5/6 Extender Wall Plate Receiver for Video/Audio Up to 1000 ft. (305 m) TAA

Name: Tripp Lite by Eaton VGA over Cat5/6 Extender Wall Plate Receiver for Video/Audio Up to 1000 ft. (305 m) TAA
Brand: TRIPP LITE
SKU: KA1913
Price: 56.98 USD
Availability: InStock

TRIPP LITE

PCN#

KA1913

MFG#

B132-100A-WP-1

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$56.98

Extended & Accidental Damage Product Replacement Plan Available Details

2-Year $23.99

1-Year $17.99

Estimated Shipment:

Product Highlights:

1 Input Device
1 Output Device
1000 ft Range
1 x Network (RJ
45)
1 x VGA Out
1920 x 1440
Twisted Pair
Category 6
Wall Mountable
TAA Compliant

Product Condition: New and Factory Fresh

Limited Warranty1 Year

Shipping Weight: 1 lbs.

Tripp Lite by Eaton VGA over Cat5/6 Extender, Wall Plate Receiver for Video/Audio, Up to 1000 ft. (305 m), TAA

Overview

Tech Specs

Specifications

Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	B132-100A-WP-1
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Model	B132-100A-WP-1
Product Name	B132-100A-WP-1 TAA/GSA Compliant Wallplate Video Console

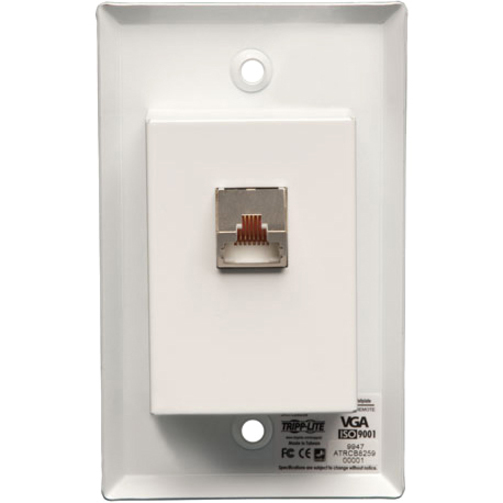

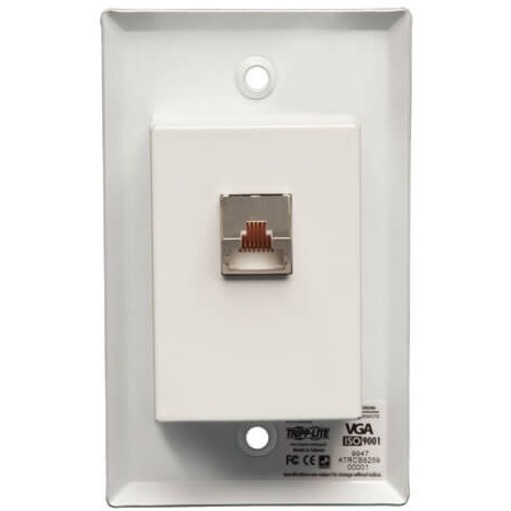

Marketing Information	Tripp Lite's B132-100A-WP-1 works with a B132-002A or B132-004A local unit to extend a 1920 x 1440 (60Hz) Video and Stereo Audio signal up to 500 ft., or a 1024 x 768 (60Hz) Video and Stereo Audio signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable. For optimal video image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K. Features built-in Equalization and Gain controls to adjust the video image. RJ45 type wallplate allows you to use standard patch cable, eliminating the need for a 110 punchdown connection. Ideal for digital signage situations, such as retail, schools, churches, etc. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. 1 year limited warranty.
Product Type	Video Extender Receiver

Technical Information

Connectivity Technology	Wired
Number of Input Devices Supported	1
Number of Output Devices Supported	1
Maximum Operating Distance	1000 ft

Video

Maximum Video Resolution

1920 x 1440

Interfaces/Ports

Network (RJ-45)	Yes
VGA Out	Yes
Number of Network (RJ-45) Ports	1
Number of VGA Outputs	1

Media & Performance

Media Type Supported	Twisted Pair
Twisted Pair Cable Standard	Category 6

Physical Characteristics

Color Family	Multicolor
Product Color	White
Receiver Height	4.50"
Receiver Width	2.75"
Receiver Depth	1"
Form Factor	Wall Mountable
Receiver Weight (Approximate)	8 oz

Miscellaneous

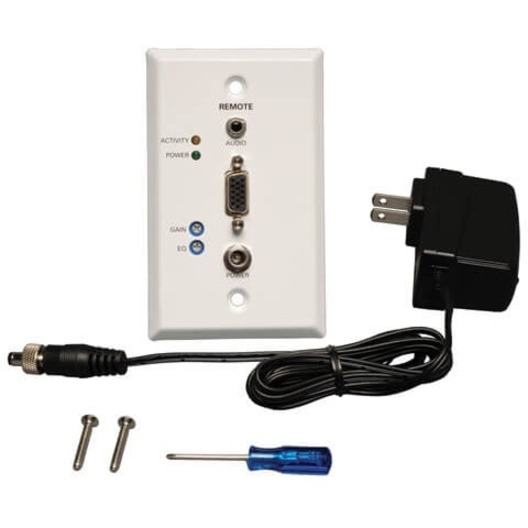

Package Contents	B132-100A-WP-1 TAA/GSA Compliant Wallplate Video Console Mini-Screwdriver Wallplate Screws External Power Supply Owner's Manual
Certifications & Standards	TAA/GSA
Country of Origin	Taiwan
TAA Compliant	Yes
Environmentally Friendly	Yes

Warranty

Limited Warranty

1 Year
