Tripp Lite by Eaton 4-Port VGA over Cat5/6 Splitter/Extender Box-Style Transmitter for Video/Audio Up to 1000 ft. (305 m) TAA

Name: Tripp Lite by Eaton 4-Port VGA over Cat5/6 Splitter/Extender Box-Style Transmitter for Video/Audio Up to 1000 ft. (305 m) TAA
Brand: TRIPP LITE
SKU: VR5795
Price: 140.96 USD
Availability: InStock

TRIPP LITE

PCN#

VR5795

MFG#

B132-004A-2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$140.96

Extended & Accidental Damage Product Replacement Plan Available Details

2-Year $32.99

1-Year $24.99

Free Shipping

Estimated Shipment:

Product Highlights:

1 Input Device
4 Output Device
1000 ft Range
4 x Network (RJ
45)
1 x VGA In
1 x VGA Out
1920 x 1440
Twisted Pair
Rack
mountable, Wall Mountable, Pole
mountable
TAA Compliant

Product Condition: New and Factory Fresh

Limited Warranty1 Year

Shipping Weight: 2 lbs.

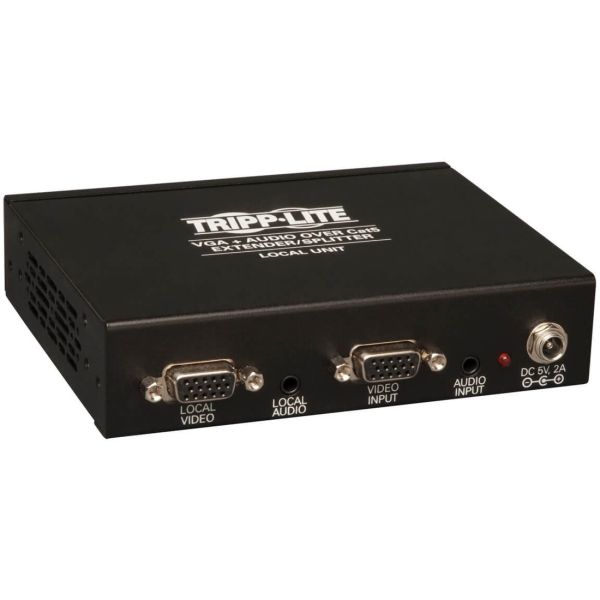

Tripp Lite by Eaton 4-Port VGA over Cat5/6 Splitter/Extender, Box-Style Transmitter for Video/Audio, Up to 1000 ft. (305 m), TAA

Overview

Tech Specs

Specifications

Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	B132-004A-2
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Model	B132-004A-2
Product Name	4 Port Extender/Splitter Local (Transmitter) Unit
Marketing Information	Tripp Lite's B132-004A-2 allows you to split a single VGA and Audio signal into 5 (1 local, 4 remote). Increase the number of displays to up to 25 (1 local, 24 remote) by daisy-chaining up to six B132-004A-2 units together. Along with a B132-100A or B132-100A-WP-1 remote receiver unit, you can extend a 1920 x 1440 (60Hz) signal up to 500 ft., or a 1024 x 768 (60Hz) signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6). The range and number of monitors can be further expanded by adding B132-110A repeater units. Connect up to 4 remote units in a repeater chain (3 repeaters and 1 receiver), with a monitor at each location. A 1920 x 1440 (60Hz) signal can be extended up to 500 ft. from the first repeater in the chain to the last receiver. Support for video resolutions up to 1920 x 1440 (60Hz). A 1024 x 768 (60Hz) signal can be extended up to 1,000 ft. from the first repeater in the chain to the last receiver. For optimal video image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K. The transmitter unit features functionality that allows for the EDID information from a connected display to be copied and sent to the connected computer, providing optimal compatibility. Includes mounting hardware that allows unit to be wallmounted, rackmounted or pole mounted. Up to three B132-004A-2 units can be mounted in 1U of rack space using a Tripp Lite B132-004-RB Extender/Splitter 19 in. rackmount bracket. Ideal for digital signage situations, such as retail, schools, churches, etc. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. Features Splits a single VGA and Audio signal into 5 (1 local, 4 remote) Increase the number of displays to up to 25 (1 local, 24 remote) by daisy-chaining up to six B132-004A-2 units together A B132-100A or B132-100A-WP-1 remote receiver unit is required for each connected monitor Support for video resolutions up to 1920 x 1440 (60Hz) Extends a 1920 x 1440 (60Hz) signal up to 500 ft., or a 1024 x 768 (60Hz) signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6) EDID copy feature ensures optimal display compatibility The range and number of monitors can be further expanded by adding B132-110A repeater units Connect up to 4 remote units in a repeater chain (3 repeaters and 1 receiver), with a monitor at each location A 1920 x 1440 (60Hz) signal can be extended up to 500 ft. from the first repeater in the chain to the last receiver. A 1024 x 768 (60Hz) signal can be extended up to 1,000 ft. from the first repeater in the chain to the last receiver. For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K Includes mounting hardwarethat allows unit to be wallmounted, rackmounted or pole mounted. Up to three B132-004A-2 units can be mounted in 1U of rack space using a Tripp Lite B132-004-RB Extender/Splitter 19 in. rackmount bracket Ideal for digital signage situations, such as retail, schools, churches, etc. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Product Type	Video Extender Transmitter

Technical Information

Connectivity Technology	Wired
Number of Input Devices Supported	1
Number of Output Devices Supported	4
Maximum Operating Distance	1000 ft

Video

Maximum Video Resolution

1920 x 1440

Interfaces/Ports

Network (RJ-45)	Yes
VGA In	Yes
VGA Out	Yes
Headphone	Yes
Microphone	Yes
Number of Network (RJ-45) Ports	4
Number of VGA Inputs	1
Number of VGA Outputs	1

Media & Performance

Media Type Supported	Twisted Pair
Twisted Pair Cable Standard	Category 6

Physical Characteristics

Color Family	Multicolor
Product Color	Black
Transmitter Height	1.20"
Transmitter Width	5.30"
Transmitter Depth	3.90"
Form Factor	Rack-mountable Wall Mountable Pole-mountable
Transmitter Weight (Approximate)	13.60 oz

Miscellaneous

For Country/Region	Europe United Kingdom

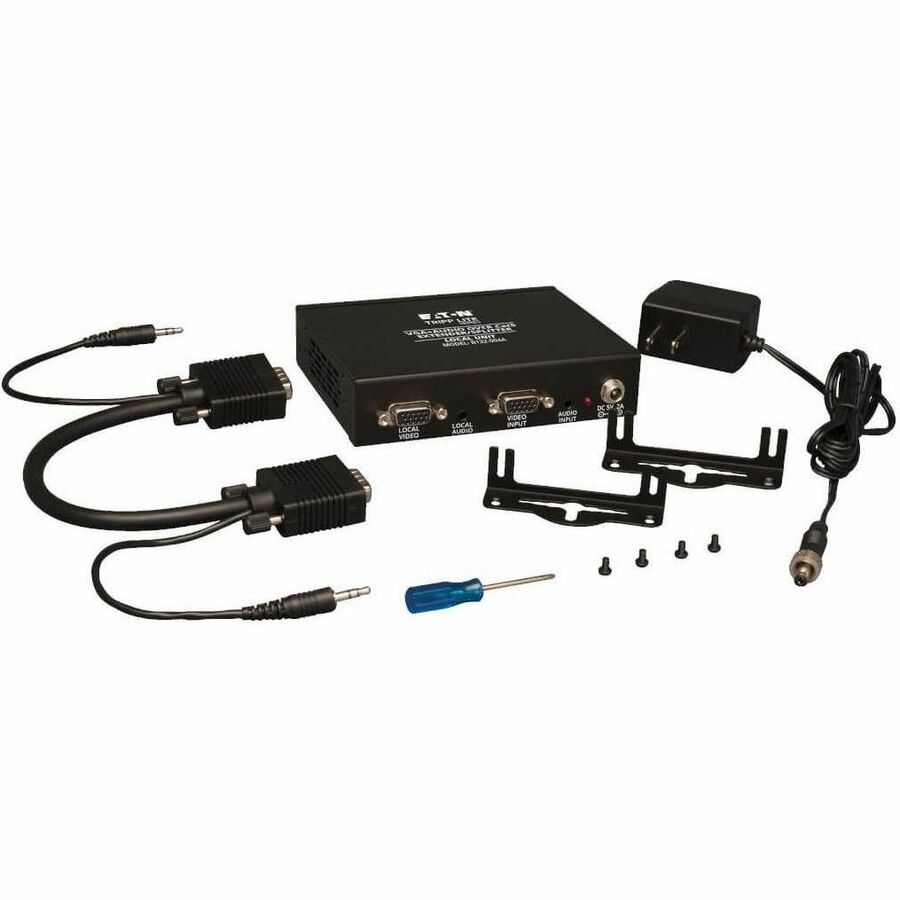

Package Contents	4 Port Extender/Splitter Local (Transmitter) Unit 1 ft. VGA Daisychain Cable Mounting Hardware External Power Supply (Input: 100-240V) Owner's Manual
Country of Origin	Taiwan
TAA Compliant	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

1 Year
