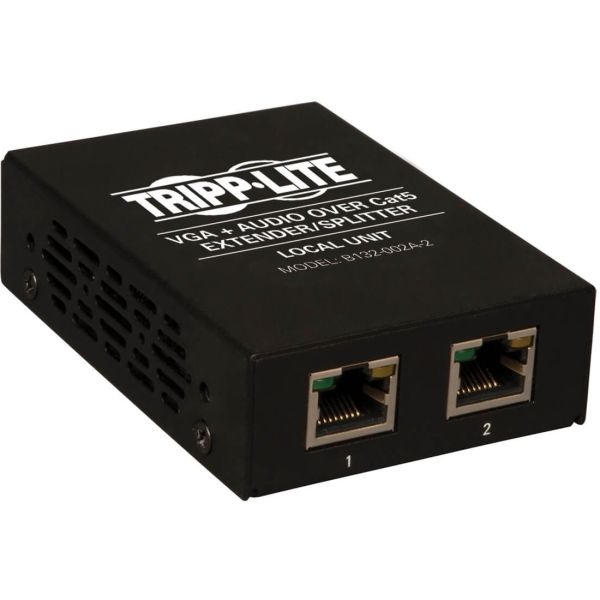

Tripp Lite by Eaton 2-Port VGA over Cat5/6 Splitter/Extender Box-Style Transmitter for Video/Audio Up to 1000 ft. (305 m) TAA

Name: Tripp Lite by Eaton 2-Port VGA over Cat5/6 Splitter/Extender Box-Style Transmitter for Video/Audio Up to 1000 ft. (305 m) TAA
Brand: TRIPP LITE
SKU: TL7676
Price: 92.16 USD
Availability: InStock

TRIPP LITE

PCN#

TL7676

MFG#

B132-002A-2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$92.16

Extended & Accidental Damage Product Replacement Plan Available Details

1-Year $22.99

2-Year $29.99

Free Shipping

Estimated Shipment:

Product Highlights:

with EDID Copy, 1920x1440 at 60Hz

Product Condition: New and Factory Fresh

Limited Warranty1 Year

Shipping Weight: 2 lbs.

Tripp Lite by Eaton 2-Port VGA over Cat5/6 Splitter/Extender, Box-Style Transmitter for Video/Audio, Up to 1000 ft. (305 m), TAA

Overview

Tech Specs

Specifications

Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	B132-002A-2
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Model	B132-002A-2
Product Name	VGA + Audio over Cat5 Extender 2-Port Transmitter
Marketing Information	Tripp Lite's B132-002A-2 allows you to split a single VGA Video and Audio signal into 2. Along with a B132-100A or B132-100A-WP-1 remote receiver unit, you can extend a 1920 x 1440 (60Hz) Video and Audio signal up to 500 ft., or a 1024 x 768 (60Hz) Video and Audio signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6). The range and number of monitors/speakers can be further expanded by adding B132-110A repeater units. Connect up to 4 remote units in a repeater chain (3 repeaters and 1 receiver), with a set of monitor and speakers at each location. A 1920 x 1440 (60Hz) Video and Audio signal can be extended up to 500 ft. from the first repeater in the chain to the last receiver. A 1024 x 768 (60Hz) Video and Audio signal can be extended up to 1,000 ft. from the first repeater in the chain to the last receiver. For optimal video image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K. The transmitter unit features functionality that allows for the EDID information from a connected display to be copied and sent to the connected computer, providing optimal compatibility. Includes mounting hardware that allows unit to be wallmounted, rackmounted or pole mounted. Ideal for digital signage situations, such as retail, schools, churches, etc. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Product Type	Video Extender Transmitter

Technical Information

Connectivity Technology	Wired
Number of Input Devices Supported	1
Maximum Operating Distance	1000 ft

Video

Maximum Video Resolution

1920 x 1440

Interfaces/Ports

Network (RJ-45)	Yes
VGA In	Yes
Headphone	Yes
Number of Network (RJ-45) Ports	2
Number of VGA Inputs	1

Media & Performance

Media Type Supported	Twisted Pair
Twisted Pair Cable Standard	Category 6

Power Description

Input Voltage

110 V AC
220 V AC

Physical Characteristics

Color Family	Multicolor
Product Color	Black
Transmitter Height	1"
Transmitter Width	2.50"
Transmitter Depth	3.70"
Form Factor	Wall Mountable Rack-mountable Pole-mountable
Transmitter Weight (Approximate)	7.20 oz

Miscellaneous

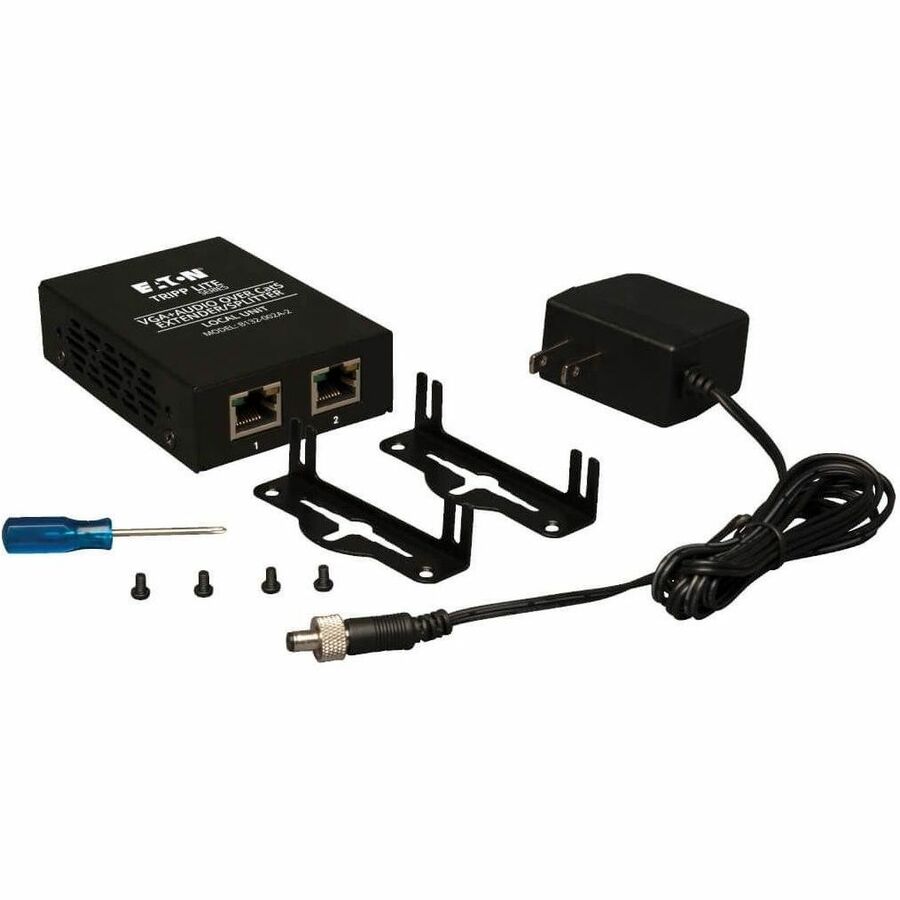

Package Contents	VGA + Audio over Cat5 Extender 2-Port Transmitter Mounting Hardware External Power Supply (Input: 100-240V, 50/60Hz, 1.5A Output: 12.6V, 3A) Owner's Manual
Certifications & Standards	TAA
Country of Origin	Taiwan
TAA Compliant	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

1 Year
