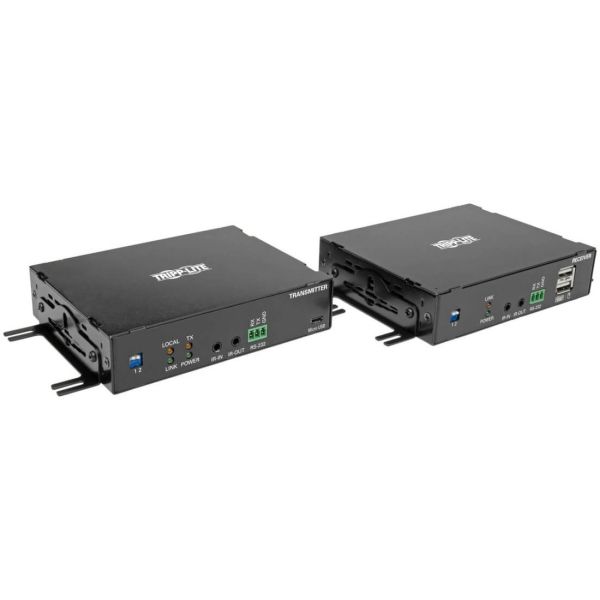

Tripp Lite by Eaton DisplayPort over Fiber Extender Kit Transmitter/Receiver 4K 4:4:4 Singlemode LC Up to 6.2 mi. TAA

Name: Tripp Lite by Eaton DisplayPort over Fiber Extender Kit Transmitter/Receiver 4K 4:4:4 Singlemode LC Up to 6.2 mi. TAA
Brand: TRIPP LITE
SKU: 6LP464
Price: 737.78 USD
Availability: InStock

TRIPP LITE

PCN#

6LP464

MFG#

B127F-1A1-SM-DD

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$737.78

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Free Shipping

Estimated Shipment:

Product Highlights:

1 Computer(s)
1 Local User(s)
1 Remote User(s)
32808.40 ft Range
4K
3840 x 2160 Maximum Video Resolution
3 x USB
1 x HDMI
DisplayPort
120 V AC, 230 V AC Input Voltage
Rack
mountable
TAA Compliant

Product Condition: New and Factory Fresh

Limited Warranty1 Year

Shipping Weight: 4 lbs.

Tripp Lite DisplayPort over Fiber Extender Kit Transmitter/Receiver 4K 4:4:4 Singlemode LC Up to 6.2 mi. TAA

Overview

Tech Specs

Specifications

Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	B127F-1A1-SM-DD
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Model	B127F-1A1-SM-DD
Product Name	B127F-1A1-SM-DD Video Extender Transmitter/Receiver
Marketing Information	Transmitter/receiver kit extends a 4K DisplayPort signal via singlemode fiber cable to a DisplayPort monitor up to 6.2 miles away. Features DisplayPort Extender for Digital Signage or Displaying Video in Schools or Trade Show Booths This complete transmitter and receiver system is recommended for video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings and digital signage applications where the source and display are farther apart than conventional A/V cables allow. The B127F-1A1-SM-DD extends 4K video and stereo audio signals from a DisplayPort (DP) source device to a DisplayPort monitor up to 6.2 miles (10 kilometers) away via user-supplied duplex singlemode LC fiber cabling. Transmits Crystal-Clear 4K DisplayPort Video with Multi-Channel Audio and 4:4:4 Color The B127F-1A1-SM-DD supports Ultra HD video resolutions up to 3840 x 2160 (4K x 2K) at 30 Hz with full, rich uncompressed DTS-HD, Dolby AC-3 and 8-channel LPCM digital audio. Built-in equalization automatically fine-tunes the image quality at the remote display with no time-consuming manual fiddling needed. It's compatible with HDCP 2.2, DisplayPort 1.2a and EDID standards for carrying HDR (high dynamic range) signals. It also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. DIP Switches Extend Your Choice of USB, IR or RS-232 Signals The DIP switches on both the transmitter and receiver can be adjusted to let you choose from the USB 1.1, bi-directional IR and RS-232 functions. Only one function can be extended at a time. Plug-and-Play Operation for Quick Setup and Immediate Use The included transmitter and receiver units work right out of the box with no software required. Mounting hardware is included for installing the units on walls, poles or 19-inch racks. Connect the transmitter to the source and the receiver to the display with DisplayPort cables (such as Tripp Lite's P580-Series). Then, connect the two units using a duplex singlemode LC fiber cable (Tripp Lite N520-Series). Connect an optional display to the transmitter's local HDMI output to monitor the image connected to the receiver up to 6.2 miles away. TAA-Compliant for GSA Schedule Purchases The B127F-1A1-SM-DD is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Product Type	KVM Console/Extender

Technical Information

Connectivity Technology	Wired
Number of Computers Supported	1
Number of Local Users Supported	1
Number of Remote Users Supported	1
Maximum Operating Distance	32808.40 ft

Video

Graphic Mode	4K
Maximum Video Resolution	3840 x 2160

Interfaces/Ports

USB	Yes
HDMI	Yes
DisplayPort	Yes
Number of HDMI Ports	1
Number of USB Ports	3

Power Description

Input Voltage	120 V AC 240 V AC
Input Voltage Range	100V AC to 240V AC

Physical Characteristics

Color Family	Black
Product Color	Black
Form Factor	Rack-mountable
Transmitter Height	1.06"
Transmitter Width	4.53"
Transmitter Depth	2.46"
Receiver Height	1.06"
Receiver Width	4.53"
Receiver Depth	2.46"
Transmitter Weight (Approximate)	1.10 lb
Receiver Weight (Approximate)	1.10 lb

Miscellaneous

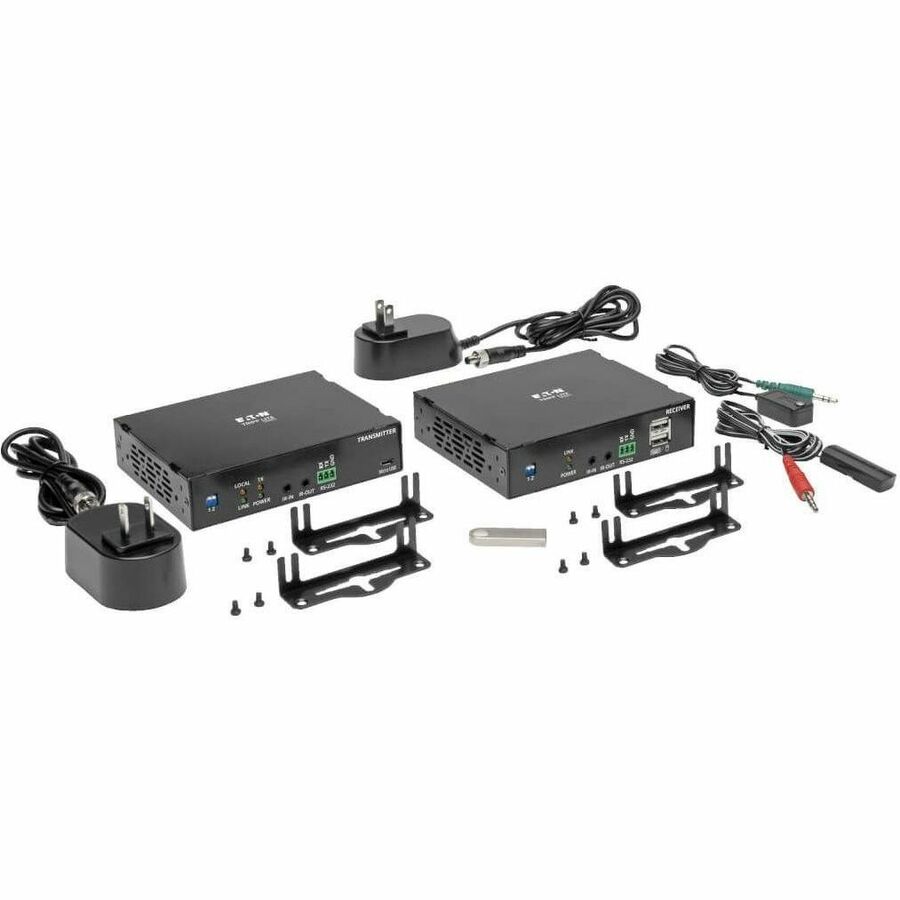

Package Contents	1 x Transmitter Unit 1 x Receiver Unit 2 x External power supplies with 4.5 ft. cord (Input: 100-240V, 50/60 Hz, 0.35A; Output: 5V 2A) 8 x International plug adapters (North America, Europe, Australia, United Kingdom) 2 x Sets of Mounting Hardware Owner's Manual
Environmentally Friendly	Yes
Country of Origin	Taiwan
TAA Compliant	Yes

Warranty

Limited Warranty

1 Year
