Tripp Lite by Eaton 4-Port HDMI over Cat6 Extender Kit Splitter/3x Pigtail Receivers - 4K 60 Hz HDR 4:4:4 PoC 230 ft. (70.1 m) TAA

by
TRIPP LITE
PCN#
9HA349
MFG#
B127A-004-BHPH3
$392.99
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 1 Input Device
  • 3 Output Device
  • 230 ft Range

Show more

Product Condition: New and Factory Fresh
Limited Warranty1 Year
Shipping Weight: 3 lbs.
Eaton Tripp Lite Series 4-Port HDMI over Cat6 Extender Kit, Splitter/3x Pigtail Receivers - 4K 60 Hz, HDR, 4:4:4, PoC, 230 ft. (70.1 m), TAA
Tech Specs
Specifications

Manufacturer

Tripp Lite by Eaton

Manufacturer Part Number

B127A-004-BHPH3

Manufacturer Website Address

https://tripplite.eaton.com/

Brand Name

Tripp Lite by Eaton

Product Model

B127A-2A0-BH

Product Name

B127A-2A0-BH Video Extender Transmitter/Receiver

Marketing Information

Features | HDMI Quad-Output Extender Kit Ideal for Digital Signage in Schools and Workplaces
This 4K splitter/receivers combo is recommended for video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings, hotels and other digital signage applications where the source and display are farther apart than conventional A/V cables allow.

Extends a 4K A/V Transmission up to 230 ft....or Even Farther

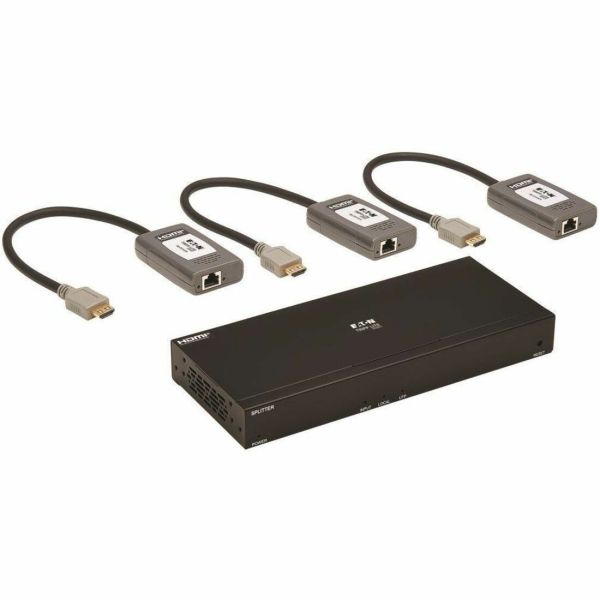

The included splitter connects to three included pigtail receivers (plus one more optional Tripp Lite B127A-Series receiver, sold separately) to extend 4K signals from an HDMI source to four HDMI displays up to 230 feet (70.1 meters) away via user-supplied Cat6 cabling. By adding Tripp Lite B127A-010-H signal repeaters (sold separately) to the application, you can extend the signal to each connected display up to 400 feet (121.9 meters).

Transmits Crystal-Clear 4K Video with Multi-Channel Audio, HDR and 4:4:4 Color
The B127A-004-BHPH3 supports Ultra HD resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz with true uncompressed 7.1-channel digital audio and Dolby TrueHD. High Dynamic Range (HDR) provides a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. Advanced 4:4:4 chroma subsampling is ideal for top-level PC gaming or using your HDTV as a PC monitor.

Multi-Resolution Support Allows Mixing and Matching of Displays of Different Resolutions
Say you have a brand new 4K/60 Hz HDTV in one room, but want to also connect your Blu-ray player or satellite box to an older 1080p TV in another room. The B127A-004-BHPH3 is backward compatible with 4K/30 Hz and 1080p resolutions via automatic switching, allowing each connected monitor to display video at its maximum resolution.

Local HDMI Port on Transmitter Supports 4K @ 60 Hz Resolution

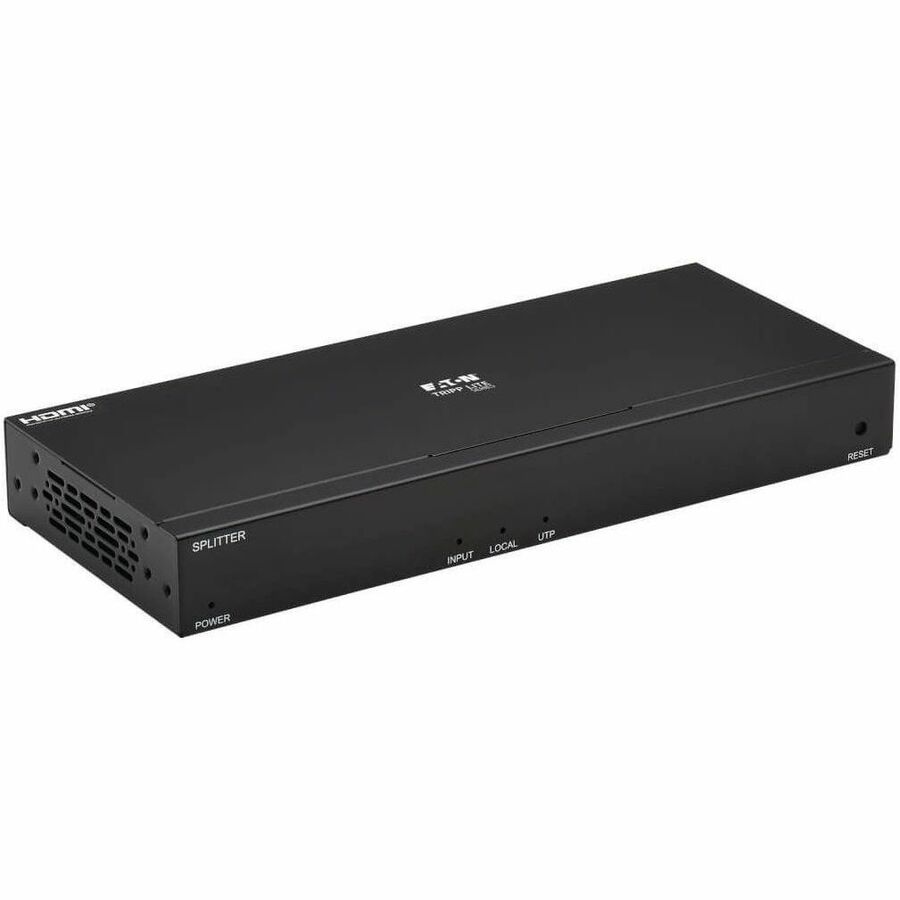

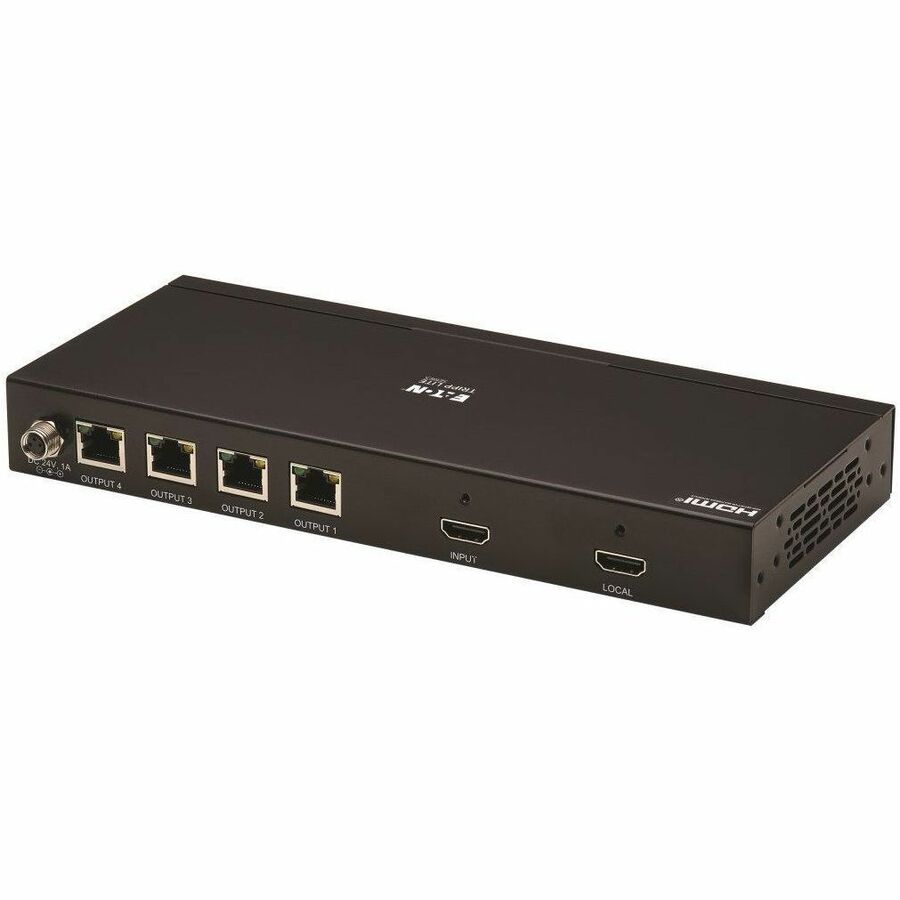

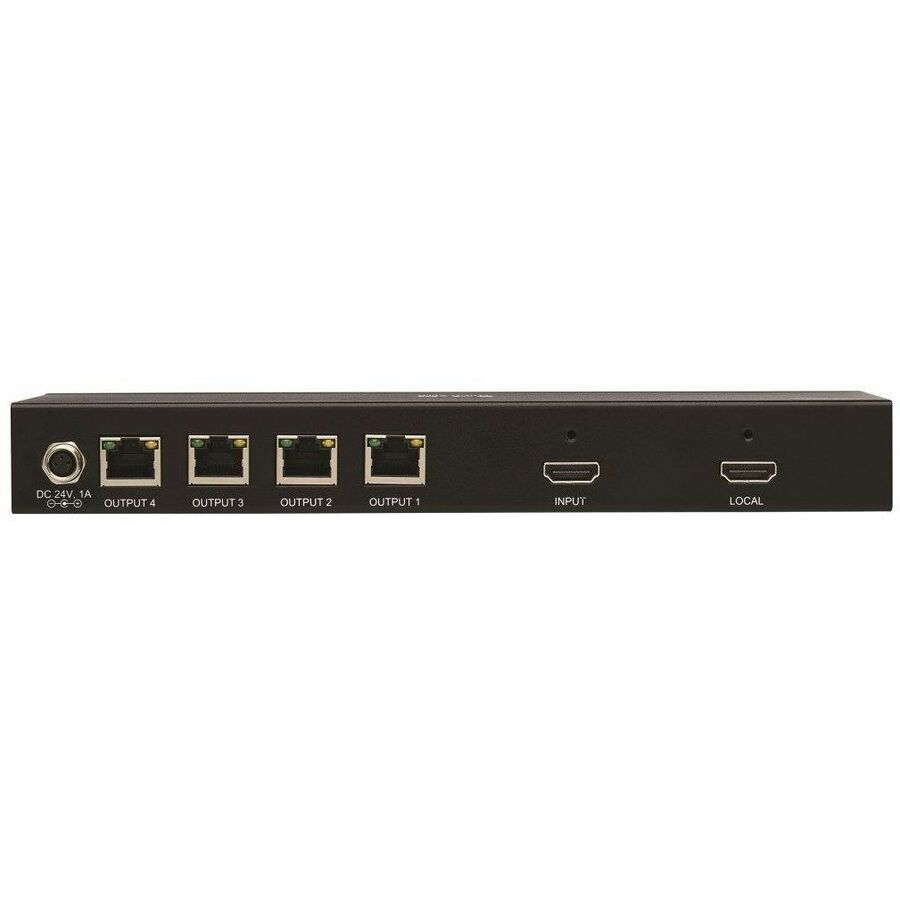

To monitor the video signal being extended to the receivers, connect a 4K display to the splitter's local HDMI port with the included HDMI cable. This port does not support multi-resolution capabilities, so the connected monitor must also support 4K/60 Hz to function properly.

Built-In PoC Technology Provides Receiver Power to Avoid Bulky External Power Bricks

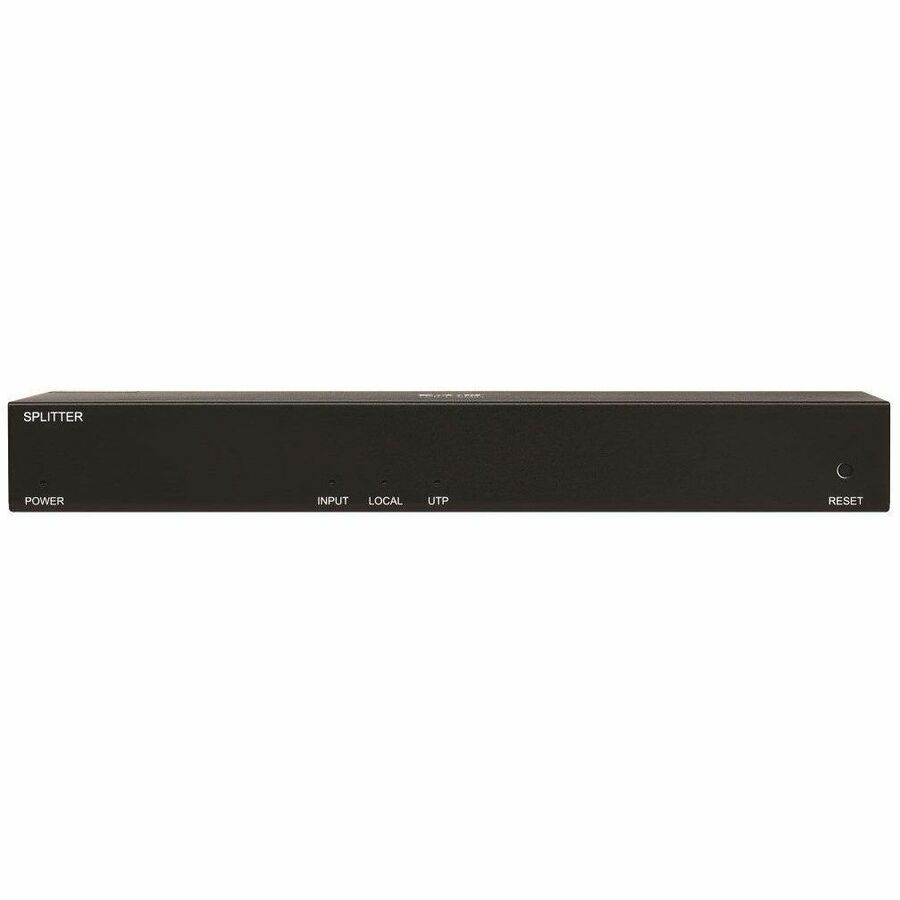

Power over Cable (PoC) technology powers the connected receivers over Cat6 cable. LEDs indicate when the system is receiving power and a signal is being transmitted. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to place the receivers where needed without worrying about finding a nearby AC outlet.

Plug-and-Play Operation for Quick Setup and Immediate Use

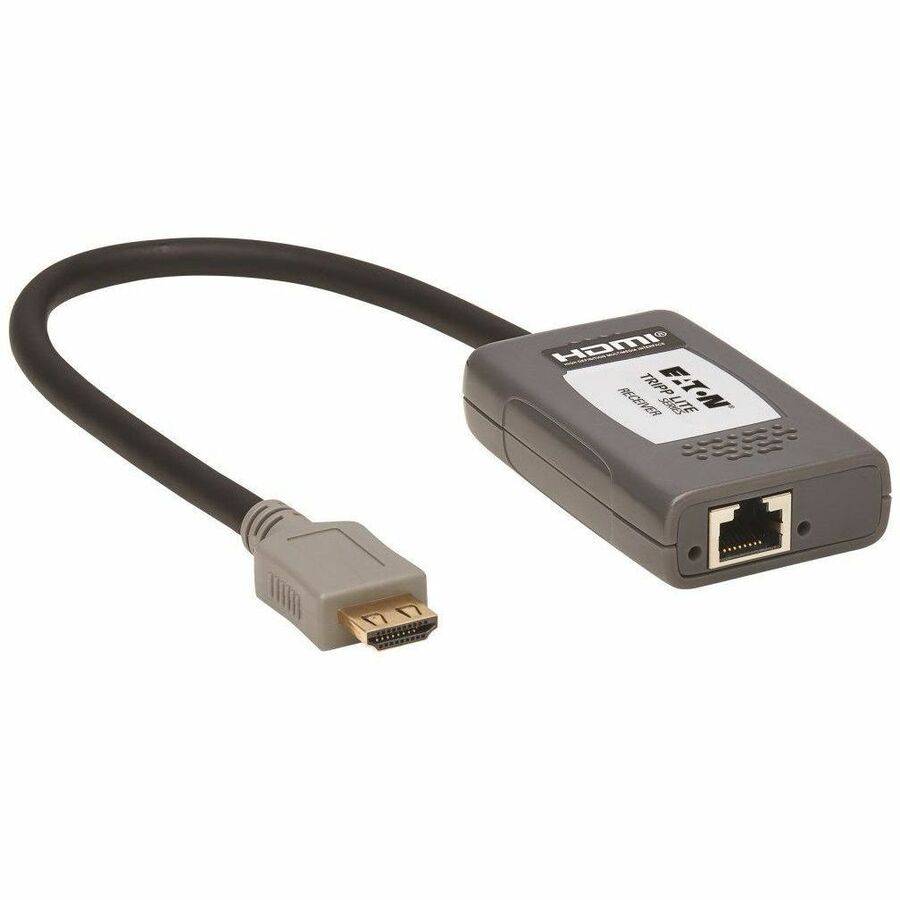

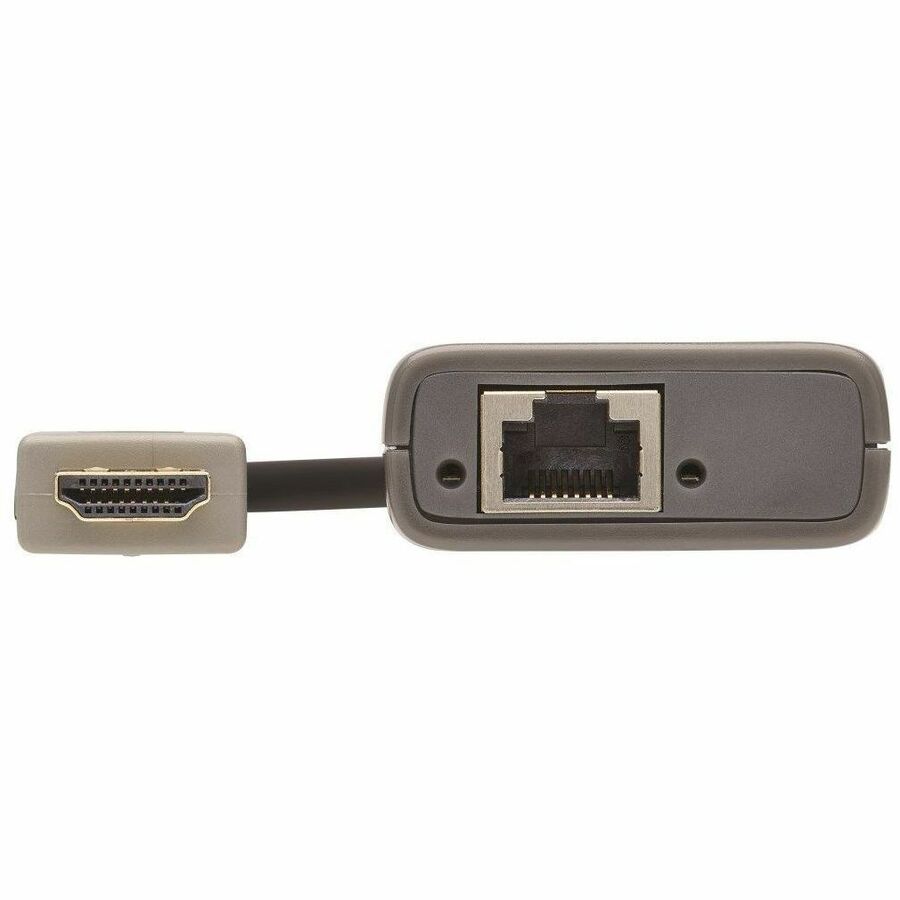

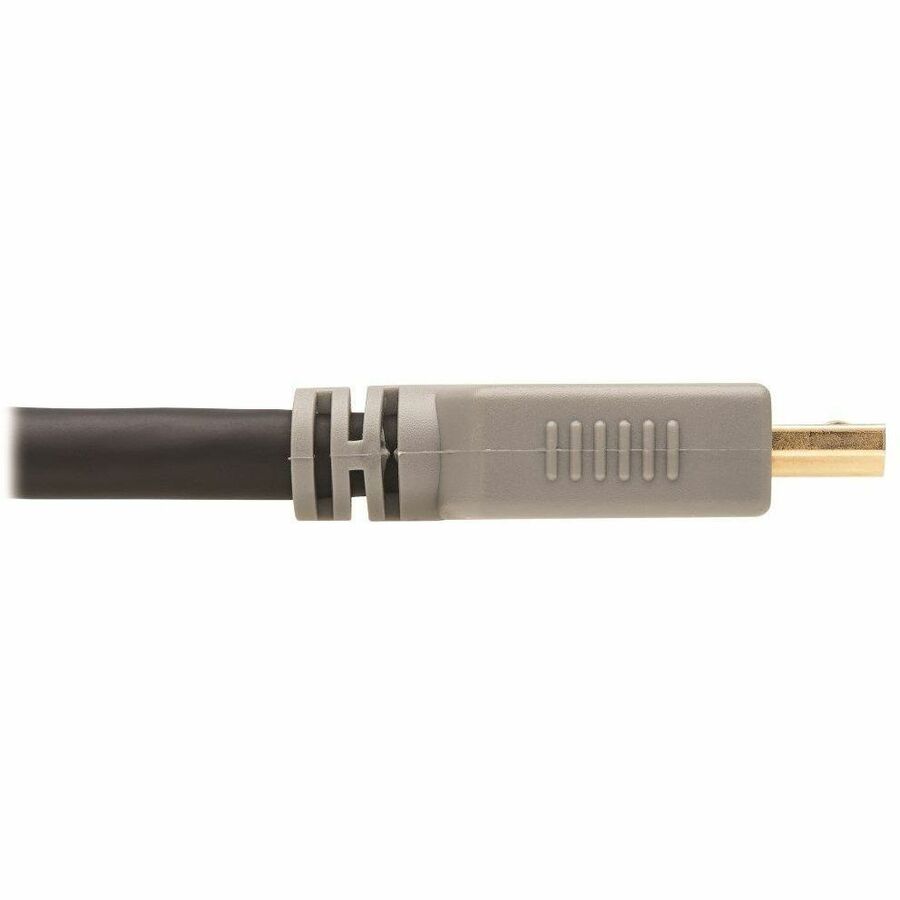

The splitter and receivers work right out of the package with no software required. Mounting hardware is included for installing the splitter on a wall, pole or 19-inch rack. Connect the splitter to an HDMI source device with a user-supplied HDMI cable (such as Tripp Lite's P568- or P569-Series). The receivers' pigtail HDMI connectors plug directly into a 4K display.

TAA-Compliant for GSA Schedule Purchases
The B127A-004-BHPH3 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Product Type

Video Extender Transmitter/Receiver
Technical Information

Connectivity Technology

Wired

Number of Input Devices Supported

1

Number of Output Devices Supported

3

Maximum Operating Distance

230 ft
Video

Graphics Modes

4K UHD

Maximum Video Resolution

3840 x 2160
Interfaces/Ports

Network (RJ-45)

Yes

HDMI In

Yes

HDMI Out

Yes

Number of Network (RJ-45) Ports

7

Number of HDMI Inputs

1

Number of HDMI Outputs

4
Media & Performance

Media Type Supported

Twisted Pair

Twisted Pair Cable Standard

Category 6
Power Description

Frequency

  • 50 Hz
  • 60 Hz
Physical Characteristics

Color Family

Black

Product Color

Black

Transmitter Height

1.17"

Transmitter Width

9.25"

Transmitter Depth

3.94"

Receiver Height

0.73"

Receiver Width

1.85"

Receiver Depth

2.95"

Form Factor

Rack-mountable

Transmitter Weight (Approximate)

1.43 lb

Receiver Weight (Approximate)

1.43 lb
Miscellaneous

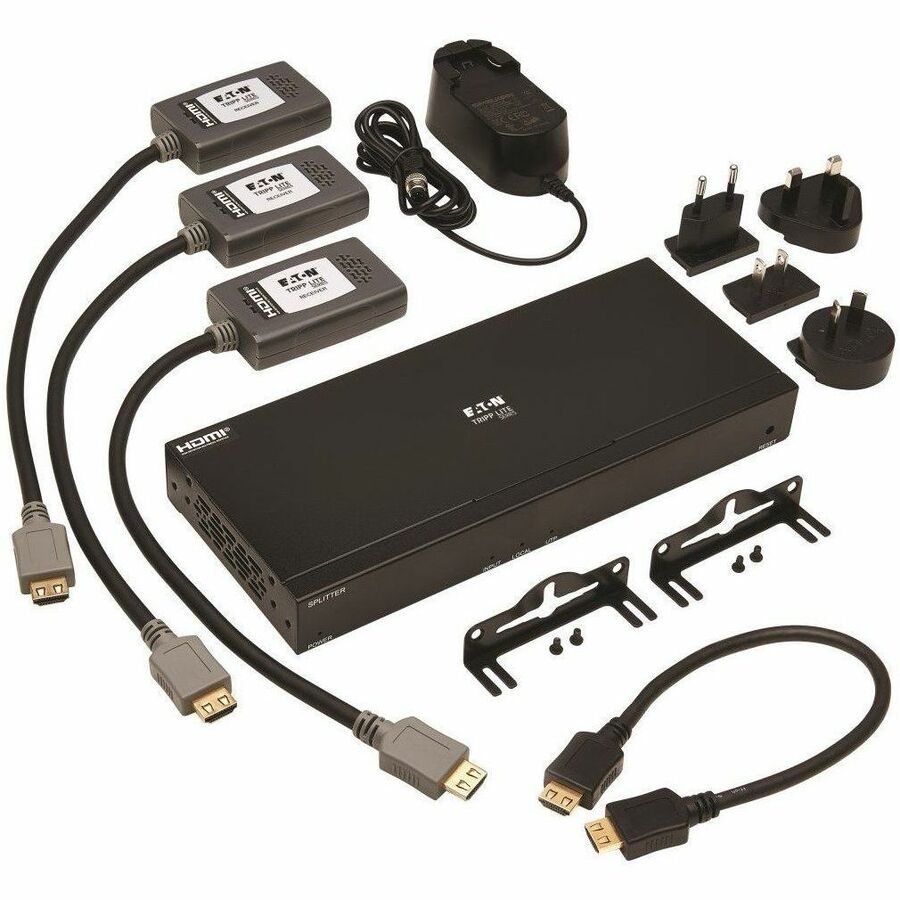

Package Contents

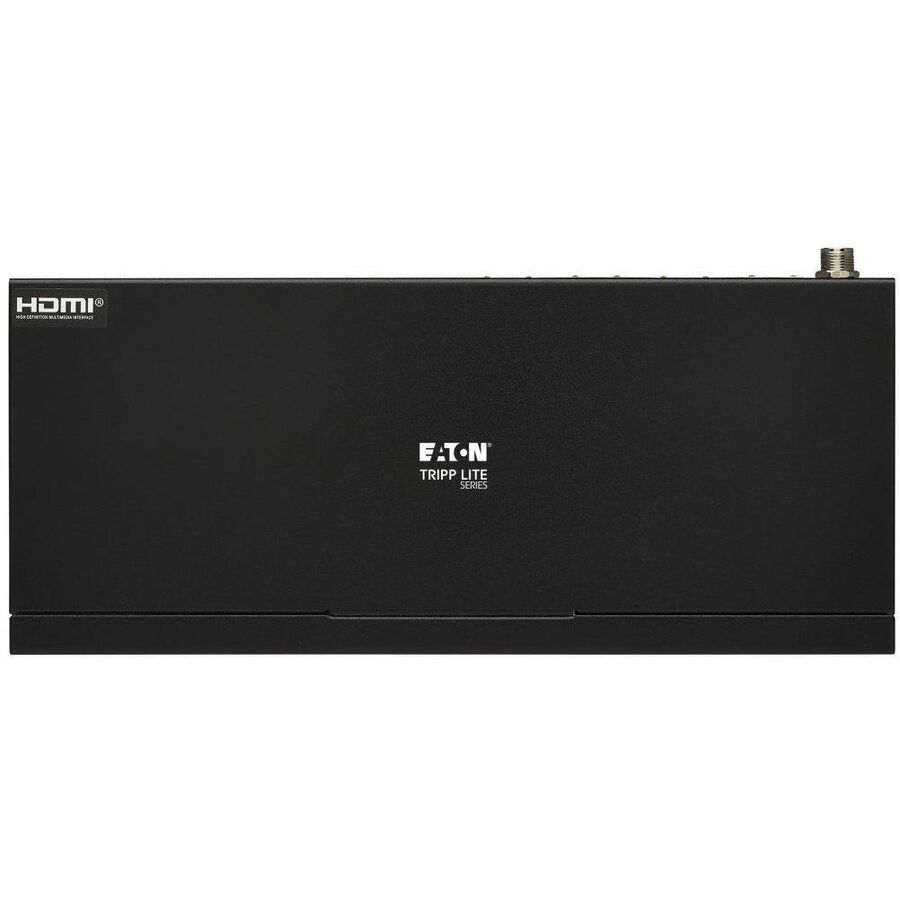

  • B127A-004-BH 4-Port HDMI over Cat6 Splitter

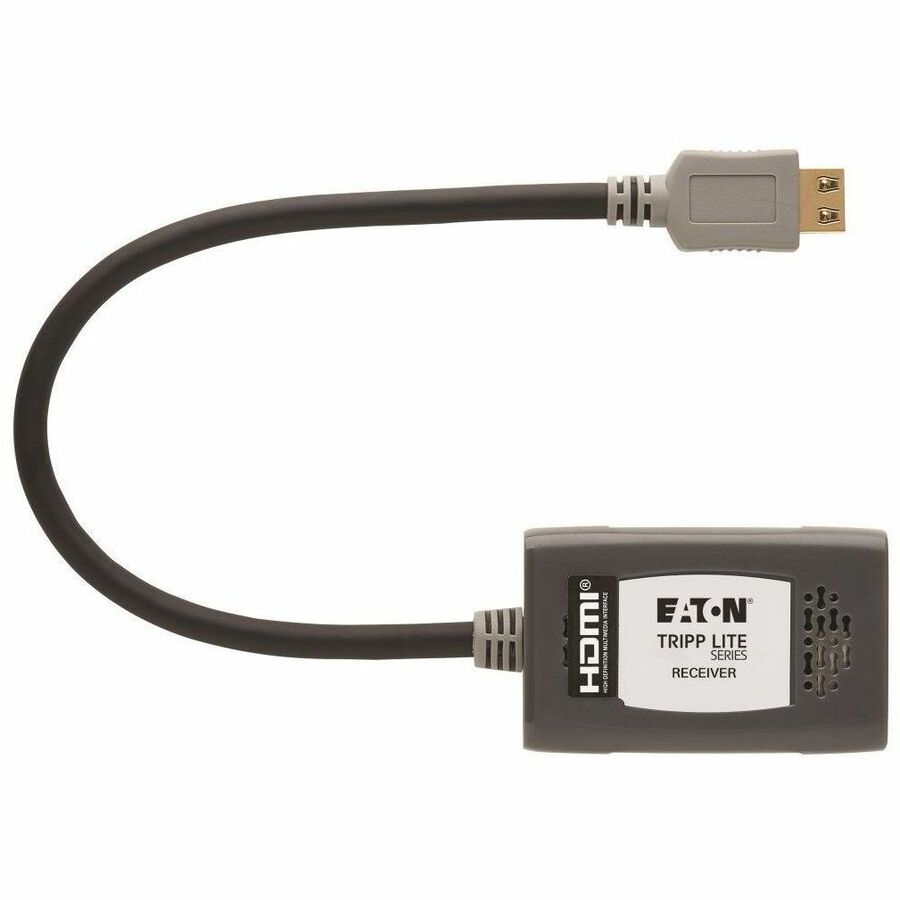

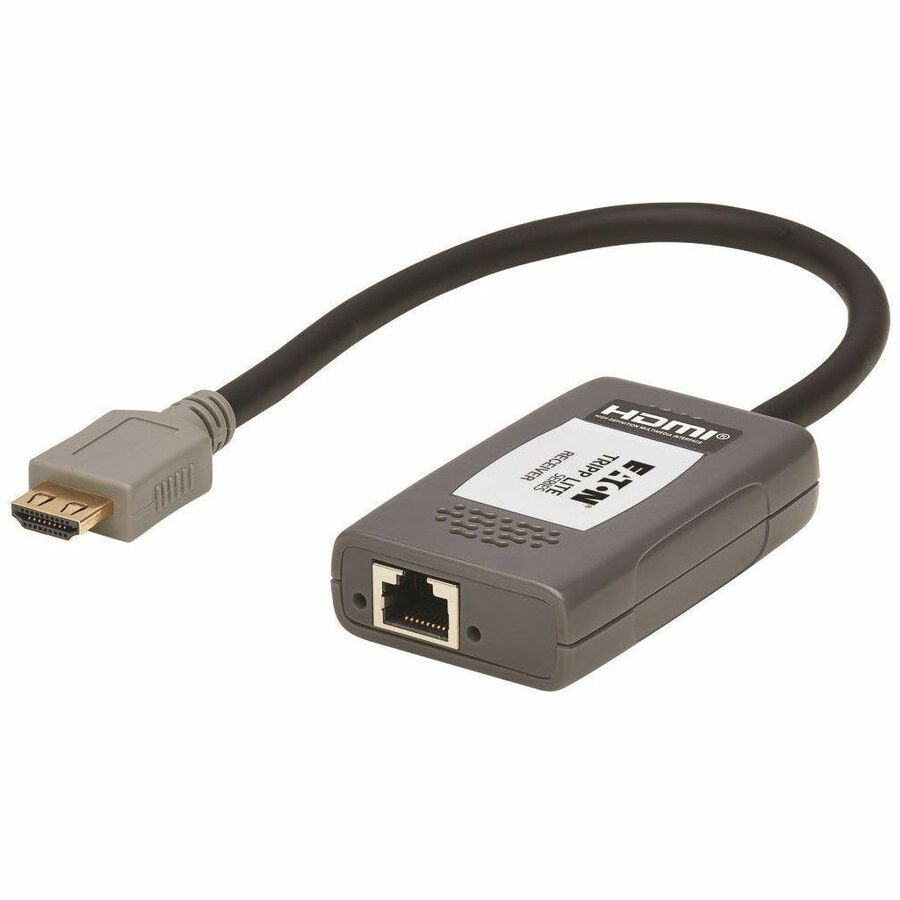

  • 3 x B127A-1P0-PH 1-Port HDMI over Cat6 Receivers
  • External power supply (Input: 100-240V, 50/60 Hz, 0.6A; Output: 24V 1A)
  • (4) International plug adapters (North America, U.K., Europe, Australia)
  • HDMI cable (M/M), 1 ft. (0.3 m)
  • Mounting Hardware
  • Owner's Manual

Country of Origin

Taiwan

TAA Compliant

Yes

Environmentally Friendly

Yes

Environmental Compliance

  • Restriction of Hazardous Substances (RoHS)
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty

Limited Warranty

1 Year
