Tripp Lite by Eaton 2-Port HDMI over Cat5/6 Active Extender/Splitter Remote Receiver for Video/Audio Up to 150 ft. (45 m) TAA

Name: Tripp Lite by Eaton 2-Port HDMI over Cat5/6 Active Extender/Splitter Remote Receiver for Video/Audio Up to 150 ft. (45 m) TAA
Brand: TRIPP LITE
SKU: VR5796
Price: 169.71 USD
Availability: InStock

TRIPP LITE

PCN#

VR5796

MFG#

B126-2A0

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$169.71

Extended & Accidental Damage Protection Plans Available Details

2-Year $25.99

3-Year $36.99

Free Shipping

Estimated Shipment:

Product Highlights:

2 Output Device
200 ft Range
1 x Network (RJ
45)
2 x HDMI Out
Full HD
1920 x 1080
Twisted Pair
Rack
mountable, Wall Mountable, Pole
mountable
TAA Compliant

Product Condition: New and Factory Fresh

Limited Warranty1 Year

Shipping Weight: 2 lbs.

Tripp Lite by Eaton 2-Port HDMI over Cat5/6 Active Extender/Splitter, Remote Receiver for Video/Audio, Up to 150 ft. (45 m), TAA

Overview

Tech Specs

Specifications

Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	B126-2A0
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Model	B126-2A0
Product Name	B126-2A0 HDMI over Cat5/Cat6 Active Remote Receiver
Marketing Information	The B126-2A0 HDMI over Cat5/Cat6 Active Remote Receiver works with Tripp Lite's B126-002 or B126-004 transmitter to extend an HDMI signal and split it to two projectors, monitors or televisions. It's ideal for digital signs, trade shows, presentations, classrooms, churches, retail settings and other applications where the video source is located farther than conventional cables allow or that require multiple displays connected to one source. The receiver uses HDMI cable (see Tripp Lite's P568-Series) to connect to the monitors and Cat5e/6 cable to receive the signal from the transmitter or a remote repeater in the chain (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite's N202-Series). The B126-2A0 can extend a 1080i (60 Hz) signal up to 200 feet, a 1080p (60 Hz) signal up to 150 feet and a 3D signal up to 125 feet. You can connect up to three B126-110 remote repeaters in the chain for a maximum of six HDMI displays and full signal extension of 700 feet (1080i), 500 feet (1080p) or 400 feet (3D). In addition to crystal-clear video, the B126-2A0 delivers full, rich stereo and 7.1-channel surround sound (multi-channel or PCM) audio when paired with a B126-002 or B126-004 transmitter. Built-in equalization control lets you fine-tune the image quality at each remote display. Supports 24-bit True Color (8 bits per channel) and HDCP compatibility. Easy to set up with no software or drivers to install. Mounts to a wall, rack or pole using the included hardware. Features Extends High-Definition Signals Works in tandem with Tripp Lite's B126-002 or B126-004 transmitter unit Extends a 1080i (60 Hz) signal up to 200 ft., a 1080p (60 Hz) signal up to 150 ft. and a 3D signal up to 125 ft. Connect up to 3 B126-110 remote repeaters to the chain for maximum signal range of 700 feet (1080i), 500 feet (1080p) and 400 feet (3D) Connects to previous link in the chain with one Cat5e/6 cable (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite's N202-Series) Supports the Latest Video and Audio Resolutions Works with all operating systems and HDMI video sources Supports HD resolutions up to 1080p (60 Hz) Supports stereo and 7.1-channel surround sound (multi-channel or PCM) audio when paired with a B126-002 or B126-004 transmitter Supports 24-bit True Color (8 bits per channel) and HDCP Built-in equalization control lets you adjust the image on the local monitor Easy to Set Up and Use Plug-and-play engineering-no software or drivers to download and install Connects quickly to monitors with HDMI cable, such as Tripp Lite's P568-Series LEDs indicate at a glance when the unit is receiving power and a signal from the previous link in the chain Included mounting hardware lets you install the unit on a wall, rack or pole TAA-Compliant Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Product Type	Video Extender Receiver

Technical Information

Connectivity Technology	Wired
Number of Output Devices Supported	2
Maximum Operating Distance	200 ft

Video

Graphics Modes	Full HD
Maximum Video Resolution	1920 x 1080

Interfaces/Ports

Network (RJ-45)	Yes
HDMI Out	Yes
Number of Network (RJ-45) Ports	1
Number of HDMI Outputs	2

Media & Performance

Media Type Supported	Twisted Pair
Twisted Pair Cable Standard	Category 6

Physical Characteristics

Color Family	Multicolor
Product Color	Black
Receiver Height	1"
Receiver Width	2.50"
Receiver Depth	3.60"
Form Factor	Rack-mountable Wall Mountable Pole-mountable

Miscellaneous

For Country/Region	Europe United Kingdom

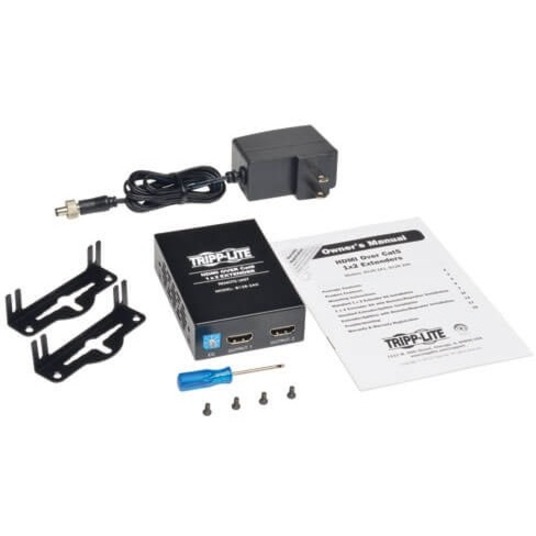

Package Contents	HDMI Over Cat5 Active Extender 2-Port Remote Unit Screwdriver For Adjustment Of Equalization Mounting Hardware External Power Supply (Input: 100-240V)
Country of Origin	Taiwan
TAA Compliant	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

1 Year
