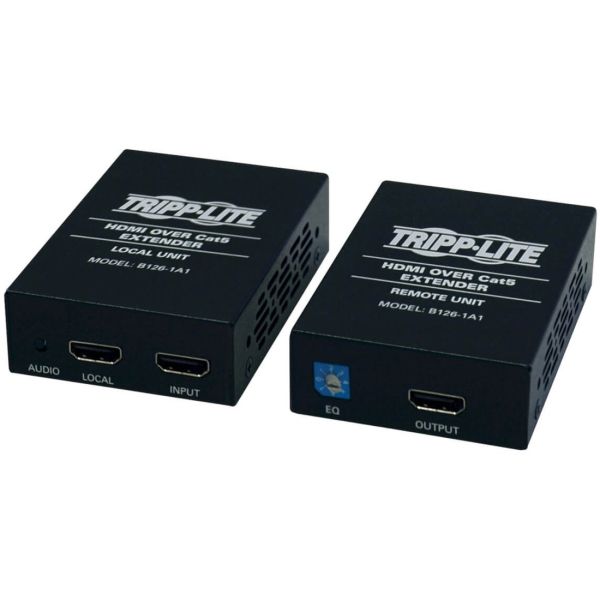

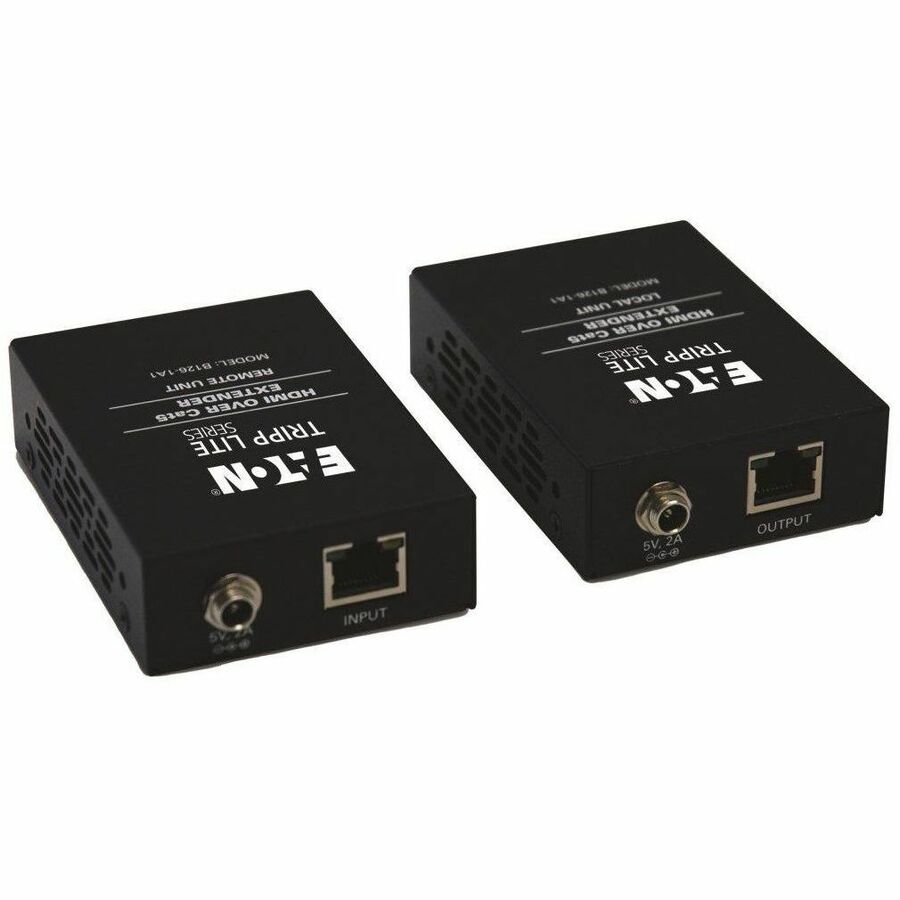

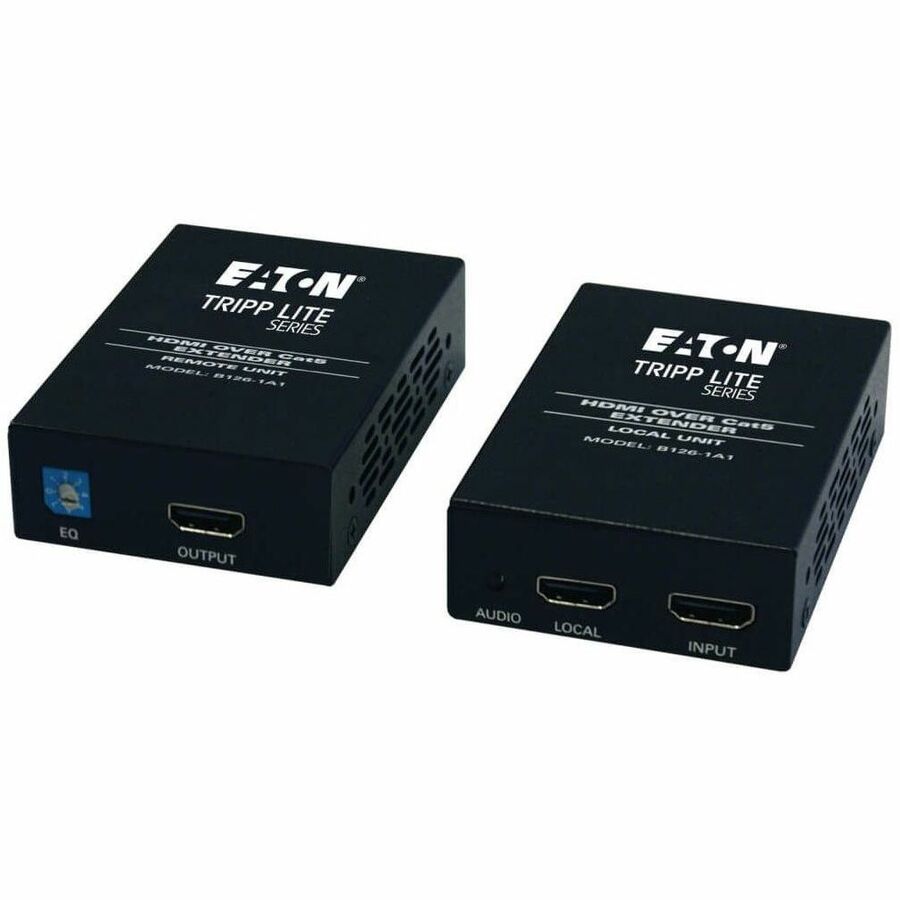

Tripp Lite by Eaton HDMI over Cat5/6 Extender Kit Box-Style Transmitter/Receiver for Video/Audio Up to 150 ft. (45 m) TAA

Name: Tripp Lite by Eaton HDMI over Cat5/6 Extender Kit Box-Style Transmitter/Receiver for Video/Audio Up to 150 ft. (45 m) TAA
Brand: TRIPP LITE
SKU: DP8830
Price: 190.92 USD
Availability: InStock

TRIPP LITE

PCN#

DP8830

MFG#

B126-1A1

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$190.92

Extended & Accidental Damage Protection Plans Available Details

2-Year $25.99

3-Year $36.99

Free Shipping

Estimated Shipment:

Product Highlights:

2 Input Device
2 Output Device
150 ft Range
2 x Network (RJ
45)
1 x HDMI In
2 x HDMI Out
Twisted Pair
Category 6
Rack
mountable, Wall Mountable
TAA Compliant

Product Condition: New and Factory Fresh

Limited Warranty1 Year

Shipping Weight: 2 lbs.

Tripp Lite by Eaton HDMI over Cat5/6 Extender Kit, Box-Style Transmitter/Receiver for Video/Audio, Up to 150 ft. (45 m), TAA

Overview

Tech Specs

Specifications

Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	B126-1A1
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Model	B126-1A1
Product Name	B126-1A1 Video Extender/Console
Marketing Information	The B126-1A1 transmits a 1080p (60Hz) signal to a monitor up to 150 ft. away using Cat5e/6 cable. To achieve maximum distance and resolution, use 24Awg Solid Wire Cat5e/6 cable. (Tripp Lite's N202-Series) The transmitter unit features an HDMI port for the connection of a local monitor. The receiver unit features a built-in Equalization control for adjustment of the video image. Supports 24-bit True Color (8-bits per channel), HDCP, 3D, and both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM). Installation is simple. Connect the transmitter unit to an HDMI source using a Tripp Lite P568-Series HDMI cable (not included). Connect the receiver unit to a display using a Tripp Lite P568-Series HDMI cable (not included). Finally, connected the receiver to the RJ45 port on the transmitter using a single Cat5e/6 cable. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Product Type	Video Extender Transmitter/Receiver

Technical Information

Connectivity Technology	Wired
Number of Input Devices Supported	2
Number of Output Devices Supported	2
Maximum Operating Distance	150 ft

Interfaces/Ports

Network (RJ-45)	Yes
HDMI In	Yes
HDMI Out	Yes
Number of Network (RJ-45) Ports	2
Number of HDMI Inputs	1
Number of HDMI Outputs	2

Media & Performance

Media Type Supported	Twisted Pair
Twisted Pair Cable Standard	Category 6

Physical Characteristics

Color Family	Multicolor
Product Color	Black
Form Factor	Rack-mountable Wall Mountable

Miscellaneous

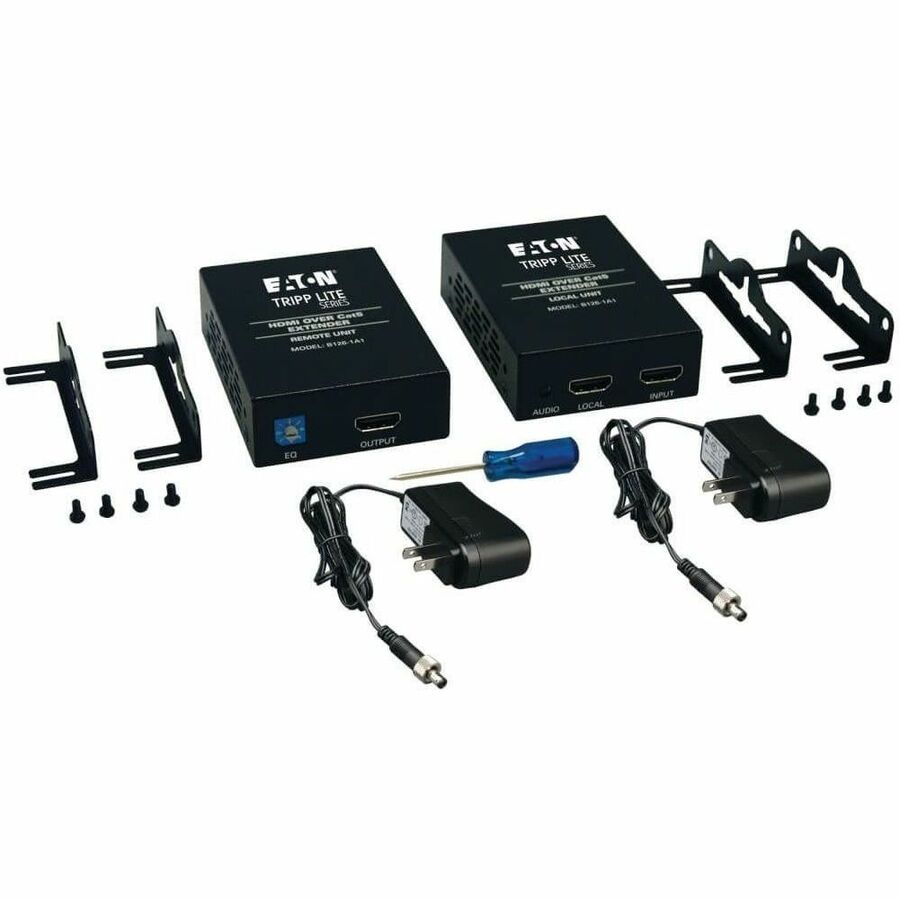

Package Contents	B126-1A1 Video Extender/Console Screwdriver for Adjustment of Equalization 2 x Mounting Hardware 2 x External Power Supply Owner's manual
Certifications & Standards	HDCP TAA
Country of Origin	Taiwan
TAA Compliant	Yes
Environmentally Friendly	Yes

Warranty

Limited Warranty

1 Year
