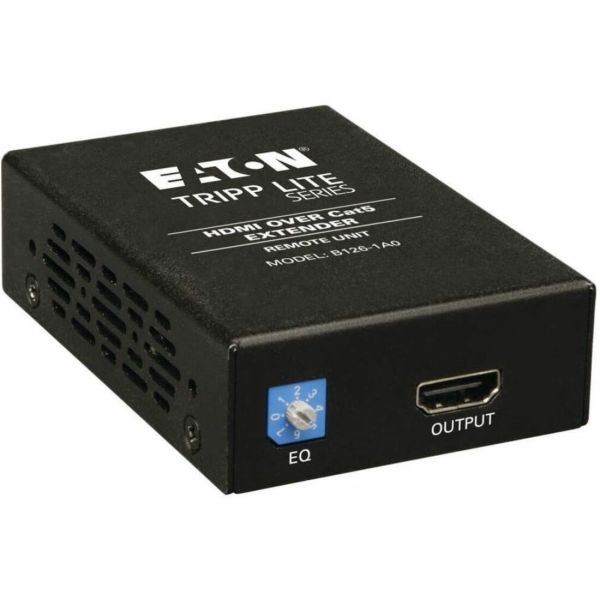

Tripp Lite by Eaton HDMI over Cat5/6 Extender Box-Style Remote Receiver for Video/Audio Up to 150 ft. (45 m) TAA

Name: Tripp Lite by Eaton HDMI over Cat5/6 Extender Box-Style Remote Receiver for Video/Audio Up to 150 ft. (45 m) TAA
Brand: TRIPP LITE
SKU: DP8828
Price: 131.55 USD
Availability: InStock

TRIPP LITE

PCN#

DP8828

MFG#

B126-1A0

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$131.55

Extended & Accidental Damage Product Replacement Plan Available Details

2-Year $32.99

1-Year $24.99

Free Shipping

Estimated Shipment:

Product Highlights:

1 Input Device
1 Output Device
200 ft Range
1 x Network (RJ
45)
1 x HDMI Out
Twisted Pair
TAA Compliant

Product Condition: New and Factory Fresh

Limited Warranty1 Year

Shipping Weight: 2 lbs.

Tripp Lite by Eaton HDMI over Cat5/6 Extender, Box-Style Remote Receiver for Video/Audio, Up to 150 ft. (45 m), TAA

Overview

Tech Specs

Specifications

Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	B126-1A0
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Model	B126-1A0
Product Name	B126-1A0 Video Console
Marketing Information	The B126-1A0 is a receiver unit that is used with the B126-002 and B126-004 transmitter units. It extends a 1080p (60Hz) signal to a monitor up to 150 ft. away using Cat5e/6 cable. To achieve maximum distance and resolution, use 24Awg Solid Wire Cat5e/6 cable. (Tripp Lite's N202-Series) It features a built-in Equalization control for adjustment of the video image. Supports 24-bit True Color (8-bits per channel), HDCP, 3D, and both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM). Installation is simple. Connect the transmitter unit to an HDMI source using a Tripp Lite P568-Series HDMI cable (not included). Connect the receiver unit to a display using a Tripp Lite P568-Series HDMI cable (not included). Finally, connect the receiver to the RJ45 port on the transmitter using a single Cat5e/6 cable. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Product Type	Video Extender Receiver

Technical Information

Connectivity Technology	Wired
Number of Input Devices Supported	1
Number of Output Devices Supported	1
Maximum Operating Distance	200 ft

Interfaces/Ports

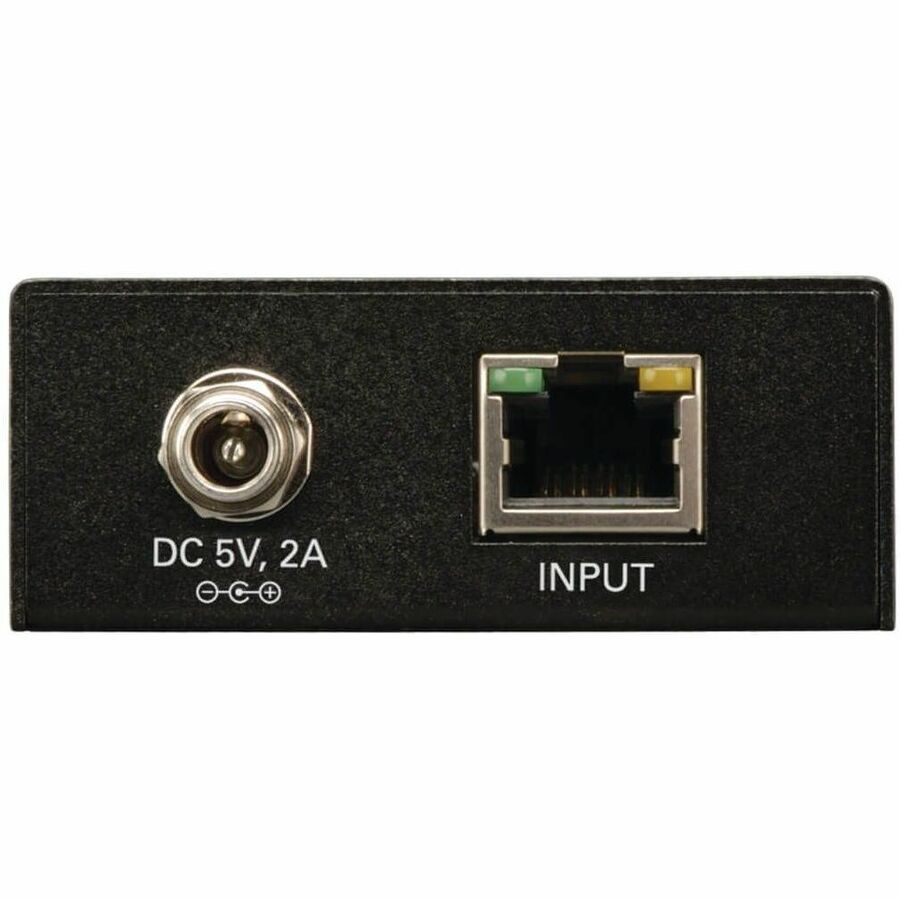

Network (RJ-45)	Yes
HDMI Out	Yes
Number of Network (RJ-45) Ports	1
Number of HDMI Outputs	1

Media & Performance

Media Type Supported	Twisted Pair
Twisted Pair Cable Standard	Category 6

Physical Characteristics

Color Family	Multicolor
Product Color	Black
Receiver Height	1"
Receiver Width	2.50"
Receiver Depth	3.60"
Form Factor	Wall Mountable

Miscellaneous

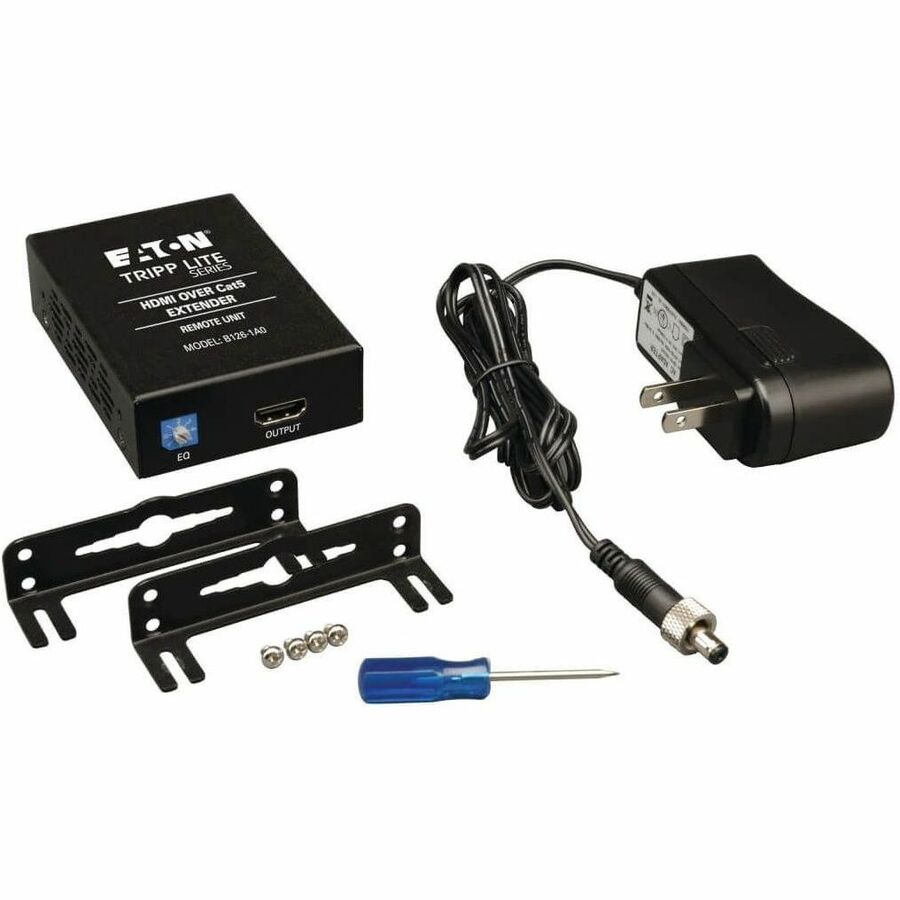

Package Contents	B126-1A0 Video Console Screwdriver for Adjustment of Equalization Mounting Hardware External Power Supply Owner's manual
Country of Origin	Taiwan
TAA Compliant	Yes

Warranty

Limited Warranty

1 Year
