Tripp Lite by Eaton 4-Port HDMI over Cat5/6 Extender/Splitter Box-Style Transmitter for Video/Audio Up to 150 ft. (45 m) TAA

Name: Tripp Lite by Eaton 4-Port HDMI over Cat5/6 Extender/Splitter Box-Style Transmitter for Video/Audio Up to 150 ft. (45 m) TAA
Brand: TRIPP LITE
SKU: DP8825
Price: 231.38 USD
Availability: InStock

TRIPP LITE

PCN#

DP8825

MFG#

B126-004

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$231.38

Extended & Accidental Damage Protection Plans Available Details

2-Year $25.99

3-Year $36.99

Free Shipping

Estimated Shipment:

Product Highlights:

1 Input Device
5 Output Device
200 ft Range
4 x Network (RJ
45)
1 x HDMI In
1 x HDMI Out
Twisted Pair
Category 6
Rack
mountable
TAA Compliant

Product Condition: New and Factory Fresh

Limited Warranty1 Year

Shipping Weight: 2 lbs.

Tripp Lite by Eaton 4-Port HDMI over Cat5/6 Extender/Splitter, Box-Style Transmitter for Video/Audio, Up to 150 ft. (45 m), TAA

Overview

Tech Specs

Specifications

Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	B126-004
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Model	B126-004
Product Name	B126-004 Video Extender
Marketing Information	The B126-004 4-Port HDMI over Cat5/Cat6 Extender/Splitter works with Tripp Lite B126-Series remote receivers to split a single HDMI audio/video signal into five separate signals-one local and four remote. It's ideal for digital signs, trade shows, presentations, retail settings and other applications where the video source is located farther than conventional cables allow or that require multiple displays connected to one source. It uses HDMI cable (see Tripp Lite's P568-Series) to connect to the source and the local monitor and Cat5e/6 cable to transmit to the remote monitors (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite's N202-Series).When used with Tripp Lite's B126-1A0 or B126-1A0-WP-1 active remote receivers, the Extender/Splitter can extend a 1080i (60 Hz) signal up to 200 ft., a 1080p signal (60 Hz) up to 150 ft. and a 3D signal up to 125 ft. With a B126-1P0 or B126-1P0-WP-1 passive remote receiver, it can extend a 1080i (60 Hz) signal up to 100 ft. and a 1080p (60 Hz) signal up to 50 ft. By daisy-chaining up to three Extender/Splitters, one video source can transmit to as many as 13 monitors-one local and 12 remote. Add up to three B126-110 remote repeaters to each channel to fully extend the signal range or add more displays.In addition to crystal-clear video, the B126-004 delivers full, rich stereo and 7.1-channel surround sound (multi-channel or PCM) audio. Easy to set up with no software or drivers to install. Mounts to a wall, rack or pole using the included hardware. Included HDMI cable with latching connectors provides a more secure connection.
Product Type	Video Extender Transmitter

Technical Information

Connectivity Technology	Wired
Number of Input Devices Supported	1
Number of Output Devices Supported	5
Maximum Operating Distance	200 ft

Interfaces/Ports

Network (RJ-45)	Yes
HDMI In	Yes
HDMI Out	Yes

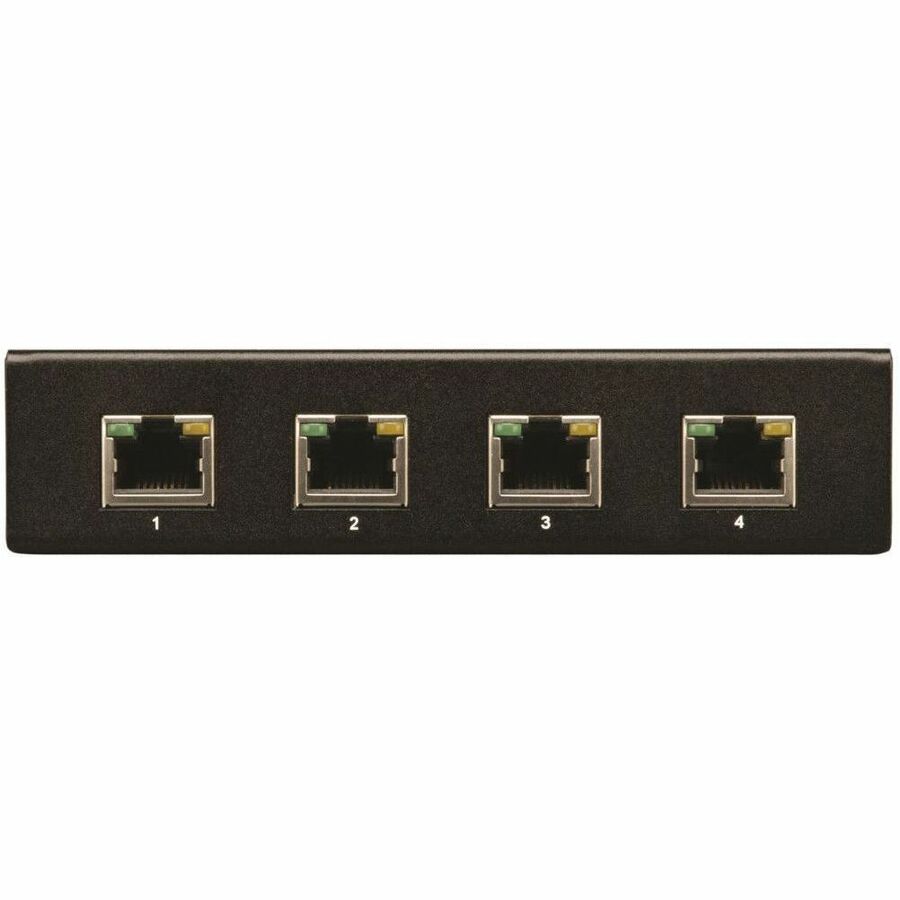

Number of Network (RJ-45) Ports	4
Number of HDMI Inputs	1
Number of HDMI Outputs	1

Media & Performance

Media Type Supported	Twisted Pair
Twisted Pair Cable Standard	Category 6

Physical Characteristics

Color Family	Multicolor
Product Color	Black
Transmitter Height	1.13"
Transmitter Width	5"
Transmitter Depth	4"
Form Factor	Rack-mountable

Miscellaneous

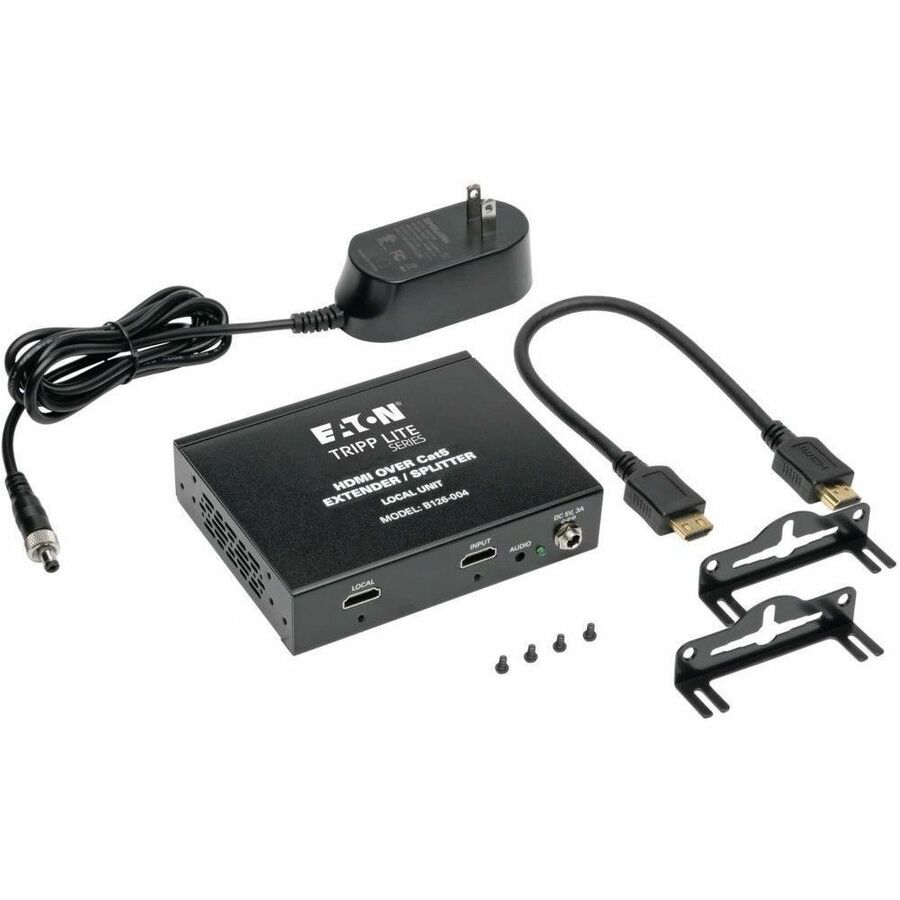

Package Contents	B126-004 Video Extender 1 ft. HDMI Daisychain Cable Mounting Hardware External Power Supply Owner Manual
Certifications & Standards	TAA HDCP
Country of Origin	Taiwan
TAA Compliant	Yes
Environmentally Friendly	Yes

Warranty

Limited Warranty

1 Year
