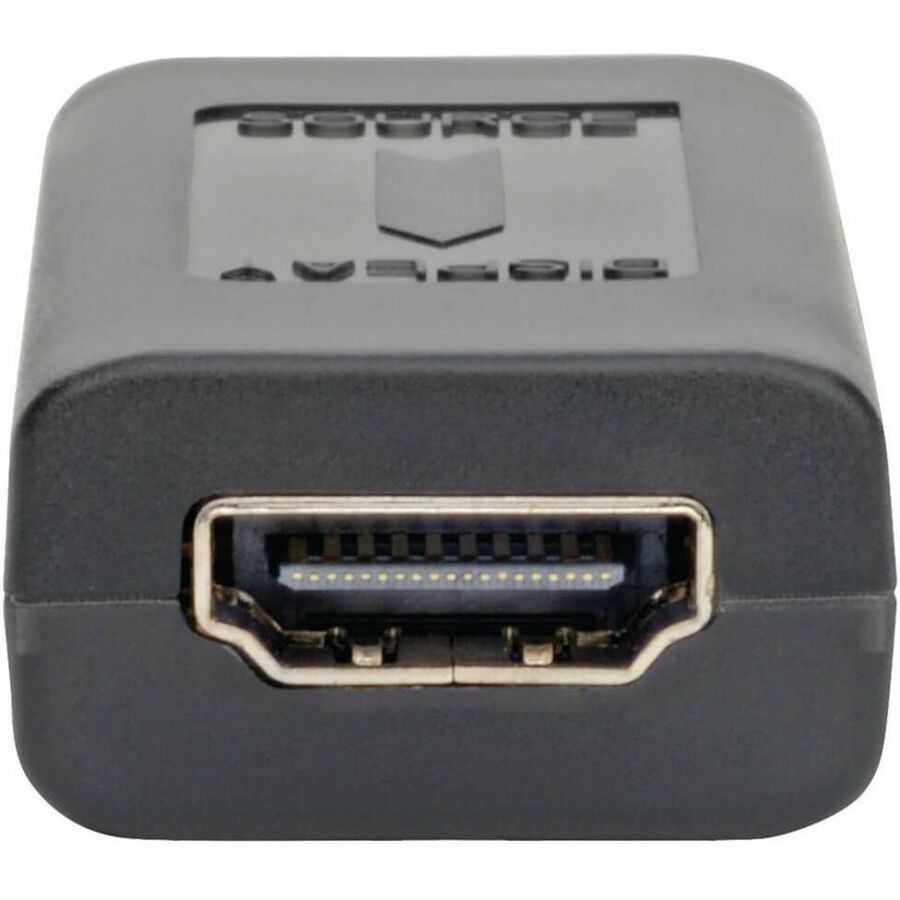

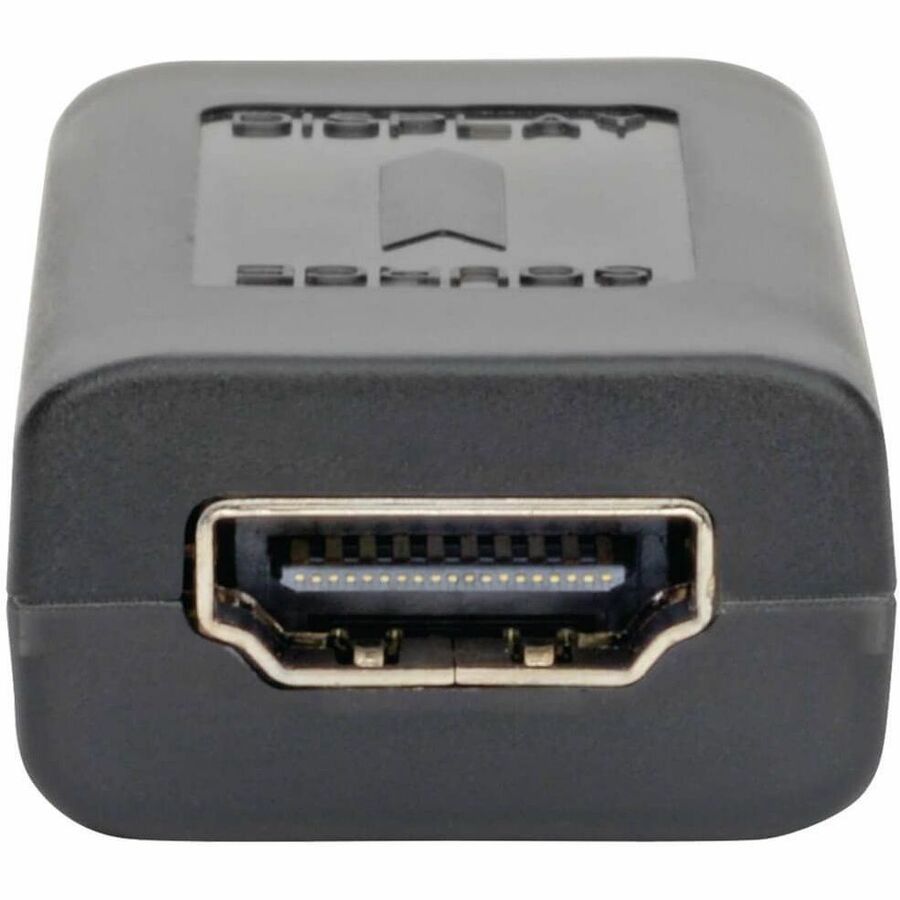

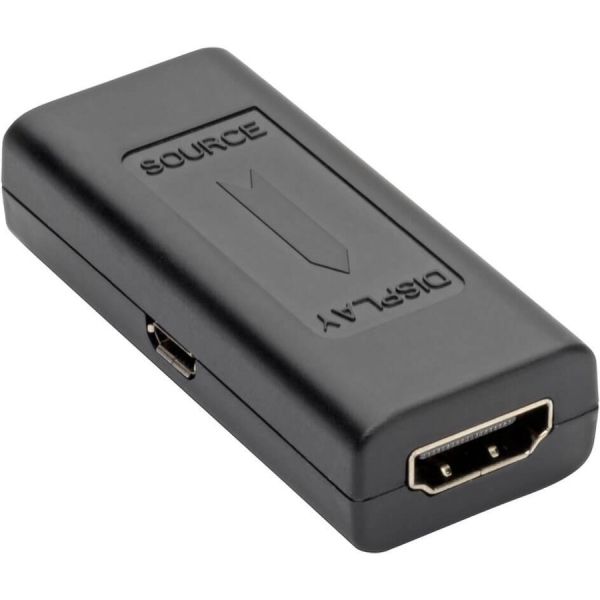

Tripp Lite by Eaton HDMI Signal Booster / Extender 1920 x 1200 (1080p) 60Hz Up to 125 ft. (38 m) (HDMI F/F) TAA

by
TRIPP LITE
PCN#
GT0817
MFG#
B122-000-60
$53.57
cps

Extended & Accidental Damage Product Replacement Plan Available Details

Estimated Shipment:

Calculating Shipping

Product Highlights:
  • HDMI
  • 150 ft Extended Range
Product Condition: New and Factory Fresh
Limited Warranty3 Year
Shipping Weight: 1 lbs.
Tripp Lite by Eaton HDMI Signal Booster / Extender, 1920 x 1200 (1080p) 60Hz, Up to 125 ft. (38 m), (HDMI F/F), TAA
Tech Specs
Specifications

Manufacturer

Tripp Lite by Eaton

Manufacturer Part Number

B12200060

Manufacturer Website Address

https://tripplite.eaton.com/

Brand Name

Tripp Lite by Eaton

Product Model

B122-000-60

Product Name

B122-000-60 HDMI Extender

Marketing Information

Tripp Lite's B122-000-60 HDMI Signal Extender increases the distance a 1080p @ 60Hz(or 1920 x 1200) signal can be transmitted beyond the recommended 16-ft.(5M). It supports computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p @ 60Hz, at a maximum distance of 150-ft. from the source. Use standard P568-Series HDMI cables in most applications. When extending a 1080p @ 60Hz(or 1920 x 1200) signal more than 75 ft., use cable made with 24Awg wiring, such as the P568-100-HD.(Lengths over 100 ft. are available from Tripp Lite as a custom order) 24Awg HDMI cable is also needed when extending a 3D signal more than 50-ft.. A 3D signal can be extended up to 125-ft. using 24Awg HDMI cable. Simply connect the longer cable between the source and the B122-000-60, and the shorter cable(16-ft. or less) between the adapter and the monitor. Software or drivers are not required. External power is not required in most installations. HDCP compliant. Compliant with the Federal Trade Agreements Act(TAA) for GSA Schedule purchases.
  • The B122-000-60 has been designed for use with Tripp Lite P568-Series HDMI cables. To ensure maximum distance and performance, it is recommended that you use Tripp Lite P568-Series HDMI cabling. For distances over 75-ft, 24AWG cable such as Tripp Lite's P568-100-HD is required.

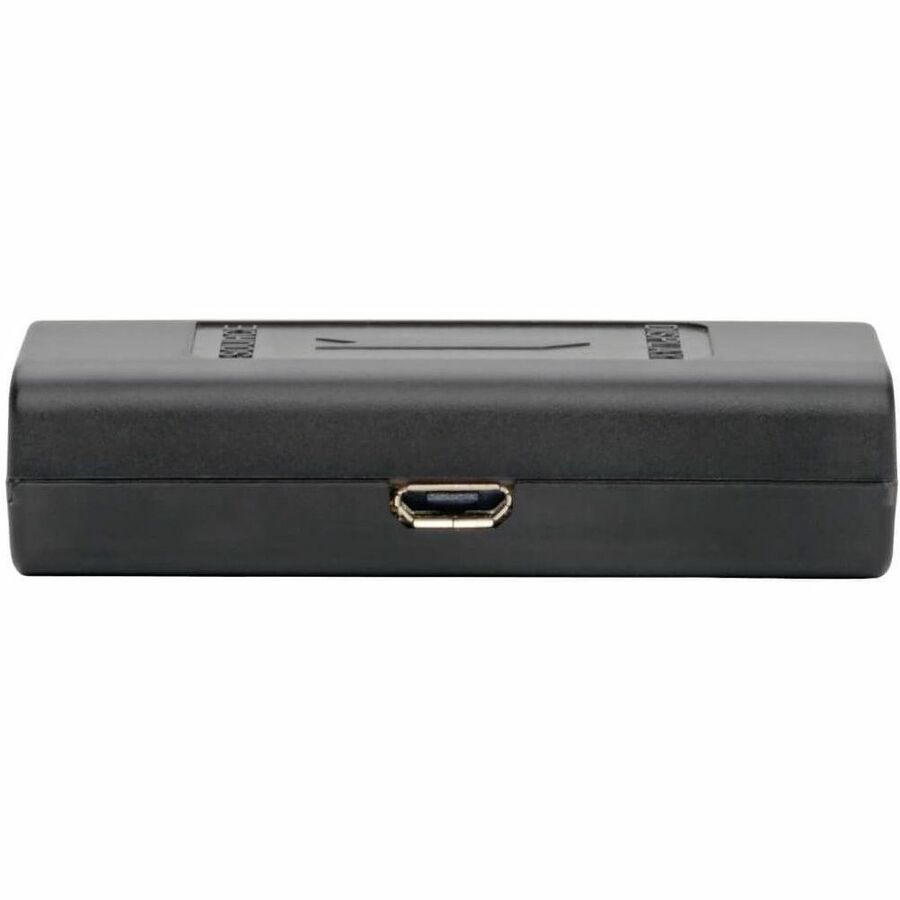

  • Although most installations will not require power, a Micro USB port is provided in the event power is needed. Using a Micro USB cable(such as Tripp Lite's UR05C-Series), connect the Micro USB port to a USB wall charger, the USB port on your monitor, or the USB port on a computer.

Product Type

HDMI Extender
Technical Information

Maximum Extended Range

150 ft
Interfaces/Ports

HDMI

Yes
Miscellaneous

Package Contents

  • B122-000-60 HDMI Extender
  • Manual

Additional Information

  • B122-000-60 HDMI Extender
  • Extend HDMI signals up to 150ft
  • Supports 1080p (60Hz) resolution
  • HDMI Female Connectors

Certifications & Standards

TAA

Environmentally Friendly

Yes

Country of Origin

Taiwan

TAA Compliant

Yes
Warranty

Limited Warranty

3 Year
