Tripp Lite by Eaton 2-Port DVI Splitter with Audio and Signal Booster Single-Link 1920x1200 at 60Hz/1080p (DVI F/2xF) TAA

Name: Tripp Lite by Eaton 2-Port DVI Splitter with Audio and Signal Booster Single-Link 1920x1200 at 60Hz/1080p (DVI F/2xF) TAA
Brand: TRIPP LITE
SKU: DC8604
Price: 94.61 USD
Availability: InStock

TRIPP LITE

PCN#

DC8604

MFG#

B116-002A

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$94.61

Extended & Accidental Damage Product Replacement Plan Available Details

1-Year $22.99

2-Year $29.99

Free Shipping

Estimated Shipment:

Product Highlights:

1920 x 1200
WUXGA
1 x 22 x DVI Out
TAA Compliant

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 2 lbs.

Tripp Lite by Eaton 2-Port DVI Splitter with Audio and Signal Booster, Single-Link 1920x1200 at 60Hz/1080p (DVI F/2xF), TAA

Overview

Tech Specs

Specifications

Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	B116-002A
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Model	B116-002A
Product Name	B116-002A TAA/GSA Compliant DVI Splitter
Marketing Information	With Tripp Lite's 2-Port DVI + Audio Splitter, you can transmit a DVI-D Single Link video signal and 3.5 mm. audio signal to two sets of monitors and speakers. Supports DVI Single Link computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p. The unit is HDCP, EDID, and DDC compatible. A built-in signal booster allows you to extend the distance between the splitter and connected monitors past the 16 ft. (5 m.) distance limitation. For source video resolutions anywhere from 1600 x 1200 @ 60Hz to 1920 x 1200 @ 60Hz - The distance between the splitter and the connected monitor/speakers must not exceed 49 ft. (15 m.). This distance can be extended by using a B120-000-SL DVI extender. The B120-000-SL can be located up to 65 ft. (20 m.) from the splitter, and 16 ft. (5 m.) from the connected monitor. For source video resolutions lower than 1600 x 1200 @ 60Hz - The distance between the splitter and the connected monitor/speakers must not exceed 65 ft. (20 m.). This distance can be extended by using a B120-000-SL DVI extender. The B120-000-SL can be located up to 114 ft. (35 m.) from the splitter, and 16 ft. (5 m.) from the connected monitor. The number of connected monitors/speakers can be expanded by cascading up to three levels of splitters. Plug and Play...no software or drivers required. Mounting hardware is included with the product, and allows it to be rackmounted, wallmounted or pole-mounted. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Product Type	Video Switchbox

Technical Information

Number of Input Devices Supported	1
Device Supported	Computer
Number of Displays Supported	2

Video

Graphics Modes	WUXGA
Maximum Video Resolution	1920 x 1200

Interfaces/Ports

DVI In	Yes
DVI Out	Yes
Number of DVI Inputs	1
Number of DVI Outputs	2

Media & Performance

Maximum Operating Distance

16.40 ft

Miscellaneous

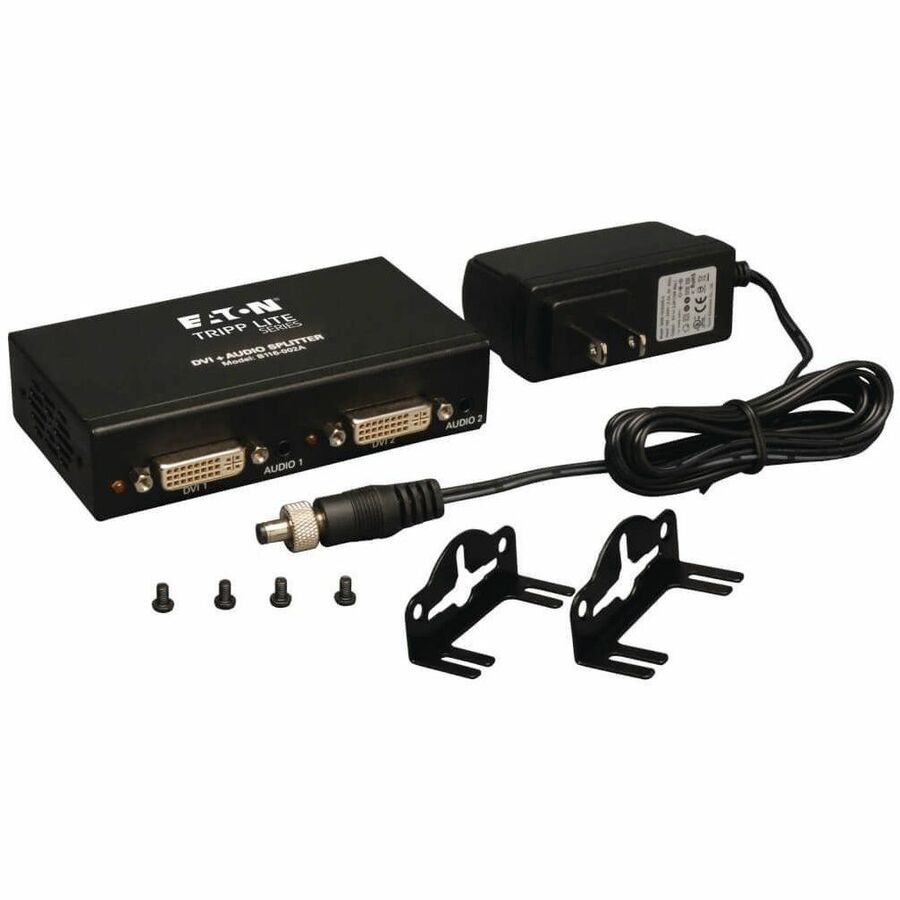

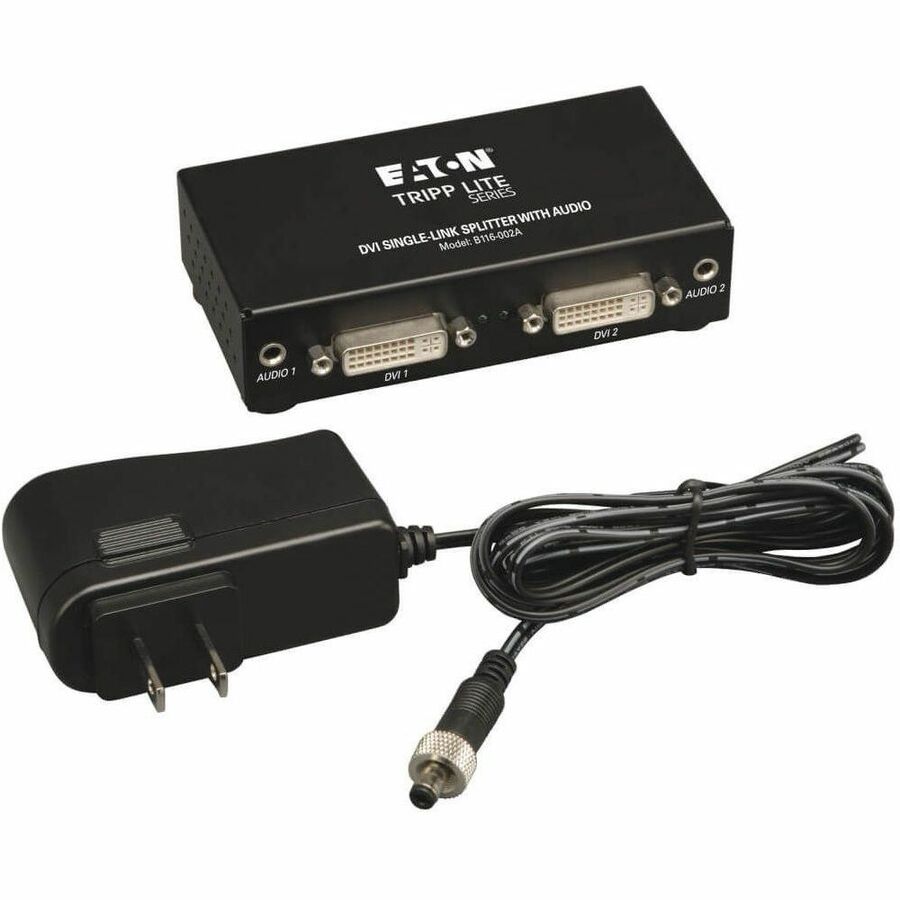

Package Contents	B116-002A TAA/GSA Compliant DVI Splitter External Power Supply Owner's Manual
Environmentally Friendly	Yes
Country of Origin	Taiwan
TAA Compliant	Yes

Warranty

Limited Warranty

3 Year
