Tripp Lite by Eaton NetCommander 16-Port Cat5 KVM over IP Switch - 19 in. LCD 2 Remote + 1 Local User 1U Rack-Mount

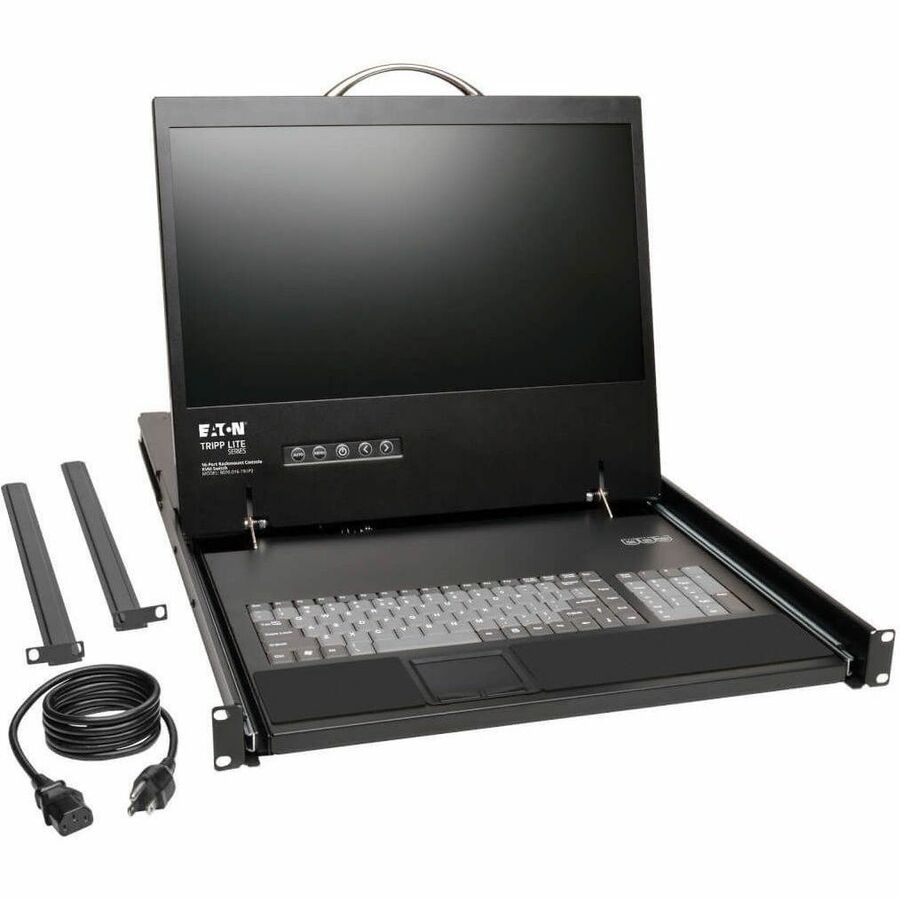

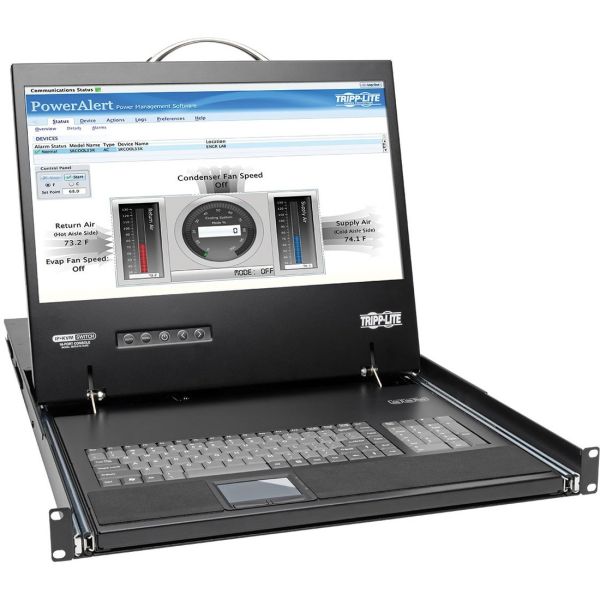

Tripp Lite's B070-016-19-IP2 NetCommander® 16-Port Cat5 1U Rack-Mount Console KVM Switch includes a full keyboard, 19-inch LCD screen and touchpad in a 1U rack-mount console. It connects up to 16 computers and/or servers and allows you to control them locally or remotely via LAN, WAN or web browser.Connect computers/servers up to 100 feet away using Cat5e/6 cabling and a compatible Tripp Lite B078-Series server interface unit (B078-101-USB2 required for Fast Virtual Media speeds up to 12 Mbps). Dual 10/100 LAN ports ensure uninterrupted remote access in case one port should fail. A local user and two remote users can log on simultaneously and switch between the 16 ports using an on-screen display, hotkeys or remote toolbar. Multi-level password protection prohibits unauthorized access.The LCD supports video resolutions up to 1366 x 768. Dual serial ports allow control of serial devices, such as IP PDUs, firewalls and routers. You can assign individual ports to an IP PDU port to power on/off the server connected to that port. The heavy-duty steel housing slides neatly into the rack when not in use. Free NetCommander-AXS management software is available to access and control your Tripp Lite NetCommander IP KVM switches (B070 and B072 Series). From a single interface, you can access server ports on any of your KVM switches, power cycle or power on/off outlets of IP PDUs, and manage KVM settings. This software can be found at the Technical Support link in the right-hand column.

Features

Includes 16-Port KVM Switch, 19 in. LCD, Keyboard and Touchpad

• Mounts in 1U of space in EIA-standard 19 in. rack
• Connects up to 16 computers/servers up to 100 ft. away via Cat5e/6 cabling and Tripp Lite B078 Series SIUs
• Computers with DisplayPort or HDMI connectors require Tripp Lite VGA adapters, such as P134-06N-VGA-V2 or P131-06N
• Fast Virtual Media KVM system: U.S. Patent #9,417,720
• BIOS-level control of any server brand and model

IP Remote Access for Fewer Trips to the Server Room

• Java-based application allows 24/7 remote access from anywhere via web browser over secure IP connection
• Non-browser client that can bypass browser-related Java security prompts is available
• Up to 3 users (1 local, 2 remote) can sign in simultaneously
• Up to 5 users can share a single session
• Supports both IPv4 and IPv6
• Dual 10/100 Mbps LAN ports for uninterrupted remote access in case one port should fail

Simplifies IT Tasks

• Users can switch between ports via on-screen display, hotkeys or remote toolbar
• Dual RJ45 serial ports for connecting IP devices, such as PDUs, firewalls and routers
• Assign individual ports to an IP PDU port to power on/off the server connected to that port
• Virtual Media allows.iso file to be mounted to target server and accessed directly
• Supports RADIUS and LDAP/S authentication
• Log tracks events on your installation

Large 19 in. LCD Screen

• Supports video resolutions up to 1366 x 768; 1920 x 1080 remotely
• DDC emulation allows for optimal output to LCD

Advanced Security Features

• Multi-level password protection-create administrator accounts with full access and user accounts with limited access
• 128-bit AES and HTTPS encryption for highest security standards

• 120 V AC
• 230 V AC

• B070-016-19-IP2 NetCommander 16-Port Cat5 1U Rack-Mount Console KVM Switch
• C13 to NEMA 5-15P Power Cord, 6 ft.
• Rack-Mounting Hardware
• Quick Start Guide

• UL 60950-1 (USA)
• CAN/CSA (Canada)
• FCC Part 15 Class A
• CE
• IEC 60950-1

• PC
• Linux
