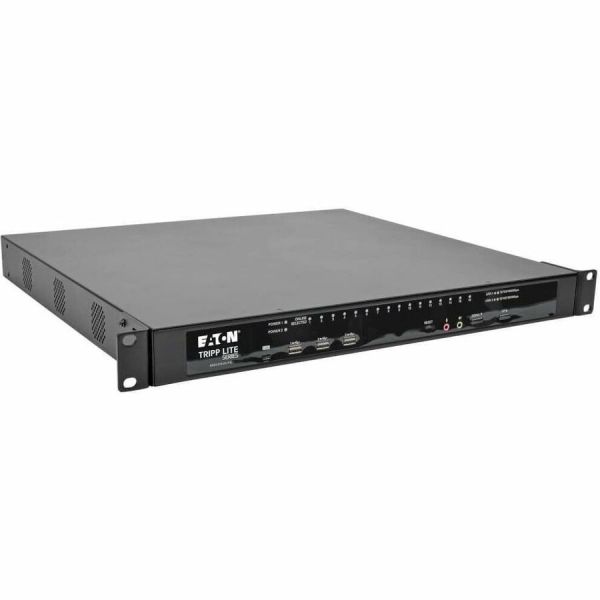

Tripp Lite by Eaton NetDirector 16-Port Cat5 KVM over IP Switch - Virtual Media 4 Remote + 1 Local User 1U Rack-Mount TAA

Name: Tripp Lite by Eaton NetDirector 16-Port Cat5 KVM over IP Switch - Virtual Media 4 Remote + 1 Local User 1U Rack-Mount TAA
Brand: TRIPP LITE
SKU: 2KM156
Price: 4098.39 USD
Availability: InStock

TRIPP LITE

PCN#

2KM156

MFG#

B064-016-04-IPG

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$4,098.39

Extended & Accidental Damage Protection Plans Available Details

2-Year $331.99

3-Year $446.99

Free Shipping

Estimated Shipment:

Product Highlights:

16 Computer(s)
1 Local User(s)
4 Remote User(s)
1600 x 1200
2 x PS/2 Port
2 x USB
Rack
mountable
1U

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 16 lbs.

Tripp Lite by Eaton NetDirector 16-Port Cat5 KVM over IP Switch - Virtual Media, 4 Remote + 1 Local User, 1U Rack-Mount, TAA

Overview

Tech Specs

Specifications

Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	B06401604IPG
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Line	NetDirector
Product Model	B064-016-04-IPG
Product Name	NetDirector KVM Switch
Marketing Information	Tripp Lite's 16-port NetDirector Cat5 IP KVM Switch is the optimal solution for remotely controlling multiple computers(combination of PS/2, USB and Serial) by up to 5(1 Local and 4 Remote) independent, simultaneous users. Both DVI and VGA console ports are included for connection of either a DVI or VGA monitor. High video resolution: up to 1920 x 1200 @ 60Hz - 24 bit color depth for the local console; up to 1920 x 1200 @ 60Hz with 24 bit color depth for remote sessions at up to 164 ft.(50 m). A full-screen graphical OSD with multi-level authentication(Super Administrator, Administrator and User) allows you to quickly and efficiently manage your installation, and can be displayed in English, German, Russian, Japanese, traditional Chinese and simplified Chinese. Critical events on the installation can be tracked via email notification, SNMP traps, the Windows-based log server or Syslog server. Accessing the connected computers is a breeze; view multiple computers at the same time using panel array mode, automatically sync USB mice, access the on-screen keyboard feature in numerous language formats. Virtual Media allows computers connected using a B055-001-USB-V2 Server Interface Unit to access DVD/CD drives, flash drives and other storage media as if they were directly connected to the computer. In addition, three USB ports are located on the front panel of the unit for use with Virtual Media or an external keyboard and mouse. Also located on the front of the KVM is a USB Mini-B port that allows for direct connection of a laptop for easy console operation of the switch. Other features include FIPS 140-2 level 1 security standards support, dual power supplies that allow the unit to continue running in the event one power supply stops receiving power, temperature sensors that control the speed of the unit's cooling fans, remote authentication support via RADIUS, LDAP, LDAPS and Active Directory, dial-in modem access and non-browser access using Windows and Java applications. Constructed of heavy-duty steel housing.
Product Type	KVM Switchbox

Technical Information

KVM Technology	Digital
Number of Computers Supported	16
Number of Local Users Supported	1
Number of Remote Users Supported	4

Video

Graphic Mode	UXGA
Maximum Video Resolution	1600 x 1200

Interfaces/Ports

PS/2 Port	Yes
USB	Yes
Number of PS/2 Ports	2
Number of USB Ports	2

Physical Characteristics

Form Factor	Rack-mountable
Rack Height	1U
Height	1.8"
Width	17"
Depth	16"
Weight (Approximate)	17 lb

Miscellaneous

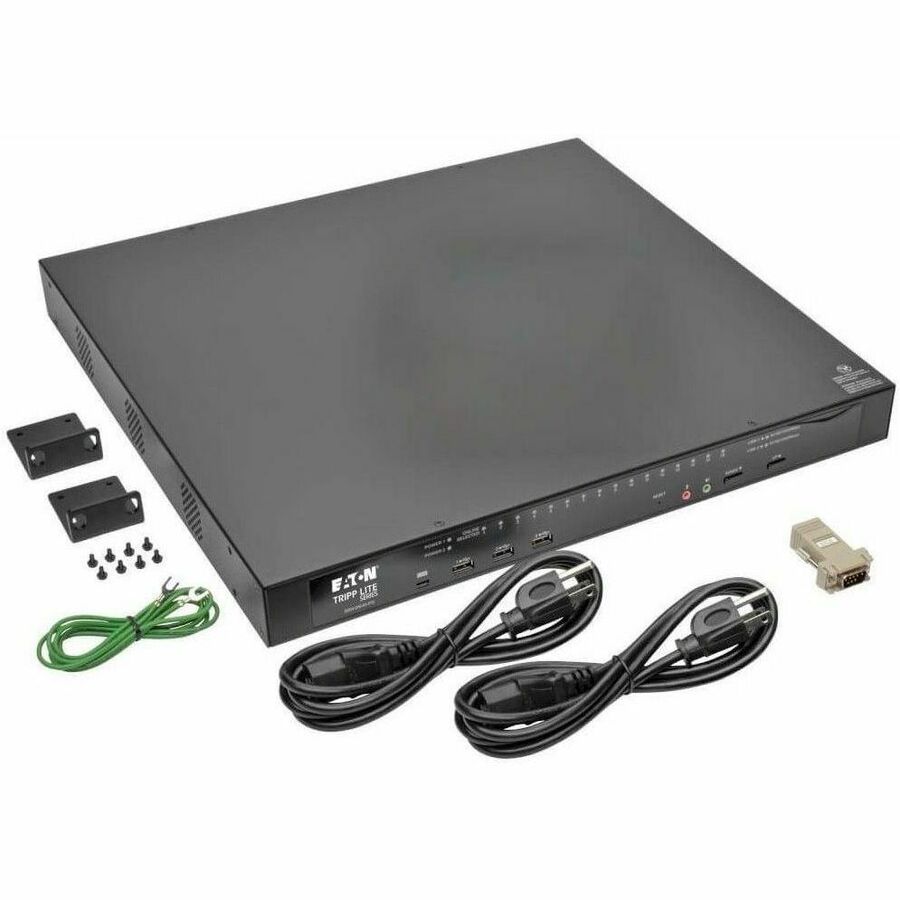

Package Contents	NetDirector KVM Switch 2 x C5 to 5-15P Power Cords CD With Owner's Manual Quick Start Guide RJ-45 to DB-9 Adapter For Dial-In Modem Functionality USB/PS/2 Combo Console Cable Kit Grounding Wire Set of Foot Pads Rackmount Hardware
Environmentally Friendly	Yes
Country of Origin	Taiwan
TAA Compliant	Yes

Warranty

Limited Warranty

3 Year
