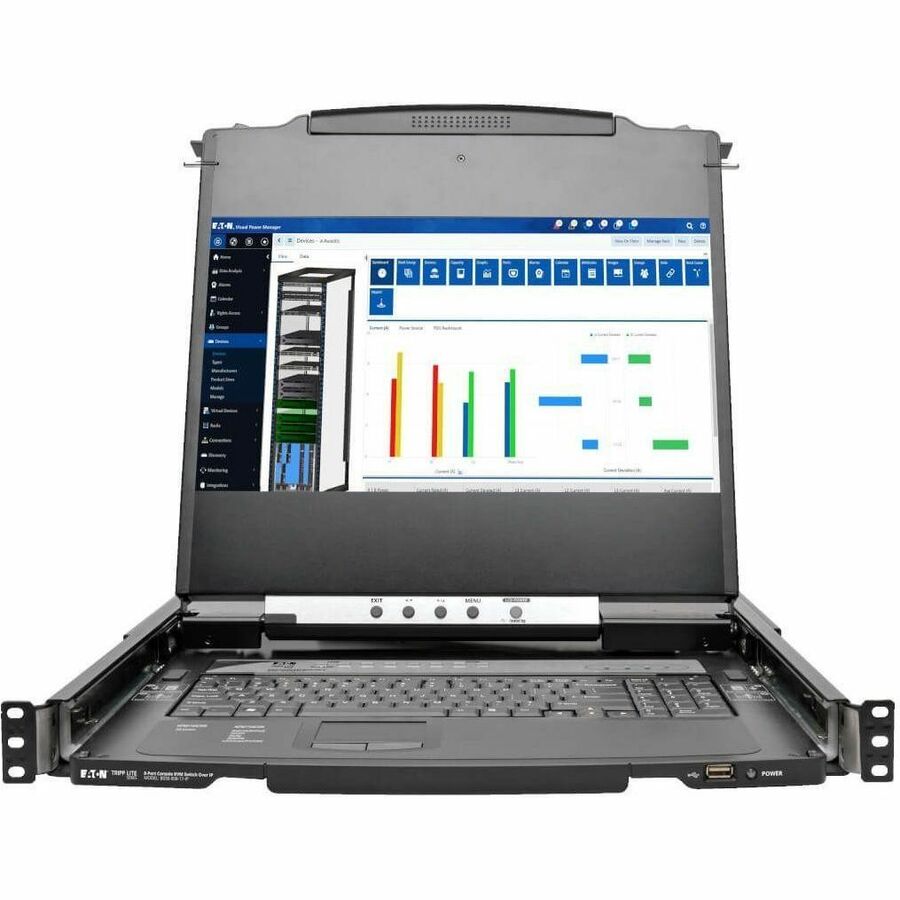

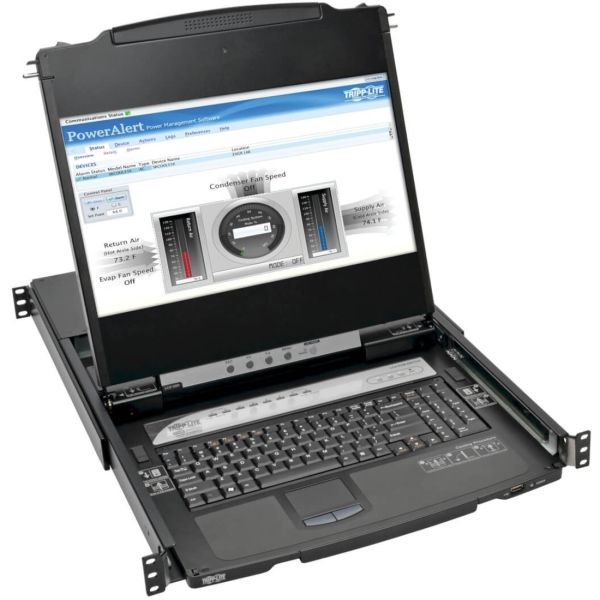

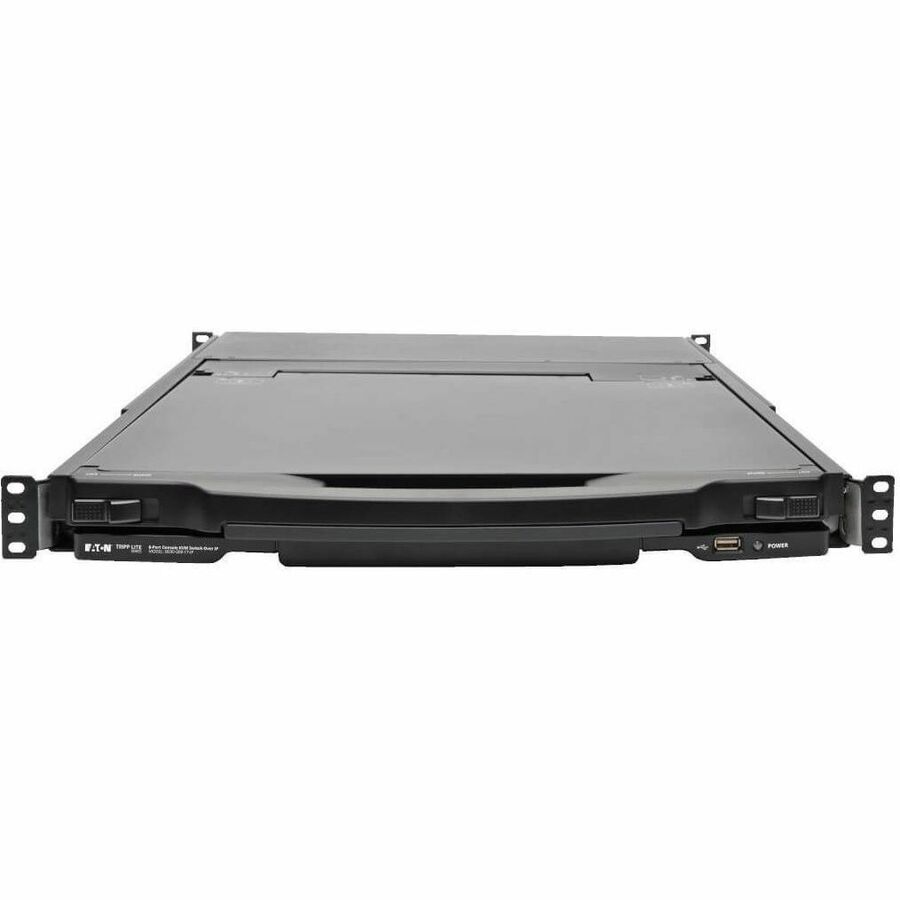

Tripp Lite by Eaton NetDirector 8-Port 1U Rack-Mount Console HDMI KVM Switch with 17 in. LCD and IP Remote Access Dual Rail

Name: Tripp Lite by Eaton NetDirector 8-Port 1U Rack-Mount Console HDMI KVM Switch with 17 in. LCD and IP Remote Access Dual Rail
Brand: TRIPP LITE
SKU: 6B6817
Price: 2671.76 USD
Availability: InStock

TRIPP LITE

PCN#

6B6817

MFG#

B030-008-17-IP

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$2,671.76

Extended & Accidental Damage Protection Plans Available Details

2-Year $197.99

3-Year $263.99

Free Shipping

Estimated Shipment:

Product Highlights:

8 Computer(s)
17" LCD
Full HD
1920 x 1080
1 x Network (RJ
45)
10 x USB
9 x HDMI
Keyboard
TouchPad
120 V AC, 230 V AC Input Voltage
1U High
PC
Steel
Black

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 3 lbs.

Tripp Lite by Eaton NetDirector 8-Port 1U Rack-Mount Console HDMI KVM Switch with 17 in. LCD and IP Remote Access, Dual Rail

Overview

Tech Specs

Specifications

Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	B03000817IP
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Line	NetDirector
Product Model	B030-008-17-IP
Product Name	B030-008-17-IP NetDirector 8-Port 1U Rack-Mount Console HDMI KVM Switch
Marketing Information	Tripp Lite's B030-008-17-IP NetDirector® 8-Port 1U Rack-Mount Console HDMI KVM Switch combines a rack-mountable keyboard, 17-inch LCD, touchpad and built-in IP remote access into a compact housing that occupies only 1U of rack space. From across the room, down the street or halfway around the globe, you can access up to eight connected computers or servers from any computer via LAN, WAN or Internet. Easy to install and use, the B030-008-17-IP lets you handle complex problems without needing to be on-site, which saves money and time. The 17-inch LCD screen supports video resolutions up to 1920 x 1080. You can switch easily between ports using on-console push buttons, an on-screen display or keyboard hot key commands. Up to 64 users can be authorized and 32 remote users can be logged on concurrently with multi-level password security when multi-user operation is enabled. RADIUS and LDAP/S server authentication is supported. The B030-008-17-IP controls USB computers/servers using a P782-XXX-DH Series KVM Cable Kit (sold separately) for each. When not in use, the KVM switch stores neatly in a rack drawer and pulls out when needed. With its dual-rail design, you can slide the keyboard into the rack, while the monitor stays visible. The B030-008-17-IP is compatible with all major operating systems and web browsers. Heavy-duty steel housing stands up to frequent use. Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. Features Complete Control from Anywhere Combines 8-port KVM switch, 17 in. LCD screen, keyboard and touchpad to save rack space Built-in IP access lets you control up to 8 computers directly from the next room, next door, or the next continent via LAN, WAN or the Internet Supports IPv4, IPv6 and network interfaces TCP/IP, HTTP, HTTPS, UDP, RADIUS, DHCP, SSL, ARP, DNS, 10Base-T/100Base-TX, Auto Sense and Ping Windows- and Java-based applications provide access without a browser Simplifies IT Tasks Switch easily between ports via on-console buttons, on-screen display or hot keys Panel array mode lets you monitor multiple ports at the same time Add or remove computers without powering down switch Auto-scan mode automatically sequences through all accessible active ports Windows-based log server records events and saves them to a searchable database Large 17 in. LCD Supports video resolutions up to 1920 x 1080 LCD flips up and folds down for full access to rack equipment when not in use Dual-rail design lets you push in keyboard while LCD stays open Wide display makes multitasking easier DDC emulation allows settings of each computer to be automatically adjusted for optimal output to LCD Advanced Security Features Features advanced encryption technologies, such as 1024-bit RSA, 256-bit AES, 56-bit DES, and 128-bit SSL Supports RADIUS and LDAP/S remote authentication Allows up to 64 user accounts Up to 32 users can log on simultaneously with multi-user operation enabled Expandability and Long-Lasting Reliability Compatible with all major operating systems and browsers Flash firmware is upgradable over a network connection Heavy-duty steel housing stands up to frequent use
Product Type	LCD Rack Console

Technical Information

KVM Switch	Yes
KVM Technology	Digital
Number of Computers Supported	8
Device Type	LCD Rack Console

Display & Graphics

Screen Size	17"
Display Screen Type	LCD
Screen Mode	Full HD
Screen Resolution	1920 x 1080

Input Devices

Keyboard	Yes
Pointing Device Type	TouchPad

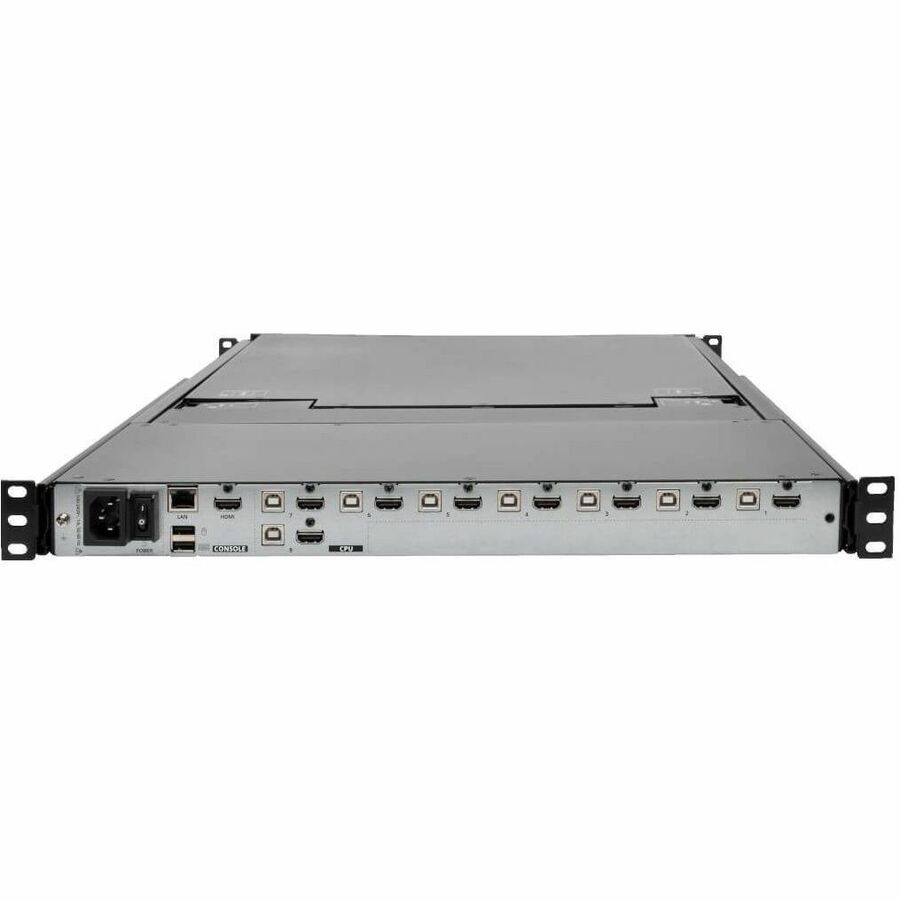

Interfaces/Ports

Network (RJ-45)	Yes
USB	Yes
HDMI	Yes
Number of Network (RJ-45) Ports	1
Number of USB Ports	10
Number of HDMI Ports	9

Power Description

Input Voltage Range

120V AC to 230V AC

Physical Characteristics

Color Family	Black
Product Color	Black
Product Material	Steel
Rack Height	1U
Height	1.7"
Width	18.9"
Depth	26.8"
Weight (Approximate)	26.01 lb

Miscellaneous

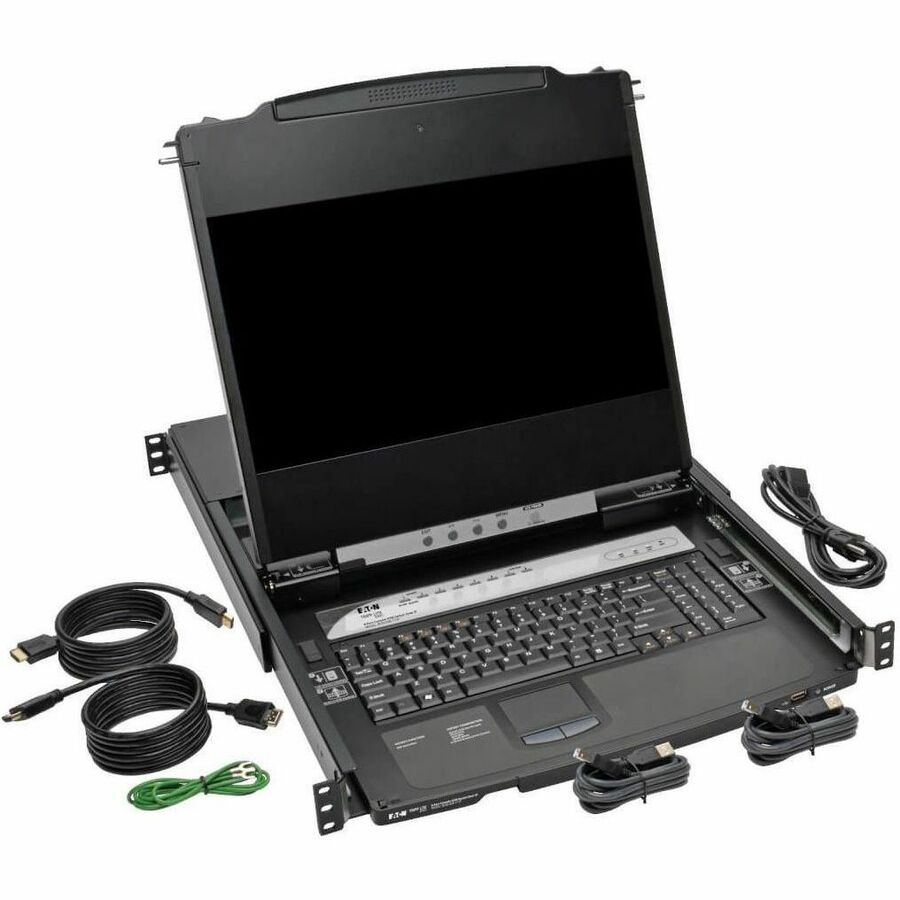

Package Contents	B030-008-17-IP NetDirector 8-Port 1U Rack-Mount Console HDMI KVM Switch 2 x High-speed HDMI Cables, 6 ft. 2 x USB 2.0 A/B Cables, 6 ft. C13 to NEMA 5-15P Power Cord Mounting Hardware Owner's Manual
Certifications & Standards	UL 60950-1 (USA) CAN/CSA (Canada) FCC Part 15 Class A CE
Platform Supported	PC
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Country of Origin	Taiwan
TAA Compliant	Yes

Warranty

Limited Warranty

3 Year
