Tripp Lite by Eaton 16-Port Rackmount KVM Switch w/ Built in IP and On Screen Display 1U

Name: Tripp Lite by Eaton 16-Port Rackmount KVM Switch w/ Built in IP and On Screen Display 1U
Brand: TRIPP LITE
SKU: 1E5320
Price: 802.18 USD
Availability: InStock

TRIPP LITE

PCN#

1E5320

MFG#

B022-U16-IP

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$802.18

Extended & Accidental Damage Protection Plans Available Details

2-Year $89.99

3-Year $120.99

Free Shipping

Estimated Shipment:

Product Highlights:

16 Computer(s)
1 Local User(s)
1 Remote User(s)
2048 x 1536
1 x Network (RJ
45)
1 x USB
Rack
mountable
1U
TAA Compliant

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 9 lbs.

Tripp Lite 16-Port Rackmount KVM Switch w/ Built in IP and On Screen Display 1U

Overview

Tech Specs

Specifications

Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	B022-U16-IP
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Line	NetDirector
Product Model	B022-U16-IP
Product Name	NetDirector 16-Port 1U Rack-Mount IP KVM Switch
Marketing Information	The B022-U16-IP NetDirector® 16-Port 1U Rack-Mount IP KVM Switch is the smart solution for controlling up to 16 computers or servers from one monitor, keyboard and mouse, all from the next room, next door, or the next continent. The B022-U16-IP takes up just 1U of rack space and works with all major operating systems. Built-in IP access allows you to control computers via LAN, WAN or the Internet. Just log on to a Web browser using the Windows- or Java-based browser client, and navigate the user-friendly interface in English, Spanish, French, German or Japanese. You can also access the KVM Switch without a browser if you prefer. The advanced on-screen display (OSD) supports high-definition video up to 2048 x 1536 at the local console and up to 1600 x 1200 @ 60 Hz with 24-bit color depth at the remote console. Panel Array Mode allows you to remotely monitor multiple ports at the same time. Compatible with both USB and PS/2 connections using the included cable kits, the KVM Switch allows you to select a connected computer using on-console pushbuttons or keyboard hotkey commands. It also supports both IPv4 and IPv6, as well as Link Local IPv6 Address and Stateless Auto Configuration protocol. Advanced encryption technologies, such as 128-bit SSL, 128-bit RC4, 1024-bit RSA, 56-bit DES, 256-bit AES and 168-bit 3DES, keep your important data secure. The KVM Switch supports RADIUS and LDAP/S remote authentication. Three levels of security allow you to delegate proper access to approved personnel, and you can create up to 64 separate accounts.
Product Type	KVM Switchbox

Technical Information

Number of Computers Supported	16
Number of Local Users Supported	1
Number of Remote Users Supported	1

Video

Maximum Video Resolution

2048 x 1536

Interfaces/Ports

Network (RJ-45)	Yes
USB	Yes
Number of Network (RJ-45) Ports	1
Number of USB Ports	1

Physical Characteristics

Form Factor	Rack-mountable
Rack Height	1U
Height	1.7"
Width	17"
Depth	6"
Weight (Approximate)	6.50 lb

Miscellaneous

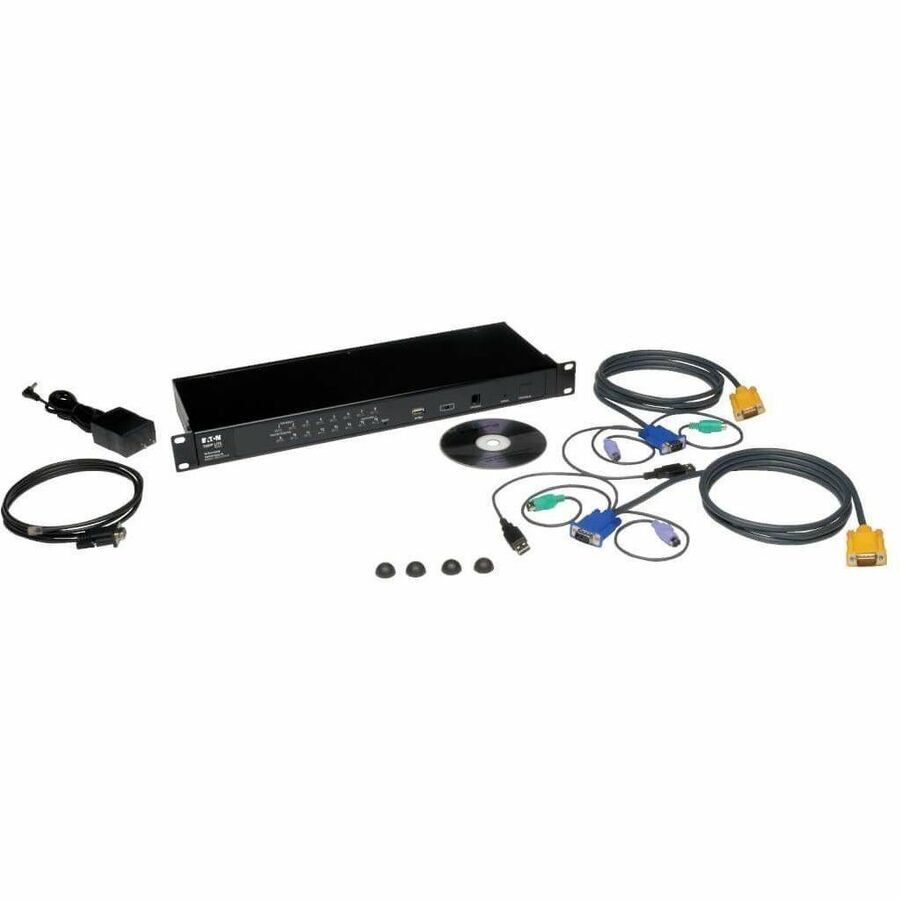

Package Contents	NetDirector 16-Port 1U Rack-Mount IP KVM Switch 2 x USB/PS2 Combo KVM Cable Kits, 6-Ft. Length USB/PS2 COmbo Console Cable Kit RJ11-to-DB9 Firmware Upgrade Cable Mounting Hardware External Power Supply Rubber Feet CD with Owner'S Manual And Device Files Quick Start Guide
Environmentally Friendly	Yes
Country of Origin	China
TAA Compliant	Yes

Warranty

Limited Warranty

3 Year
