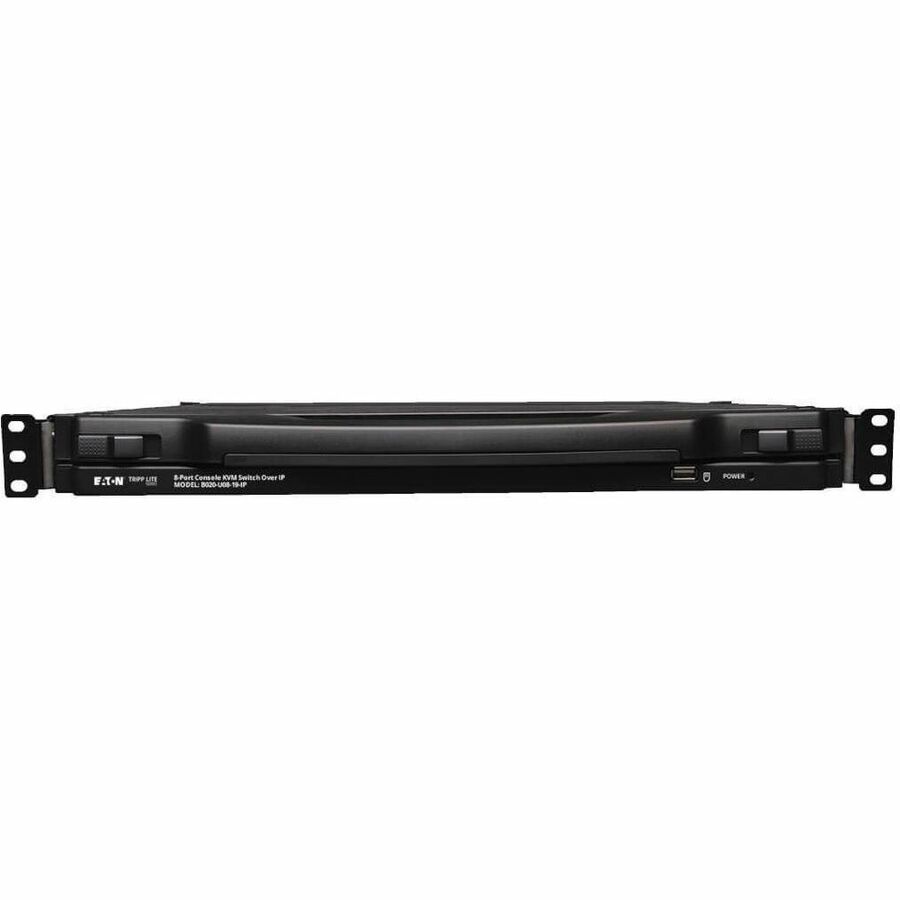

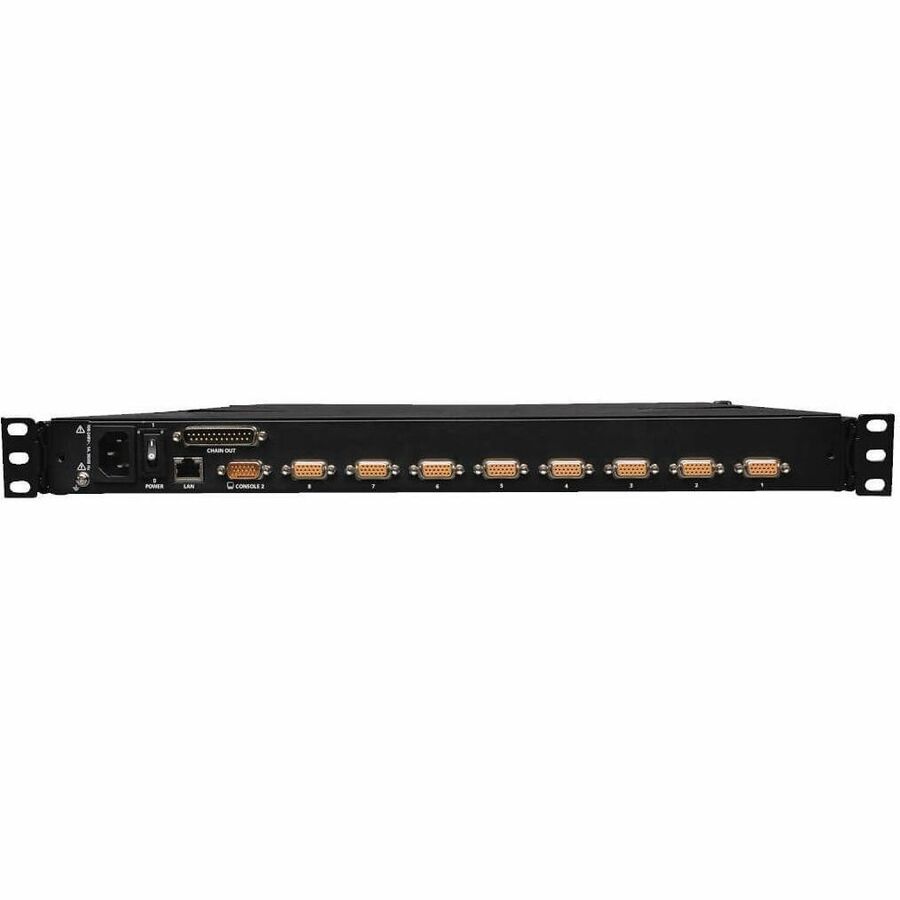

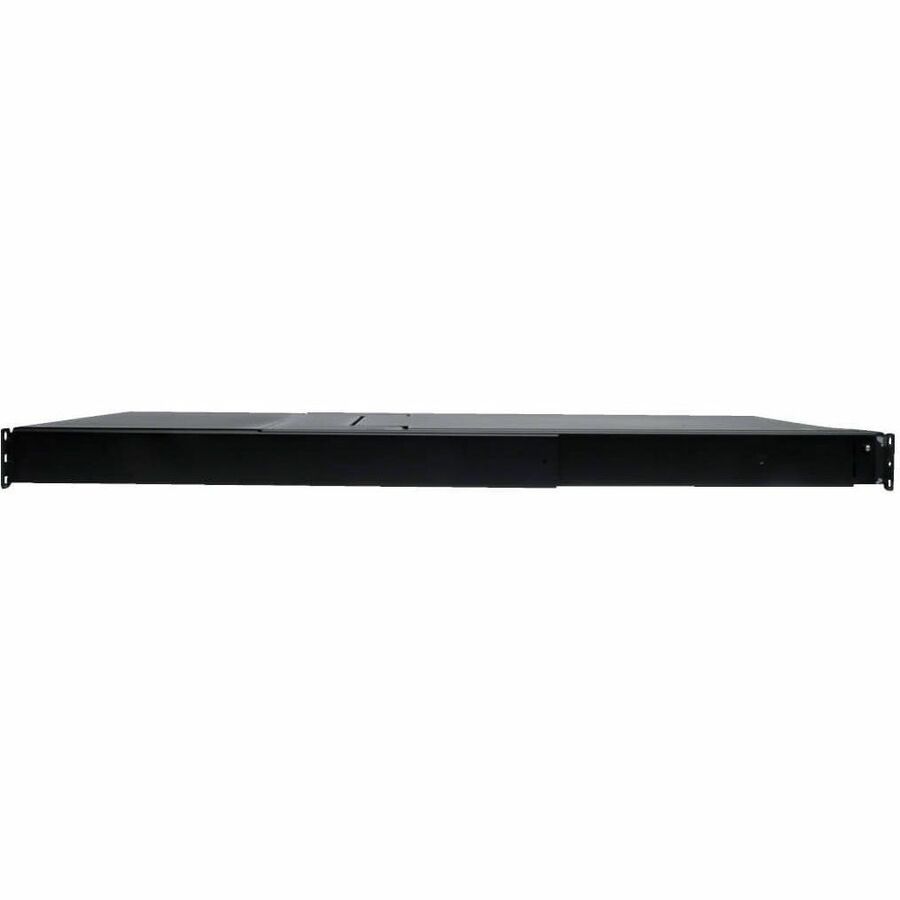

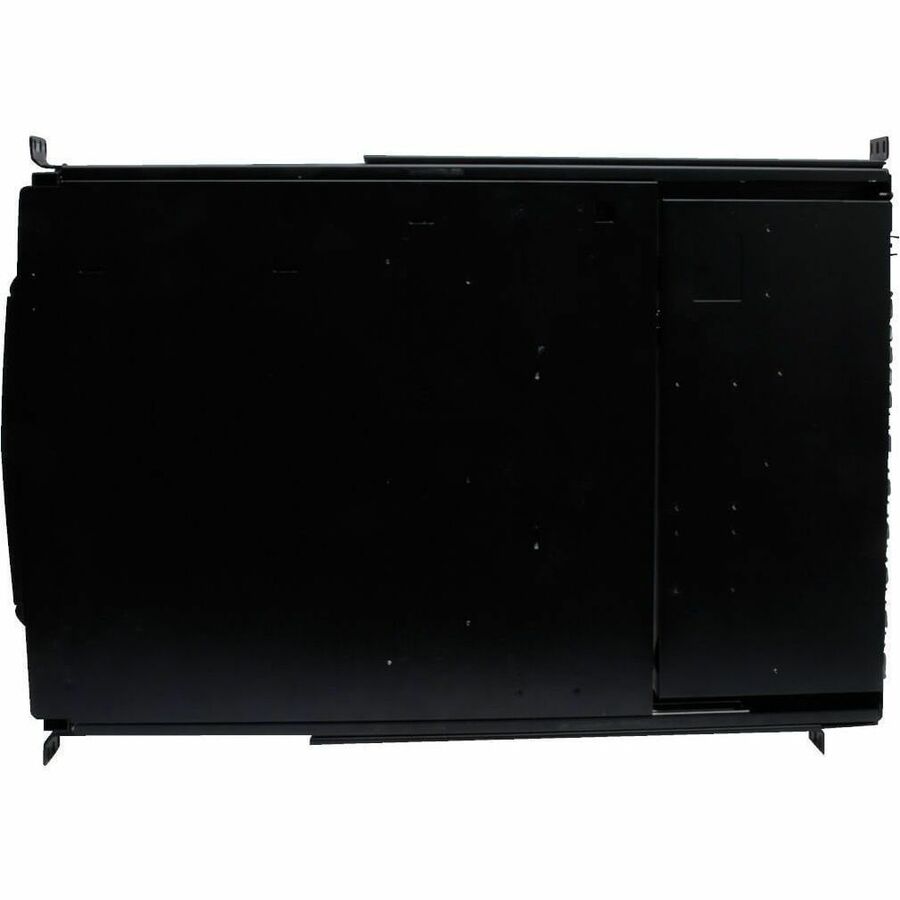

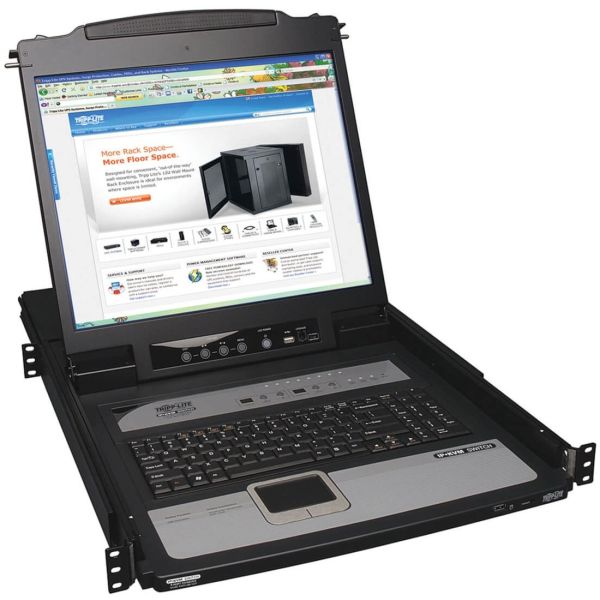

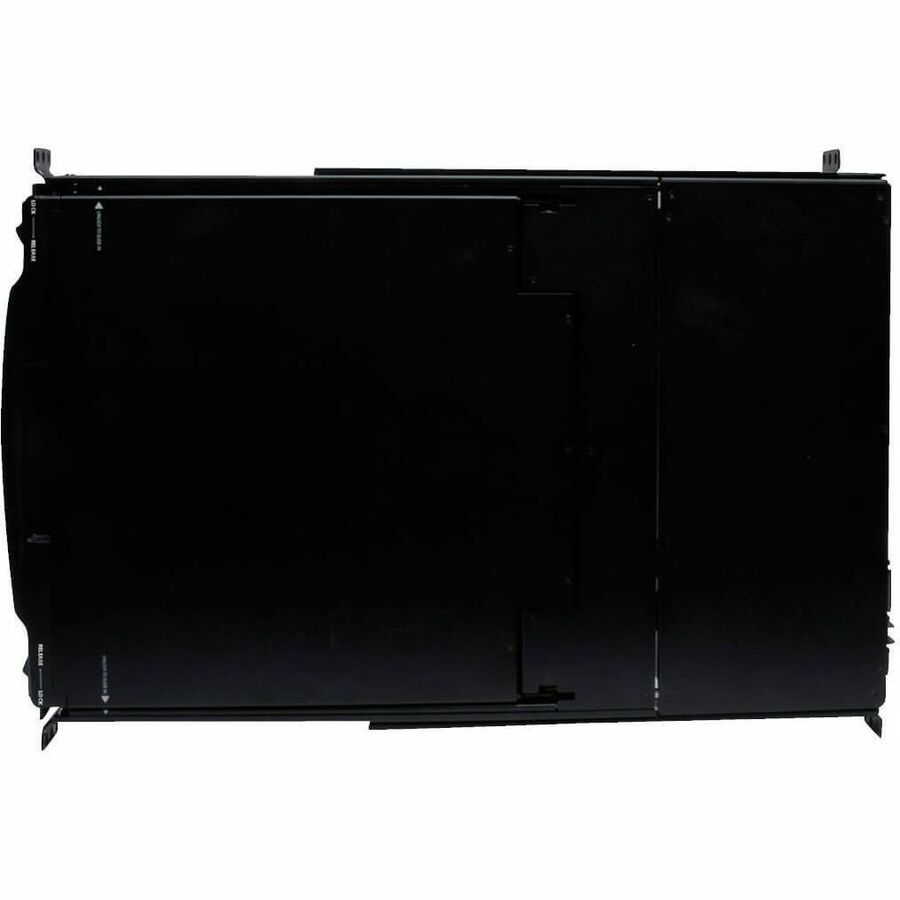

Tripp Lite by Eaton NetDirector 8-Port 1U Rack-Mount Console KVM Switch with 19-in. LCD and IP Remote Access

Name: Tripp Lite by Eaton NetDirector 8-Port 1U Rack-Mount Console KVM Switch with 19-in. LCD and IP Remote Access
Brand: TRIPP LITE
SKU: CT6702
Price: 2350.47 USD
Availability: InStock

TRIPP LITE

PCN#

CT6702

MFG#

B020-U08-19-IP

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$2,350.47

Extended & Accidental Damage Protection Plans Available Details

2-Year $168.99

3-Year $225.99

Free Shipping

Estimated Shipment:

Product Highlights:

8 Computer(s)
19" LCD
SXGA
1280 x 1024
2 x USB
Keyboard
TouchPad
120 V AC, 230 V AC Input Voltage
1U High
TAA Compliant

Product Condition: New and Factory Fresh

Limited Warranty1 Year

Shipping Weight: 45 lbs.

Tripp Lite by Eaton NetDirector 8-Port 1U Rack-Mount Console KVM Switch with 19-in. LCD and IP Remote Access

Overview

Tech Specs

Specifications

Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	B020U0819IP
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Line	NetDirector
Product Model	B020-U08-19-IP
Product Name	8-Port NetDirector 1U Rackmount Console IP KVM Switch w/19" LCD
Marketing Information	Tripp Lite's B020-U08-19-IP KVM Switch gives you a rack-mountable keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. From across the room, down the street or halfway around the globe, the B020-U08-19-IP can be accessed from any computer on the LAN, WAN or Internet. Easy to install and use, it's the optimal solution for controlling up to 8 computers/servers. Increase the number of connected computers up to 256 by daisy-chaining up to 31 B022-U08 KVM switches. The B020-U08-19-IP has a built-in 19" LCD screen that supports video resolutions up to 1280 x 1024 @ 75Hz, with remote monitor resolutions up to 1600 x 1200 @ 60Hz. You can switch easily between the 8 ports using on-console push buttons, an on-screen display (OSD) or keyboard hot key commands. Up to 64 users can be authorized with any combination of admins and users. Multi-level security enhances protection of data and equipment. This switch controls PS/2 or USB computers/servers using a P778-Series Combo KVM Cable Kit (two cable kits are included). A USB port on the front of the keyboard lets you connect an external mouse, plus an external USB 1.1 port means you can add a peripheral that can be shared across all connected servers. When not in use, the B020-U08-19-IP stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with all major operating systems. Heavy-duty steel housing stands up to frequent use.
Product Type	LCD Rack Console

Technical Information

KVM Switch	Yes
KVM Technology	Digital
Number of Computers Supported	8
Device Type	LCD Rack Console

Display & Graphics

Screen Size	19"
Display Screen Type	LCD
Screen Mode	SXGA
Screen Resolution	1280 x 1024

Input Devices

Keyboard	Yes
Pointing Device Type	TouchPad

Interfaces/Ports

USB	Yes
Number of USB Ports	2

Power Description

Input Voltage

120 V AC
230 V AC

Physical Characteristics

Color Family	Black
Product Color	Black
Product Material	Steel
Rack Height	1U
Height	1.7"
Width	18.9"
Depth	27"
Weight (Approximate)	31 lb

Miscellaneous

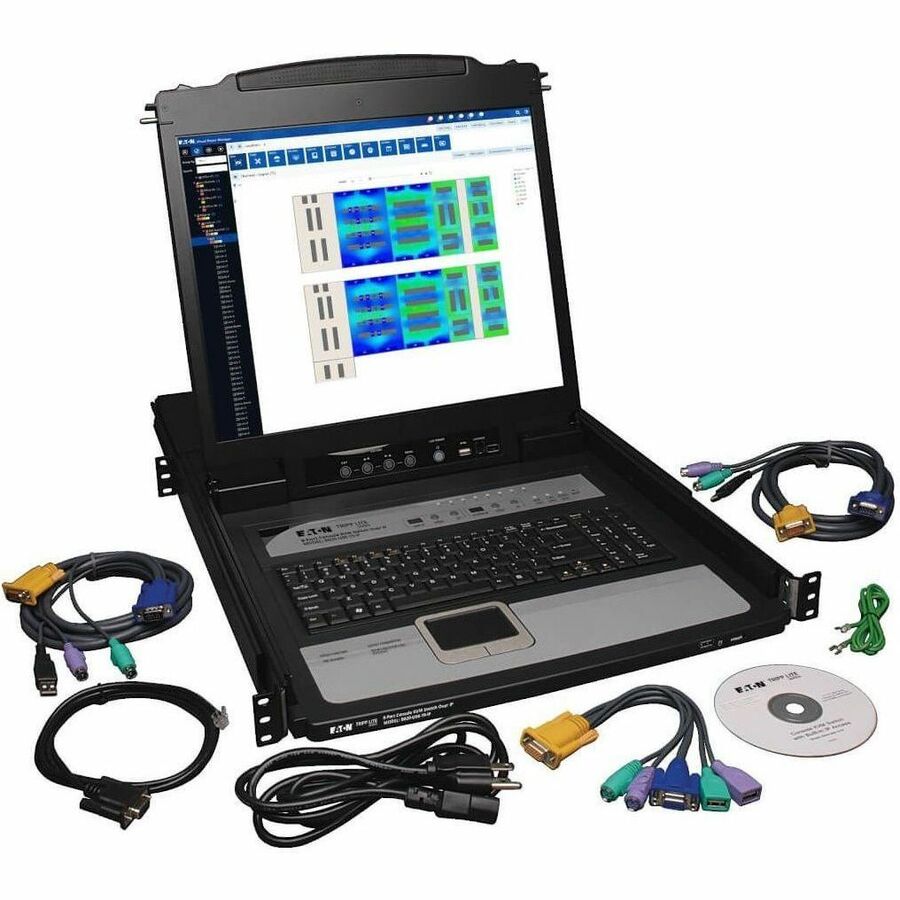

Package Contents	8-Port NetDirector 1U Rackmount Console IP KVM Switch w/19" LCD 2 x 6 ft. USB/PS2 Combo KVM Cable Kits USB/PS2 Combo Console Cable Kit Grounding Wire RJ11 to DB9 firmware upgrade cable Rackmount Hardware C13 to 5-15P Power Cord CD with Owners Manual, Quick Start Guide, and Device Files Quick Start Guide
Certifications & Standards	UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, EN 60950-1
Platform Supported	PC Mac
Environmentally Friendly	Yes
Country of Origin	Taiwan
TAA Compliant	Yes

Warranty

Limited Warranty

1 Year
