Tripp Lite by Eaton 4-Port HDMI/USB KVM Switch with Audio/Video and USB Peripheral Sharing

Features

Switching Between Computers Is Fast and Easy

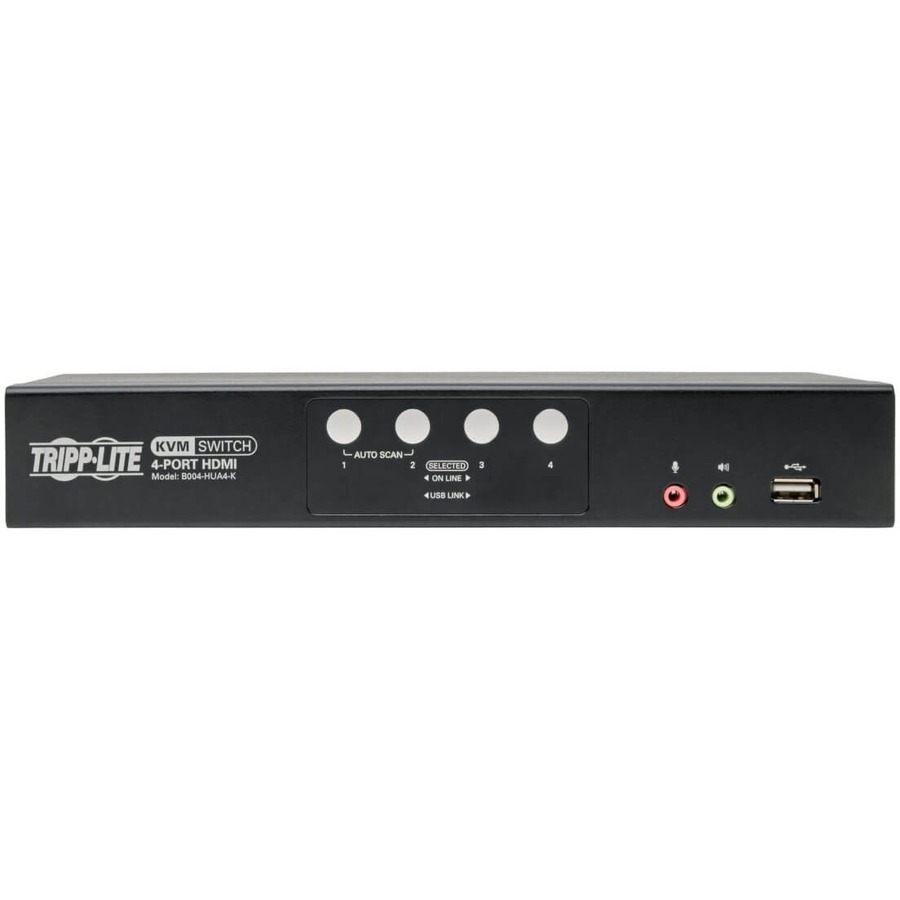

Use the front-panel push buttons or hotkey commands for quick and easy toggling between computers. Or you can use Auto Scan mode to scan all four connected computers in five-second intervals automatically. Orange LEDs indicate which computer is currently selected.

Cables Are Included for Fast and Simple Setup
Connect your HDMI monitor, keyboard, mouse, and speakers to the switch's console ports. Then, use the included HDMI, USB-B and 3.5 mm audio cables to connect your computers to the KVM switch. The plug-and-play KVM switch requires no software or drivers, so you can connect and use it immediately. The B004-HUA4-K works with all major operating systems, including Windows, Mac and Linux.

USB Hub Lets You Share Peripherals between Computers
The built-in two-port USB 2.0 hub allows you to share USB peripherals, such as printers, hard drives, scanners, webcams and flash drives, between the four connected computers. Because the USB ports operate independently, you can print documents from one computer while working on a different computer. The hub is backward compatible with USB 1.1 devices. Green LEDs indicate which computer is using the connected USB device.

Transmits Crystal-Clear 1080p Video and Digital Audio
The B004-HUA4-K KVM switch supports high-definition video resolutions up to 1920 x 1200 (including 1080p) at 60 Hz, 2.1-channel surround sound audio, and USB 2.0 data transfer rates up to 480 Mbps. With independent audio switching, you can listen to music or other audio from one computer while working on a different computer. The front-panel audio jacks have priority over the rear-panel jacks.

Typical Applications

• Share the keyboard, mouse and HDMI display of a desktop computer with multiple laptop computers
• Connect up to 4 gaming consoles, media centers and other A/V devices for a home theater system with 1080p resolution
• Improve productivity at work with 4-way system control
• Save money and space by sharing USB peripherals, such as a printer and external hard drive, among all computers

System Requirements

Console Requirements

• Monitor with HDMI connector (should support the highest resolution of any connected computer)
• USB keyboard/mouse
• Microphone/speakers with 3.5 mm mini stereo connectors (optional)

Computer Requirements

• HDMI connector
• USB-A connector
• 3.5 mm mini stereo jacks (optional)
• Windows, Mac, Novell, UNIX or Linux operating system

• 120 V AC
• 230 V AC

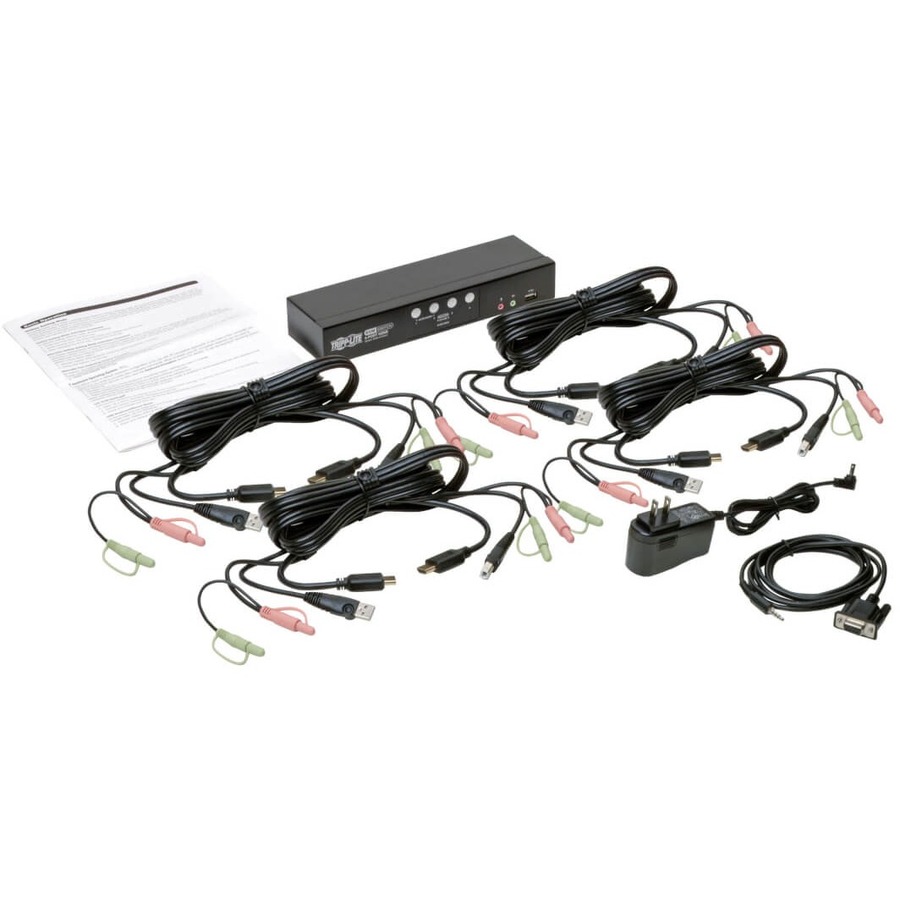

• 4-Port HDMI/USB KVM Switch with Audio/Video and USB Peripheral Sharing
• (4) HDMI/USB KVM Cable Kits, 6 ft.
• Firmware Upgrade Cable
• External Power Supply
• Owner's Manual
