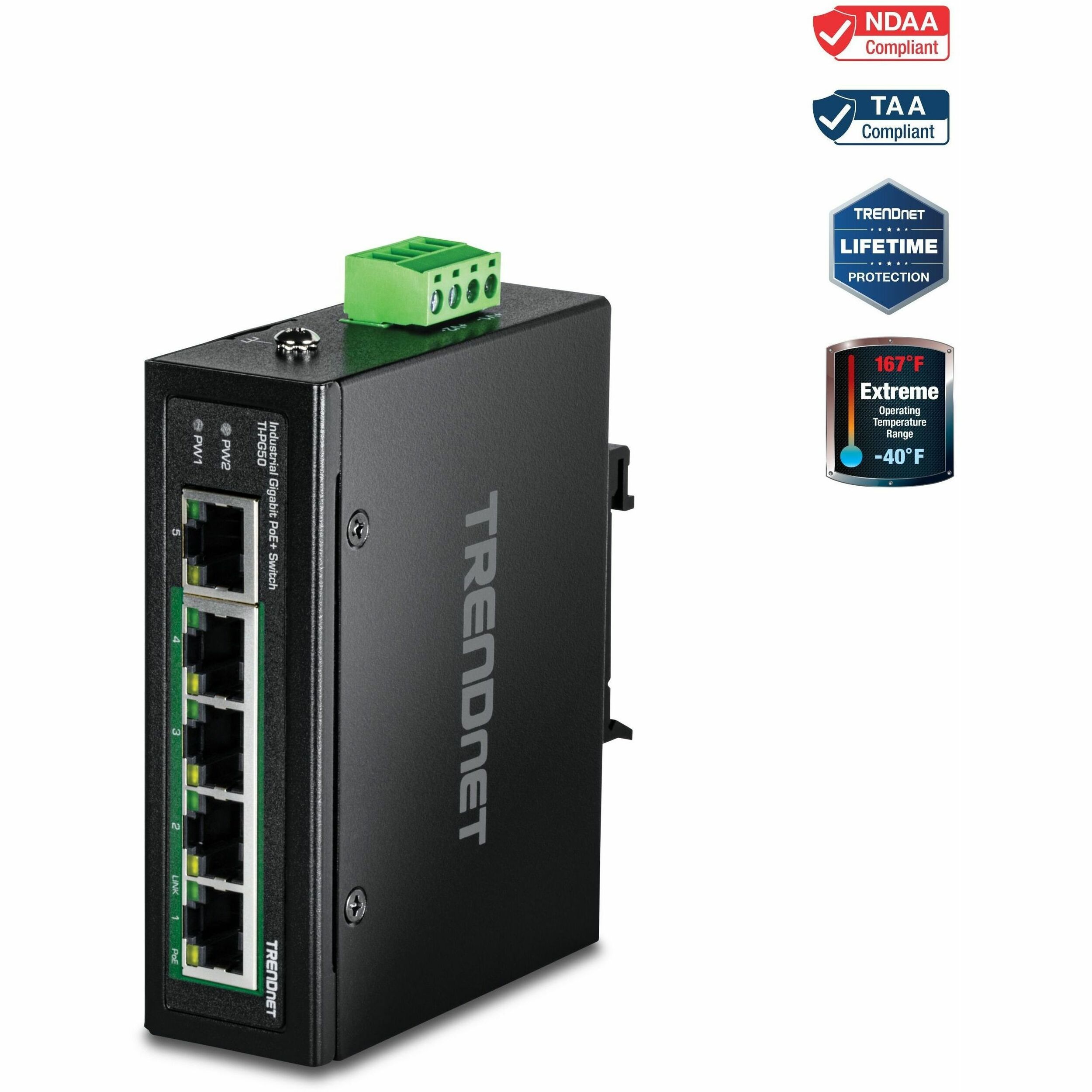

TRENDnet 5-Port Hardened Industrial Unmanaged Gigabit Switch; TI-PG50; 10/100/1000Mbps; DIN-Rail Switch; 4 x Gigabit PoE+ Ports; 1 x Gigabit Port; Gigabit Ethernet Network Switch; Lifetime Protection

• 4 x Gigabit PoE+ ports, 1 x Gigabit port,120W PoE power budget,10Gbps switching capacity
• Power supply sold separately (models: TI-S12048, TI-S24048, and 48VDC3000)
• Supports jumbo frames up to 9KB
• Hardened IP30 rated metal housing, Includes wall mounting and DIN-Rail brackets
• Operating temperature range of -40° - 75° C (-40° - 167° F)
• Dual redundant power inputs with overload current protection
• Alarm relay triggered by power failure
• Lifetime TRENDnet Manufacturer's Warranty
• Power supply sold separately (models: TI-S15052, TI-S24052, TI-S12048, TI-S24048)
• NDAA / TAA compliant (U.S. and Canada only)

TRENDnet's 5-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG50, has four gigabit PoE+ ports with a 120W PoE power budget. Users are able to connect four PoE+ devices to this industrial switch, while simultaneously providing a non-PoE gigabit port for connectivity to the network. The TI-PG50 industrial switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75° C (-40° - 167° F) for industrial environments

PoE Power

A 120W PoE+ power budget for up to four Power over Ethernet devices with PoE+ power.

Fault Tolerance

The industrial switch features redundant power inputs with overload current protection.

Industrial Design

Equipped with a rugged IP30 rated housing, designed to withstand a high degree of vibration and shock, and operate within a wide temperature range of -40° - 75° C (-40° - 167° F).

Network Ports

4 x Gigabit PoE+ ports and 1 x Gigabit port

DIN-Rail/Wall Mounts

IP30 rated metal enclosure with included DIN-Rail and wall mount hardware

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance

Redundant Power

Redundant power inputs with overload current protection (compatible power supply sold separately models: TI-S12048 / TI-S24048)

Switching Capacity

10Gbps switching capacity

Shock and Vibration Resistant

Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)

Grounding Point

Grounding point on the industrial switch protects equipment from external electrical surges

PACKAGE CONTENTS

TI-PG50

Quick Installation Guide

Removable terminal block

DIN-Rail and wall mount kit

• 4 x Gigabit Ethernet PoE+
• 1 x Gigabit Ethernet Network

• DIN Rail Mountable
• Wall Mountable

• 5-Port Industrial Gigabit PoE+ DIN-Rail Switch
• Quick Installation Guide
• Removable Terminal Block
• DIN-Rail and Wall Mount Kit
