TRENDnet 60 W Single Output Industrial DIN-Rail Power Supply, Universal AC Input, Extreme -20 to 70 C (-4 to 158 F) Operating Temp, TI-M6024

Name: TRENDnet 60 W Single Output Industrial DIN-Rail Power Supply, Universal AC Input, Extreme -20 to 70 C (-4 to 158 F) Operating Temp, TI-M6024
Brand: TRENDNet
SKU: 2M4438
Price: 44.17 USD
Availability: InStock

TRENDNet

PCN#

2M4438

MFG#

TI-M6024

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$44.17

Extended & Accidental Damage Product Replacement Plan Available Details

2-Year $14.99

1-Year $10.99

Estimated Shipment:

Product Highlights:

60W Industrial DIN
Rail Power Suppl

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 1 lbs.

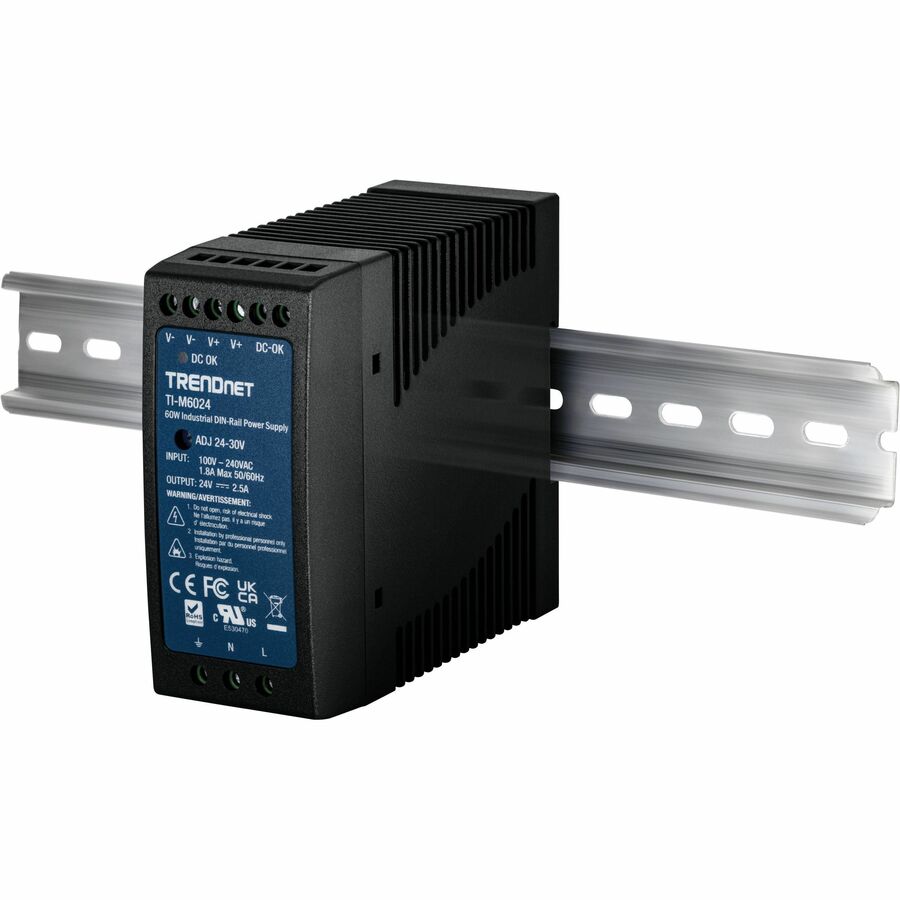

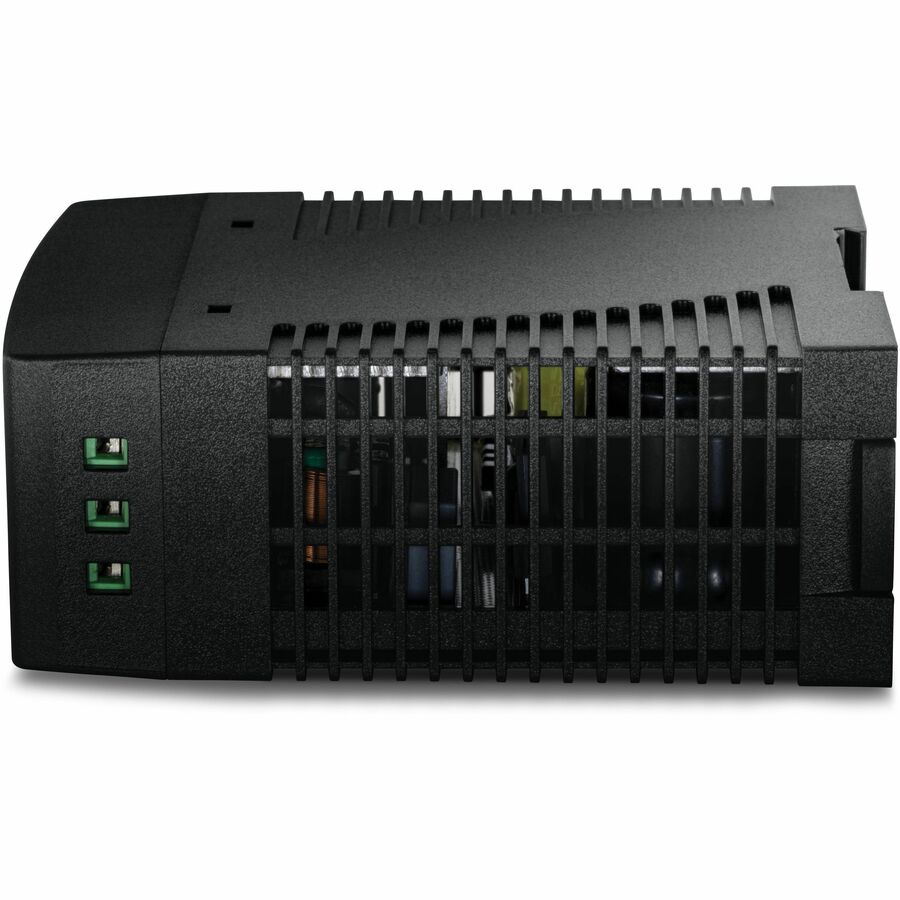

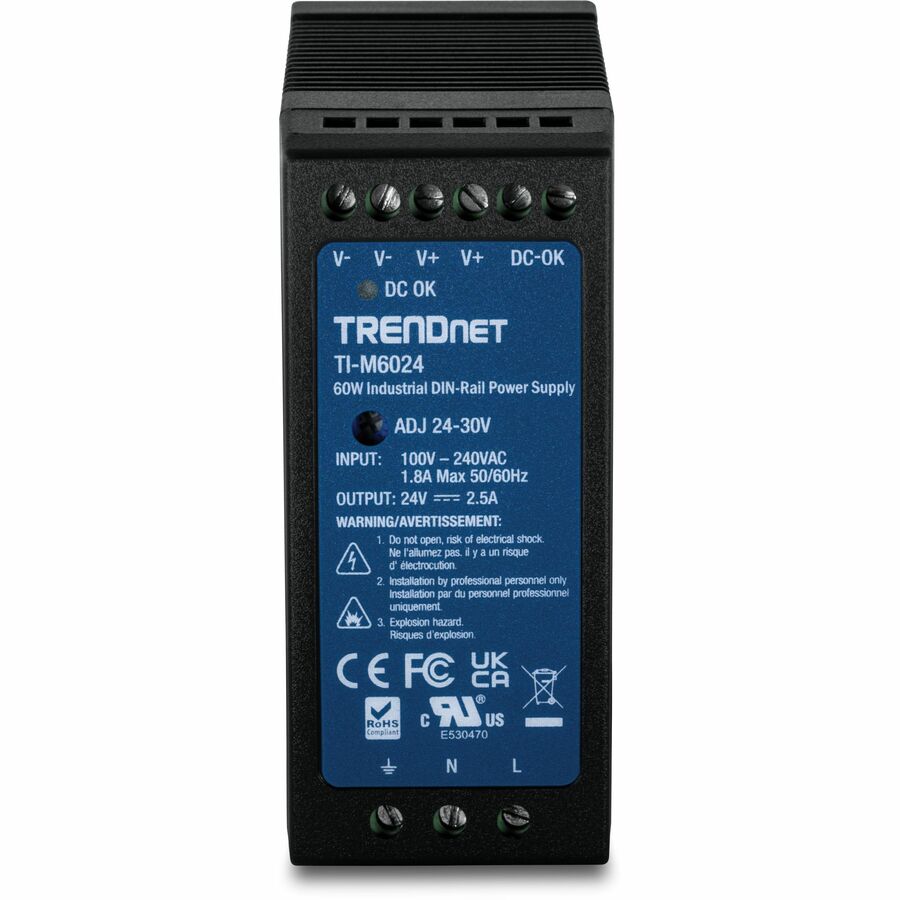

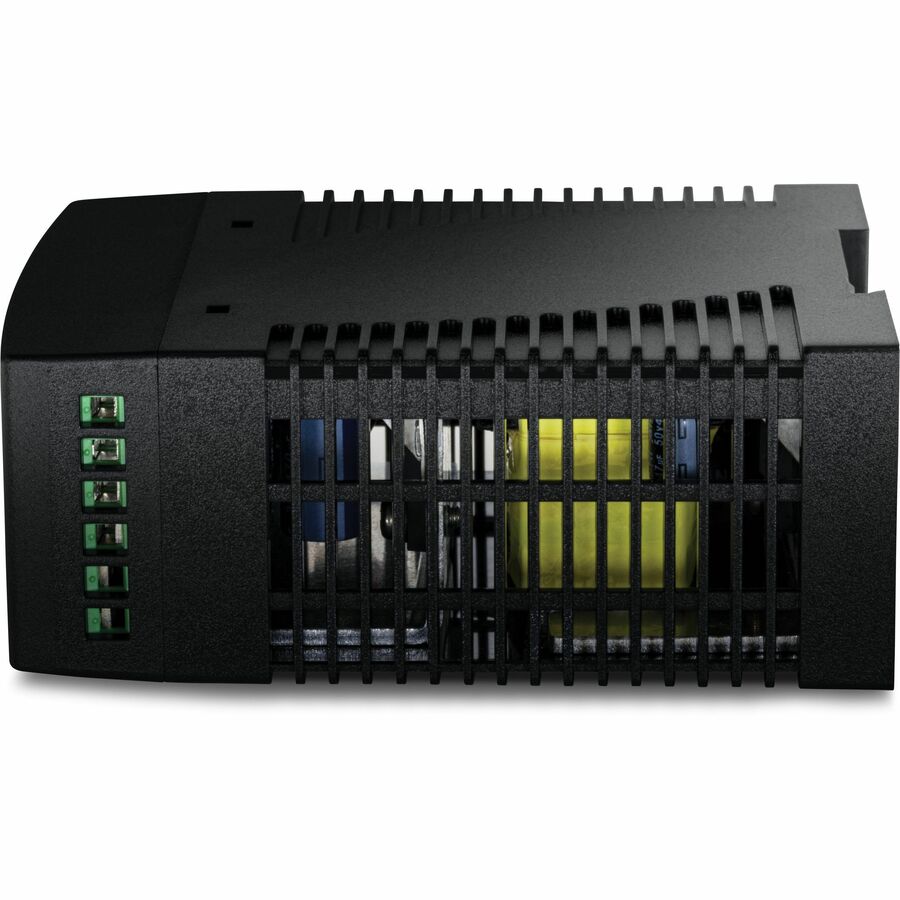

TRENDnet TI-M6024, 60W, 24V DC, 2.5A AC to DC DIN-Rail Power Supply

Overview

Tech Specs

Specifications

Manufacturer	TRENDnet
Manufacturer Part Number	TIM6024
Manufacturer Website Address	http://www.trendnet.com
Brand Name	TRENDnet
Product Model	TI-M6024
Product Name	DIN Rail 24V 60W Power Supply for TI-G50, TI-G62, TI-G80, TI-F11SFP
Marketing Information	TRENDnet's AC to DC Industrial DIN-Rail Power Supply, model TI-M6024, supplies up to 60W (24V DC, 2.5A) of power to industrialequipment, such as switches, injectors, and WiFi access points. This DIN-Rail power supply comes with an integrated DIN-Railmount, and short circuit, over power, and overload current protection. DEVICE INTERFACE: Input: 100 - 240V AC, 47 - 63Hz, 1.8A 120 - 370V DC; Output: 60W, 24 - 30V, 0 - 2.5A; DIN-Rail:TS-35/7.5 or 15 60W POWER: The power supply provides up to 60W of power (24V DC, 2.5 A) OUTPUT VOLTAGE: 24 - 30V DC HOUSING: IP30 Rated DIN-Rail Mount OPERATING TEMPERATURE: The IP30 Rated housing provides an extreme -20 to 70 °C (-4 to 158 °F) operating temperature range PEAK LOAD CAPABILITY: 150% peak load capability COOLING METHOD: Natural air convection is used to cool the 60W power supply PROTECTION FUNCTIONS: Short circuit/overload/over voltage/over current protection with a self-recovery protection type. UL 62368 Approved ADDITIONAL FEATURES: 100% full load burn-in test; Built-in DC OK relay contact
Product Condition	New
Product Type	Proprietary Power Supply

Power Description

Input Voltage	120 V AC 230 V AC
Output Voltage	24 V DC
Output Voltage Detail	24 V DC @ 2.5 A
Output Current	2.50 A
Output Power	60 W

Physical Characteristics

Form Factor	DIN Rail
Height	3"
Width	5"
Length	10"
Weight (Approximate)	10.58 oz

Miscellaneous

Additional Information	Certifications: CE UL 508 UL 60950-1 CB 60950-1 TUV EN60950-1 Class I Div.2 hazardous locations T4
Compatibility	Network Cameras Access Points TRENDnet Switches: Ti-G50 Ti-G62 Ti-G80 Ti-F11sfp
NDAA Compliant	Yes

Warranty

Limited Warranty

3 Year
