5PORT INDUSTRIAL GB DIN-RAIL SW MM SC PORT 4XGIGABIT PORTS

Name: 5PORT INDUSTRIAL GB DIN-RAIL SW MM SC PORT 4XGIGABIT PORTS
Brand: TRENDNet
SKU: LZ9684
Price: 99.99 USD
Availability: InStock

TRENDNet

PCN#

LZ9684

MFG#

TI-G51SC

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$99.99

Extended & Accidental Damage Product Replacement Plan Available Details

1-Year $22.99

2-Year $29.99

Free Shipping

Estimated Shipment:

Product Highlights:

5 Ports
Gigabit Ethernet
1000Base
T, 1000Base
SX
2 Layer Supported
Modular
3.60 W Power Consumption
Twisted Pair, Optical Fiber

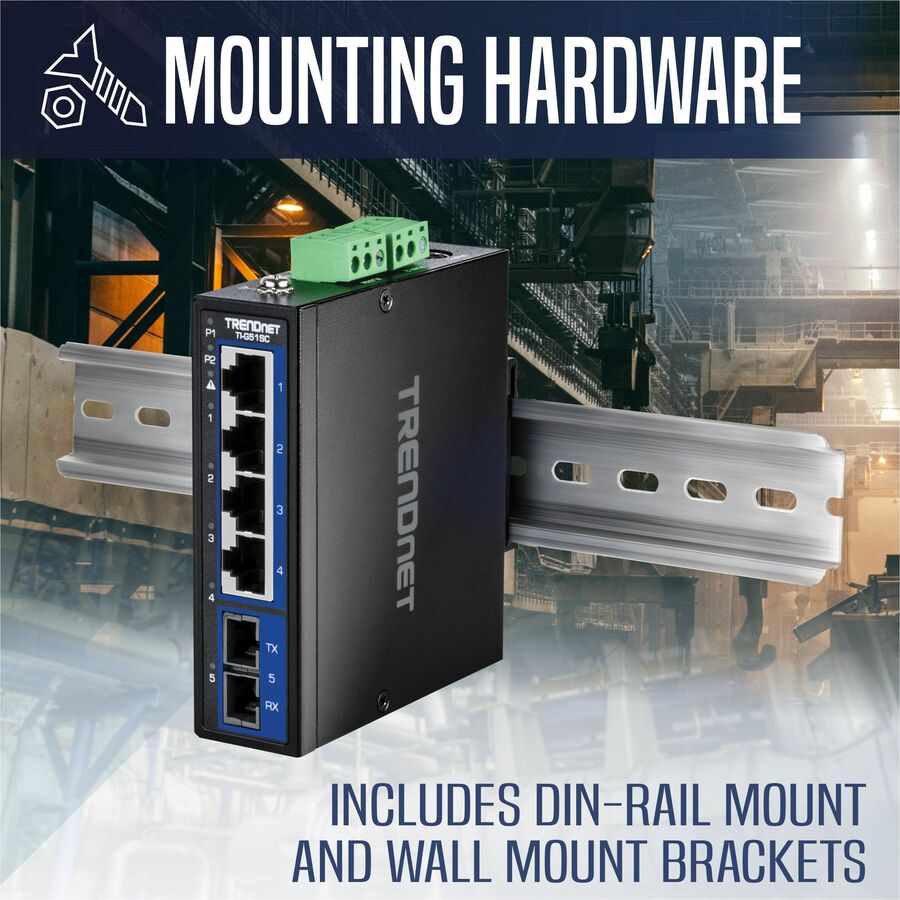

DIN Rail Mountable, Wall Mountable
Lifetime Limited Warranty

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 1 lbs.

TRENDnet 5-Port Hardened Industrial Gigabit DIN-Rail Switch, TI-G51SC, 1 x Multi-Mode SC Port, 4 x Gigabit Ports, 10Gbps, IP30 Rated, Lifetime Protection, Black

Overview

Tech Specs

Specifications

Manufacturer	TRENDnet
Manufacturer Part Number	TI-G51SC
Manufacturer Website Address	http://www.trendnet.com
Brand Name	TRENDnet
Product Model	TI-G51SC
Product Name	5-Port Industrial Gigabit DIN-Rail Switch with Multi-Mode SC Port

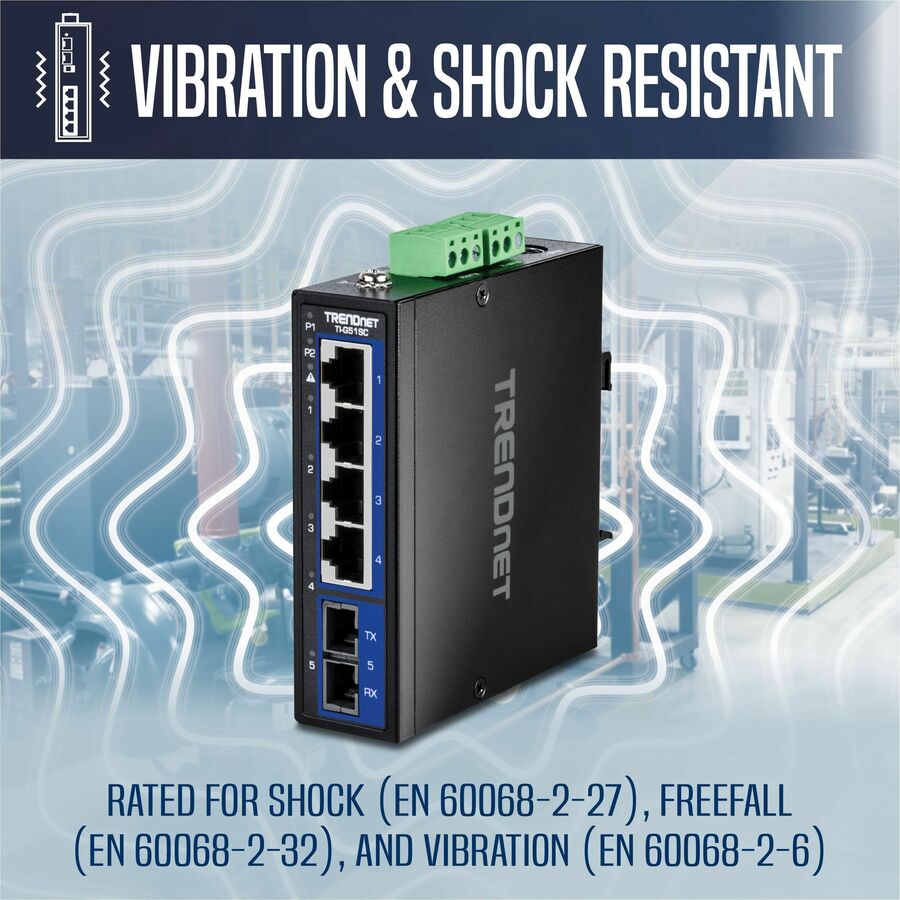

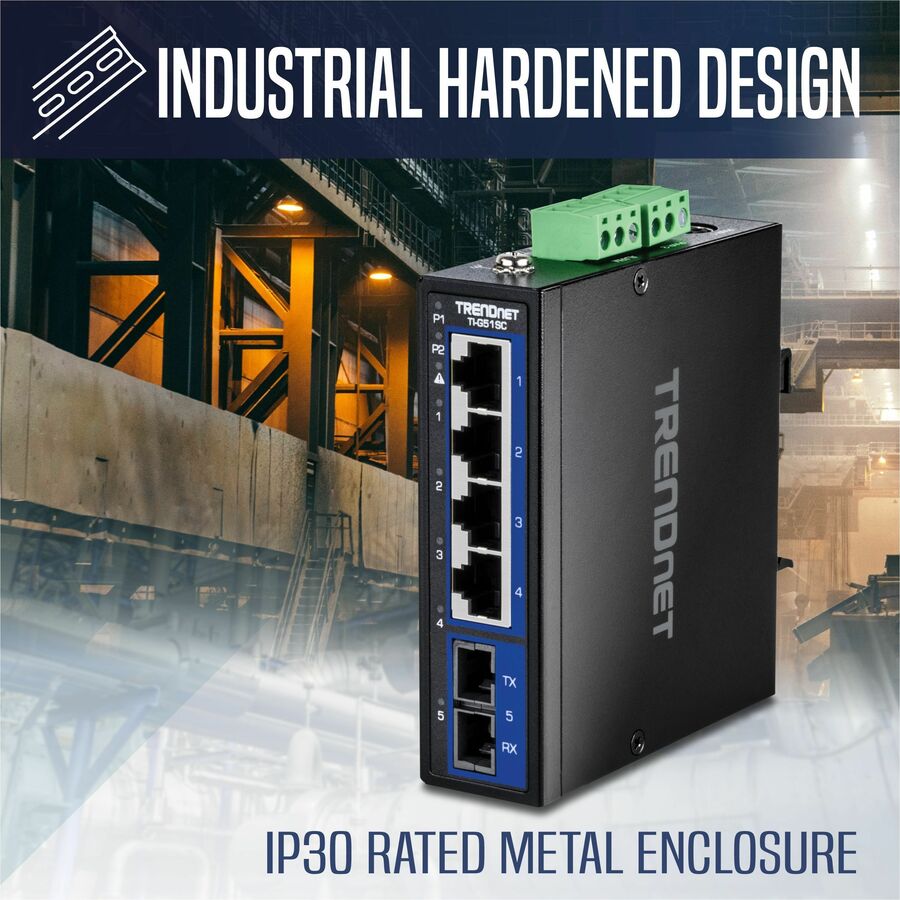

Marketing Information	TRENDnet's 5-Port Industrial Gigabit DIN-Rail Switch with Multi-Mode SC Port, model TI-G51SC, features a rugged IP30 rated metal enclosure and is designed to work in the harshest networking environments. This industrial switch with a fiber port is designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures of industrial environments within - 40° - 75° C (-40° - 167° F). Redundant power inputs with overload current protection on the industrial unmanaged switch minimizes network downtime. This hardened industrial switch features copper gigabit ports for high-speed device connections, and a gigabit multi-mode SC port for long-distance fiber networking applications up to 550 meters. 4 x Gigabit ports 1 x Gigabit Multi-Mode Fiber SC port Hardened IP30 rated metal switch Extreme -40° - 75° C (-40° - 167° F) operating temperature range Redundant power inputs with overload current protection Alarm output triggered by power failure 10Gbps switching capacity Includes DIN-Rail and wall mounts Power supply sold separately (models: TI-M6024, TI-S15052, 48VDC3000) Lifetime Warranty
Product Type	Ethernet Switch

Technical Information

Features

IP30
Surge Protection

Interfaces/Ports

Total Number of Network Ports	5
Modular	Yes
Network (RJ-45)	Yes
Port/Expansion Slot Details	4 x Gigabit Ethernet Network 1 x Gigabit Ethernet Expansion Slot

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Ethernet Technology	Gigabit Ethernet
Network Technology	1000Base-T 1000Base-SX

I/O Expansions

Total Number of Expansion Slots

1.0

Network & Communication

Layer Supported	2
Networking Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.3z

Management & Protocols

Manageable

Reliability

MTBF	71955 Hour

Power Description

Input Voltage	9 V DC 60 V DC
Power Source	DC Power Supply Power Adapter
Power Consumption	3.60 W
Plug/Connector Type	Terminal Block

Physical Characteristics

Product Material	Metal
Form Factor	DIN Rail Mountable Wall Mountable
Height	1.1"
Width	3.5"
Depth	3.5"
Weight (Approximate)	10.30 oz

Miscellaneous

Package Contents	5-Port Industrial Gigabit DIN-Rail Switch with Multi-Mode SC Port Quick Installation Guide Removable terminal block DIN-Rail / wall mount kit
Application/Usage	Industrial
Country of Origin	Taiwan

Warranty

Limited Warranty

Lifetime
