TRENDnet Hardened Industrial 100Base-FX Multi-Mode SC Fiber Converter; (2km; 1.2 Miles); IP40 Rated Housing; TI-F10SC

Name: TRENDnet Hardened Industrial 100Base-FX Multi-Mode SC Fiber Converter; (2km; 1.2 Miles); IP40 Rated Housing; TI-F10SC
Brand: TRENDNet
SKU: 2W4190
Price: 68.68 USD
Availability: InStock

TRENDNet

PCN#

2W4190

MFG#

TI-F10SC

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$68.68

Extended & Accidental Damage Product Replacement Plan Available Details

2-Year $23.99

1-Year $17.99

Estimated Shipment:

Product Highlights:

Hardened Industrial 100Base
FX Multi
Mode SC Fiber Converter (2 km, 1.2 mi.)

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 1 lbs.

TRENDnet Hardened Industrial 100Base-FX Multi-Mode SC Fiber Converter, (2km, 1.2 Miles), IP40 Rated Housing, TI-F10SC,Black,Lifetime Protection

Overview

Tech Specs

Specifications

Manufacturer	TRENDnet
Manufacturer Part Number	TI-F10SC
Manufacturer Website Address	http://www.trendnet.com
Brand Name	TRENDnet
Product Model	TI-F10SC
Product Name	Hardened Industrial 100Base-FX

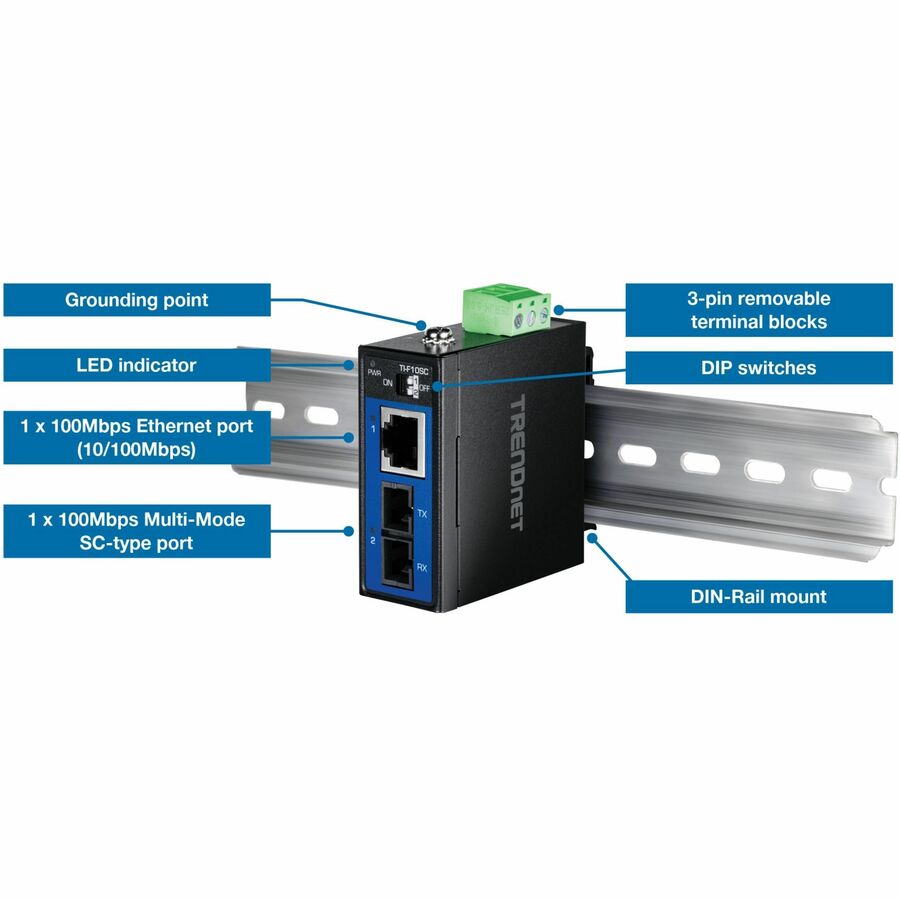

Marketing Information	TRENDnet's Industrial 100Base-FX Multi-Mode SC Fiber Converter (2 km, 1.24 mi.), model TI-F10SC, is a reliable IP50 rated multi mode SC-type media converter with hardened components rated for extreme industrial environments and spans distances up to 2km (1.24 mi.). The front panel DIP switches control Link Fault Pass Through (LFPT), and setting the device to switch/converter mode. DEVICE INTERFACE: 1 x 100Mbps Ethernet port (10/100Mbps); 1 x 100Mbps Multi-Mode SC-type port; 3-pin Removable Terminal Block; LED Indicators; DIP Switch NDAA + TAA COMPLIANT: With NDAA and TAA compliant products, you can plan and install the networking solutions that government customers demand today. (U.S. and Canada only) RELIABLE TECH SUPPORT: Our team of advisors, support and tech experts are English speaking, and available for all your needs during normal business hours. We take pride in being there for our customers. DIP SWITCHES: (1) LFPT (Link Fault Pass Through) on/off (default ON); (2) Converter and Switch mode on/off (default Converter mode) POWER SUPPLY SOLD SEPARATELY: Powers supply sold separately (model: TI-M6024) INDUSTRIAL HARDENED DESIGN: Rugged IP50 Rated housing with an extreme operating temperature range of -40° - 75° C (-40° - 167° F) allows for installations in industrial environments with intense hot or cold conditions SURGE PROTECTION: 6kV Ethernet surge protection DIN RAIL & WALL MOUNTS INCLUDED: IP50 rated metal enclosure with included DIN-rail and wall mount hardware GROUNDING POINT: Grounding point protects equipment from external electrical surges ELECTRO MAGNETIC COMPLIANCE: Complies with industrial EMS certifications ESD (IEC 61000-4-2); Contact: 6kV, Air: 8kV; EFT (IEC 61000-4-4): Power 2kV, Signal: 2kV; Surge (IEC 61000-4-5): Power: 2kV, Signal: 2kV
Product Type	Transceiver/Media Converter
Product Condition	New

Interfaces/Ports

Total Number of Ports	1
Network (RJ-45)	Yes
DVI	No
USB	No
Management Port	No
Number of Network (RJ-45) Ports	1
Number of SC Ports	1

Media & Performance

Media Type Supported	Optical Fiber Twisted Pair
Fiber Mode Supported	Multi-mode
Fiber Optic Cable Wavelength	1310 nm
Maximum Distance Supported	2 km
Fiber Optic Cable Core/Cladding Specification	62.5/125 µm 50/125 µm

Network & Communication

Ethernet Technology	Fast Ethernet
Network Technology	100Base-FX 10/100Base-T

Power Description

Power Source

Power Supply

Physical Characteristics

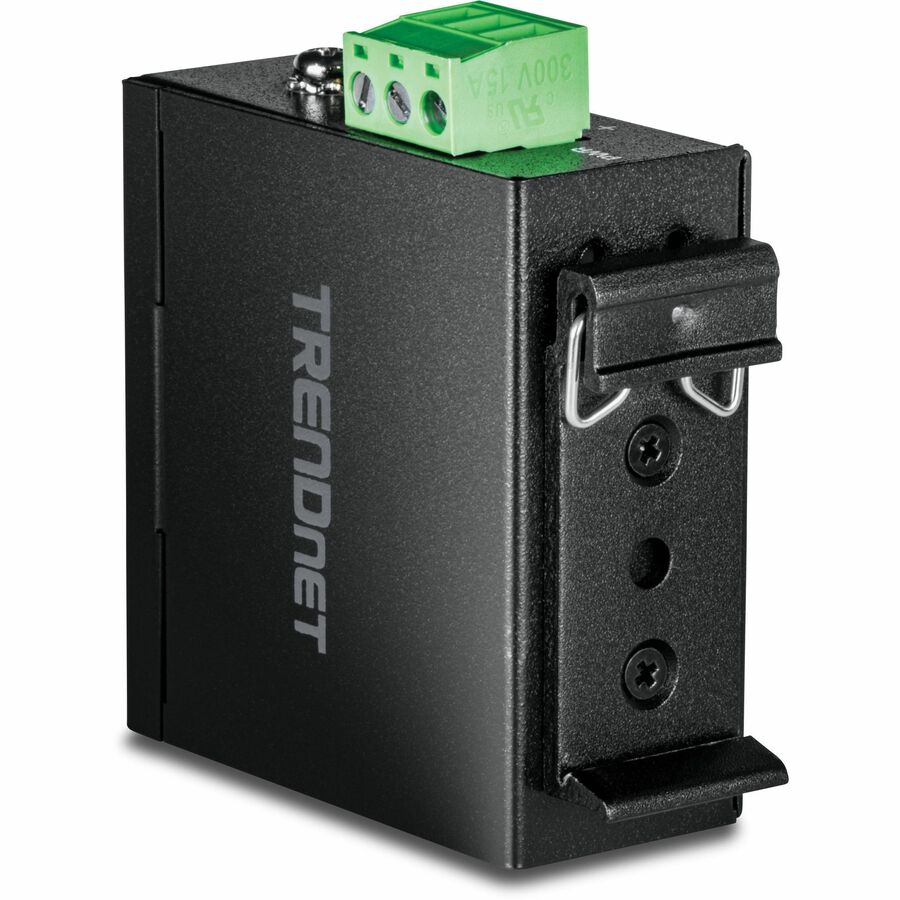

Form Factor	Rail-mountable Wall Mountable
Height	3"
Width	5"
Depth	10"
Weight (Approximate)	1.49 lb

Miscellaneous

Package Contents	Hardened Industrial 100Base-FX Multi-Mode SC Fiber Converter (2 km, 1.2 mi.) Quick Installation Guide Removable terminal block DIN-rail / wall mount kit
Country of Origin	Taiwan
TAA Compliant	Yes
NDAA Compliant	Yes

Warranty

Limited Warranty

3 Year
