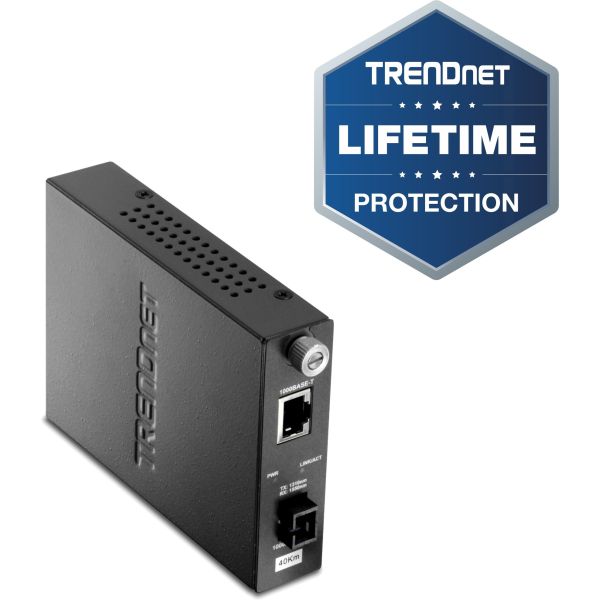

TRENDnet Intelligent 100Base-TX to 100Base-FX Dual Wavelength Single Mode SC Fiber Media Converter (40 km / 24.9 miles); RJ-45 port; Fiber to Ethernet Converter; Lifetime Protection; TFC-110S40D5i

• Must pair with TFC-110S40D3i
• Port level SNMP management support
• SC-type dual-wavelength single-mode fiber port
• 10/100Base-TX RJ-45 port

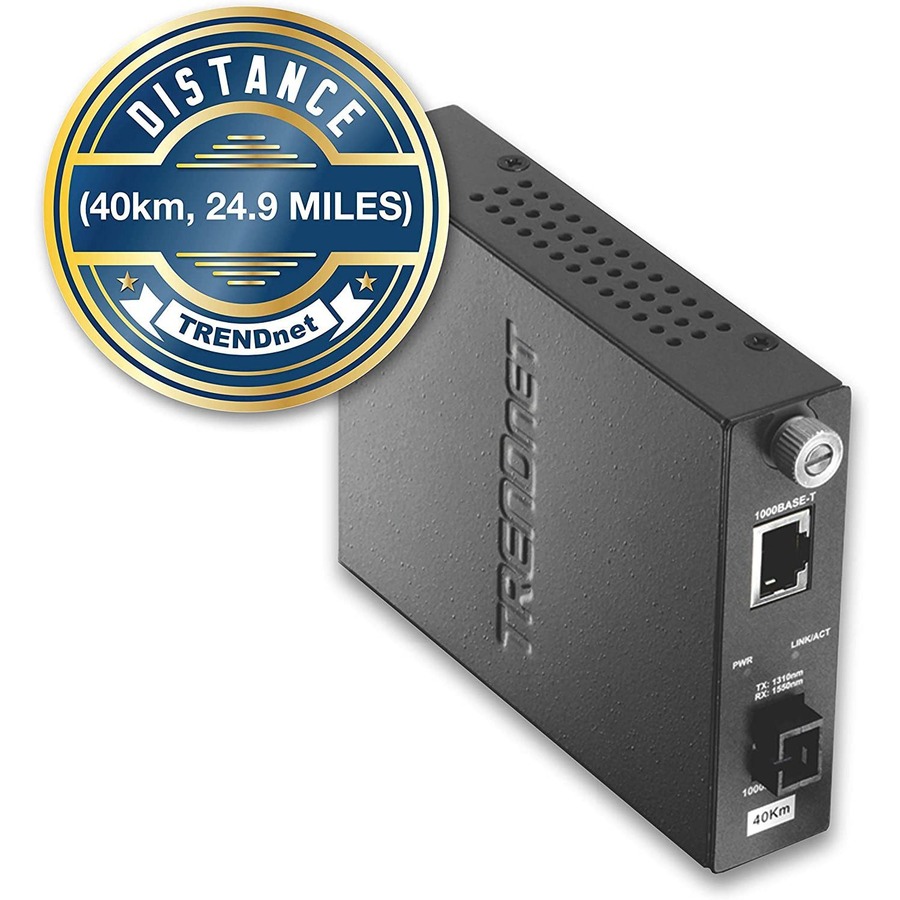

• Spans distances up to 40 km (24.9 miles)
• Functions as a standalone converter or with the TFC-1600 fiber chassis
• Lifetime TRENDnet Manufacturer's Warranty

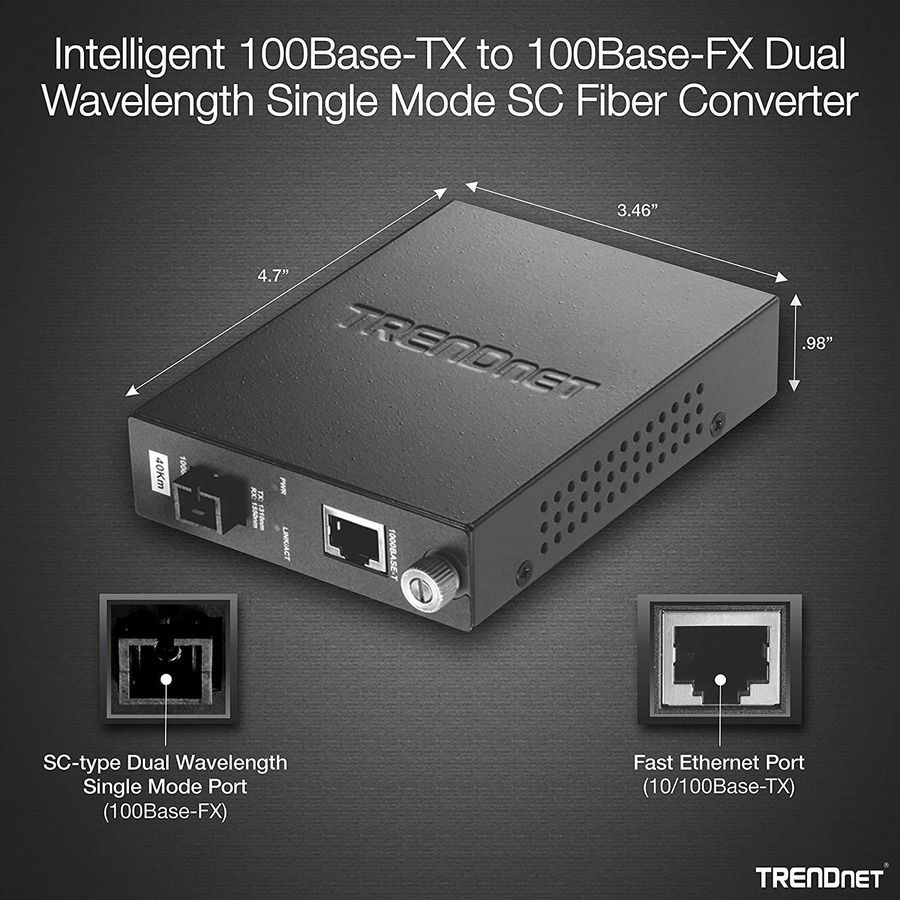

The TFC-110S40D5i intelligent fiber converter works with the TFC-1600 chassis system or as a standalone unit. This converter is a Dual Wavelength Single Mode SC-Type fiber converter that spans distances up to 40 km (24.9 miles). This module must be used with the TFC-110S40D3i module. Ports include 1 x 10/100Base-TX (RJ-45) port and 1 x 100Base-FX (SC Simplex Type) port.
Must pair with TFC-110S40D3i
Compliant with IEEE 802.3u 100Base-TX and 100Base-FX standards
1 x 10/100Base-TX RJ-45 port
1 x 100Base-FX single-mode bi-directional simplex-SC type fiber port
Supports port level SNMP management
Monitor and configure Ethernet or Fiber's duplex mode, LLR, port on / off and receive link down information via management module TFC-1600MM and chassis TFC-1600
Dip switch controls: Fiber (Full / Half-Duplex), UTP (Auto negotiation / Manual), Speed (10 Mbps / 100 Mbps),
Copper (Full / Half-Duplex), LLR (Enable / Disable), and LLCF (Enabled / Disable)
Link Loss Carry Forward (LLCF) support
Link Loss Return (LLR) support
Status LED indicators for Power and Link / Activity
Removable metal enclosure
Wall mountable

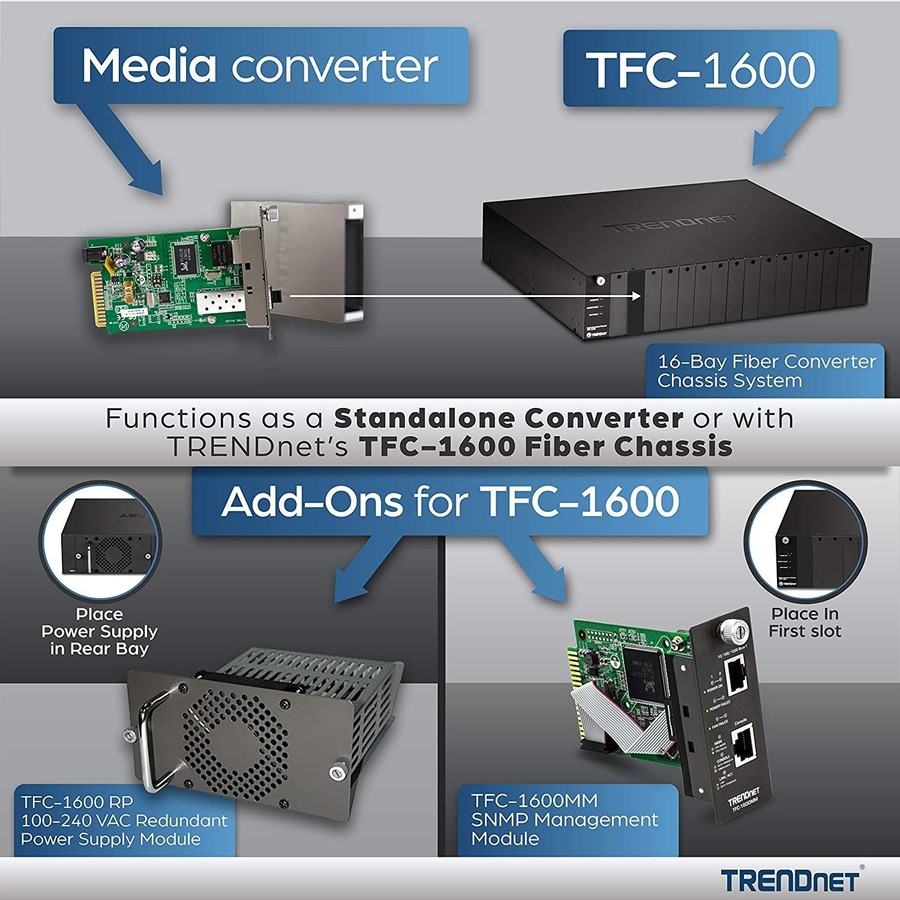

Functions as a standalone converter or with the TFC-1600 fiber chassis
Lifetime TRENDnet Manufacturer's Warranty


PACKAGE CONTENTS
TFC-110S40D5i
Multi-Language Quick Installation Guide
Power adapter (5 V DC, 1 A)

• Twisted Pair
• Optical Fiber

• 10/100Base-TX
• 100Base-FX

• Desktop
• Wall Mountable

• TFC-110S40D5i Media Converter
• Multi-Language Quick Installation Guide
• Power Adapter (5 V DC, 1 A)

TRENDnet TFC-1600 Media Converter Chassis

• CE
• FCC
• IEEE 802.3
• IEEE802.3u

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)
