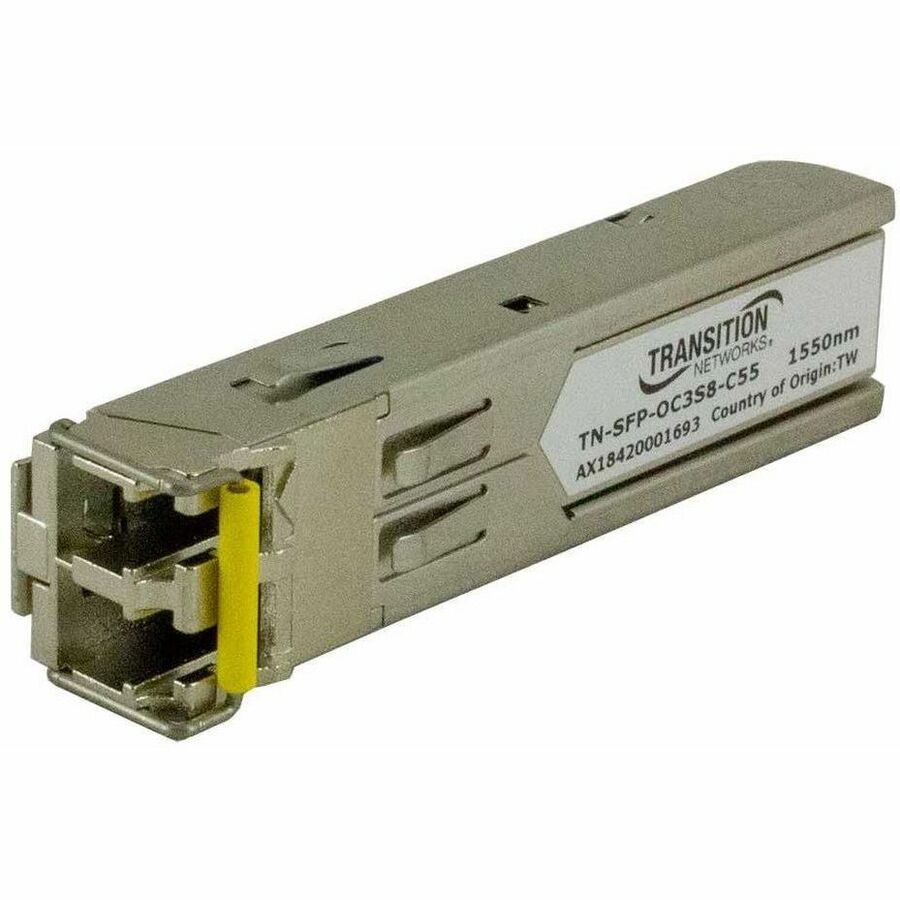

Transition Networks TN-SFP-OC3S8-C55 SFP Transceiver

Name: Transition Networks TN-SFP-OC3S8-C55 SFP Transceiver
Brand: TRANSITION NETWORKS - LANTRONIX
SKU: BX8517
Price: 480.46 USD
Availability: InStock

TRANSITION NETWORKS - LANTRONIX

PCN#

BX8517

MFG#

TN-SFP-OC3S8-C55

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$480.46

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

For Router, Optical Network, Switch, xDSL Application, Data Networking
1 x LC Duplex 100Base
FX/OC
3 Network
Optical Fiber
Single
mode
Fast Ethernet
100Base
FX/OC
3, 100Base
CWDM
200 Mbit/s
80 km Maximum Distance
Hot
pluggable
TAA Compliant

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 1 lbs.

Lantronix TN-SFP-OC3S8-Cxx SFP Module

Overview

Tech Specs

Specifications

Manufacturer	Lantronix, Inc
Manufacturer Part Number	TNSFPOC3S8C55
Manufacturer Website Address	http://www.lantronix.com
Brand Name	Lantronix
Product Series	TN-SFP-OC3S8-Cxx
Product Name	TN-SFP-OC3S8-Cxx SFP Module
Product Type	SFP

Technical Information

Application/Usage

Router
Optical Network
Switch
xDSL Application
Data Networking

Interfaces/Ports

Total Number of Ports	1
Connector Type	LC
Interfaces/Ports Details	1 x LC Duplex 100Base-FX/OC-3 Network

Media & Performance

Media Type Supported	Optical Fiber
Fiber Mode Supported	Single-mode
Ethernet Technology	Fast Ethernet
Network Technology	100Base-FX/OC-3 100Base-CWDM
Maximum Distance Supported	80 km
Maximum Data Transfer Rate	200 Mbit/s

Environmental Conditions

Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	158°F (70°C)

Power Description

Input Voltage

3.3 V

Physical Characteristics

Form Factor	Hot-pluggable
Height	0.3"
Width	0.5"
Depth	2.2"

Miscellaneous

Compatibility	MSA Compliant
Country of Origin	Taiwan
TAA Compliant	Yes
Environmentally Friendly	Yes
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty

Limited Warranty

Lifetime
