MANAGED SWITCH W/ 8 10/100/1000BASE-T PORTS W/ 4 POE+ P

MANAGED GIGABIT ETHERNET POE++ SWITCHES INTEGRATED WITH PERCEPXION™ SOFTWARE

8 (10/100/1000BASE-T) ports with 4 PoE+ ports and 4 PoE++ ports & 2 Combo 100/1000 RJ-45/SFP ports

These Managed PoE++ Switches come integrated with the Lantronix cloud-based Percepxion™ software platform, providing comprehensive device life cycle management, enterprise application integration, and data

analytics, all through a single pane of glass. With advanced Layer 2 features and a simple to navigate user interface, these switches offer performance and reliability at a cost-effective, secure, and reliable solution for the network edge. Utilizing PoE enables users to connect, power and manage devices using a single Ethernet cable; simplifying installation and eliminating the need for additional power outlets. These switches also include DMS, is accessible by Percepxion, or the local web manager, providing advanced configuration and management of all IP addressable devices in the network. This advanced management provides a graphical network topology, floor map creator, device map view, traffic monitoring, and network diagnostics for troubleshooting.

• Energy Efficient Ethernet (IEEE 802.3az) Save power and reduce total cost of ownership while building a green Ethernet networking environment.
• IEEE 802.3at/af/bt Switch provides up to 90 Watts per port and automatically detects PoE devices and their power class to simplify PoE deployments.
• Always on PoE Always on PoE ensures there is always PoE power to the attached PDs so a reboot or firmware upgrade to the switch will not disrupt power to the PDs allowing camera or wireless access points to continue functioning.
• Advanced PoE Management Includes PoE++ options to power IP devices with power-saving features like Power scheduling, PoE configuration, and Auto Power Reset to automatically monitor and reboot PD when no response to ICMP is received.
• Extended Mode PoE Support PoE beyond the 100-meter limitation. With extended mode PoE the power output can cover a distance up to 250 meters at 10Mbps.
• Map Views Topology Maps - Automatically creates map that provides end-to-end visibility of attached PDs with remote access into each device. Floor Maps - Import building / floor maps into switch and place switches, cameras, access points, and other devices on map for complete visibility of networking equipment. Google Maps™ - Utilize Google Maps™ to located devices by state, city, address.
• Cable Diagnostics Remotely run diagnostics on copper cables to check continuity and distance of the cable. Determine distance of any open or short on the cable to have faster fault resolution.

• Energy Efficient
• DHCP Relay
• DHCP Snooping

• 4 x Gigabit Ethernet PoE+
• 4 x Gigabit Ethernet PoE++
• 2 x Combo 100/1000 RJ-45/SFP Port

• Twisted Pair
• Optical Fiber

• IEEE 802.3az
• IEEE 802.3af
• IEEE 802.3at
• IEEE 802.3bt
• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3z
• IEEE 802.3ab
• IEEE 802.3x
• IEEE 802.3ad
• IEEE 802.1D
• IEEE 802.1w
• IEEE 802.1s
• IEEE 802.1Q
• IEEE 802.1p
• IEEE 802.1ad
• IEEE 802.1ab

• HTTP
• HTTPS

• Energy Efficient Ethernet (IEEE 802.3az)
• IEEE 802.3at/af/bt
• Always on PoE
• Advanced PoE Management
• Extended Mode PoE
• Topology, floor, and map views
• Cable Diagnostics
• Perception IoT Edge Solutions Platform

• 120 V AC
• 230 V

• 50 Hz
• 60 Hz

• AC
• Power Supply

• Rack-mountable
• Desktop

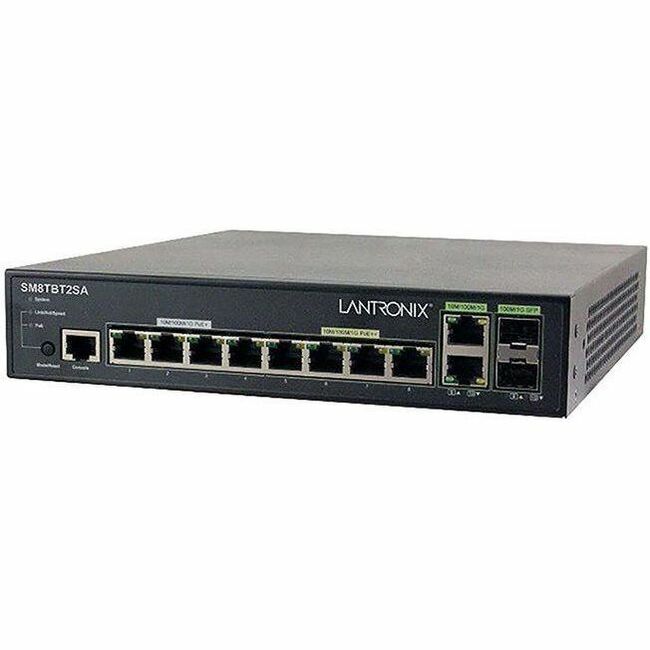

• SM8TBT2SA Managed Gigabit Ethernet PoE++ Switch
• 19" Rackmount Brackets
• Power Cord

• PoE Lighting
• Digital Signage
• Building
• Enterprise
• Network
• Security
• Surveillance
• Traffic
• Wireless Access Point
• Camera
• Server
• Router
• IP Camera
